Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD3-11-CA1H-W-S-01
|
|
Max. Current
|
10(3)A
|
|
Max. Voltage
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CQC CE ROHS
|
|
Circuit
|
SPST
|
|
Dimension Code
|
A1 (21.7x15x15.8 , 19.1x13x13)
|
|
Contact Piece Code
|
H (7.5 length, 2.2×0.6 welding type)
|
|
Color
|
Red,Yellow,Green,Black,Blue,Orange,White,Gray
|
|
Function
|
On Off
|

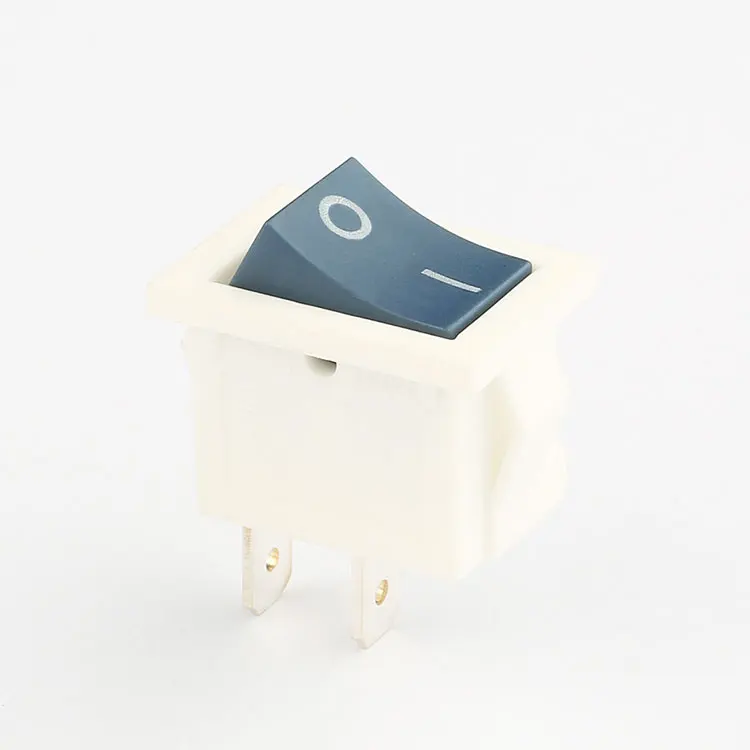

Why Choose Our KCD3 Boat Rocker Switch?
Our KCD3 Boat Rocker Switch stands out for its exceptional durability and reliability. With a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, it can withstand heavy use without failing. The switch is designed for maximum current of 10(3)A and maximum voltage of 250V AC, making it suitable for a wide range of applications. Additionally, its compact size and easy installation make it a popular choice among boat owners and electrical engineers.
Key Features of Our Switch
Our switch features a contact resistance of ≤50mΩ and an insulation resistance of ≥1000MΩ, ensuring safe and efficient operation. The dielectric strength of 1500VAC for 1 minute provides additional safety assurance. Available in multiple colors, it can be customized to match your specific needs. Whether you're looking for a reliable switch for your boat or any other application, our KCD3 Boat Rocker Switch is the perfect choice.
Wholesale Pricing & Bulk Discounts
As a factory and supplier, we offer wholesale pricing and bulk discounts on our KCD3 Boat Rocker Switch. This makes it even more cost-effective for your business, whether you're a retailer, distributor, or end-user. With our high-quality products and competitive pricing, you can trust us to meet your needs and exceed your expectations.
