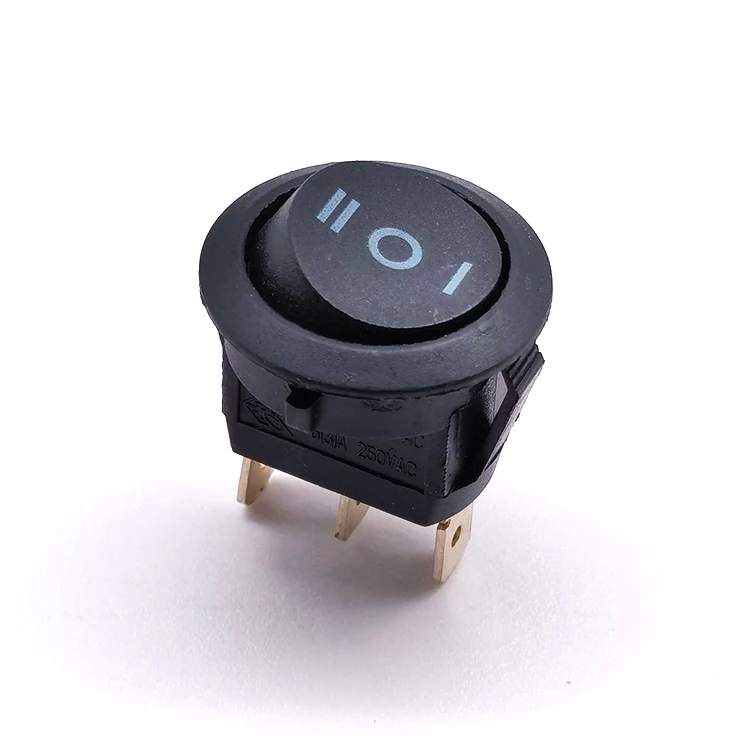

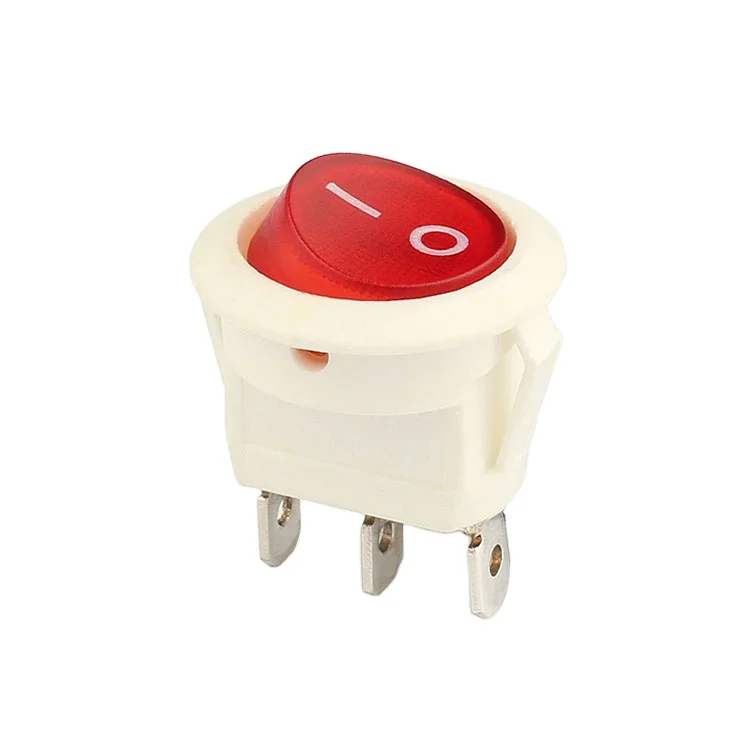

Yongxing KCD8 3-Pin LED Rocker Switch – Factory Direct Wholesale Supplier
Introducing our premium KCD8 3-pin LED rocker switch, designed for durability and reliability. As a factory direct wholesale supplier, we offer competitive prices and high-quality products.
Specifications
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1,000MΩ |
| Dielectric Resistance | 1,500V AC, 1 min |
| Electronic Life (Cycles) | 10,000 cycles |
| Operating Temperature | T55 |
| Certification | CQC, CE, UL, CB, ENEC, ROHS |
| Max. Rating Current & Voltage | 6A 250V AC |
| Mechanical Life | 50,000-100,000 cycles |
| IP Level | IP41 |
| Switch Action | ON-OFF |
| Termination Type | Pin |
| Housing Color | Black |
| LED Color | Amber, Orange, Red, Blue, Green |
Advantages
- High-quality plastic material ensures durability.
- Wide range of LED colors available for customization.
- Long mechanical life for reliable performance.
- Multiple certifications guarantee safety and compliance.
Applications
Ideal for industrial applications, electric fireplaces, boats, cars, and more.
After-Sales Service
We offer comprehensive after-sales service, including technical support and warranty coverage.
Why Choose Us?
As a factory direct wholesale supplier, we provide competitive prices, high-quality products, and excellent customer service. Our KCD8 3-pin LED rocker switch stands out for its durability, reliability, and customization options.
| Contact Resistance | ≤50mΩ rocker switches for electric fireplace |
| Insulation Resistance | ≥1,000MΩ |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles 4 pin on-off rocker switch |
| Operating Temperature | T55 rocker switch |
| Certification |
CQC , CE |
| Max. Rating Current & Voltage (CQC , CE) |
6A 250V AC |
Key Features
Our KCD8 3-pin LED rocker switch features a durable plastic housing, long mechanical life, and a wide range of LED colors for customization. It's perfect for industrial applications, electric fireplaces, boats, and cars.
Why Choose Our Switch?
As a factory direct wholesale supplier, we offer competitive prices and high-quality products. Our switch stands out for its reliability, durability, and customization options, making it the ideal choice for your needs.
After-Sales Support
We provide comprehensive after-sales support, including technical assistance and warranty coverage. Choose us for a hassle-free purchasing experience and peace of mind.
