Description

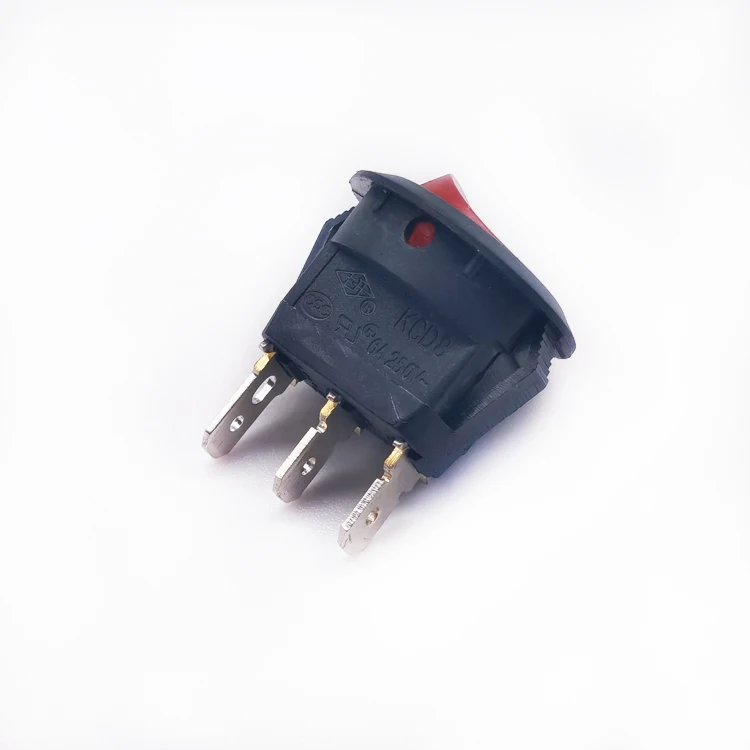

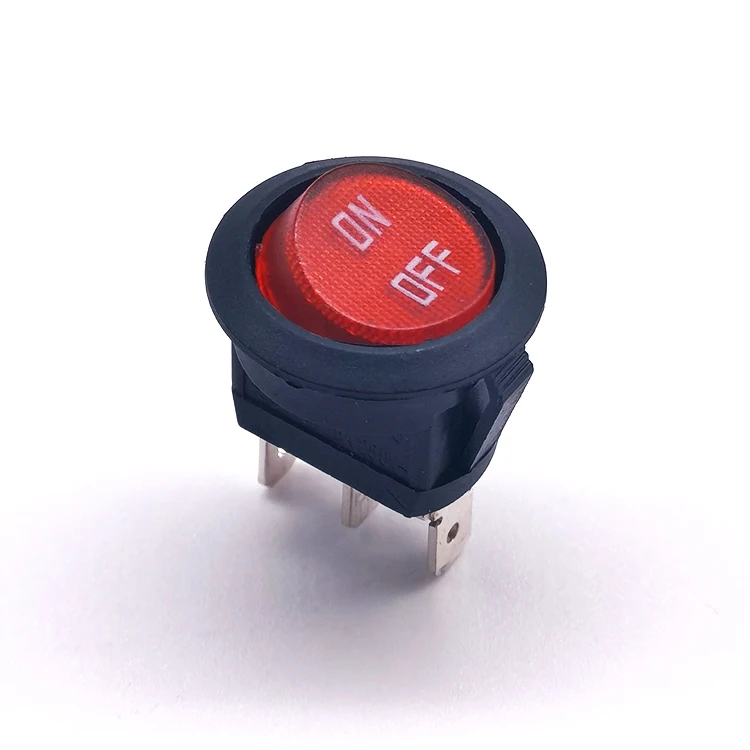

Yongxing KCD8 3-Pin Black ON/OFF Rocker Switch – Wholesale Supplier
As a leading factory and supplier, we proudly present our high-quality KCD8 3-pin black ON/OFF rocker switch, designed to meet the diverse needs of electric equipment applications. This switch stands out with its robust construction, featuring a plastic housing that ensures durability and longevity. Available in 2-pin and 3-pin configurations, it offers flexibility for various setups.
Key Specifications:
- Max. Current: 6A
- Max. Voltage: 250V AC
- Material: Plastic
- Pins: 2pin/3pin
- Switch Action: ON-OFF
- Mechanical Life: 50,000-100,000 cycles
- IP Level: IP41, IP65
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥1,000MΩ
- Electrical Life: 10,000 Times
- Certification: UL, CE, CQC, CB, ENEC, ROHS
Product Advantages:
Our KCD8 rocker switch boasts exceptional contact and insulation resistance, ensuring reliable performance under various conditions. With a mechanical life of 50,000-100,000 cycles and an IP41/IP65 rating, it offers superior durability and protection against dust and water ingress. The switch’s amber, orange-red, blue, or green LED color options add a touch of customization to your projects.
Differentiated Competitiveness:
Unlike many competitors, our switches are factory-direct, ensuring cost-effectiveness without compromising on quality. As a trusted supplier, we offer wholesale pricing and bulk order discounts, making it an ideal choice for businesses looking to save on costs while maintaining high standards.
After-Sales Service:
We stand behind our products with comprehensive after-sales service, including technical support and warranty coverage. Our dedicated team is always ready to assist you with any inquiries or issues, ensuring a smooth purchasing experience.
| Contact Resistance | ≤50mΩ rocker switches for electric fireplace |
| Insulation Resistance | ≥1,000MΩ |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles 4 pin on-off rocker switch |
| Operating Temperature | T55 rocker switch |
| Certification |
CQC , CE |
| Max. Rating Current & Voltage (CQC , CE) |
6A 250V AC |
Why Choose Our KCD8 3-Pin Rocker Switch?
Our KCD8 3-pin rocker switch is the perfect choice for electric equipment applications due to its robust construction, reliable performance, and customizable LED color options. With a mechanical life of 50,000-100,000 cycles and an IP41/IP65 rating, it offers superior durability and protection against dust and water ingress.
What Are the Key Features of Our Switch?
Key features include a max. current of 6A, max. voltage of 250V AC, and exceptional contact and insulation resistance. The switch is available in 2-pin and 3-pin configurations, offering flexibility for various setups. Additionally, it comes with UL, CE, CQC, CB, ENEC, and ROHS certifications, ensuring compliance with international standards.
How Can We Benefit from Bulk Purchasing?
As a factory-direct supplier, we offer wholesale pricing and bulk order discounts, making it an ideal choice for businesses looking to save on costs while maintaining high standards. Our comprehensive after-sales service, including technical support and warranty coverage, ensures a smooth purchasing experience.
