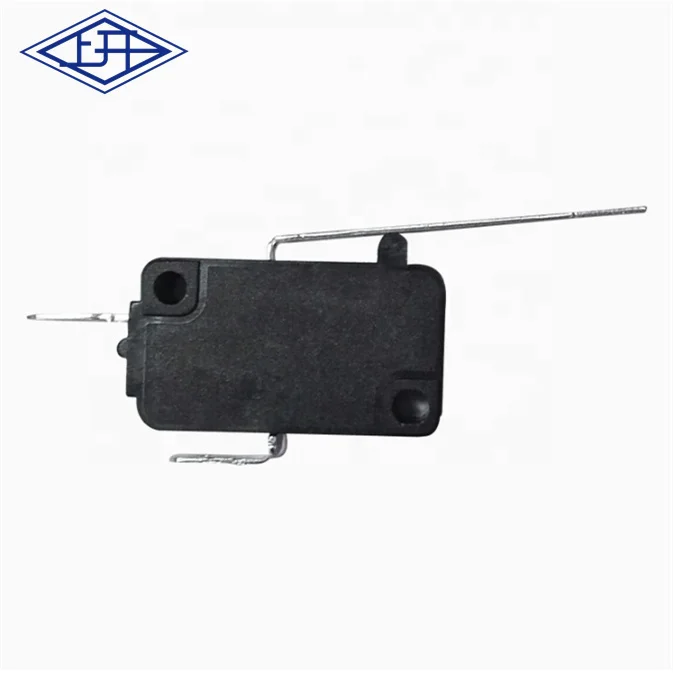

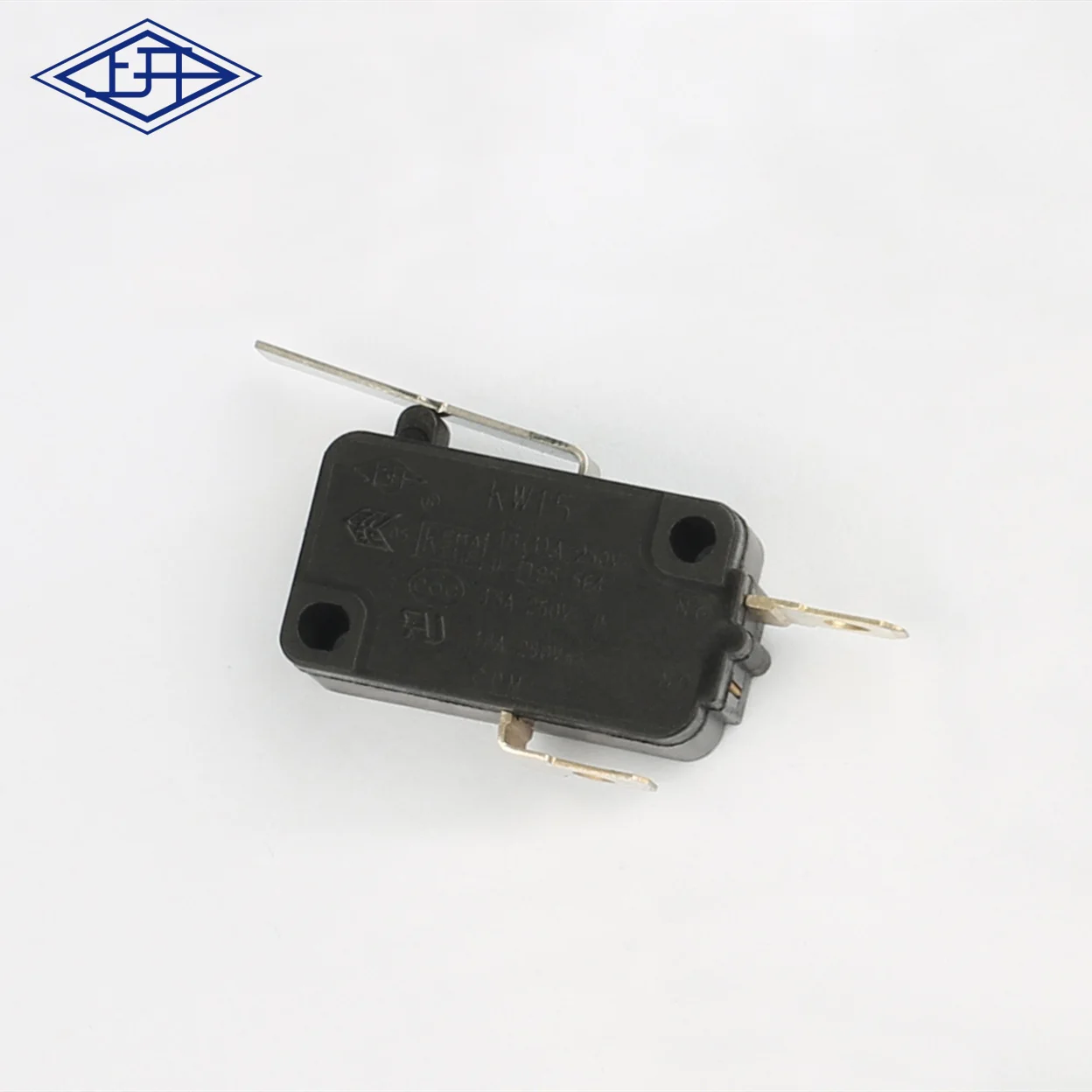

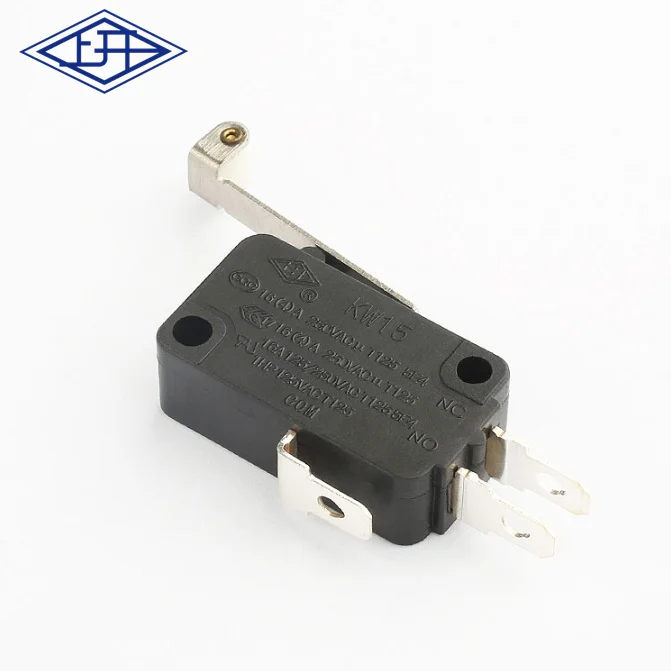

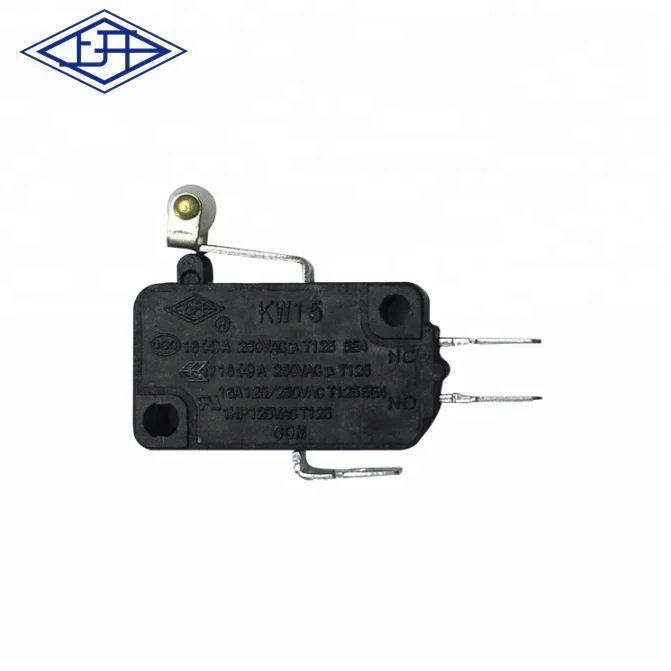

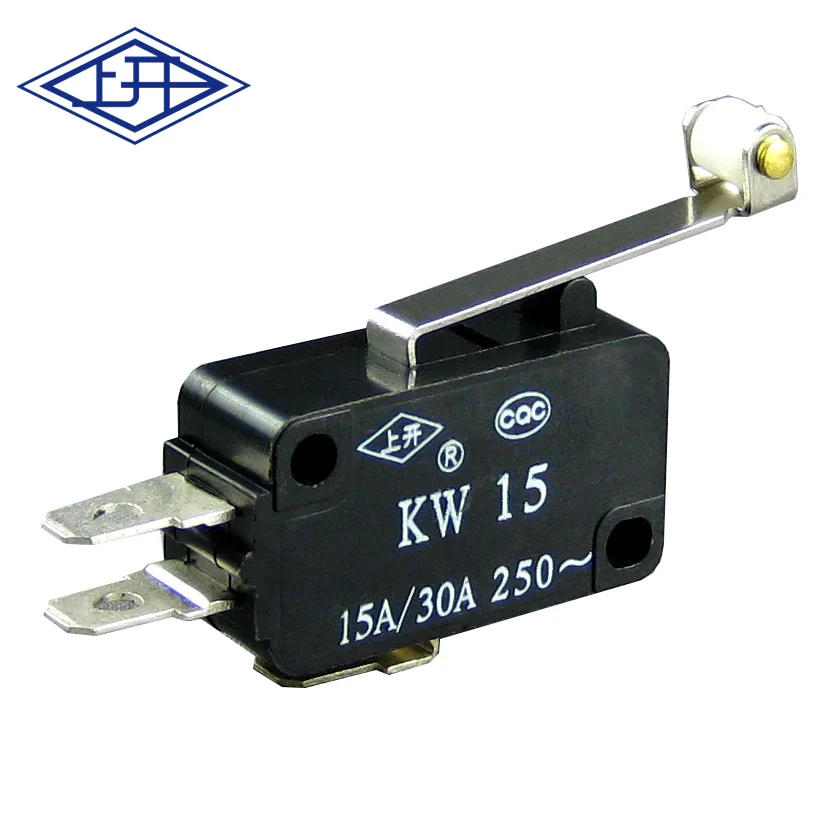

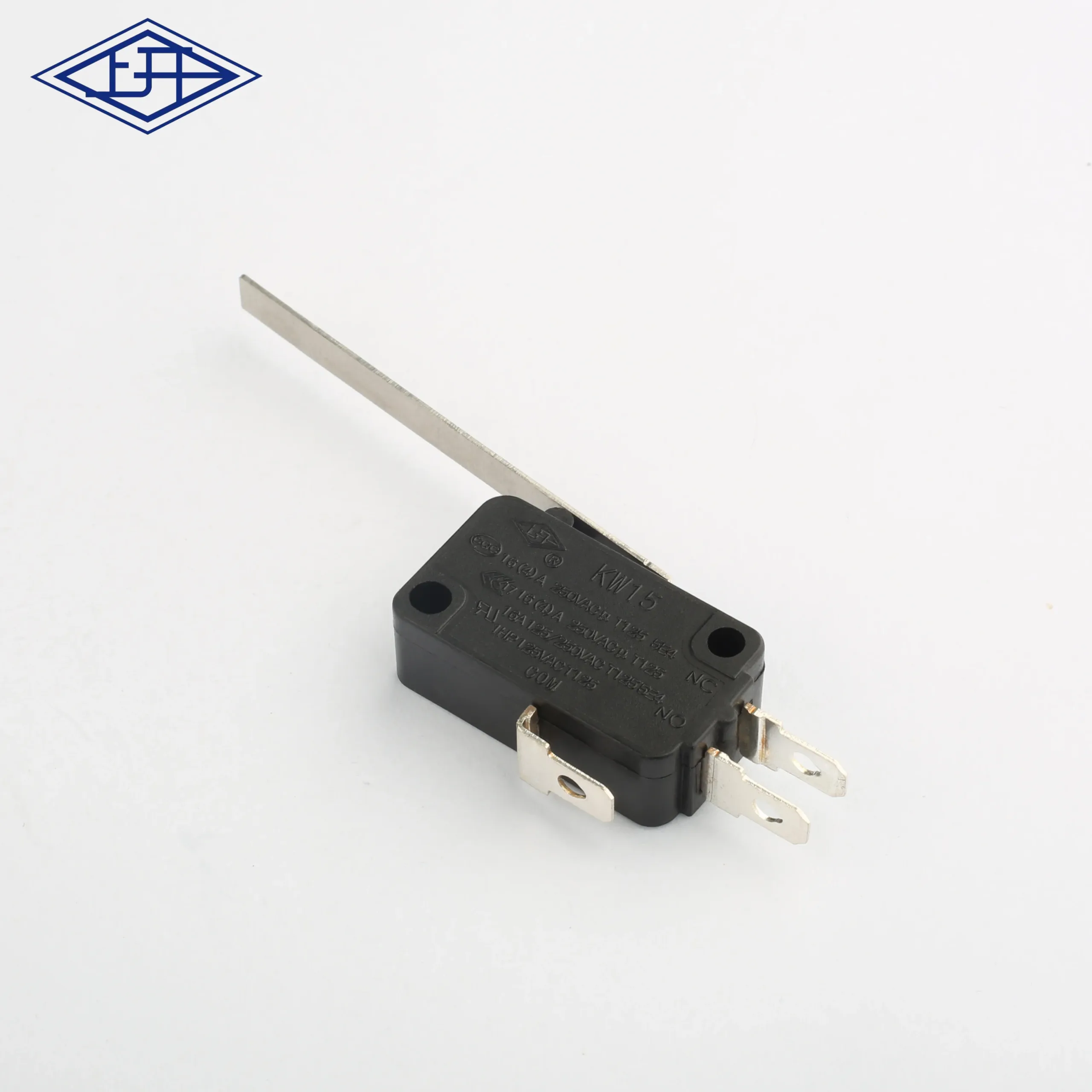

Factory Direct Wholesale KW15 Series Micro Switches with Roll Lever

500 - 1,999  pieces
$0.52

2,000 - 4,999  pieces
$0.50

>= 5,000  pieces
$0.48

0 reviews

Factory Direct Wholesale KW15 Micro Switches, High Quality, Durable.

Description

Introducing our high-quality KW15 Series Micro Switches with a convenient Roll Lever, directly from our factory in Shanghai, China. As a trusted supplier, we offer wholesale pricing on these reliable switches, perfect for a variety of applications. Our micro switches feature a contact resistance of ≤50MΩ, insulation resistance of ≥100MΩ, and a dielectric strength of 1500V, ensuring durability and safety. With an electronic life of 50,000 cycles and a max. rating of 16(4)A 250V AC, these switches are built to last. The operating temperature range of 25°C to 125°C makes them suitable for diverse environments. Our KW15 Series Micro Switches stand out with their IP40 protection level, offering resistance against dust and water ingress. As a factory-direct supplier, we provide competitive pricing and excellent customer service, ensuring your satisfaction. Choose us for reliable, high-performance micro switches that meet your needs.
contact resistance
≤50MΩ
electronic life(cycles)
50000
insulation resistance
≥100MΩ
operating temperature
25T125
dielectric strength
1500V
max.rating current & voltage
16(4)A 250V AC

Electronic component for cross-border e-commerceElectronic device for cross-border e-commerce


Why Choose Our KW15 Series Micro Switches?

Our KW15 Series Micro Switches are engineered for reliability and durability, making them ideal for a wide range of applications. With a factory-direct wholesale price, you get high-quality switches at a competitive cost. The Roll Lever design enhances usability, while the IP40 protection level ensures resistance against dust and water ingress, extending the product's lifespan.

What Makes Our Micro Switches Stand Out?

Our micro switches feature a contact resistance of ≤50MΩ, insulation resistance of ≥100MΩ, and a dielectric strength of 1500V, ensuring safe and efficient operation. With an electronic life of 50,000 cycles and a max. rating of 16(4)A 250V AC, they are built to withstand heavy use and harsh environments. Choose us for switches that offer superior performance and value.

Can We Trust Your Quality as a Factory Direct Supplier?

Absolutely! As a factory-direct supplier, we have full control over the manufacturing process, ensuring that each micro switch meets our high standards of quality. We offer excellent customer service and support, making your purchasing experience smooth and hassle-free. Trust us for reliable, high-performance micro switches that deliver on their promises.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Whether the smart

NO

Max. Current

16A

Max. Voltage

250V

Place of Origin

Shanghai, China

Brand Name

Yong Xing

Model Number

KW15-11A-B

Operating Temperature

25T125

IP level

IP40

contact resistance

≤50MΩ

insulation resistance

≥100MΩ

dielectric strength

1500V

electronic life(cycles)

50000

operating temperature

25T125

max.rating current & voltage

16(4)A 250V AC

Protection Level

IP40
