Factory Direct Wholesale LED Indicator Push Button Switch Supplier

>= 300  pieces
$0.83

0 reviews

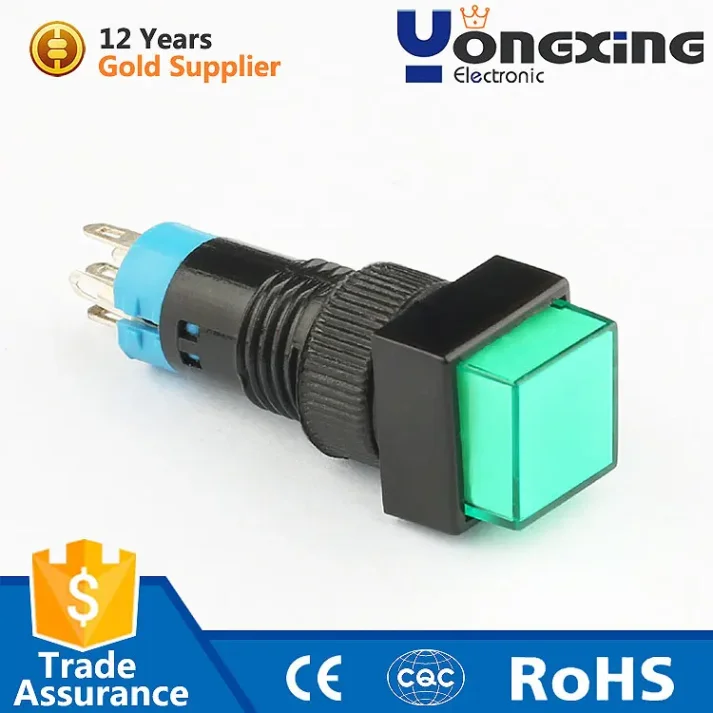

Factory Direct Wholesale LED Indicator Push Button Switch Supplier

Description

Welcome to our factory-direct wholesale store for LED Indicator Push Button Switches! As a leading supplier, we offer high-quality switches designed for low voltage applications. Our AD10-113L220-G model switch features a maximum rating of 3A/5A at 250VAC, ensuring reliable performance. The switch comes with a plastic lamp body and is available in a variety of colors including red, green, yellow, blue, orange, and white, making it suitable for various industrial and commercial uses.

Key Specifications:
– Max. Current: 3A/5A
– Max. Voltage: 250VAC
– Contact Resistance: ≤50mΩ
– Dielectric Strength: 1500V
– Operating Temperature: -5℃~+75℃
– IP Level: IP40
– Switch Combination: 1NO1NC

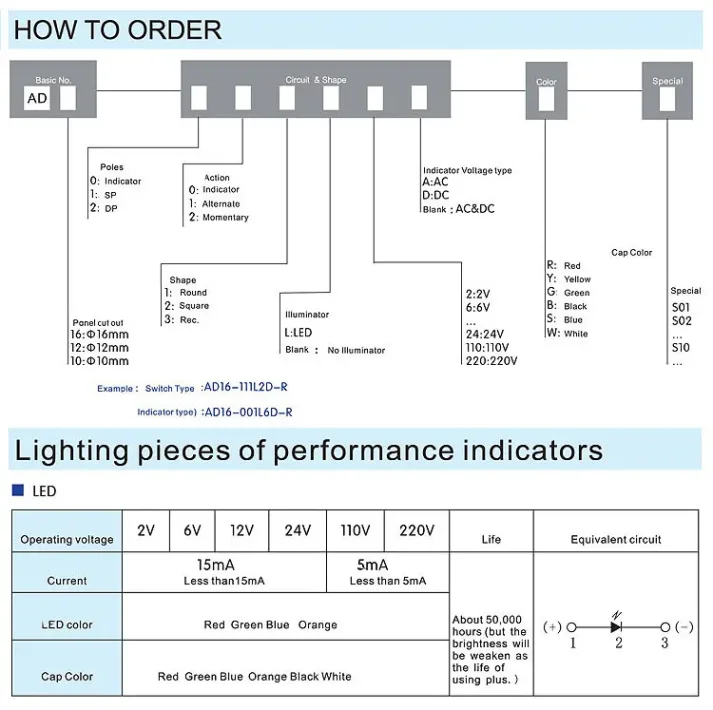

– Indication Voltage: 2V, 6V, 12V, 24V, 110V, 220V

Advantages:
– Durable plastic construction ensures longevity.
– Wide range of indication voltages for versatility.
– IP40 protection level for dust resistance.
– Factory-direct wholesale pricing for cost savings.

Our LED Indicator Push Button Switches are perfect for control panels, machinery, and any application requiring a reliable and visually appealing switch. As a trusted supplier, we offer excellent after-sales service and support. Order now and experience the difference of factory-direct quality!

Max. Rating Current& Voltage 3A 250V AC
Contact Resistance ≤50mΩ Light Switch Led Indicator
Insulation Resistance ≥100MΩ Low Voltage Light Switch

Electronic Life (cycles)

25,000-50,000
Mechanical Life (cycles) 50000-200,000
Operation temperature -5℃~+75℃ Push Button Switch
Dielectric Stength 1500V
Certification CQC CE

Electronic component board for cross-border e-commerceElectronic device module for cross-border e-commerceElectronic circuit board for cross-border e-commerceElectronic component assembly for cross-border e-commerce


Why Choose Our LED Indicator Push Button Switch?

Our LED Indicator Push Button Switch stands out for its durability, versatility, and cost-effectiveness. With a plastic lamp body and a wide range of indication voltages, it's suitable for various industrial and commercial applications. The IP40 protection level ensures dust resistance, making it ideal for harsh environments.

What Are the Key Features?

Key features include a maximum rating of 3A/5A at 250VAC, a contact resistance of ≤50mΩ, and a dielectric strength of 1500V. The switch also offers a wide operating temperature range (-5℃~+75℃) and a 1NO1NC combination for flexible wiring options.

How Does Factory-Direct Wholesale Benefit You?

As a factory-direct supplier, we offer wholesale pricing that saves you money. You get high-quality products without the middleman markup. Plus, our excellent after-sales service ensures you're supported every step of the way.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

3A/5A

Max. Voltage

250VAC

Place of Origin

Shanghai, China

Brand Name

shangkai

Model Number

AD10-113L220-G

LED

Other

Whether the smart

NO

IP level

IP40

Switch Combination

1NO1NC

Indication voltage:

2V, 6V, 12V, 24V, 110V, 220V

Color

red green yellow blue orange white Push Button Switch

Operating temperature

-5℃~+75℃

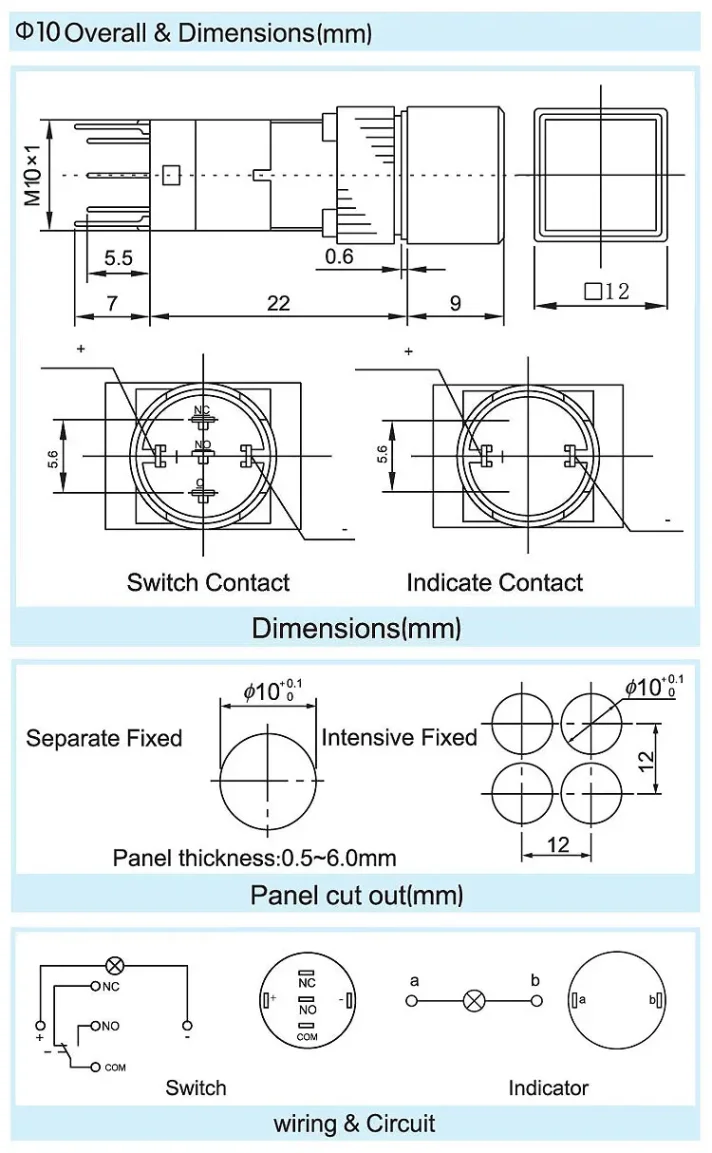

Panel cutout

10mm Light Switch Led Indicator

Lamp Body Material

Plastic Low Voltage Light Switch

Contact Resistance

≤50mΩ

Dielectric Strength

1500V

Certification

CQC CE

Protection Level

IP40
