Factory Direct Wholesale LED Push Button Switch Supplier

200 - 1,999  pieces
$0.79

2,000 - 4,999  pieces
$0.75

>= 5,000  pieces
$0.69

0 reviews

Factory direct LED push button switch supplier. Wholesale deals. Durable, reliable, and certified.

Description

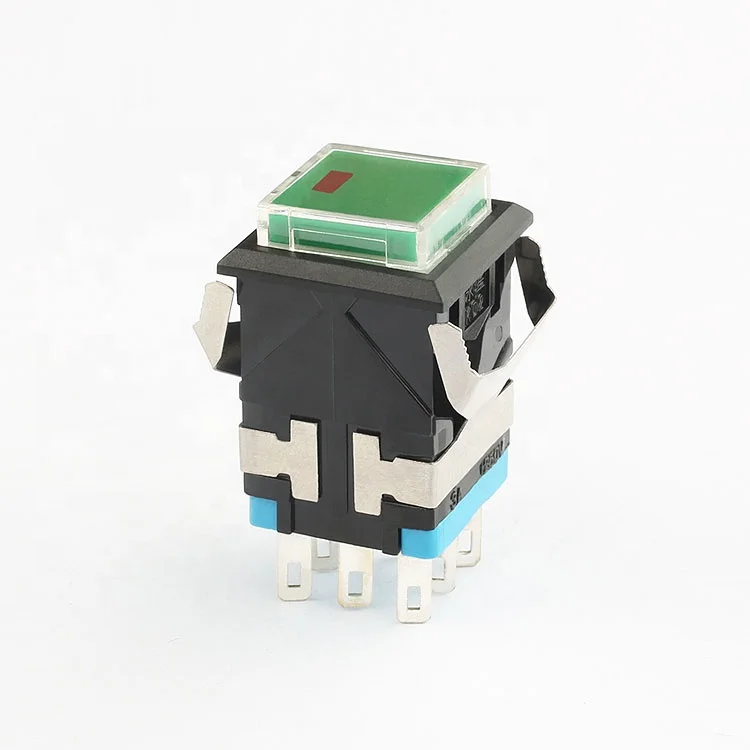

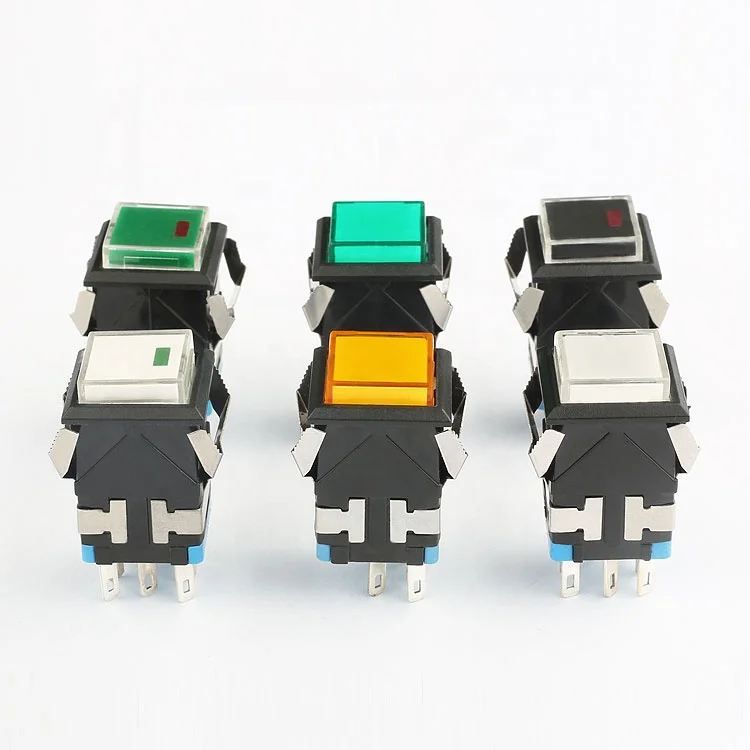

Introducing our high-quality LED Push Button Switch, a self-locking switch with illuminated DP functionality, designed to meet the diverse needs of your projects. As a factory-direct supplier and wholesaler, we offer competitive prices and exceptional quality. This switch boasts a maximum current rating of 3A and a maximum voltage of 250V AC, ensuring reliable performance in various applications. With an IP40 protection level, it is suitable for use in environments where dust protection is required. The switch features a mechanical life of 50,000 cycles and an electrical life of 10,000 cycles, providing long-lasting durability. Its compact size (17mm) and mounting hole size (17x17mm) make it easy to install and integrate into your systems. The blue color adds a touch of style, while the LED indicator provides clear visual feedback. Our switch is CQC, CE, and ROHS certified, ensuring compliance with international standards. Choose our LED Push Button Switch for its reliability, durability, and competitive pricing.
contact resistance
≤50MΩ
electronic life(cycles)
10000
insulation resistance
≥100MΩ
mechanical life(cycles)
50000
dielectric strength
1500V
operating temperature
25T55
IP code
IP40
max.rating current & voltage
3A 250V AC

Electronic component product image for cross-border e-commerce


Why Choose Our LED Push Button Switch?

Our LED Push Button Switch stands out for its self-locking functionality, LED indicator, and illuminated DP design, ensuring easy operation and clear visual feedback. It's perfect for industrial control, electrical equipment, and home automation applications.

What Are the Key Specifications?

With a maximum current rating of 3A and a maximum voltage of 250V AC, our switch offers reliable performance. Its compact size (17mm) and mounting hole size (17x17mm) make installation a breeze, while the IP40 protection level ensures durability in dusty environments.

Why Buy From Us?

As a factory-direct supplier and wholesaler, we offer competitive prices and exceptional quality. Our switch is CQC, CE, and ROHS certified, ensuring compliance with international standards. Choose us for reliable, durable, and cost-effective solutions.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

3A

Max. Voltage

250V

Place of Origin

Shanghai, China

Brand Name

Yong Xing

Model Number

KD2-B21L

LED

Yes

Whether the smart

NO

IP level

IP40

Switch Combination

1NO1NC

Certificate

CQC CE ROHS

Operation type

Self-locking

Function

2NO 2NC

Mounting hole size

17x17mm

Mechanical life

50,000 cycles

Electrical Life

10,000 cycles

Certification

CQC

Protection Level

IP40
