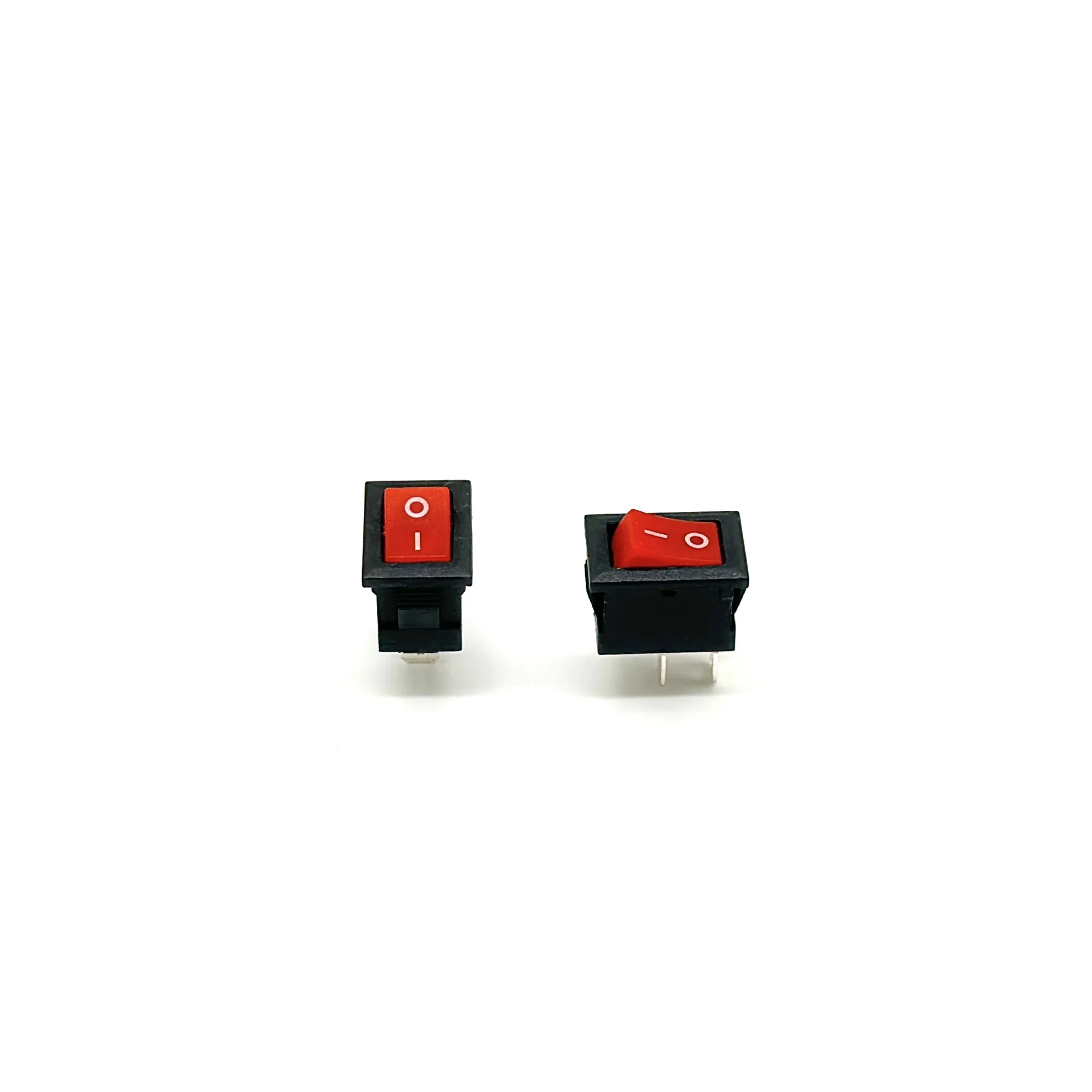

Factory Direct Wholesale Mini Rocker Switch 2A 250V AC Supplier

10 - 999  pieces
$0.11

1,000 - 9,999  pieces
$0.10

>= 10,000  pieces
$0.09

0 reviews

Factory Wholesale Mini Rocker Switch Supplier. High-quality, durable, and certified.

Description

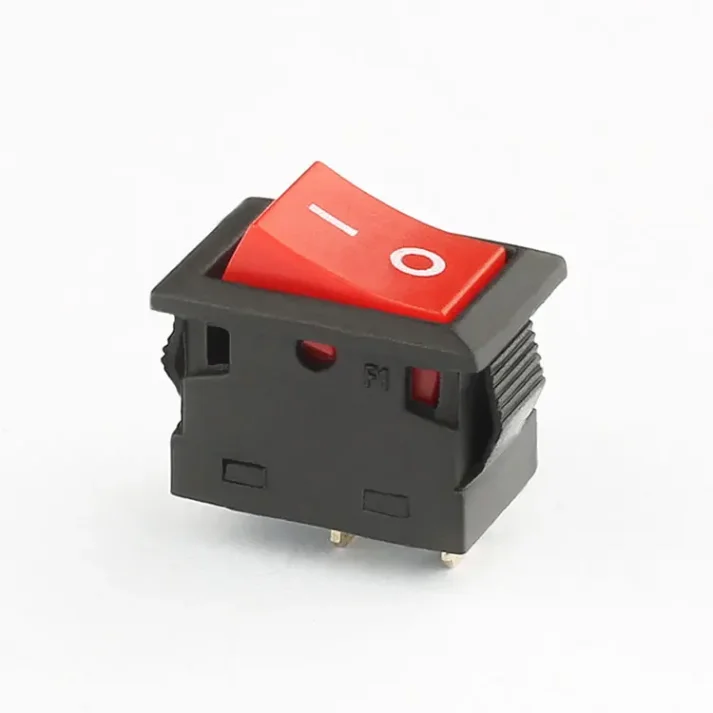

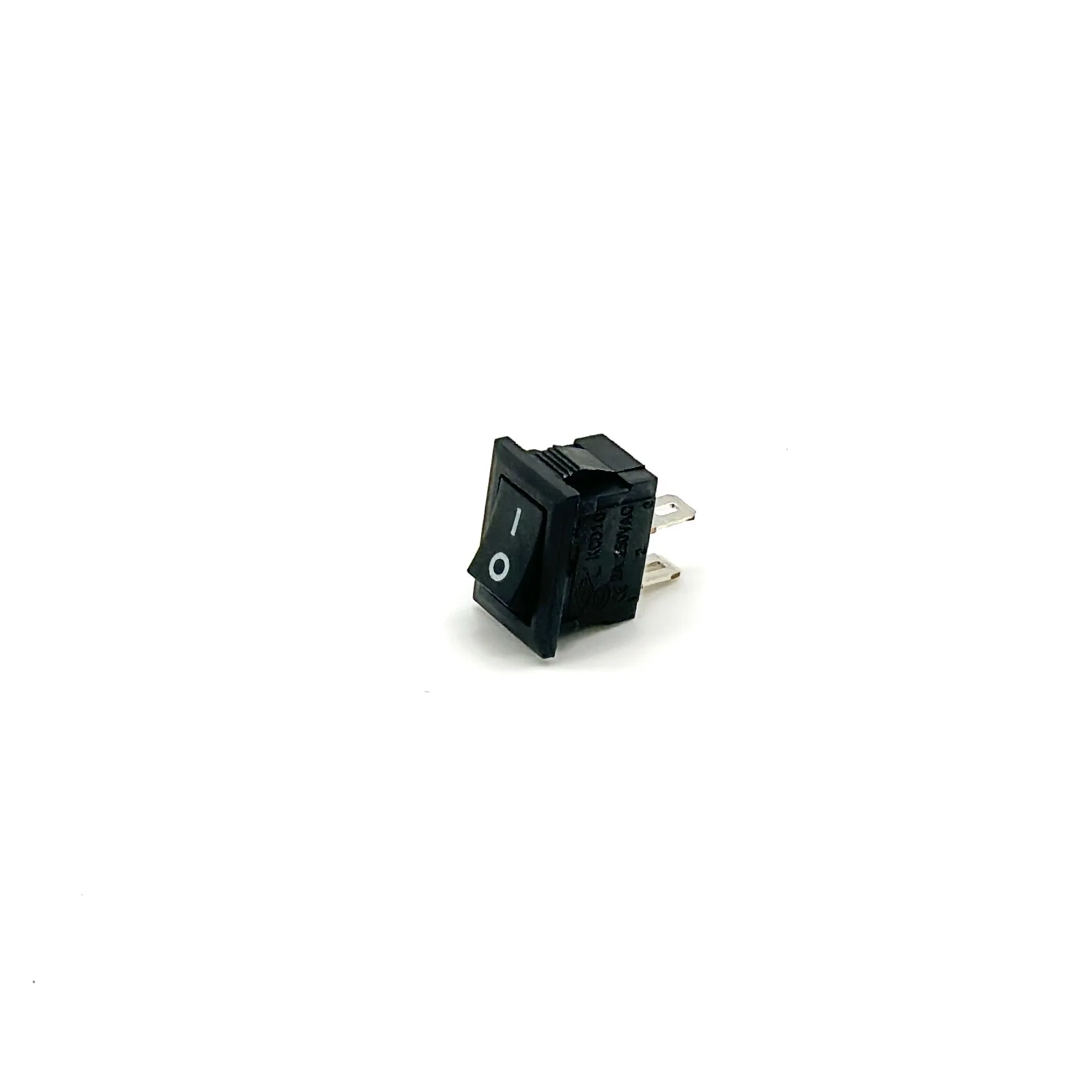

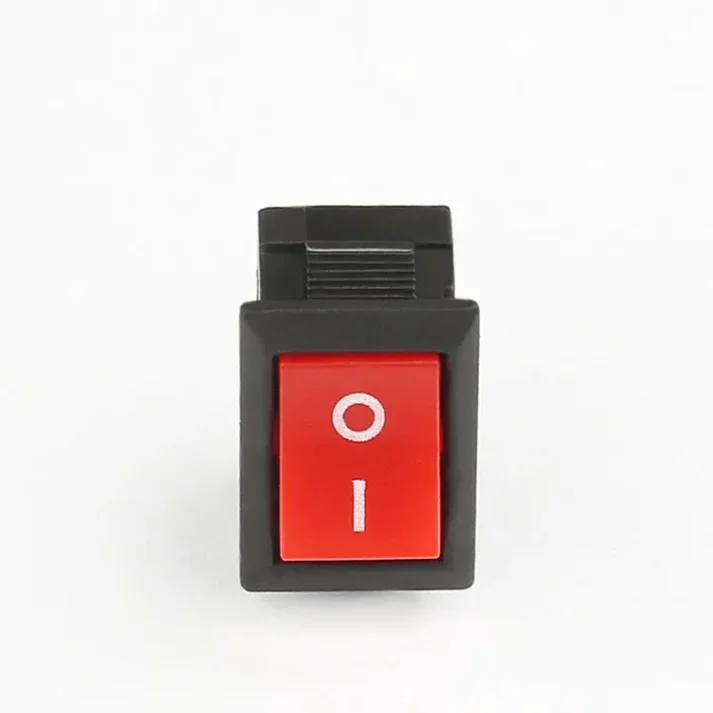

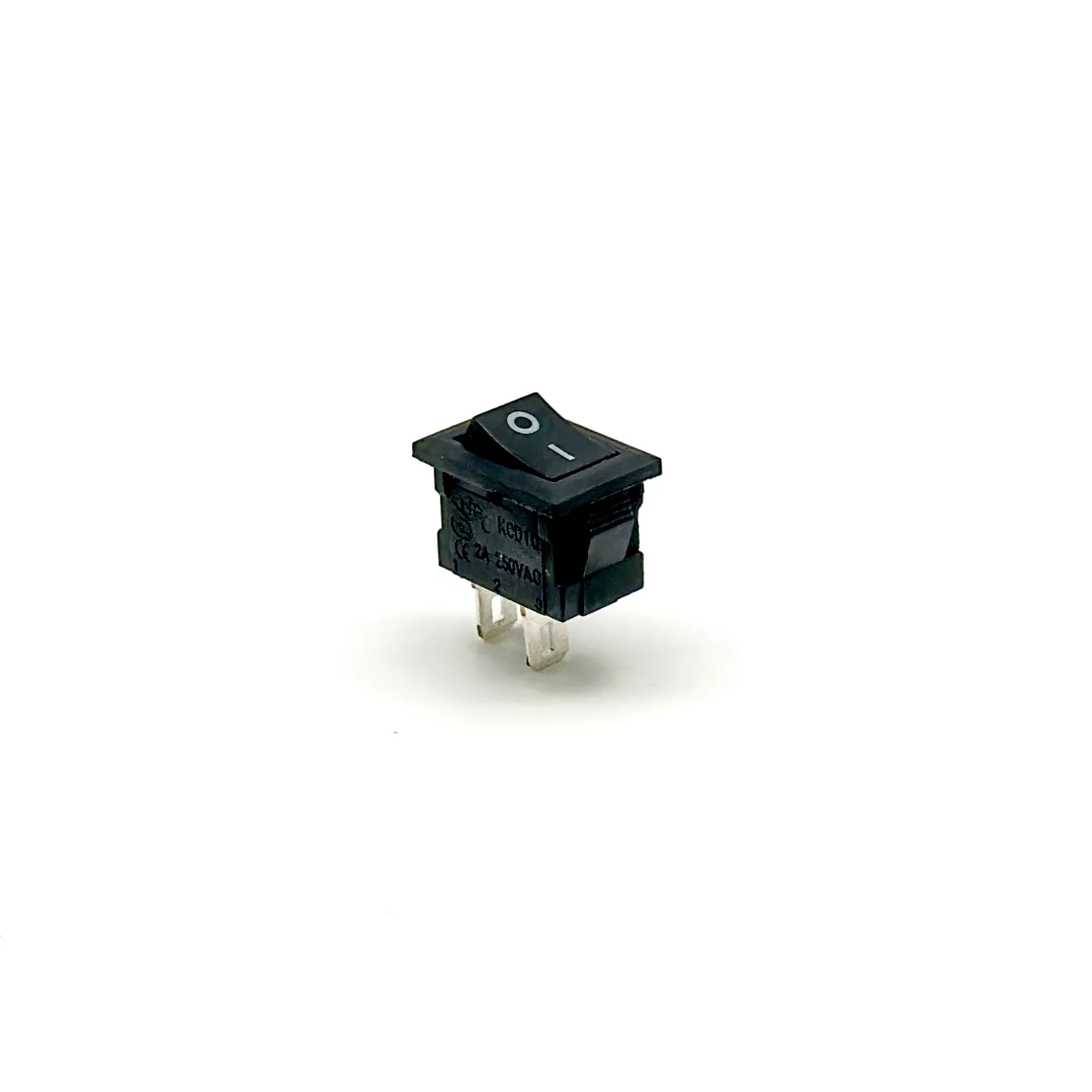

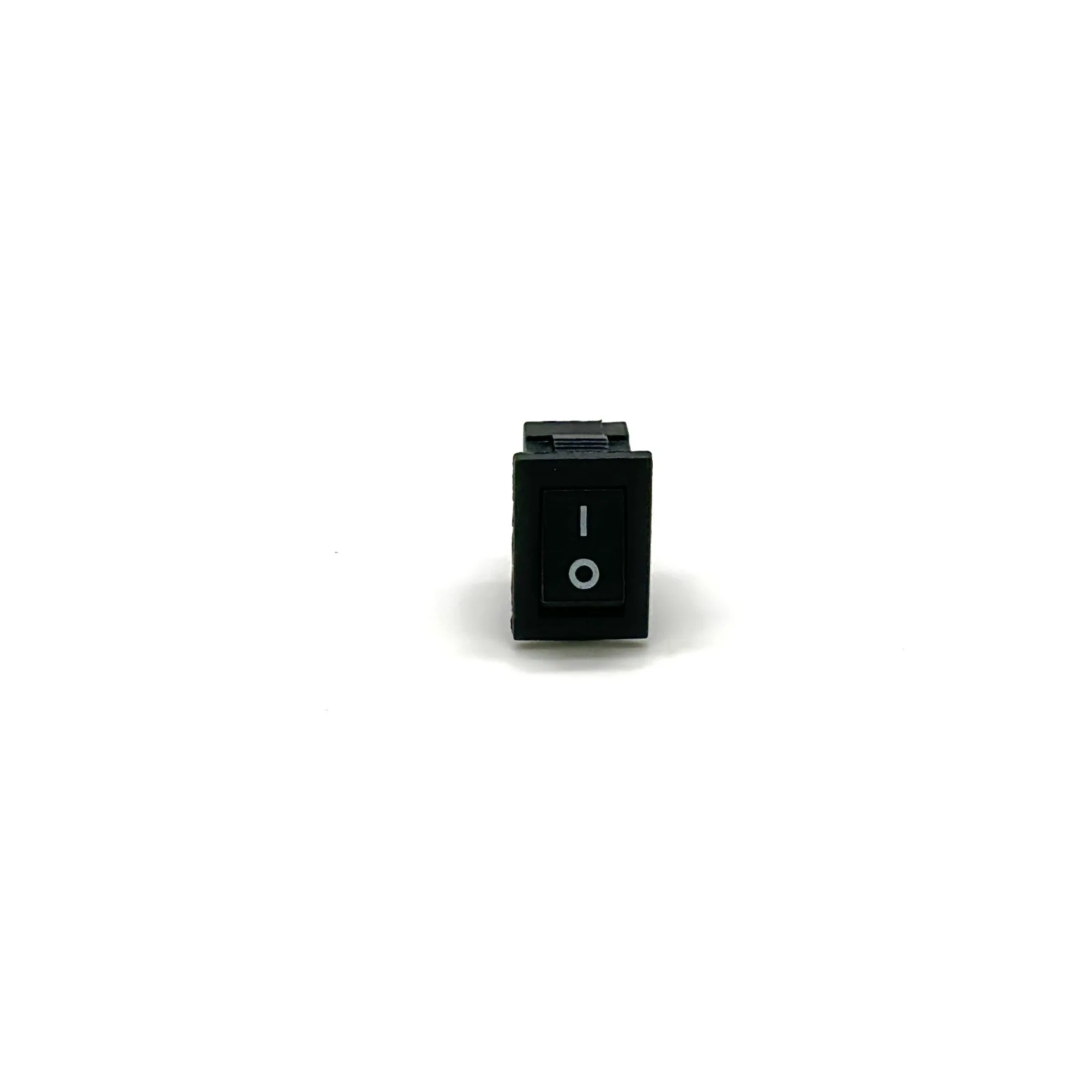

Introducing our premium Mini Rocker Switch, a top-notch electrical component designed for a wide range of applications. As a direct factory supplier offering wholesale options, we ensure high quality at competitive prices. This switch features a 2A current rating and 250V AC voltage rating, making it suitable for various electrical systems. It comes in a compact 13.8×9.1mm size, available in multiple colors including red, yellow, green, black, blue, orange, white, and gray. With a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, it guarantees durability and reliability. The switch has a contact resistance of ≤50mΩ and an insulation resistance of ≥1000MΩ, ensuring safety and efficiency. It is also CQC, CE, and ROHS certified, meeting international standards. The SPST circuit and precise dimension code A1 (15×11.8×10.4, 13.6×10.4×9) make it easy to integrate into different devices. Our switch stands out with its high dielectric strength of 1500VAC for 1 minute, providing superior performance. Whether you need it for industrial machinery, home appliances, or automotive applications, our Mini Rocker Switch is the perfect choice. We offer excellent after-sales service and support, ensuring your satisfaction.
item
value
Place of Origin
Shanghai, China
Brand Name
SK(shangkai) Yongxing
Model Number
KCD10-11-CA1A-B-R-01
Current Rating
2A
Voltage Rating
250V AC
Mechanical Life
50000 Cycles
Contact Resistance
≤50mΩ
Insulation Resistance
≥1000MΩ
Dielectric Strength
1500VAC 1 Minute
Electronic Life (cycles)
10,000
Certificate
CQC CE ROHS
Circuit
SPST

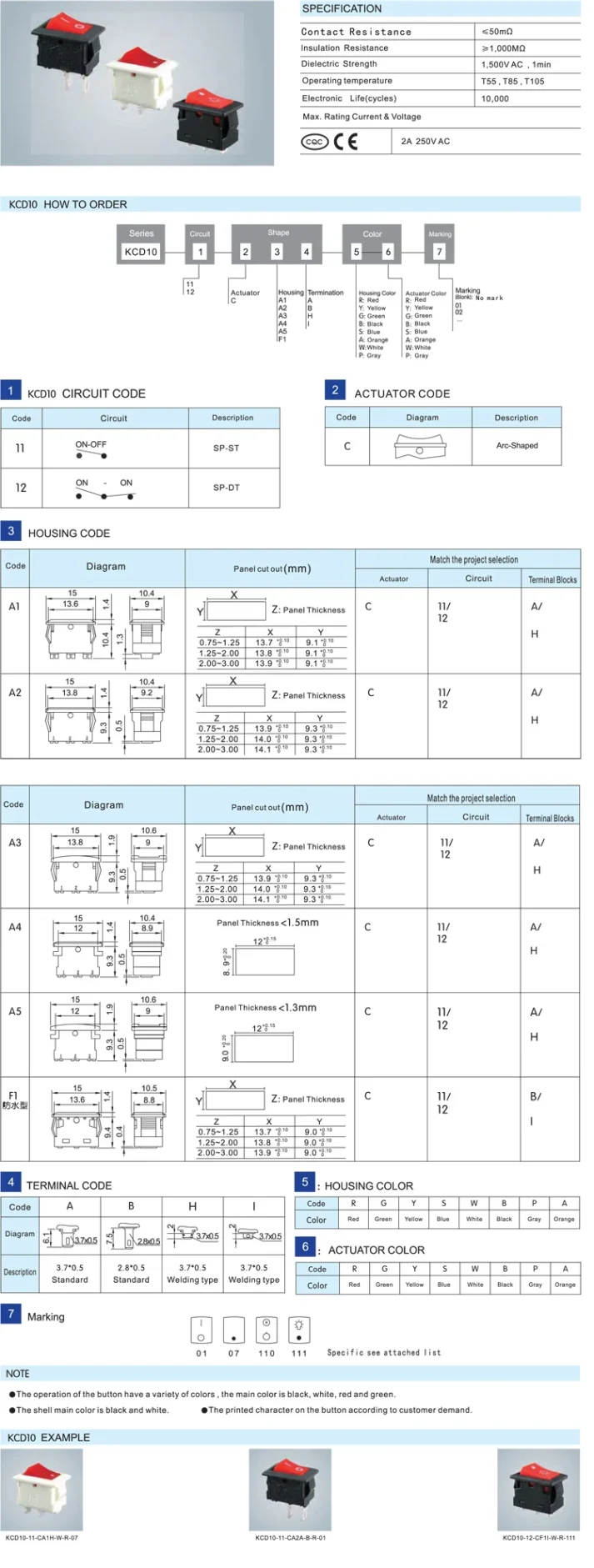

Dimension Code
A1 (15×11.8×10.4, 13.6×10.4×9)
Contact Piece Code
A(6.1 length, 3.7×0.5 standard)
Lamp voltage
6v/12v/24v/110v/220v

Electronic device accessory image for cross-border e-commerceElectronic gadget product image for e-commerceElectronic component image for cross-border e-commerceElectronic product display image for e-commerceElectronic device feature image for cross-border e-commerce


Why Choose Our Mini Rocker Switch?

Our Mini Rocker Switch is a top choice for its high quality and durability. With a 2A current rating and 250V AC voltage rating, it is suitable for a wide range of applications. The compact size and multiple color options make it versatile and easy to integrate into different devices.

What Makes Our Switch Stand Out?

Our switch stands out with its long mechanical life of 50,000 cycles and electronic life of 10,000 cycles. It also has a high dielectric strength of 1500VAC for 1 minute, ensuring superior performance and safety. Additionally, it is CQC, CE, and ROHS certified, meeting international standards.

Where Can You Use Our Mini Rocker Switch?

Our Mini Rocker Switch is perfect for industrial machinery, home appliances, automotive applications, and various electrical systems. Its compact size and reliable performance make it an ideal choice for any project requiring a high-quality on-off switch.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

2A

Max. Voltage

250V AC

Place of Origin

Shanghai, China

Brand Name

Sk(shangkai) yongxing

Model Number

KCD10-11-CA1A-B-R-01

Whether the smart

NO

Mechanical Life

50000 Cycles

IP level

IP41

Contact Resistance

≤50mΩ

Insulation Resistance

≥1000MΩ

Dielectric Strength

1500VAC 1 Minute

Electronic Life (cycles)

10,000

Circuit

SPST

Dimension Code

A1 (15×11.8×10.4, 13.6×10.4×9)

Contact Piece Code

A (6.1length, 3.7×0.5 standard)

Electrical Life

10,000 cycles

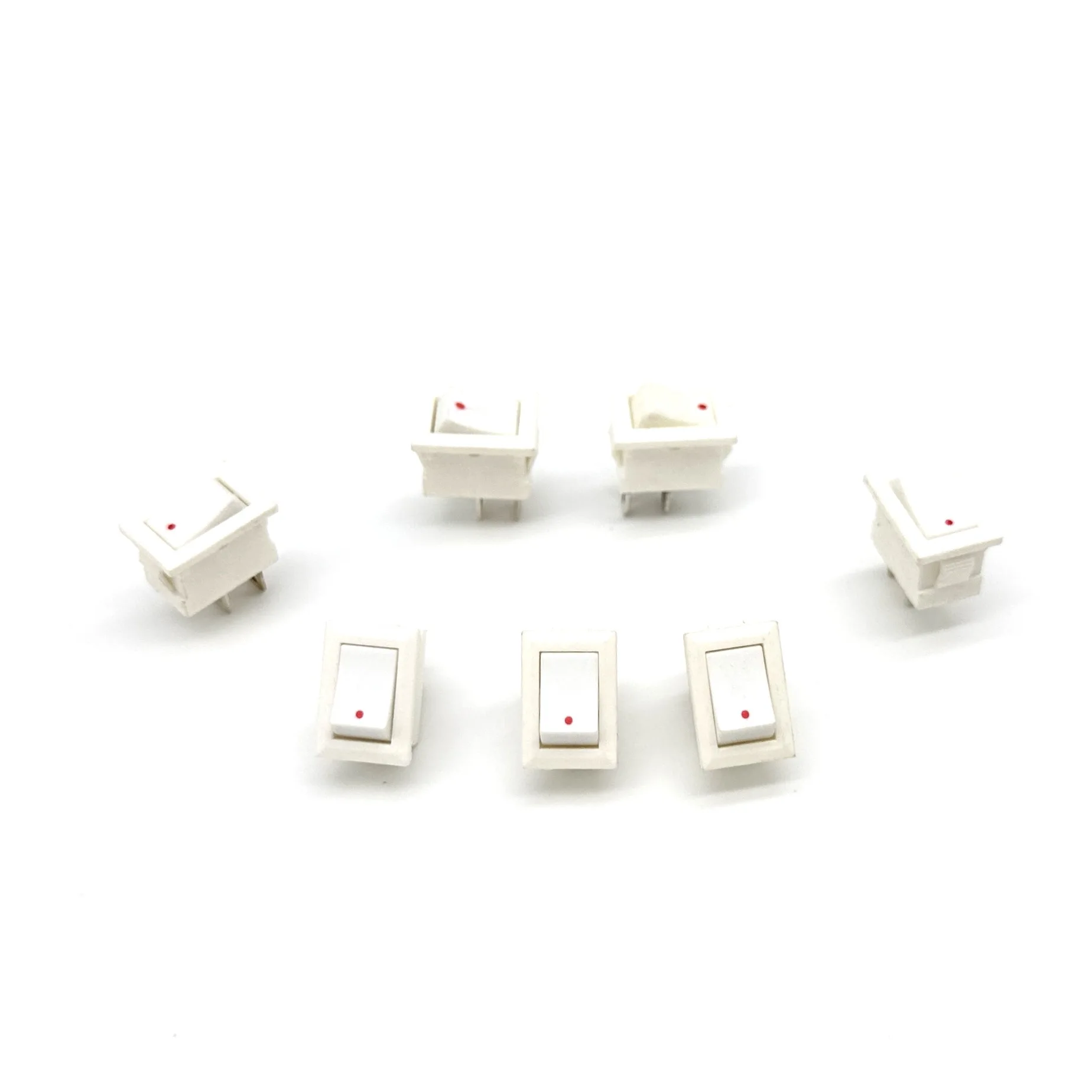

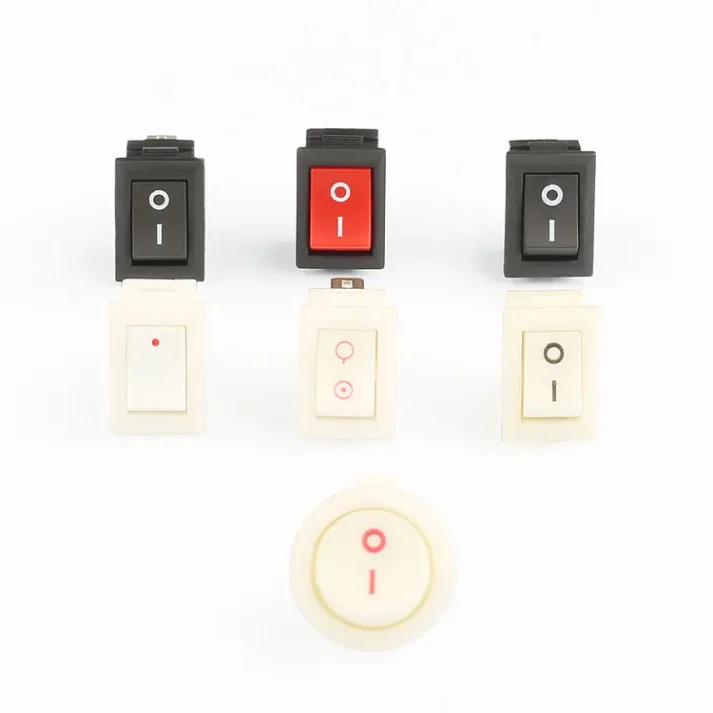

Color

red yellow green black blue orange white gray

Operating temperature

0~55℃ , 0~85℃ , 0~105℃,
