Description

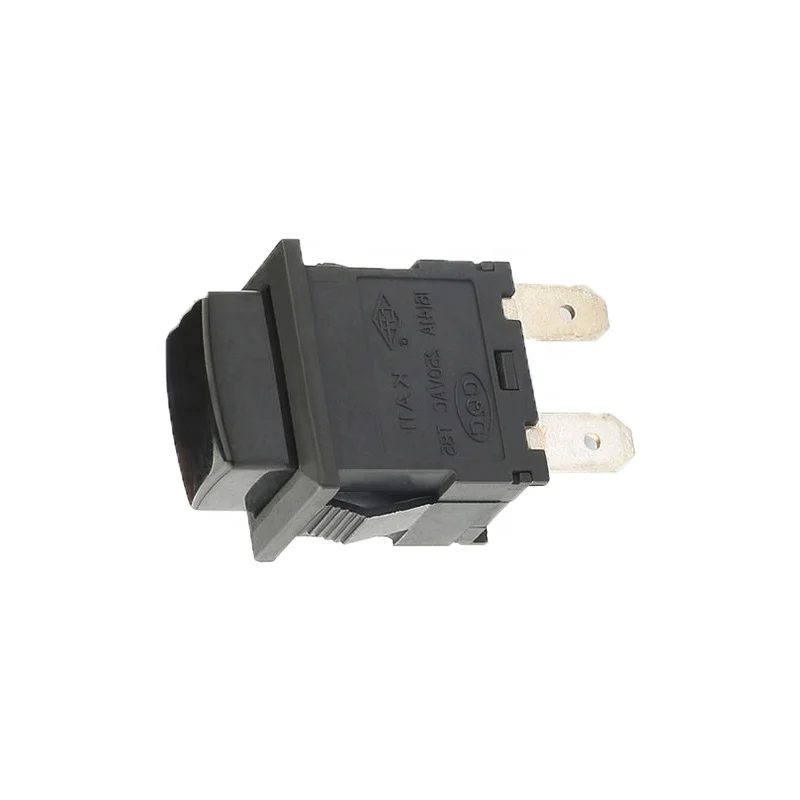

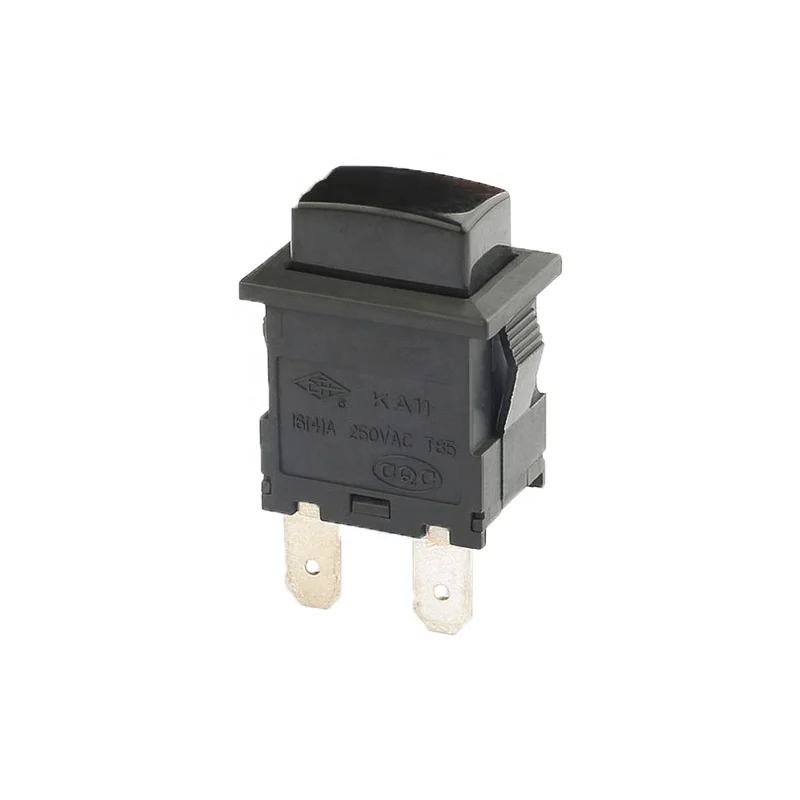

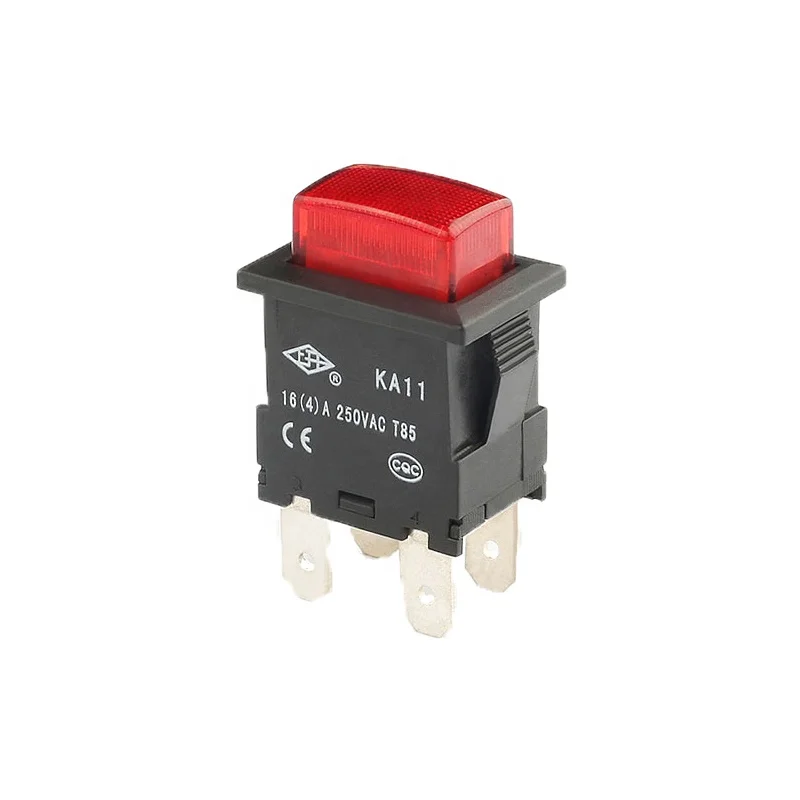

Welcome to our factory direct wholesale selection! We are proud to present the KA11 series push button switch, a high-quality, durable, and versatile product designed to meet your electrical control needs. This switch, manufactured by Yong Xing in Shanghai, China, features a robust plastic construction that ensures longevity and reliability. With a maximum current rating of 16A and a voltage rating of 250VAC, it is suitable for a wide range of applications. The switch comes with an integrated LED, providing clear visual indication of its status. It boasts a mechanical life of 50,000 cycles and an electrical life of 10,000 cycles, ensuring reliable performance over time. The contact resistance is ≤50mΩ, and the insulation resistance is ≥100MΩ, guaranteeing safety and efficiency. The switch is rated IP40, offering protection against solid objects larger than 1mm. Its operating temperature range is from 25°C to 85°C, making it suitable for various environments. We offer a variety of colors to choose from, allowing you to match the switch to your specific needs. As a factory direct supplier, we provide competitive pricing, excellent customer service, and fast shipping. Choose our KA11 series push button switch for your next project and experience the difference in quality and value.
|
contact resistance
|
≤50MΩ
|
mechanical life（cycles）
|
50000
|
|
insulation resistance
|
≥100MΩ
|
electronic life（cycles）
|
10000
|
|
dielectric strength
|
1500V 1min
|
operating temperature
|
25T85
|
|
IP code
|
IP40
|
max.rating current & voltage
|
16(4)A 250V AC
|
Key Features
Our KA11 series push button switch stands out with its high-quality plastic construction, ensuring durability and longevity. It supports a maximum current of 16A and a voltage of 250VAC, making it suitable for various applications. The integrated LED provides clear status indication, enhancing user experience.
Why Choose Us?
As a factory direct supplier, we offer competitive pricing, excellent customer service, and fast shipping. Our switches are rigorously tested to ensure reliability and safety, providing you with peace of mind.
Applications
This switch is ideal for electrical control in industrial settings, home appliances, and machinery. Its wide temperature range and IP40 rating make it suitable for various environments, ensuring reliable performance over time.
