Description

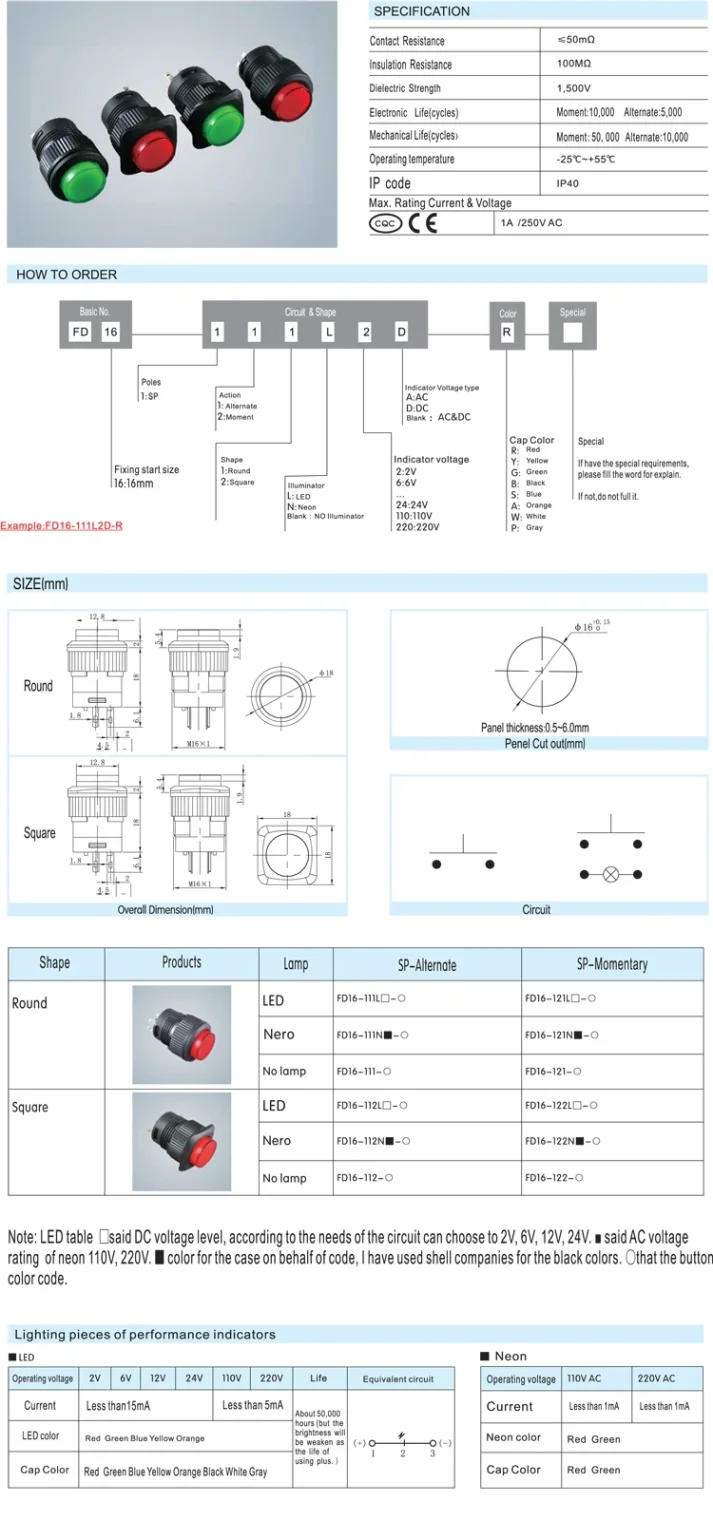

Specifications:
– Max. Current: 1A
– Max. Voltage: 250V
– Size: 16MM
– LED: Yes (full illuminated)
– IP Level: IP 40
– Switch Combination: 1NO1NC, 1NO, 1NC
– Contact Resistance: ≤50MΩ
– Insulation Resistance: 100MΩ
– Dielectric Strength: 1500V
– Electronic Life: 10000 cycles
– Mechanical Life: 50000 cycles
– Operating Temperature: 25°C to 55°C
– Material: Plastic
– Head Type: Round Head
– Terminal Type: Pin terminal
Advantages:
1. **High Visibility**: The full illuminated LED lights ensure high visibility, even in low-light conditions.
2. **Durable Construction**: Made with high-quality plastic, this switch is built to last.
3. **Versatile Application**: Suitable for electric, home appliance, and industrial control applications.
4. **Factory Direct Pricing**: As a factory and supplier, we offer competitive wholesale prices.
After-Sales Service:
We stand behind the quality of our products and offer excellent after-sales service. If you have any issues, our dedicated support team is here to help.

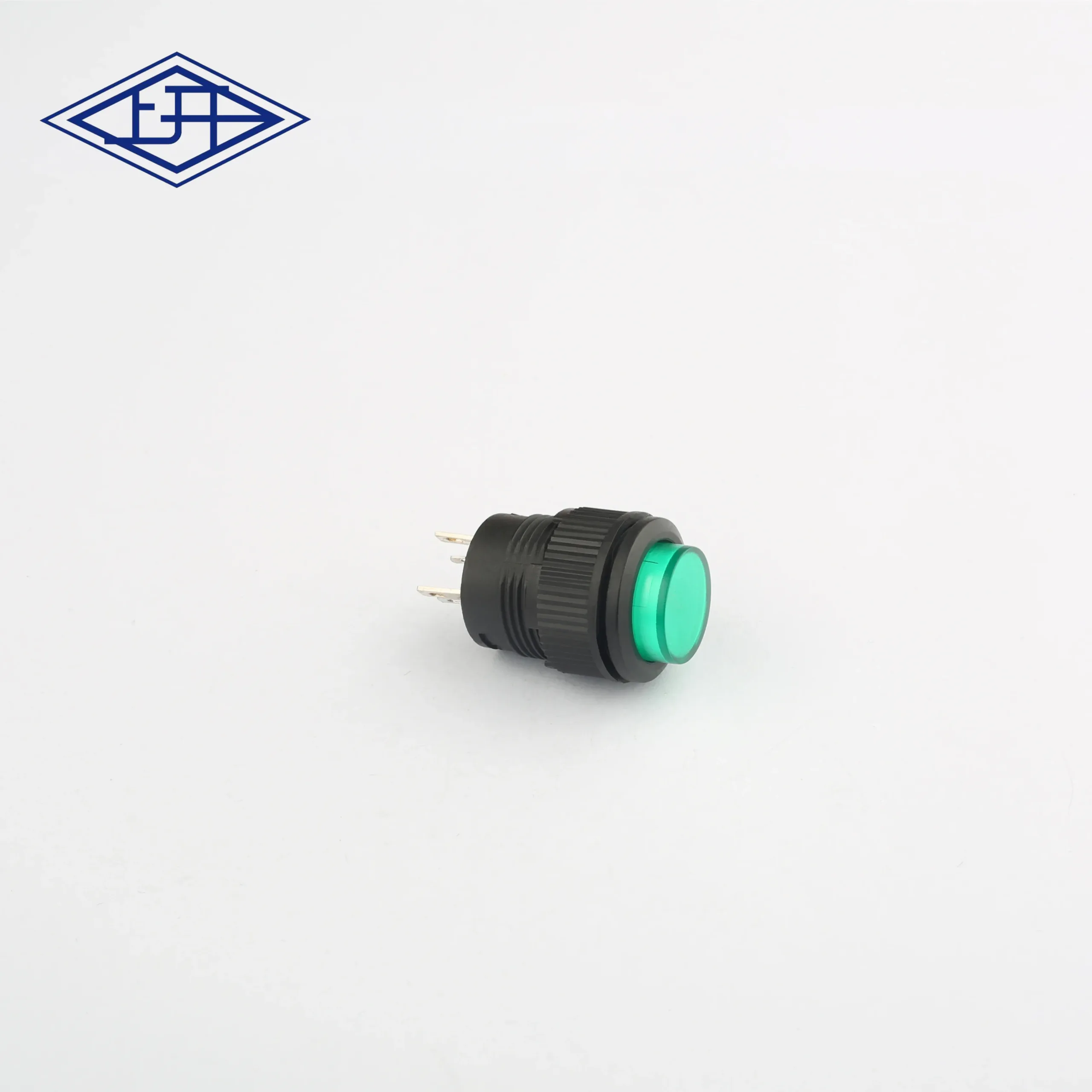

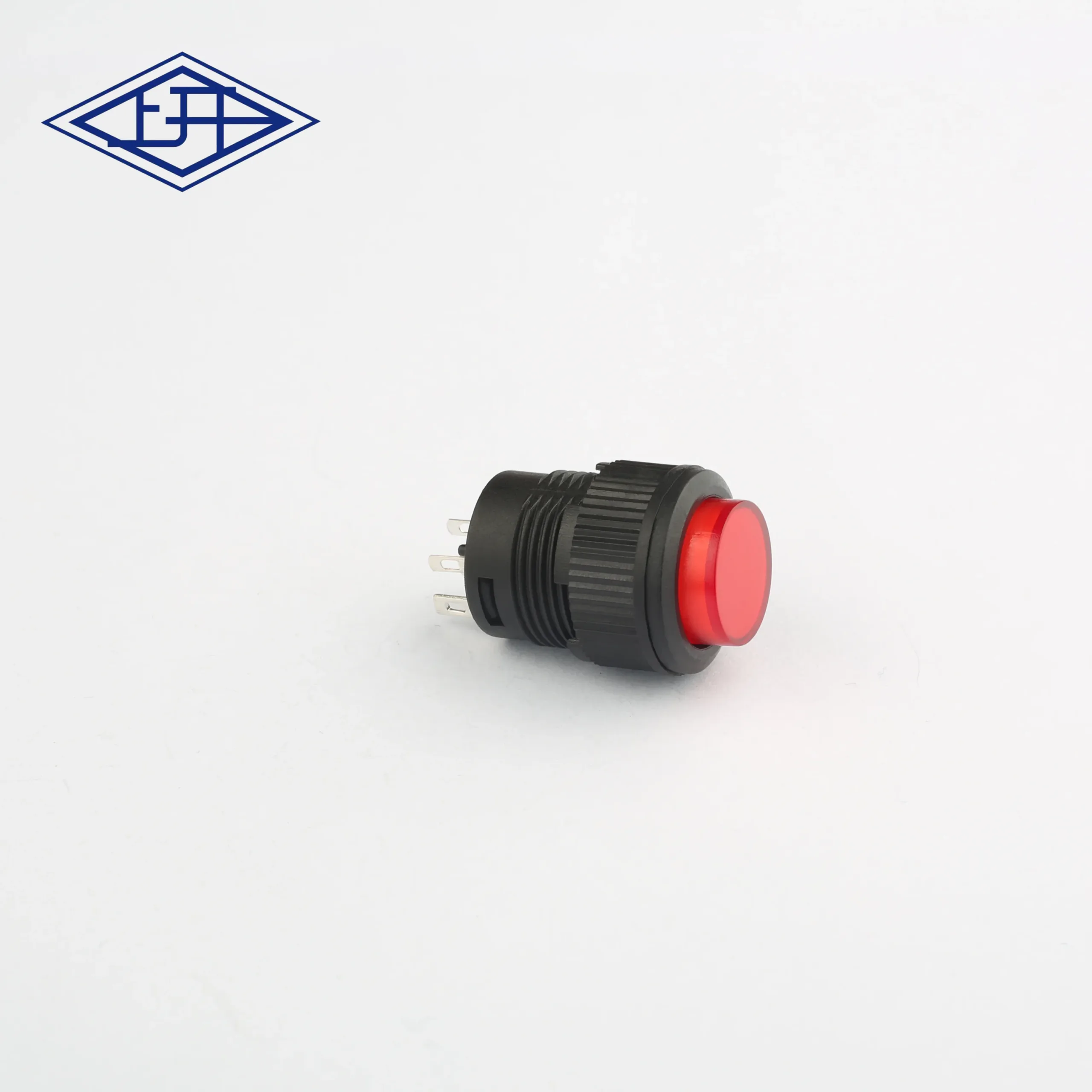

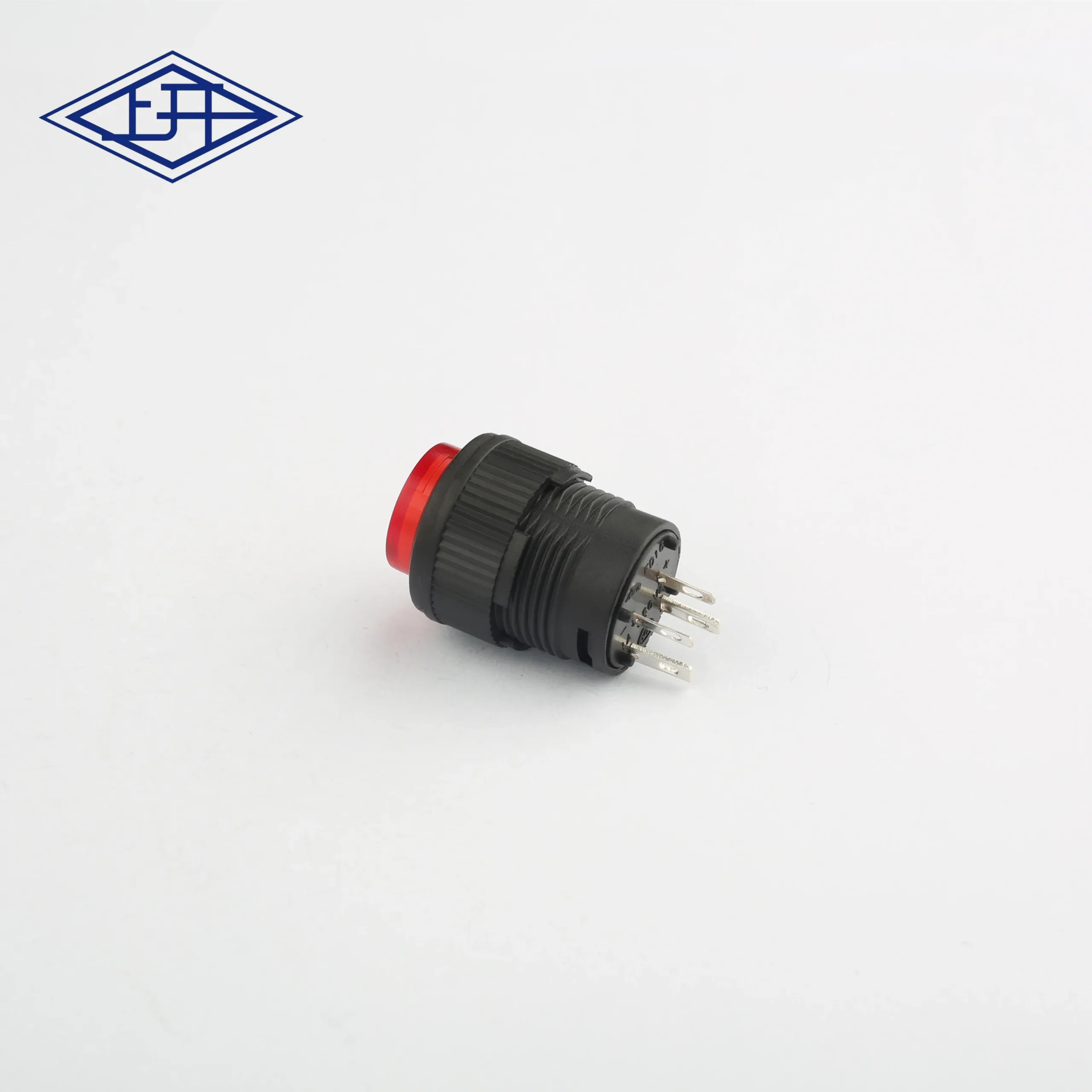

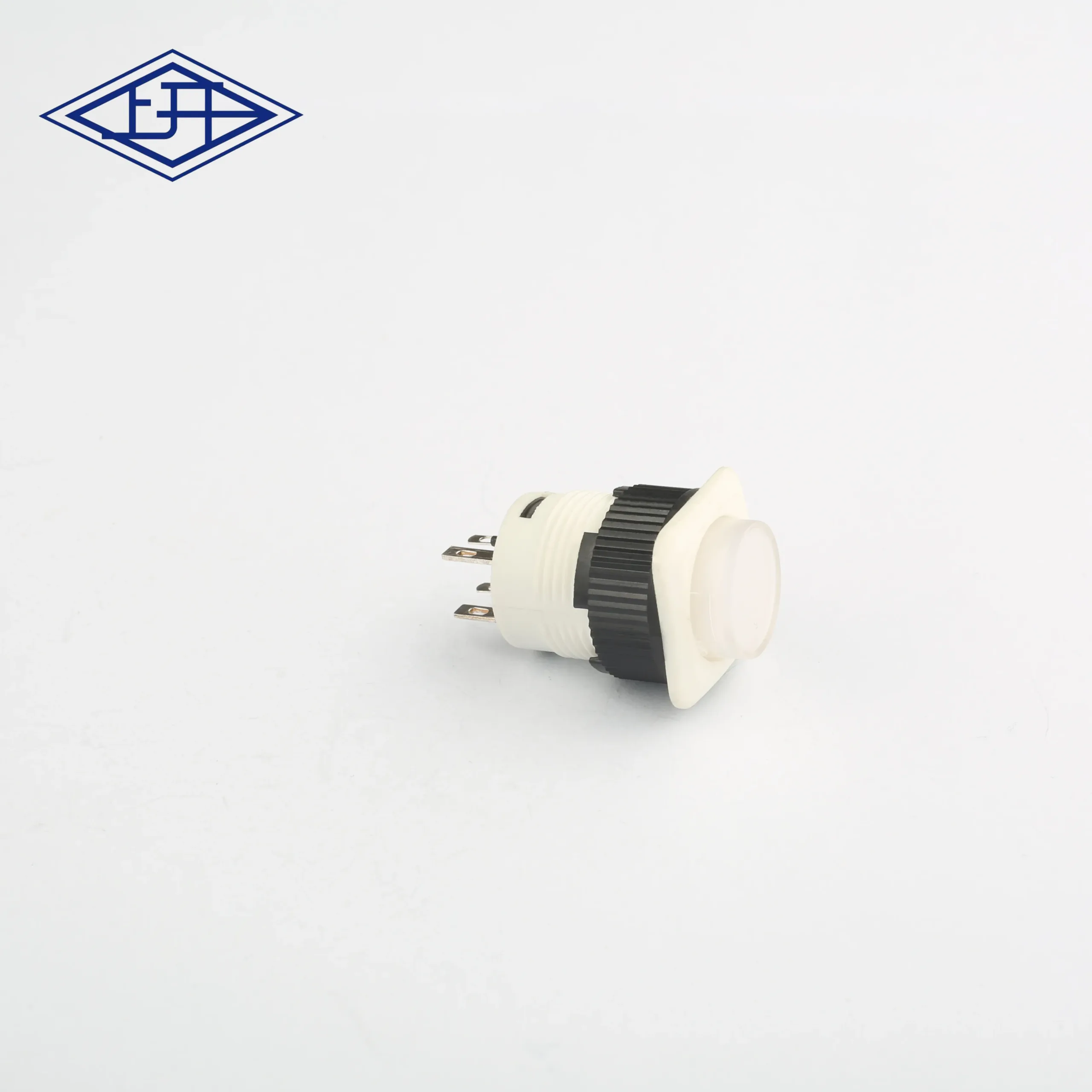

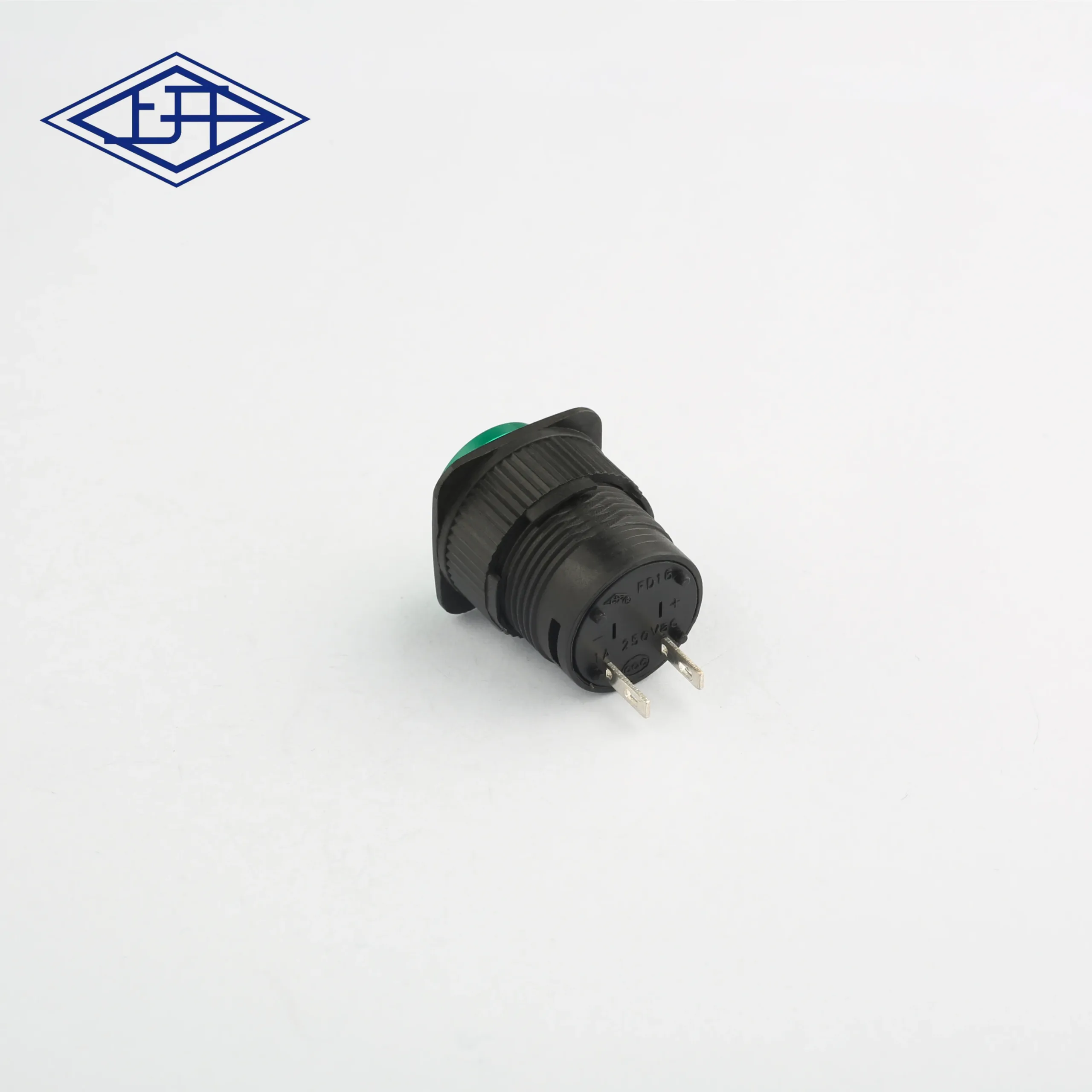

Choose our 16mm Illuminated Push Button Switch for a reliable, high-quality solution that meets your needs.
|
contact resistance
|
≤50MΩ
|
electronic life(cycles)
|
10000
|
|
insulation resistance
|
100MΩ
|
mechanical life(cycles)
|
50000
|
|
dielectric strength
|
1500V
|
operating temperature
|
25T55
|
|
IP code
|
IP 40
|
max.rating current & voltage
|
1A 250V AC
|
Why Choose Our 16mm Illuminated Push Button Switch?
Our 16mm Illuminated Push Button Switch stands out with its vibrant LED lights, ensuring high visibility in any environment. Made with durable plastic, it's built to last and suitable for a wide range of applications, including electric control, home appliances, and industrial control systems.
What Makes Our Product Different?
Unlike other switches on the market, our product offers full illuminated LED lights, providing better visibility and a modern look. Additionally, as a factory and supplier, we offer competitive wholesale prices, making it an excellent choice for bulk purchases.
How Does Our After-Sales Service Work?
We take pride in the quality of our products and offer excellent after-sales service. If you encounter any issues, our dedicated support team is available to assist you promptly, ensuring a smooth and hassle-free experience.
