Description
Key Specifications:
– Max. Current: 1A
– Max. Voltage: 250V AC
– Place of Origin: Shanghai, China
– Brand Name: Yong Xing
– Model Number: KA5
– IP Level: IP40
– Switch Combination: 1NO1NC

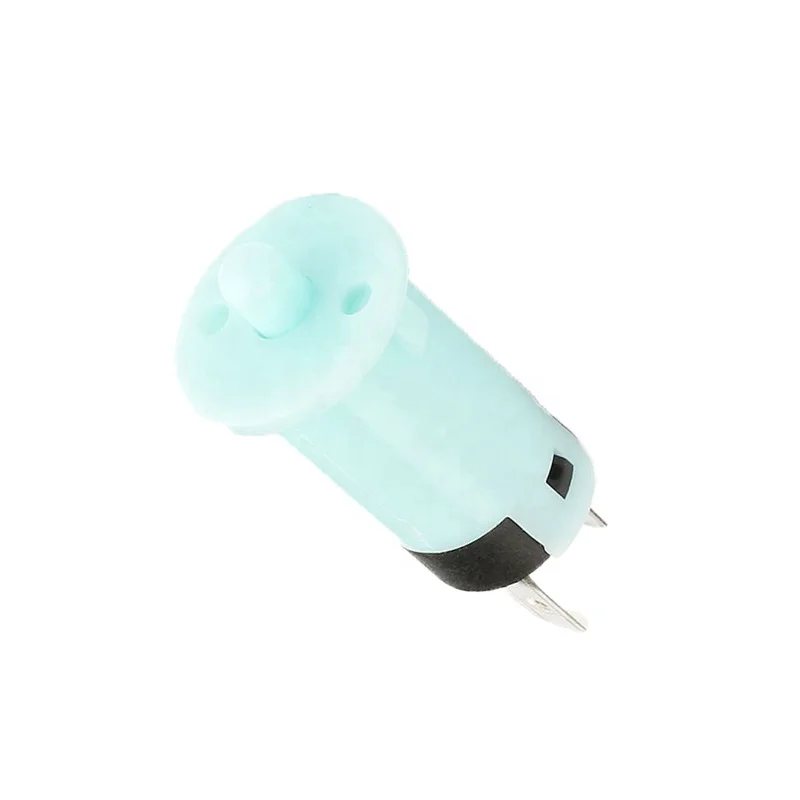

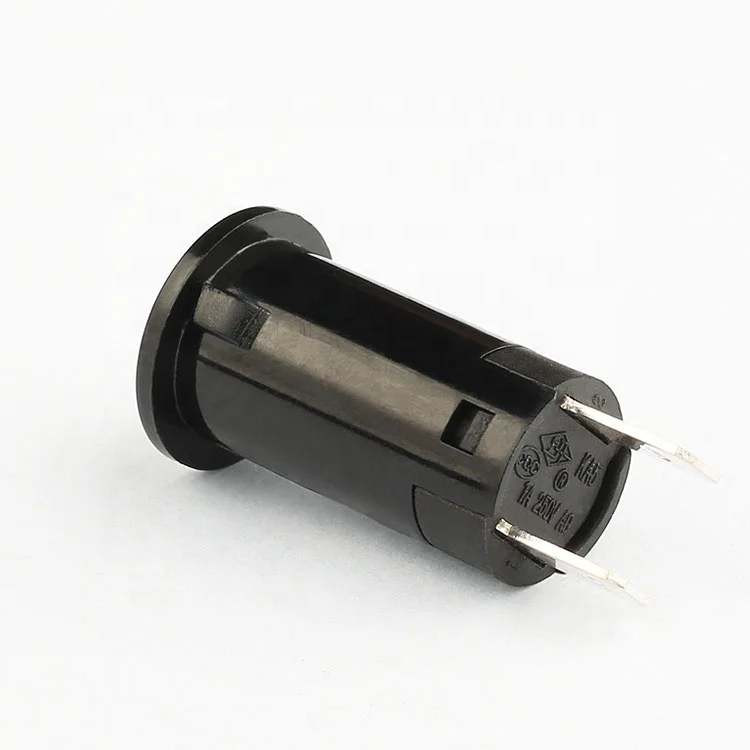

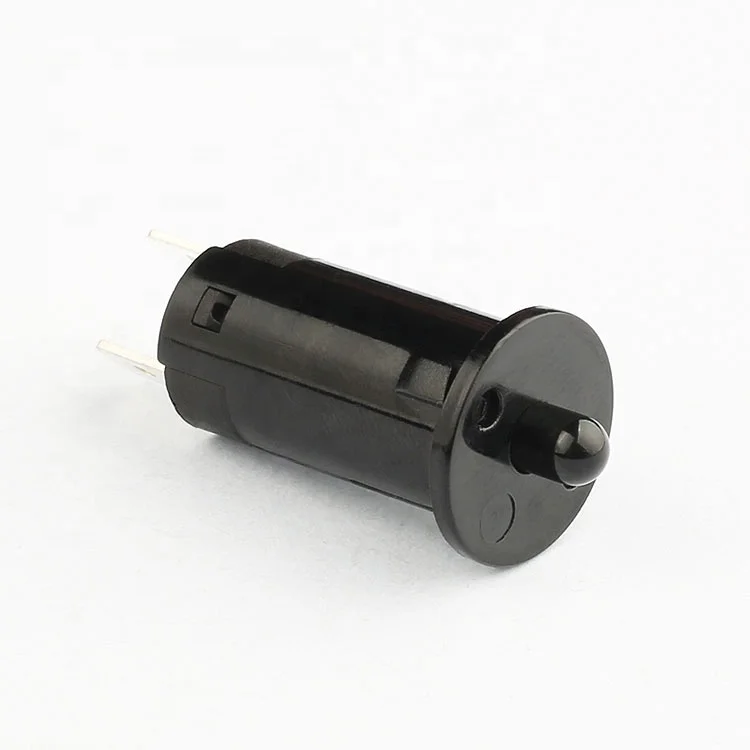

– Cap Colours Available: Black, White, Blue, Gray
– Terminal Type: Pin terminal
– Electronic Life: 10,000 cycles
– Operating Temperature: -25°C to +55°C
– Contact Resistance: ≤50MΩ
– Insulation Resistance: ≥100MΩ
– Dielectric Strength: 1500V
– Rated Voltage: 250V
Product Advantages:

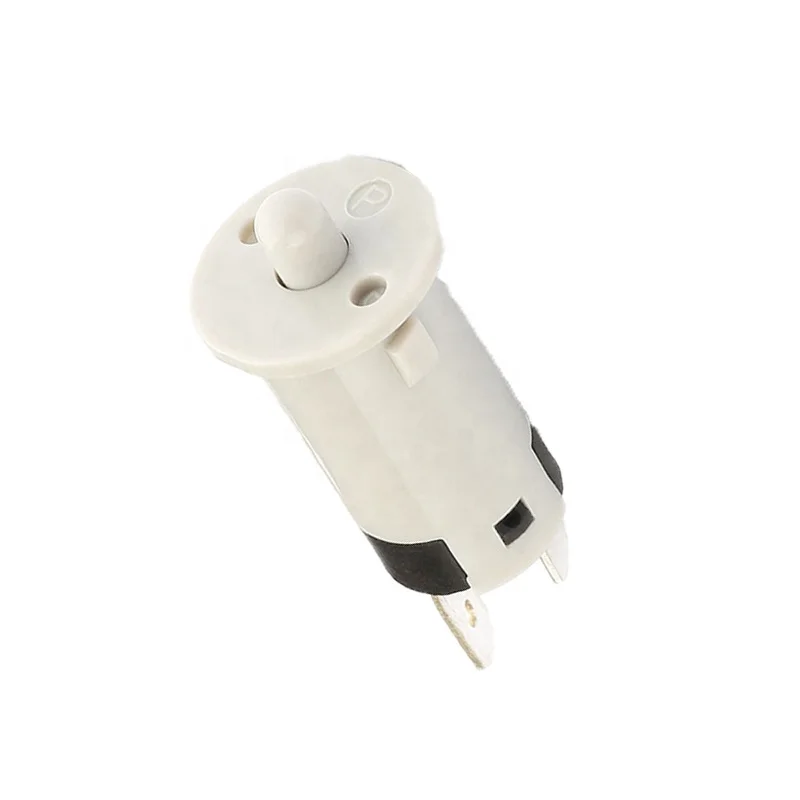

Our switch stands out with its superior contact and insulation resistance, ensuring safe and efficient operation. With an IP40 rating, it offers protection against dust and is ideal for refrigerator door applications. The 1NO1NC switch combination provides versatile functionality, while the pin terminal type ensures easy installation.
Differentiated Competitiveness:
Unlike many competitors, our switches are factory-direct, eliminating middlemen costs and ensuring you get the best price. We are a trusted supplier with a reputation for quality and reliability. Our switches are designed to withstand harsh environments, making them perfect for refrigerator doors.
After-Sales Service:
We offer comprehensive after-sales service, including technical support and warranty coverage. As a factory supplier, we are committed to providing you with the best products and service.
Choose us for your refrigerator door switch needs and experience the difference in quality and service.
|
contact resistance
|
≤50MΩ
|
mechanical life（cycles）
|
50000
|
|
insulation resistance
|
≥100MΩ
|
electronic life（cycles）
|
10000
|
|
dielectric strength
|
1500V
|
operating temperature
|
25T55
|
|
IP code
|
IP40
|
max.rating current & voltage
|
1A 250V AC
|
Why Choose Our Refrigerator Door Push Button Switch?
Our Refrigerator Door Push Button Switch is designed for durability and reliability, making it the perfect choice for refrigerator door applications. With a factory-direct supply, you get the best price without compromising on quality.
What Makes Our Switch Stand Out?
Our switch offers superior contact and insulation resistance, ensuring safe and efficient operation. The IP40 rating provides protection against dust, and the 1NO1NC switch combination offers versatile functionality. Additionally, our pin terminal type ensures easy installation.
What After-Sales Service Do We Offer?
We provide comprehensive after-sales service, including technical support and warranty coverage. As a trusted supplier, we are committed to your satisfaction and will do everything we can to ensure a smooth purchasing experience.
