Factory Direct Wholesale Waterproof Illuminated Rocker Switch | 4 Pins 16A 250VAC

200 - 1,999  pieces
$0.58

2,000 - 4,999  pieces
$0.54

>= 5,000  pieces
$0.49

0 reviews

Factory Wholesale Waterproof Rocker Switch | 16A 250VAC | High Quality

Description

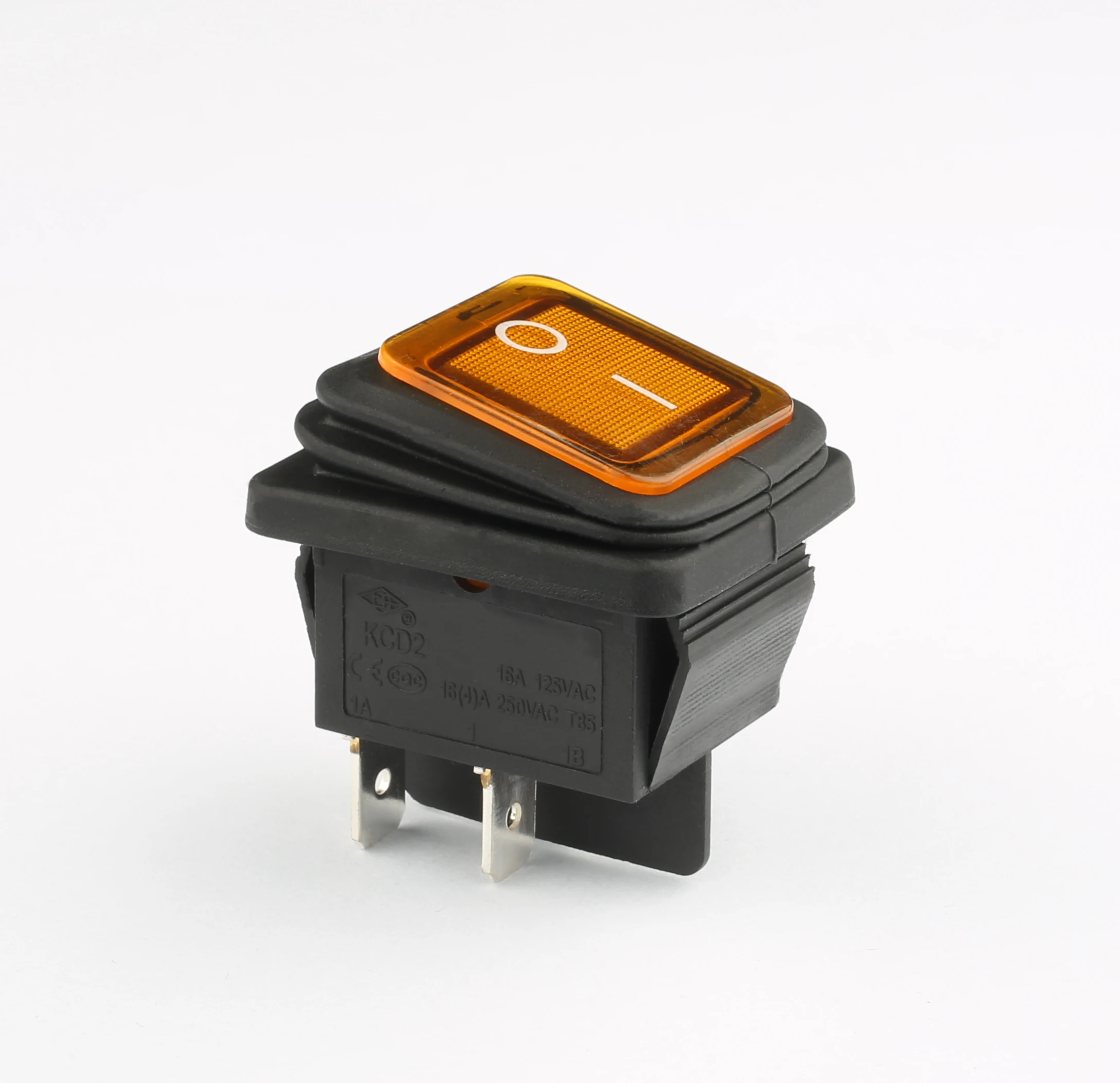

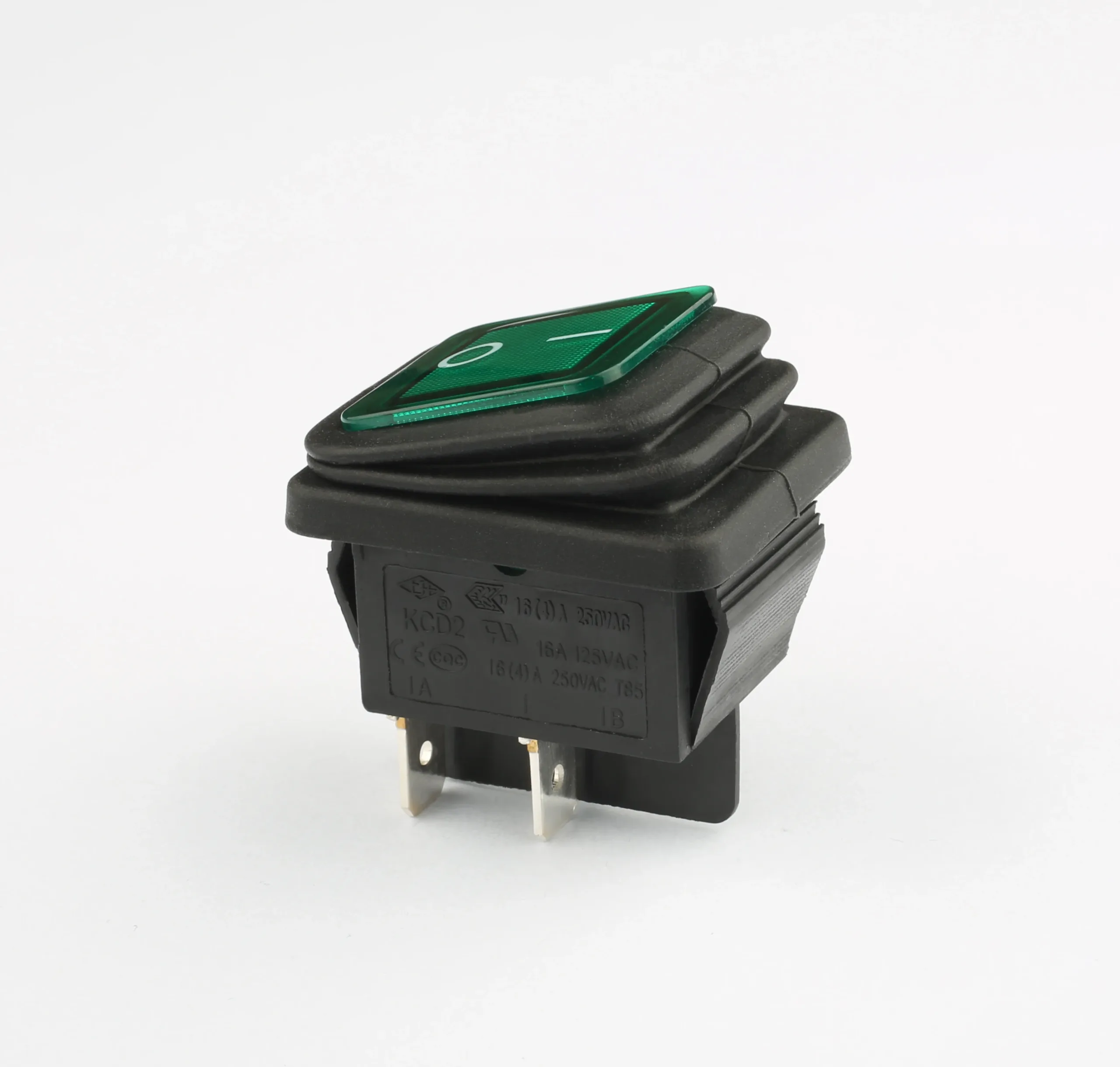

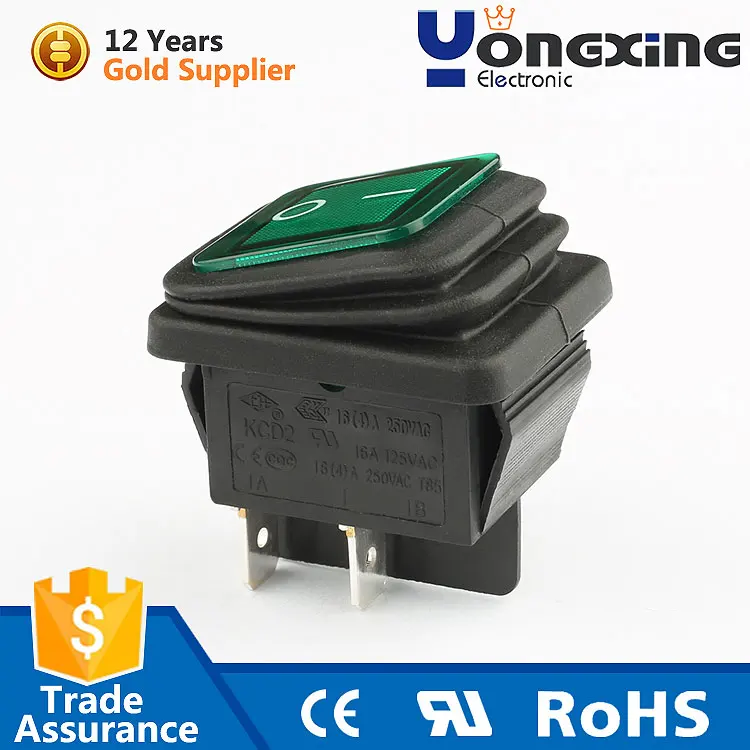

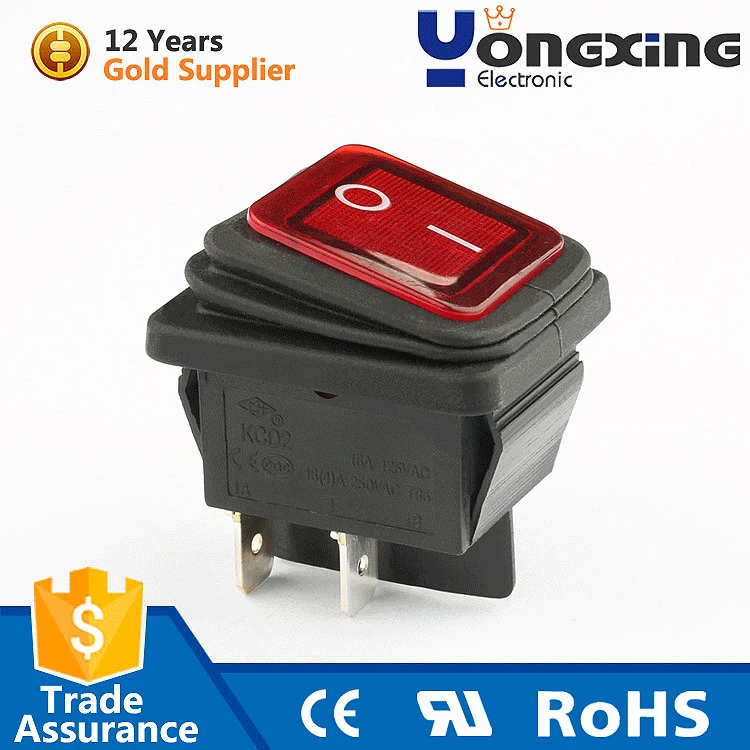

Introducing our premium Waterproof Illuminated Rocker Switch, a top-notch product from Yongxing, a trusted factory and supplier based in Shanghai, China. This switch is designed for electric appliances, offering a robust 16A current and 250VAC voltage capacity. Crafted from high-quality PA66 material, it ensures durability and longevity. With 4 pins and an IP65 rating, it guarantees excellent waterproof performance, making it ideal for various applications. Our switch stands out with its ON-OFF function, available in multiple lamp colors including Red, Green, Yellow, White, and Blue. It boasts a mechanical life of 100,000 times, ensuring reliable operation. Contact resistance is ≤50mΩ, and insulation resistance is ≥1000MΩ, providing superior electrical performance. Dielectric strength is 1500V AC for 1 minute, ensuring safety. As a factory direct supplier, we offer wholesale pricing and excellent after-sales service. Choose our Waterproof Illuminated Rocker Switch for unmatched quality and value.
contact resistance
≤50MΩ
operating temperature
T55 T85 T125
insulation resistance
≥1000MΩ
electronic life(cycles)
10000
dielectric strength
1500V AC 1min
IP code
IP65

Electronic component for cross-border e-commerce


Why Choose Our Waterproof Illuminated Rocker Switch?

Our Waterproof Illuminated Rocker Switch is crafted from high-quality PA66 material, ensuring durability and longevity. With a robust 16A current and 250VAC voltage capacity, it's perfect for electric appliances. The IP65 rating guarantees excellent waterproof performance, making it ideal for various environments.

What Are the Key Features?

This switch features an ON-OFF function with an illuminated design, available in multiple lamp colors. It has a mechanical life of 100,000 times, ensuring reliable operation. Contact resistance is ≤50mΩ, and insulation resistance is ≥1000MΩ, providing superior electrical performance.

Why Buy from Us?

As a factory direct supplier in Shanghai, China, we offer wholesale pricing and excellent after-sales service. Our Waterproof Illuminated Rocker Switch stands out with its quality, performance, and value, making it the perfect choice for your needs.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

16A

Max. Voltage

250VAC

Place of Origin

Shanghai, China

Brand Name

Yongxing

Model Number

KCD2-21N-F

Application

Electric Appliances

Material

PA66

Pins

4 Pins

Whether the smart

NO

Mechanical Life

100000 times

IP level

IP65

Products name

Waterproof Illuminated 2 Position On Off Rocker Switch

Function

ON-OFF

Lamp color

Red Green Yellow White Blue

Contact Resistance

≤50mΩ

Insulation Resistance

≥1000MΩ

Terminal type

Pin Terminals
