Description

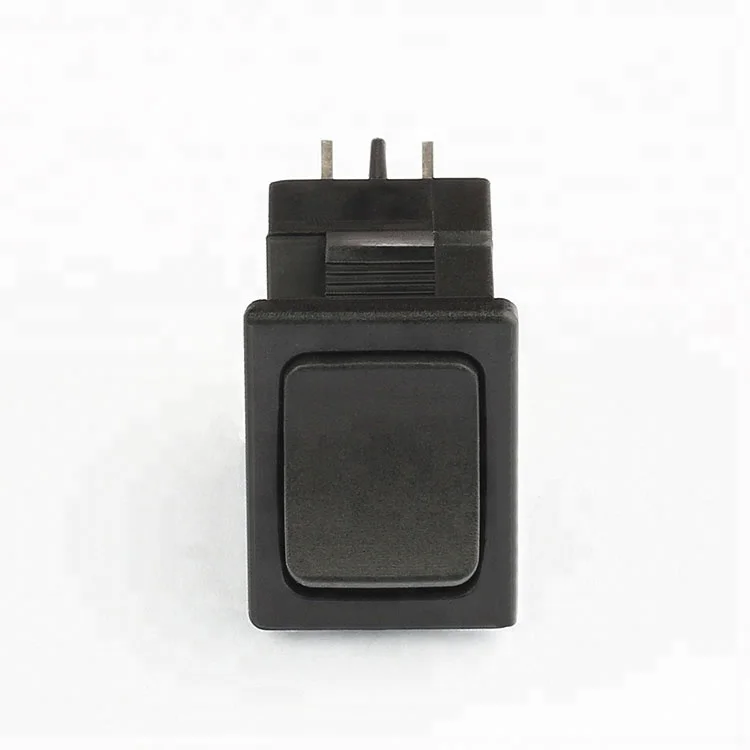

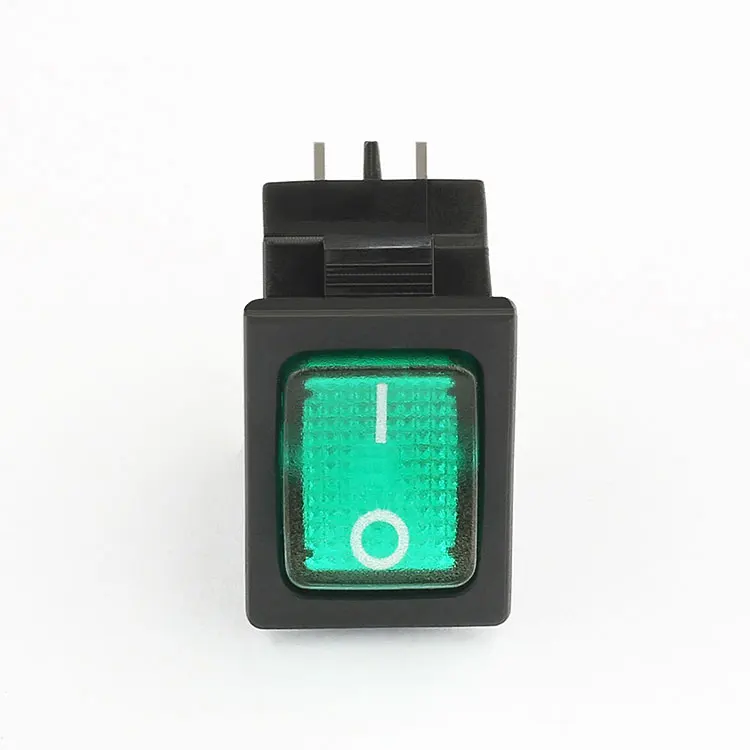

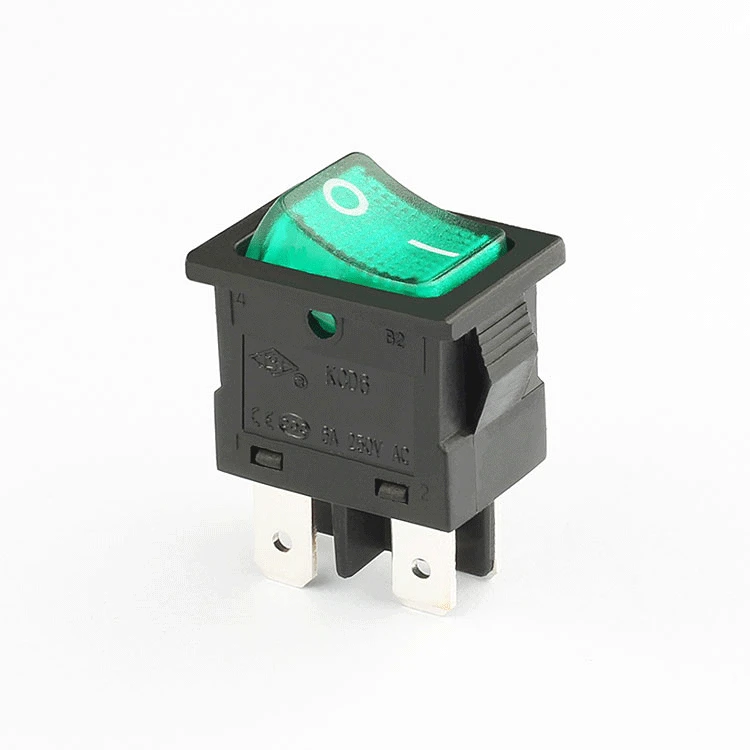

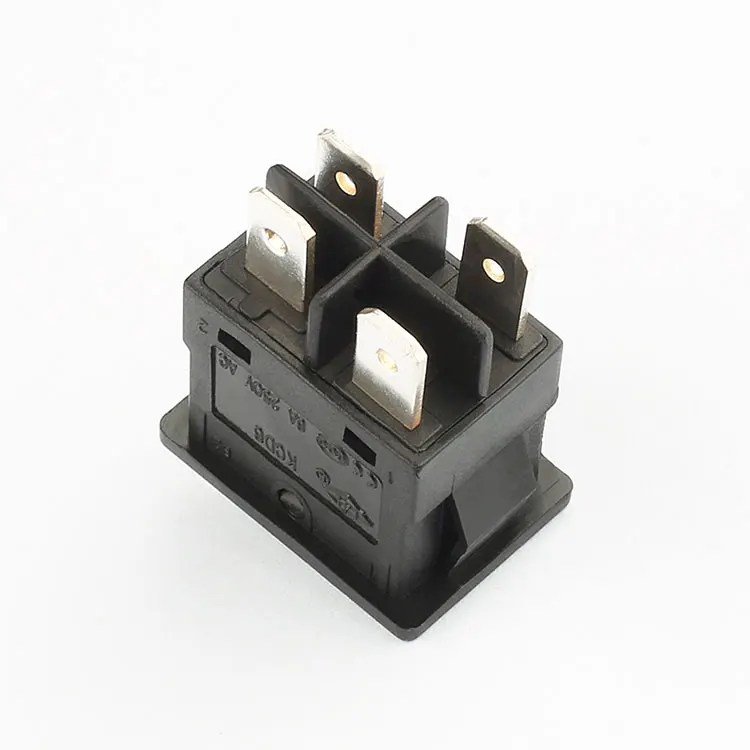

Premium 10A 250VAC DPST Green LED Rocker Switch – Factory Direct Supply
Our high-quality 10A 250VAC DPST Green LED Rocker Switch is a must-have for any electrical application. As a factory supplier, we offer wholesale prices, ensuring you get the best deal without compromising on quality.
Product Specifications
- Max. Current: 6A
- Max. Voltage: 250VAC
- Place of Origin: China
- Brand Name: Yongxing
- Model Number: KCD6-21N-CB1B-B-G-01-AC220/10A
- Mechanical Life: 100,000 Cycles
- IP Level: IP65
- Colors Available: Red, Green, Black, Gray
- Certificates: CQC, CE, ROHS
- Electrical Life: 10,000 Cycles
- Material: Durable Plastic
- Dielectric Strength: 1500V AC 1min
- Contact Resistance: ≤50mΩ
- Function: DPST Illuminated with Green LED
- Pins: 4
Product Advantages
Our rocker switch stands out from the competition with its high-quality construction, long mechanical life, and IP65 rating, ensuring durability and reliability in various environments. The green LED illumination provides clear indication of the switch’s status, enhancing user experience.
After-Sales Service
We offer comprehensive after-sales service, including technical support and warranty coverage. As a factory supplier, we are committed to ensuring your satisfaction and providing solutions to any issues that may arise.
Why Choose Us?
As a factory supplier, we have the capability to offer competitive wholesale prices without compromising on quality. Our products are rigorously tested to meet international standards, ensuring reliability and safety.
| Contact Resistance | ≤50m Ω |
| Insulation Resistance | ≥1,000MΩ |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles momentary rocker switch on off on |
| Certification |
CQC , CE , UL , ENEC , CB |
| Max. Rating Current & Voltage (CQC , CE) |
16(4)A 250V AC T85 |
| Max. Rating Current & Voltage (UL) |
16R(4)A 250V AC , 16R(4)A 125V AC 1HP 125V AC |
| Max. Rating Current & Voltage (CB , ENEC) |
16(4)A 250V AC T125,10(4)A 250V AC T125 16(4)A 250V AC T85,16A 250V AC |
Why Choose Our DPST Green LED Rocker Switch?
Our DPST Green LED Rocker Switch is designed for durability and reliability. With a long mechanical life of 100,000 cycles and an IP65 rating, it can withstand harsh environments, making it ideal for both home and industrial use.
What Are the Key Features?
Key features include a max. current of 6A, max. voltage of 250VAC, and green LED illumination for clear status indication. The switch is also certified with CQC, CE, and ROHS, ensuring safety and compliance with international standards.
How Does It Benefit You?
By choosing our switch, you benefit from factory-direct wholesale prices, high-quality construction, and comprehensive after-sales service. Our switch enhances the functionality and aesthetics of your electrical applications, providing a reliable and cost-effective solution.
