Description

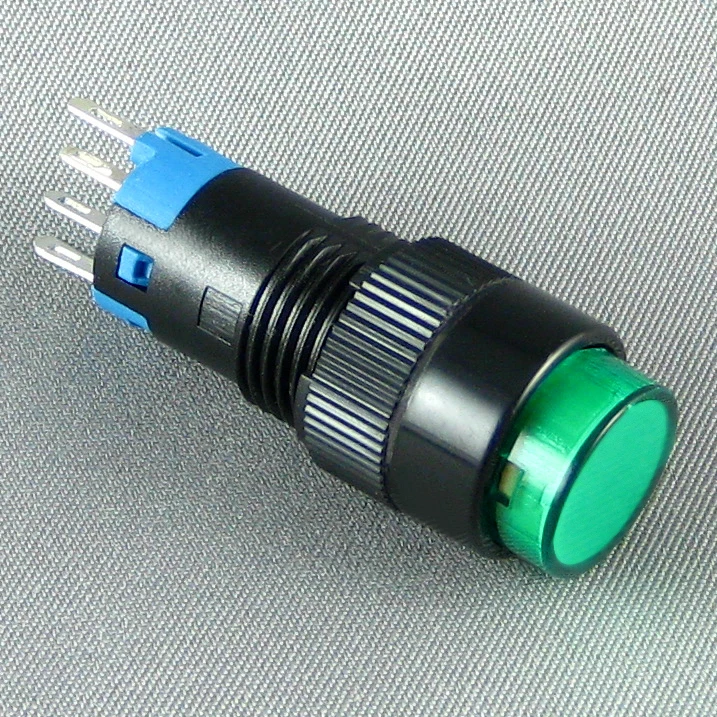

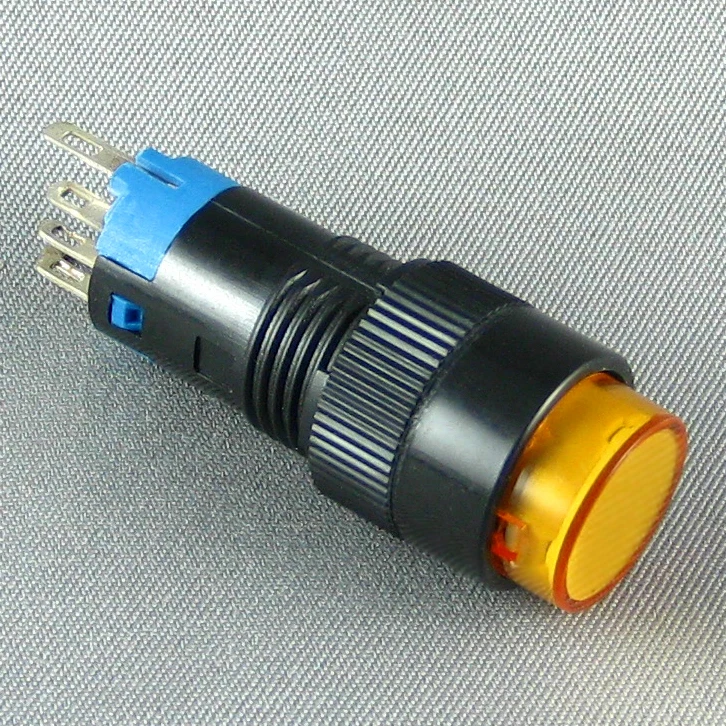

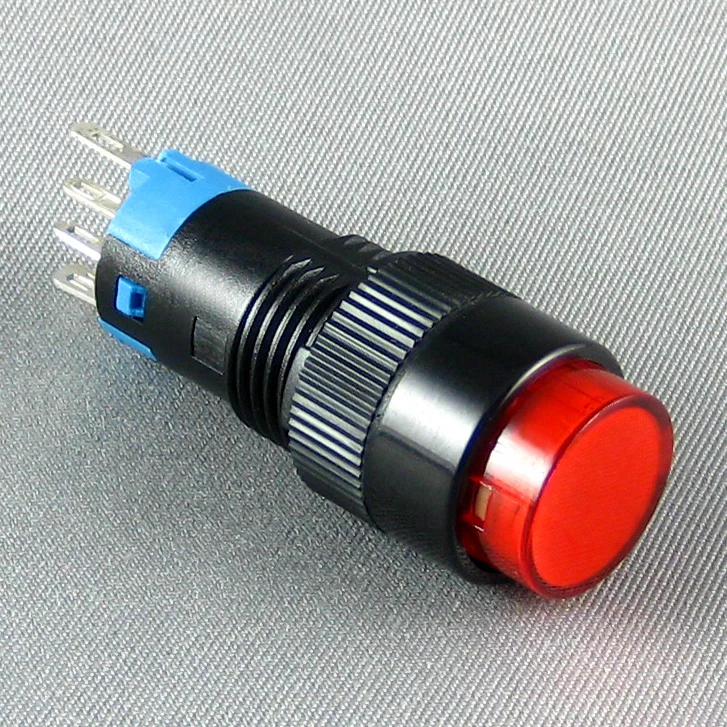

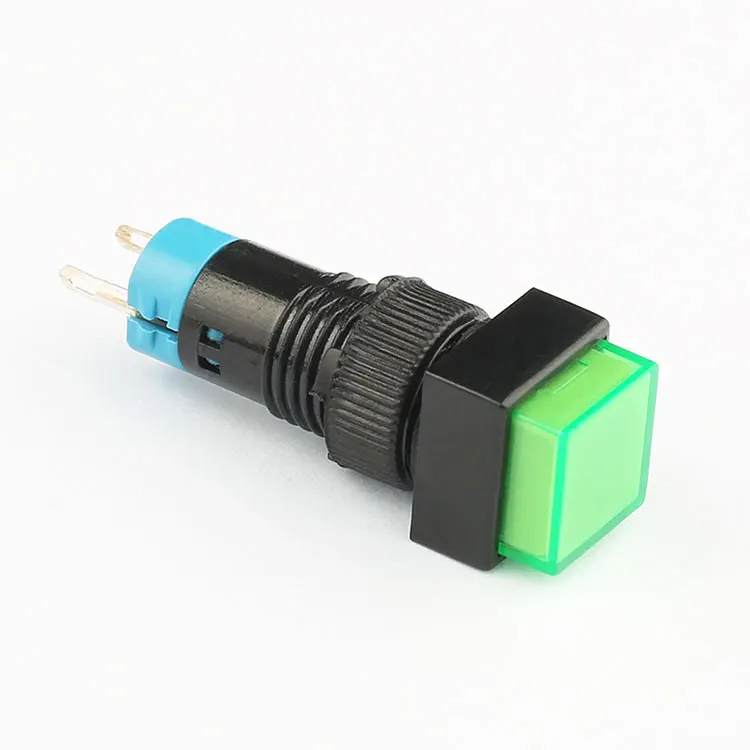

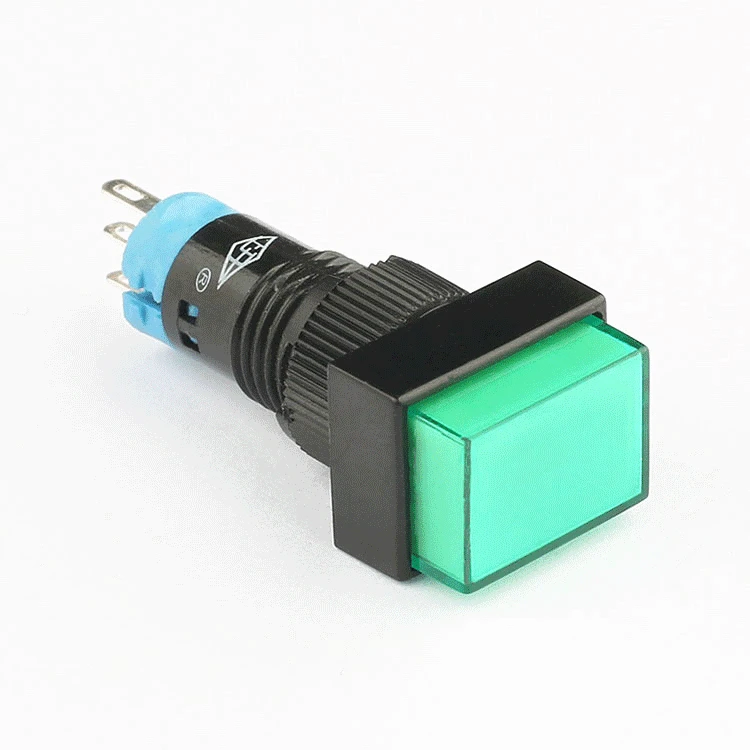

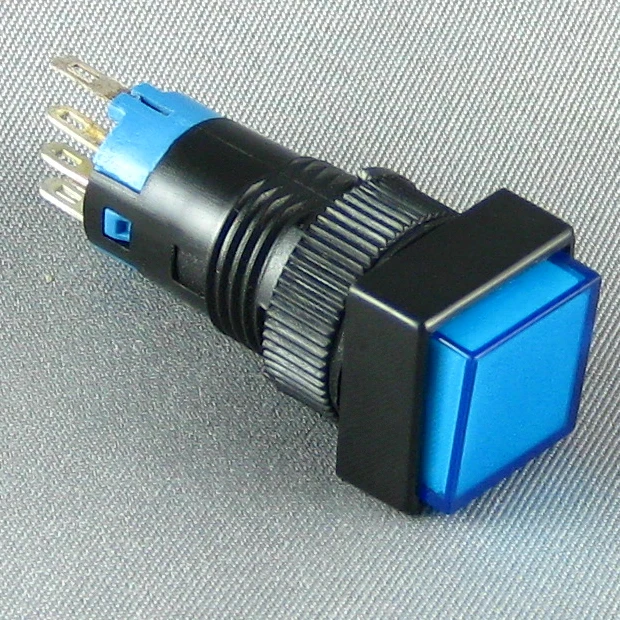

Factory Wholesale 10mm/12mm 5-Pin Momentary Push Button Lighted Switch
As a leading factory and supplier of electrical switches, we’re proud to offer our high-quality 10mm/12mm 5-Pin Momentary Push Button Lighted Switch. This switch is designed for a wide range of applications, offering reliability, durability, and excellent performance.
Product Specifications
- Max. Rating Current & Voltage: 3A 250V AC
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥100MΩ
- Dielectric Resistance: 1,500V
- Electronic Life (Cycles): Momentary: 50,000; Alternate: 25,000
- Mechanical Life (Cycles): Momentary: 200,000; Alternate: 50,000
- Certification: CQC, CE
- Operating Temperature: -5℃ to +75℃
- IP Code: IP40
- LED Indicator: Yes, with indicator voltages of 2V, 6V, 12V, 24V, 110V, 220V
- Pushbutton Head: Round, Mushroom, Square, Rectangular
- Panel Cutout: 10mm
- Switch Combination: 1NO1NC
- Action: Self-locking, Momentary
Product Advantages
Our switch stands out from the competition with its high-quality construction, excellent electrical performance, and customizable options. With 60 senior engineers, an injection molding workshop, independent plant, and perfect development process, we can customize the switch to meet your specific requirements. Our factory-direct pricing ensures you get the best value for your money.
After-Sales Service
We offer comprehensive after-sales service, including technical support, warranty coverage, and prompt replacement of defective products. Our goal is to ensure your complete satisfaction with your purchase.
Wholesale and Bulk Orders
As a factory supplier, we welcome wholesale and bulk orders. Contact us today to discuss your needs and get a competitive quote.
| Max. Rating Current & Voltage (Resistive Load) |
3A 250V AC indicator light |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ 220 volt led indicator lights |
| Dielectric Resistance | 1,500V |
| Electronic life(cycles) | Momentary:50,000 Alternate:25,000 |
| Mechanical life(cycles) | Momentary:200,000 Alternate:50,000 |
| Certification |
CQC , CE |
| Operating temperature | -5℃~+75℃ |
| IP code | IP40 |
Why Choose Our 10mm/12mm 5-Pin Momentary Push Button Lighted Switch?
Our switch is designed for durability and reliability, making it ideal for a wide range of applications. With its high electrical life and excellent insulation resistance, you can trust it to perform consistently in demanding environments.
Customizable Options
As a factory supplier, we can customize the switch to meet your specific requirements. Whether you need a different size, color, or functionality, we've got you covered.
Competitive Pricing and Wholesale Discounts
Our factory-direct pricing ensures you get the best value for your money. Plus, we offer wholesale discounts for bulk orders, making it even more cost-effective for your business.
