Description

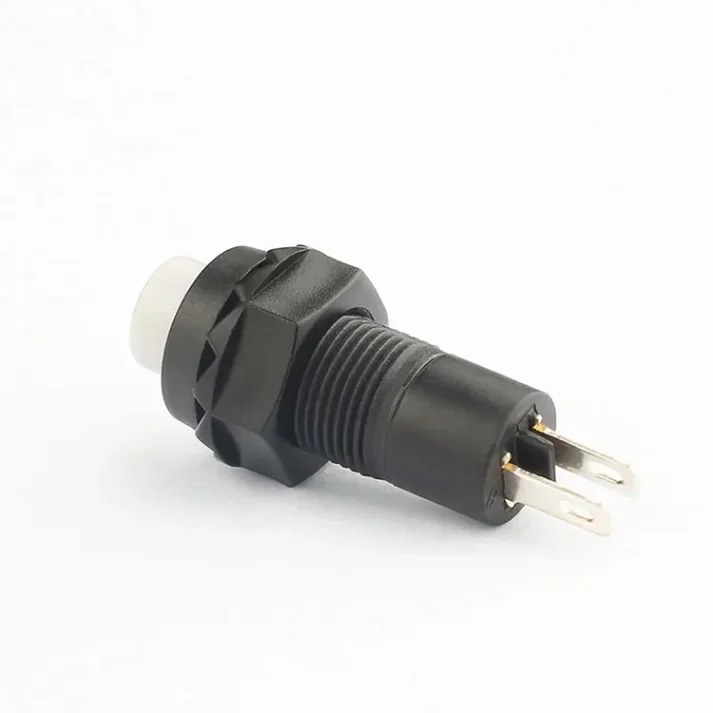

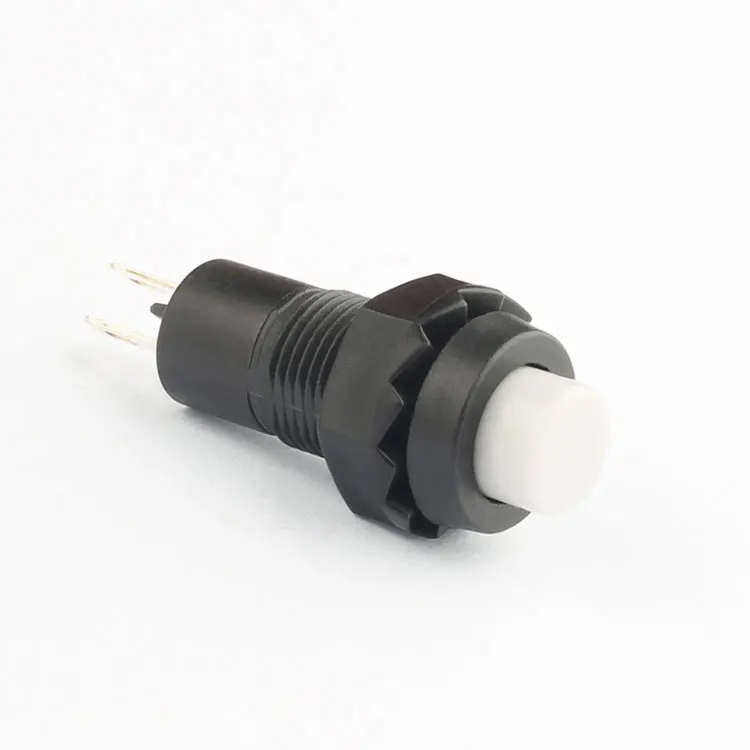

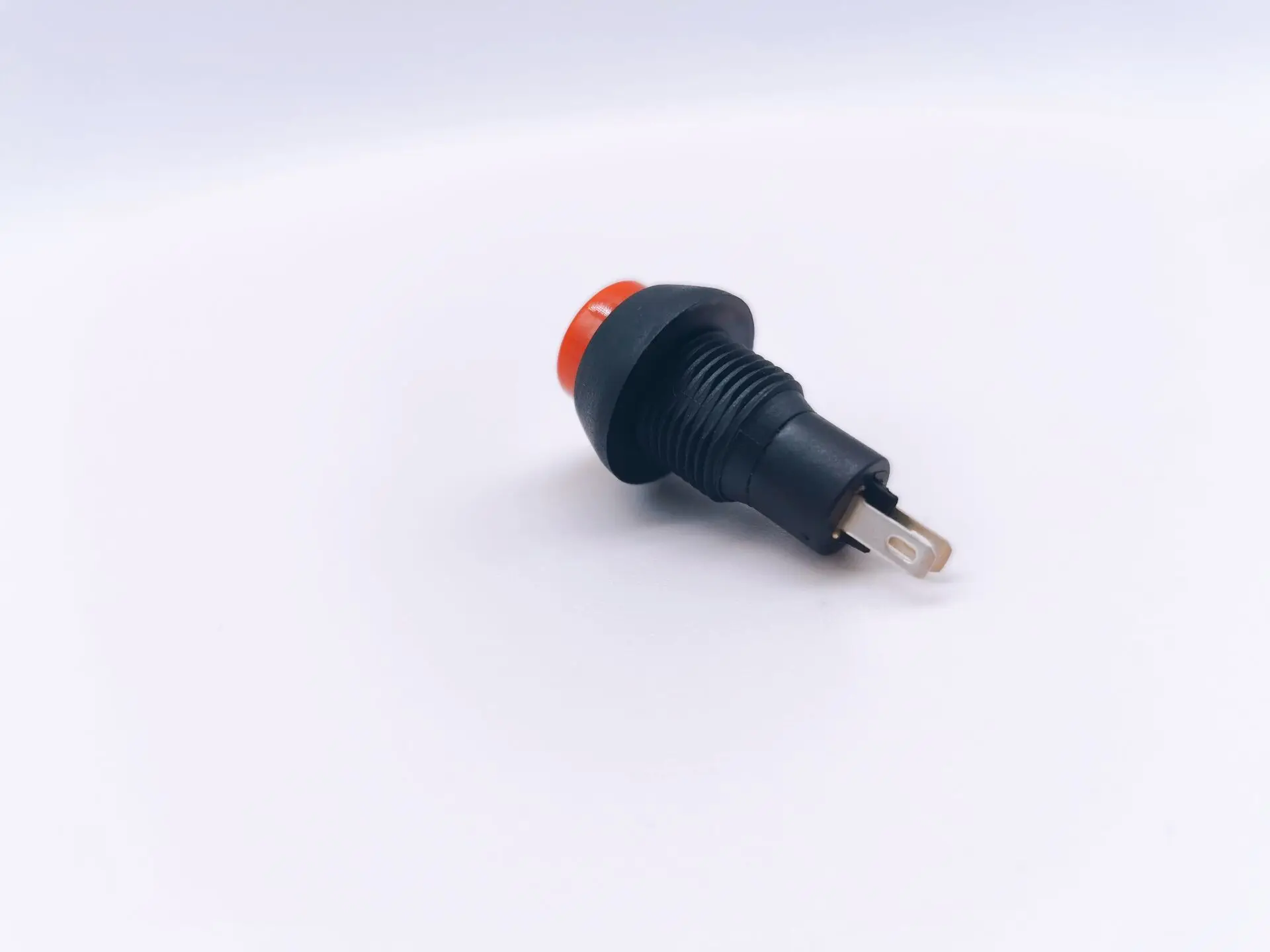

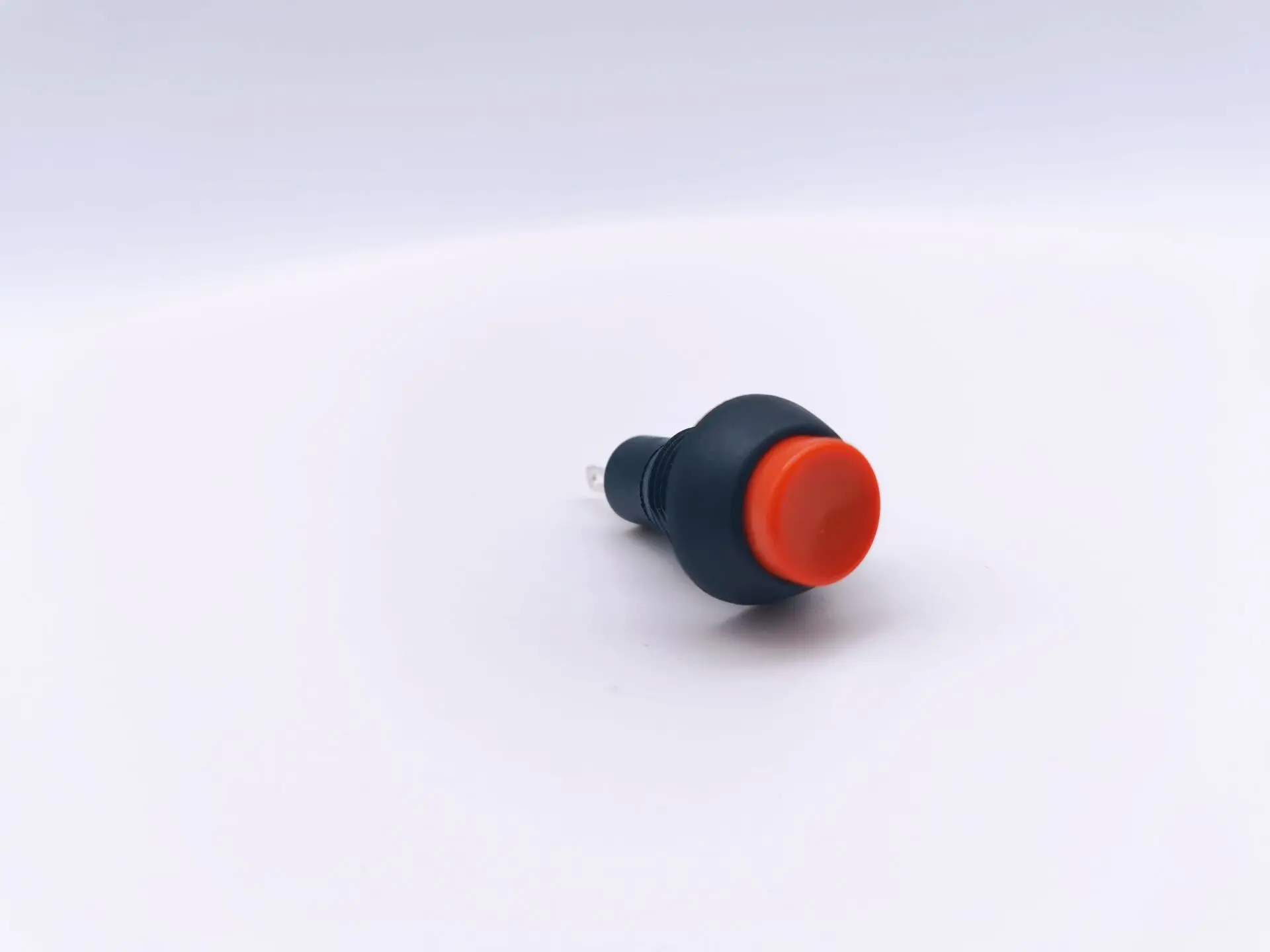

Introducing our high-quality 10mm 1A 250VAC SPST plastic push button switch, available for wholesale directly from our factory. As a trusted supplier, we offer competitive prices and exceptional quality. This switch is designed with precision, featuring a durable plastic construction and reliable electrical performance. With a maximum current of 1A and a maximum voltage of 250V AC, it is suitable for a wide range of applications. Its contact resistance is a low 50mΩ Max., ensuring efficient electrical conduction. The insulation resistance is a high 100MΩ Min., providing excellent electrical isolation. With a dielectric strength of 1500V and an electrical life of 100,000 times, this switch offers long-lasting reliability. It operates within a temperature range of -5℃ to +55℃, making it suitable for various environments. Our switch is IP40 rated for protection against solid objects and is available with mounting hole sizes of 10mm and 12mm. It is CQC certified, guaranteeing its quality and safety. Ideal for small instruments, water dispensers, drinking fountains, and more, this switch is a versatile and cost-effective choice. Choose us as your supplier for factory-direct wholesale pricing and exceptional customer service.
|

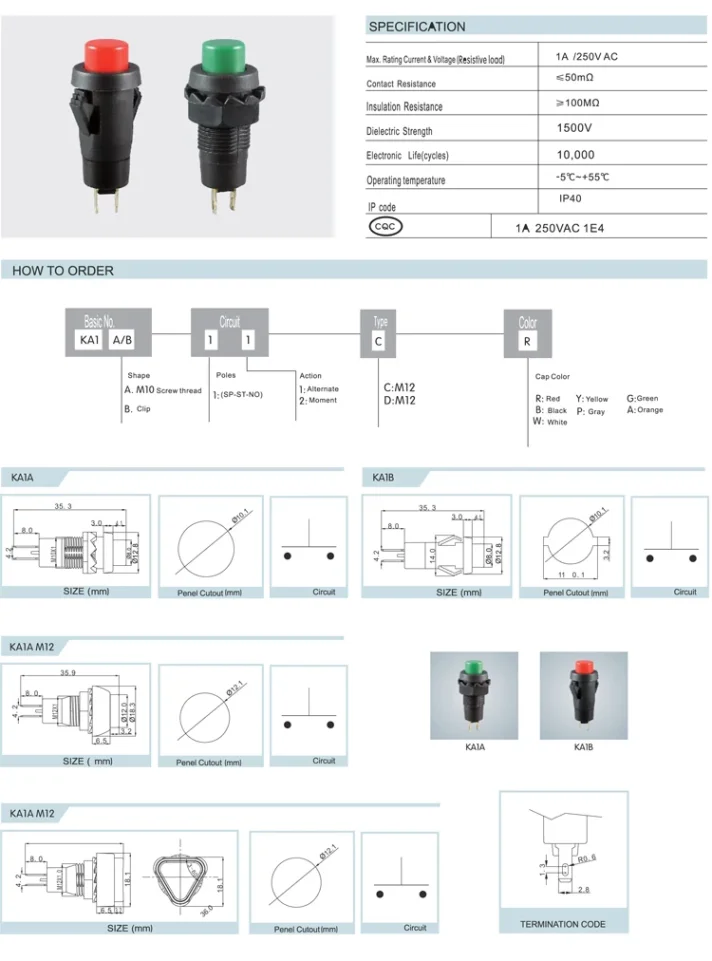

item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(Shangkai)
|
|
Model Number
|
KA1A-11-W
|
|
Protection Level
|
IP40
|
|
Max. Current
|
1A
|
|
Max. Voltage
|
250V AC
|
|
Contact Resistance
|
50mΩ Max.
|
|
Insulation Resistance
|
100MΩ Min.
|
|
Dielectric Strength
|
1500V
|
|
Electrical Life
|
10000 Times
|
|
Operating temperature
|
-5℃~+55℃
|
|
Protection Class
|
IP40
|
|
Mounting Hole Size
|
10mm,12mm
|
Key Features
Our 10mm 1A 250VAC SPST plastic push button switch stands out with its durable plastic construction, reliable electrical performance, and long electrical life of 100,000 times. It offers low contact resistance and high insulation resistance, ensuring efficient and safe operation.
Why Choose Our Switch?
As a factory supplier, we offer wholesale pricing and exceptional quality. Our switch is IP40 rated, CQC certified, and designed for a wide range of applications, making it a versatile and cost-effective choice for your electrical needs.
Applications
Ideal for small instruments, water dispensers, drinking fountains, and more, our push button switch provides reliable control and operation in various environments.
