Description
|
max.rating cnrrent&voltage
|
3a 250vac
|
||
|
contact resistance
|
<50mΩ
|
||
|
insulation resistance
|
>100mΩ
|
||
|
dielectrice resistance
|
1500V
|
||
|
mechanical life
|
momentary 200000,alternate 50000
|
||
|
electronic life
|
momentary 50000,alternate 25000
|
||
|
operating temperature
|
-5℃ to +75℃
|
||
|
CQC,CE
|
|||
|
IP code
|
IP40
|
||
|
button shape
|
round
|
||
|
indicator voltage
|
2V,6V,12V,24V,110V,220V(selective)
|
||
|
color
|
red,yellow,green,blue,white(selective)
|

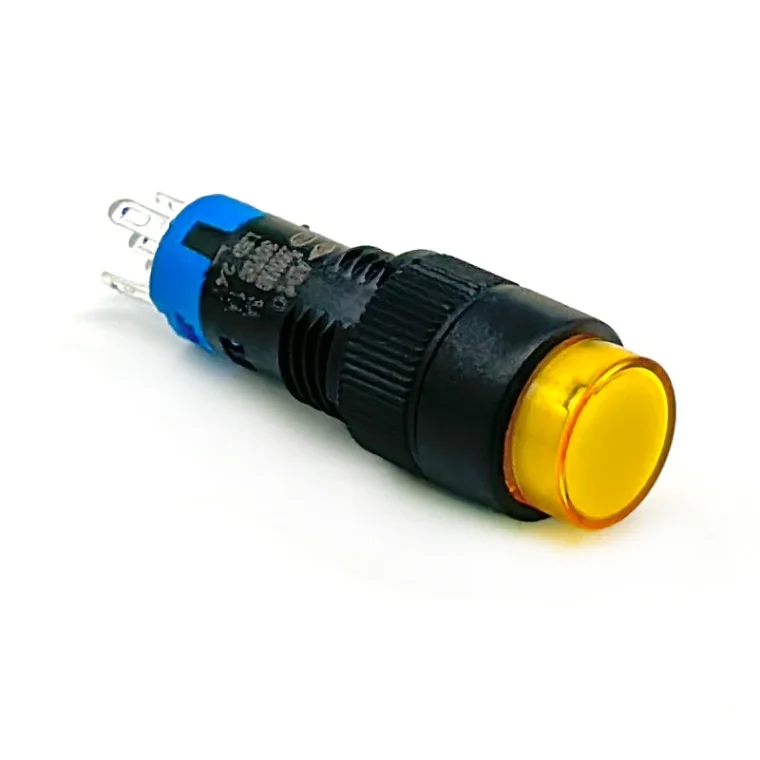

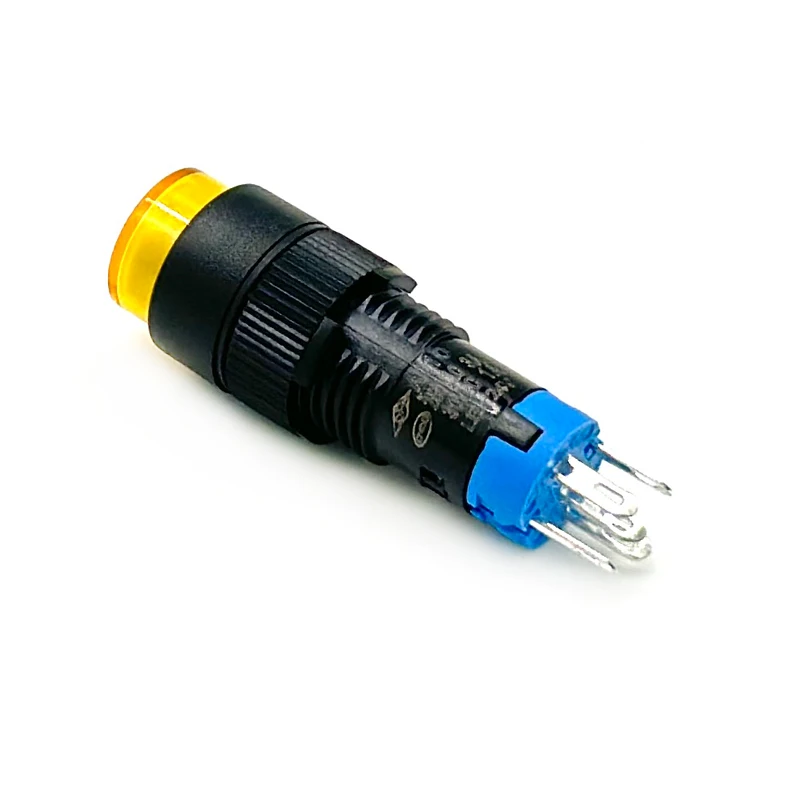

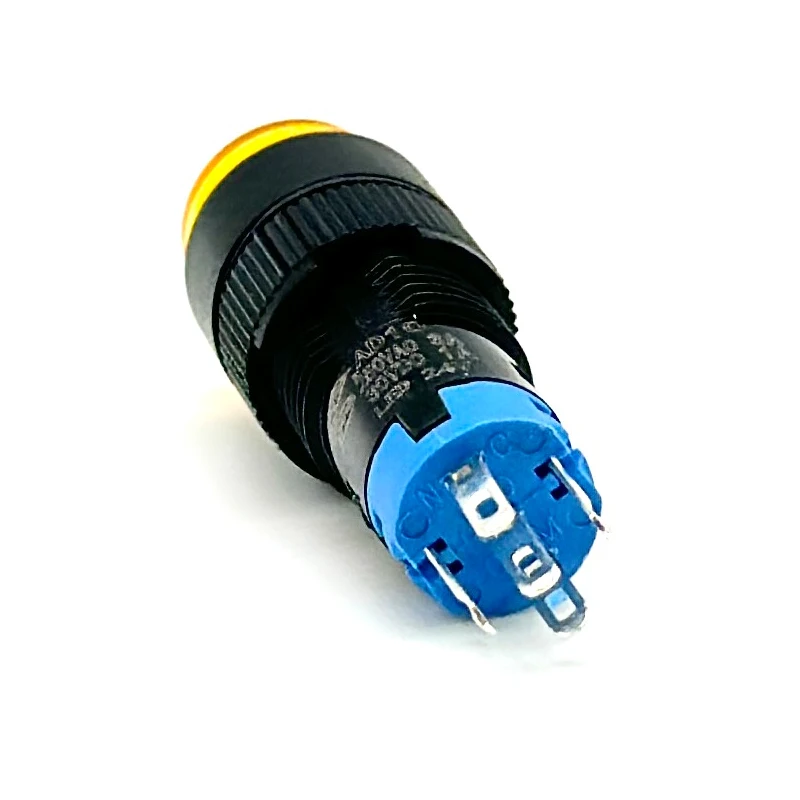

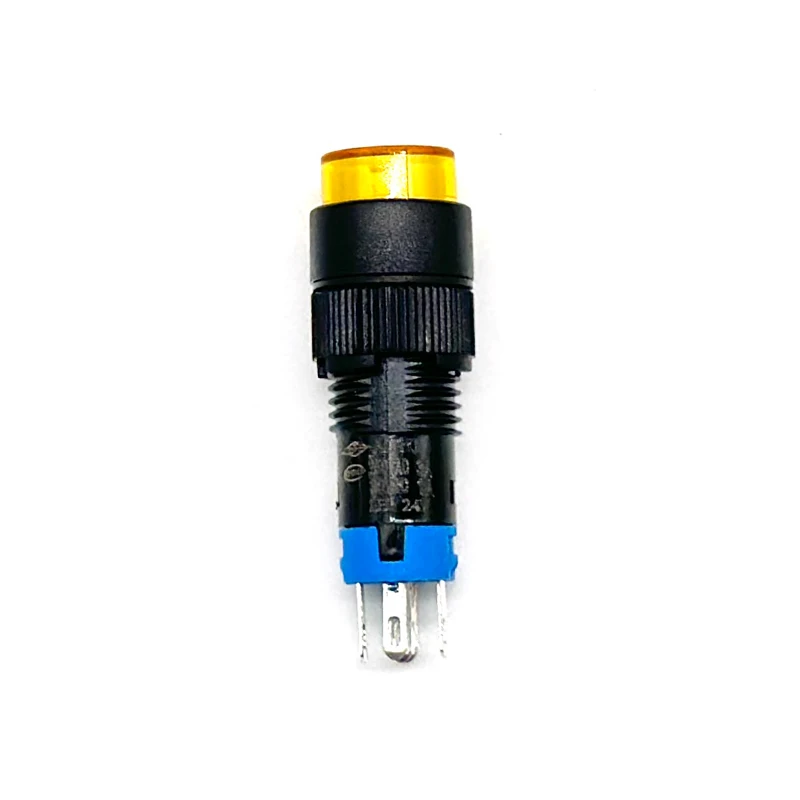

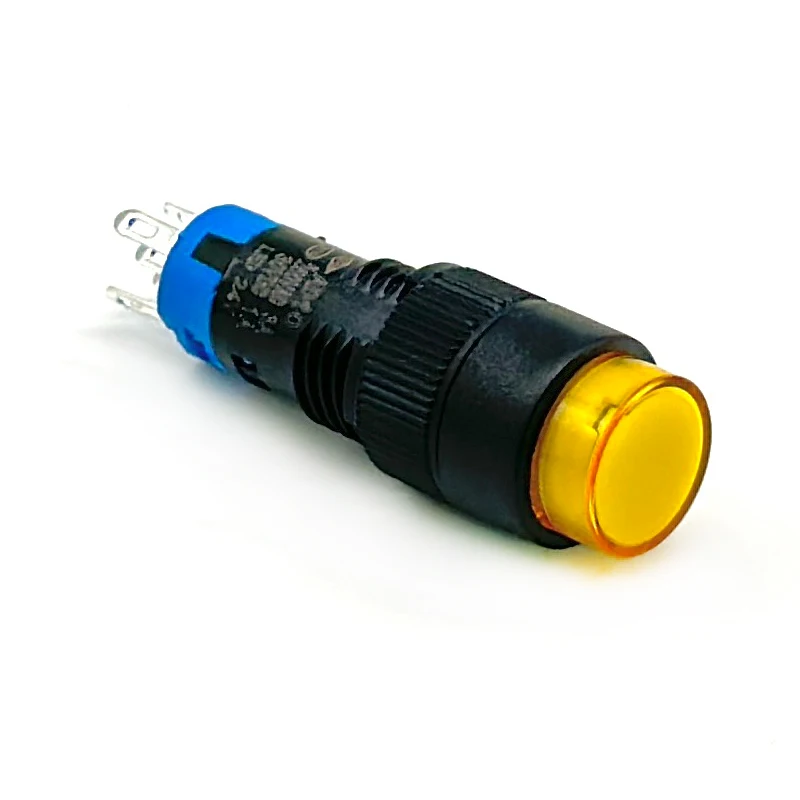

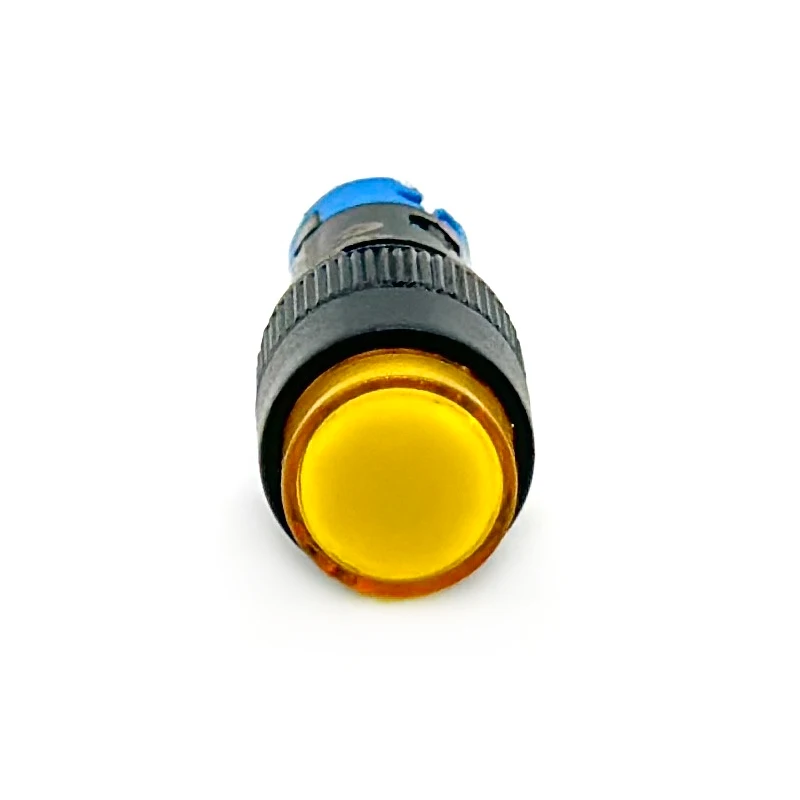

Why Choose Our 10mm 1NO1NC 5-Pin Momentary Push Button?
Our push button stands out with its high-quality materials, durable construction, and reliable performance. It is designed for industrial control applications, offering a maximum rating of 3A at 250VAC. The button is fully illuminated with selectable indicator voltages and comes in a variety of colors, making it versatile and easy to integrate into any system.
What Are the Key Features of Our Push Button?
Key features include a round head design, pin terminals for easy installation, and a long mechanical and electronic life. It operates within a wide temperature range and meets IP40 protection standards, ensuring reliability in various environments. As a factory supplier, we offer customization options to meet your specific requirements.
Why Buy from Us as a Factory Supplier?
As a factory supplier, we offer competitive wholesale prices and direct access to our high-quality products. Our 5S management ensures consistent quality and efficiency in production. We have more than 60 senior engineers and advanced experimental equipment to support customization and innovation. Choose us for reliable, high-quality push buttons at wholesale prices.
