Description

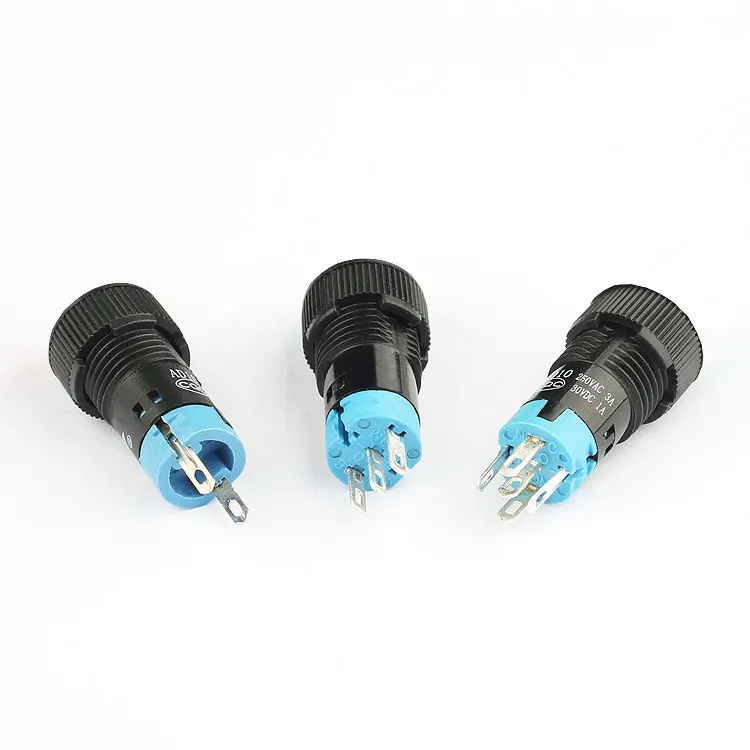

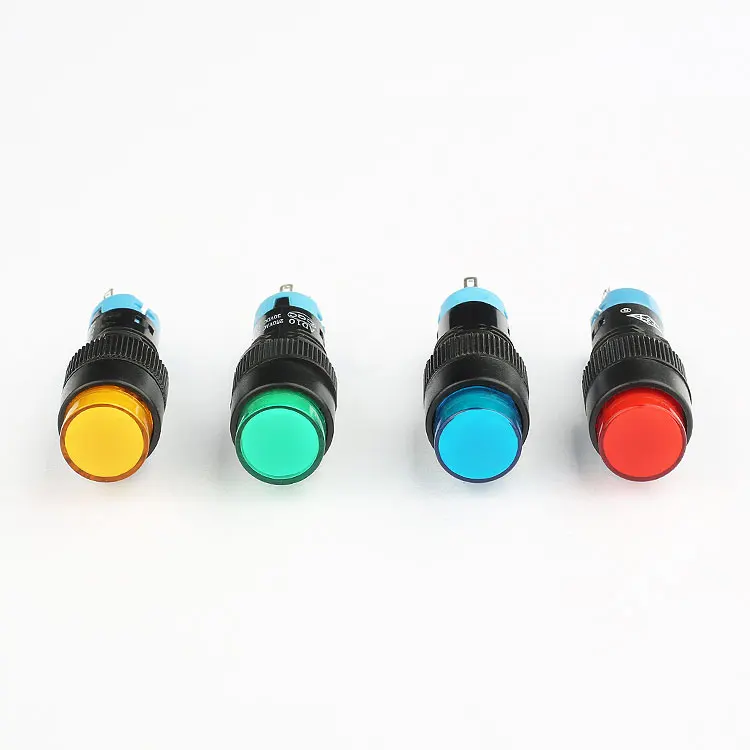

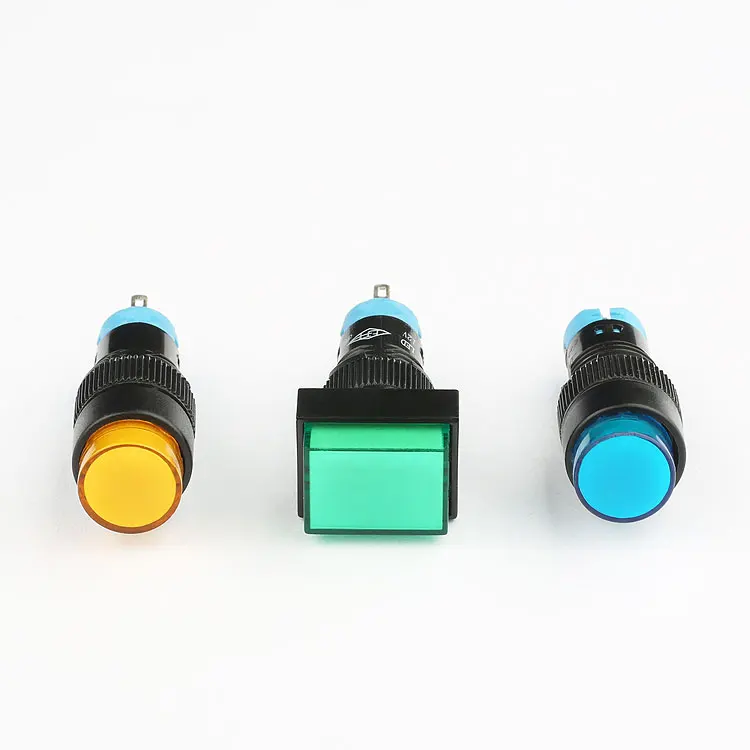

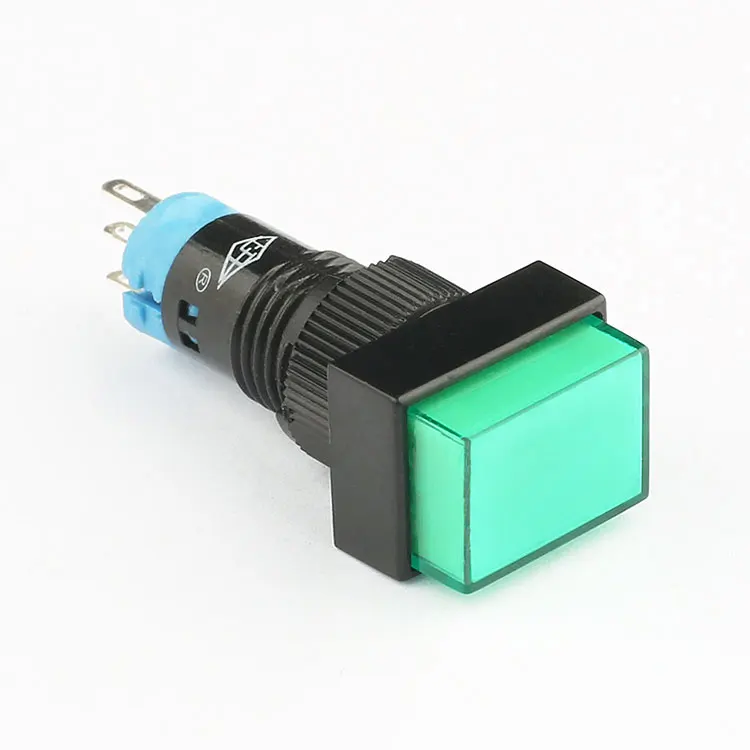

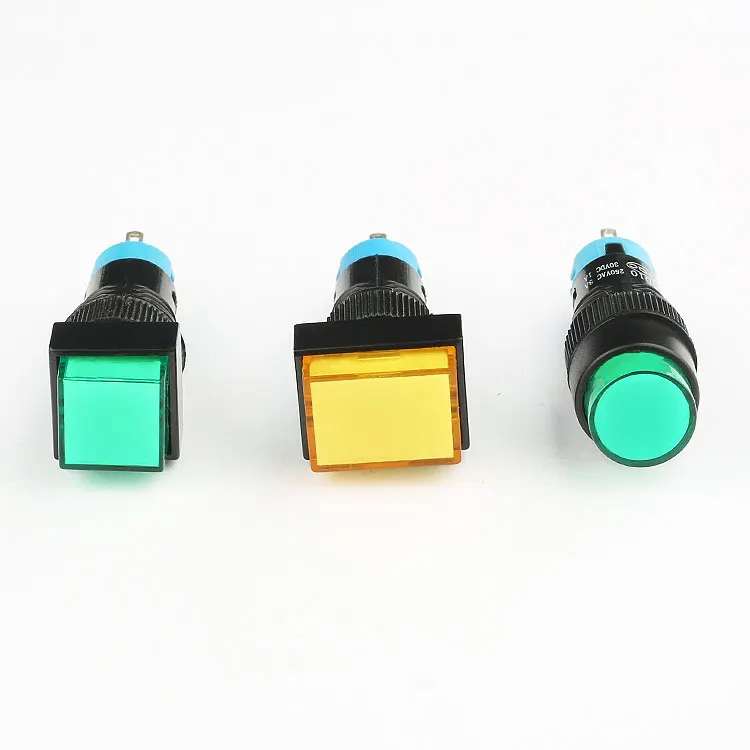

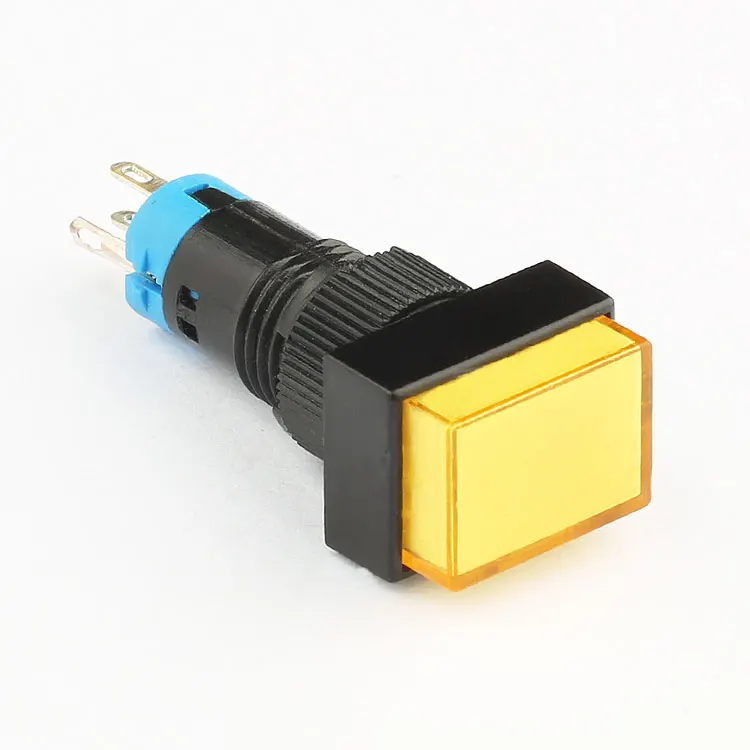

Factory Wholesale 10mm 5-Pin 12V Push Button Switch Supplier
Welcome to our product page for the high-quality 10mm 5-pin 12-volt push button switch. As a factory supplier, we offer this product at wholesale prices, ensuring you get the best value for your money.
Product Specifications:
- Max. Current: 3A
- Max. Voltage: 250V AC
- Place of Origin: Shanghai, China
- Brand Name: Shining Key (SK)
- Model Number: AD10
- LED: Yes, with indicator voltages of 2V, 6V, 12V, 24V, 110V, 220V
- IP Level: IP40
- Switch Combination: 1NO1NC
- Panel Cutout: 10mm
- Operating Temperature: -5℃~+75℃
- Action: Alternate, Moment
- Dielectric Strength: 1500V
- Insulation Resistance: ≥100MΩ
- Contact Resistance: ≤50mΩ
- Certification: CQC, CE, ROHS
- Color: Black
Product Advantages:
Our push button switch stands out from the competition with its high-quality construction, reliable performance, and versatile LED indicator options. The IP40 protection level ensures durability in various environments, while the wide range of indicator voltages makes it suitable for a variety of applications. Additionally, our factory supplier status means we can offer competitive wholesale prices without compromising on quality.
After-Sales Service:
We are committed to providing excellent after-sales service. If you encounter any issues with our product, please don’t hesitate to contact us. We will do our best to resolve your problem promptly and ensure your satisfaction.
| Max. Rating Current & Voltage (Resistive Load) |
3A 250V AC indicator light |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ 220 volt led indicator lights |
| Dielectric Resistance | 1,500V |
| Electronic life(cycles) | Momentary:50,000 Alternate:25,000 |
| Mechanical life(cycles) | Momentary:200,000 Alternate:50,000 |
| Certification |
CQC , CE |
| Operating temperature | -5℃~+75℃ |
| IP code | IP40 |
Why Choose Our 10mm 5-Pin 12V Push Button Switch?
Our 10mm 5-pin 12V push button switch is designed for durability and reliability. With a high insulation resistance and a wide range of indicator voltages, it is suitable for various applications, from industrial control to home appliances. The IP40 protection level ensures it can withstand harsh environments, making it a great choice for your projects.
What Makes Our Product Stand Out?
Our product stands out due to its high-quality construction, competitive wholesale prices, and excellent after-sales service. As a factory supplier, we can offer you the best value for your money. Additionally, the versatile LED indicator options and wide operating temperature range make it a versatile choice for many applications.
How Can I Purchase This Product?
You can easily purchase our 10mm 5-pin 12V push button switch through our website. We offer wholesale prices for bulk orders, and our friendly customer service team is always available to assist you with any questions or concerns you may have. Don't miss out on this great opportunity to get a high-quality push button switch at a great price!
