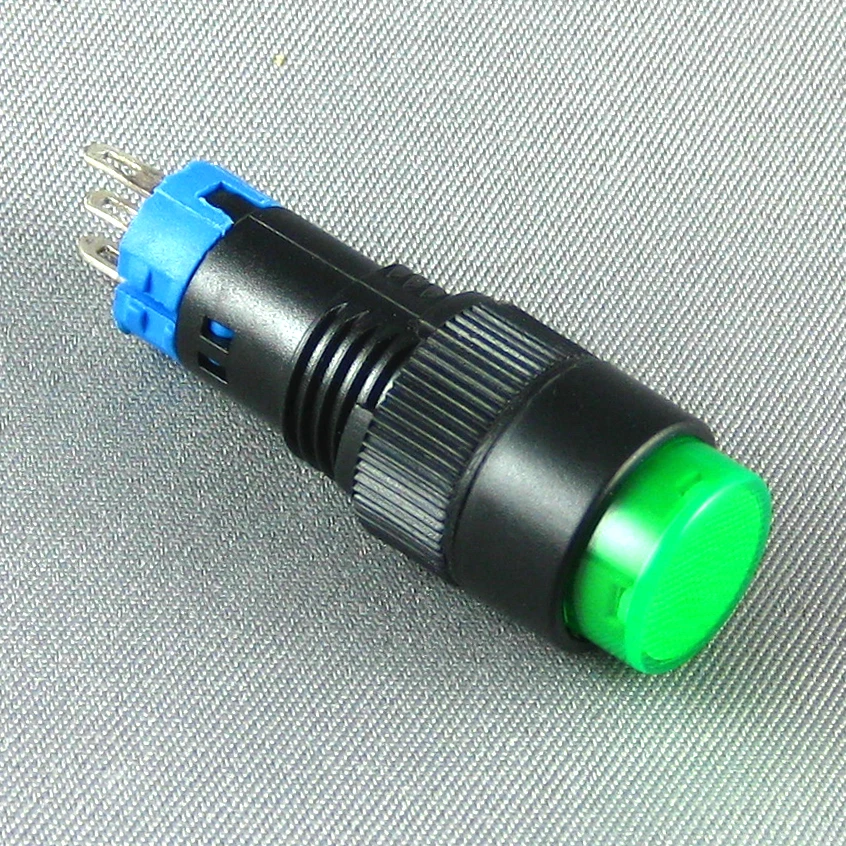

Factory Wholesale 10mm 6V Green Push Button Switch Supplier

>= 500  pieces
$0.75

0 reviews

Factory Wholesale 6V Green Push Button Switch Supplier

Description

Welcome to our factory, a leading supplier of high-quality push button switches. Our 10mm 6V green push button switch is designed for durability and performance, making it an ideal choice for a wide range of applications. With a maximum rating of 3A/250V AC, this switch can handle heavy loads with ease. Its contact resistance is ≤50mΩ, ensuring minimal power loss, and the insulation resistance is ≥100MΩ, providing excellent electrical isolation. The dielectric strength of 1500V guarantees safety under high voltage conditions. Our switch offers an electronic life of 50,000 cycles and a mechanical life of 200,000 cycles, far exceeding many competitors on the market. The operating temperature range of -5℃ to +75℃ makes it suitable for various environments. Available in multiple cap colors including red, green, yellow, white, blue, orange, and black, this switch can be customized to match your specific needs. As a factory supplier, we offer wholesale pricing and bulk order discounts, making it cost-effective for large-scale projects. We also provide excellent after-sales service, ensuring your satisfaction with every purchase. Choose our factory-direct push button switch for quality, reliability, and value.
Max.Rating Current & Voltage(Resistive Load) 3A/250V AC
Contact Resistance ≤50mΩ
Insulation Resistance ≥1000 MΩ
Dielectric Strength 1500V
Electronic Life(cycles) 50000
Mechanical Life(cycles) 200000
Operating temperature -5°c~+75°c
IP code IP40

Electronic component image for e-commerceElectronic device product imageElectronic part for online shoppingElectronic accessory product photoElectronic module for e-commerceElectronic board product imageElectronic device for online storeElectronic component product photoElectronic gadget for e-commerce


Key Features and Benefits

Our 10mm 6V green push button switch stands out with its robust design and high performance. It offers a long electronic and mechanical life, ensuring reliability and durability in demanding applications. The switch's high dielectric strength and insulation resistance provide safety and efficiency, making it suitable for various industrial and electronic uses.

Why Choose Our Switch?

As a factory supplier, we offer competitive wholesale pricing and bulk order discounts. Our switches are manufactured to the highest standards, ensuring quality and performance. With multiple cap color options, you can customize the switch to match your project's aesthetics. Additionally, our excellent after-sales service guarantees your satisfaction.

Applications and Versatility

This push button switch is ideal for industrial control, electronic equipment, home appliances, and automation systems. Its versatility and reliability make it a popular choice among engineers and technicians. Whether you're working on a small project or a large-scale installation, our switch provides the performance and durability you need.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

3A

Max. Voltage

250V AC

Place of Origin

Shanghai, China

Brand Name

SK(Shiningkey)

Model Number

AD10

LED

Yes

Whether the smart

NO

Switch Combination

1NO1NC

lamp voltage

6V, 12V, 24V, 110VAC, 220VAC

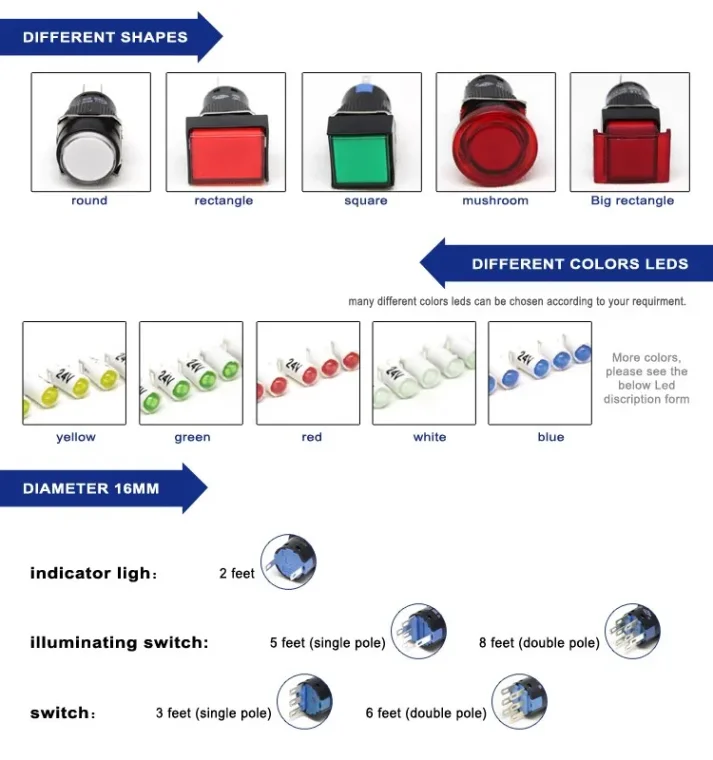

Cap colors

red, green , yellow, white, blue, orange , black

Operating temperature

-5℃~+75℃

Dielectric Strength

1500V

Contact Resistance:

≤50mΩ

Insulation Resistance:

≥100MΩ

Certification

CQC CE

Protection Level

IP40
