Description

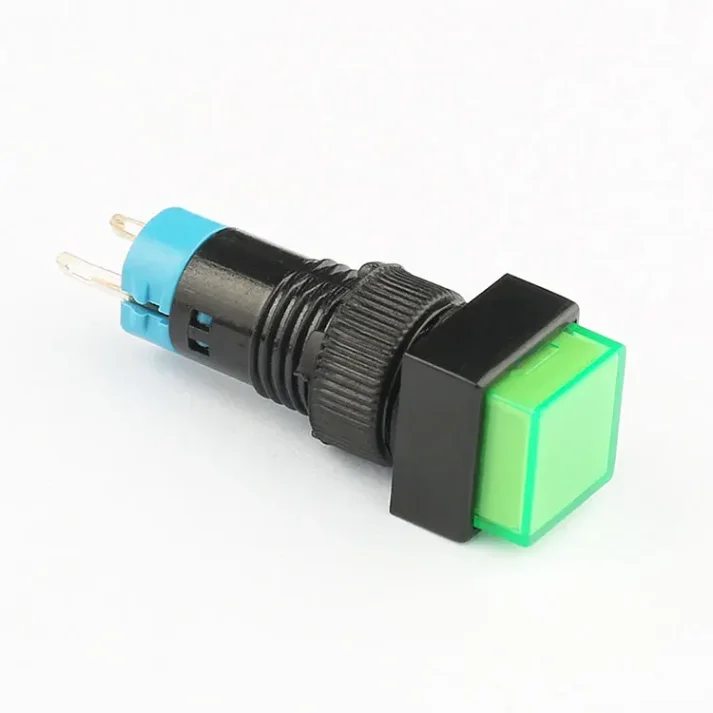

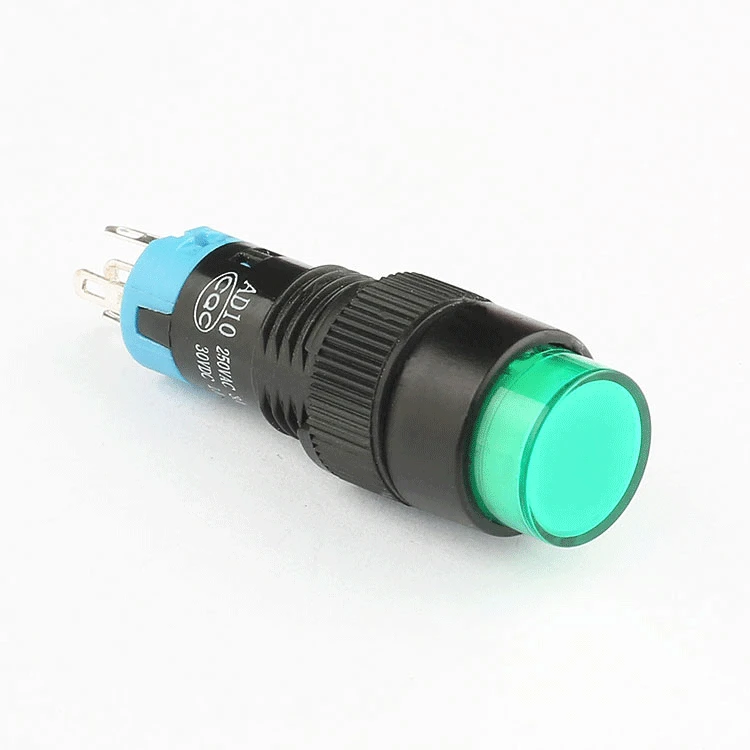

Our switch comes with a 5-pin terminal and is equipped with an LED indicator, available in Red, Green, Yellow, Blue, and White colors, making it suitable for various applications. With a mounting hole size of 10mm and a compact 12mm size, it’s easy to install and fits perfectly in tight spaces.
Technical Specifications:
- Max. Rating Current: 3A
- Max. Rating Voltage: 250V AC
- Rated Voltage: 12V
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥1000 MΩ
- Dielectric Strength: 1500V
- Electronic Life: 50,000 cycles
- Mechanical Life: 200,000 cycles
- Operating Temperature: -5°C to +75°C
- IP Code: IP40
What sets our switch apart is its durability and reliability. With a mechanical life of 200,000 cycles and an electronic life of 50,000 cycles, it’s built to last. Our factory is equipped with independent plants, injection molding workshops, and advanced experimental equipment, ensuring top-notch quality. We have over 60 senior engineers and implement 5S management in all workshops, guaranteeing consistent quality and performance.
Whether you need a single switch or a bulk order, we’ve got you covered. Customization options are available for large quantities to meet your specific requirements. Contact us today to discuss your needs and get a competitive quote!
| Max.Rating Current & Voltage(Resistive Load) | 3A/250V AC |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1000 MΩ |
| Dielectric Strength | 1500V |
| Electronic Life(cycles) | 50000 |
| Mechanical Life(cycles) | 200000 |
| Operating temperature | -5°c~+75°c |
| IP code | IP40 |
Key Features and Benefits
Our 10mm momentary LED push button switch is designed for durability and versatility. With a 5-pin terminal and LED indicator, it's perfect for various industrial and commercial applications. The switch's compact size and high mechanical/electronic life ensure reliable performance over time.
Why Choose Our Switch?
As a factory supplier, we offer competitive wholesale prices and customization options for large orders. Our strict quality control measures, including 5S management and advanced equipment, guarantee top-notch products. With over 60 senior engineers, we can tailor the switch to meet your specific needs.
Customization and Support
For bulk orders, we provide customization services to ensure the switch meets your exact requirements. Our dedicated support team is always ready to assist you with any questions or concerns. Choose us for reliable, high-quality push button switches at unbeatable prices.
