Description

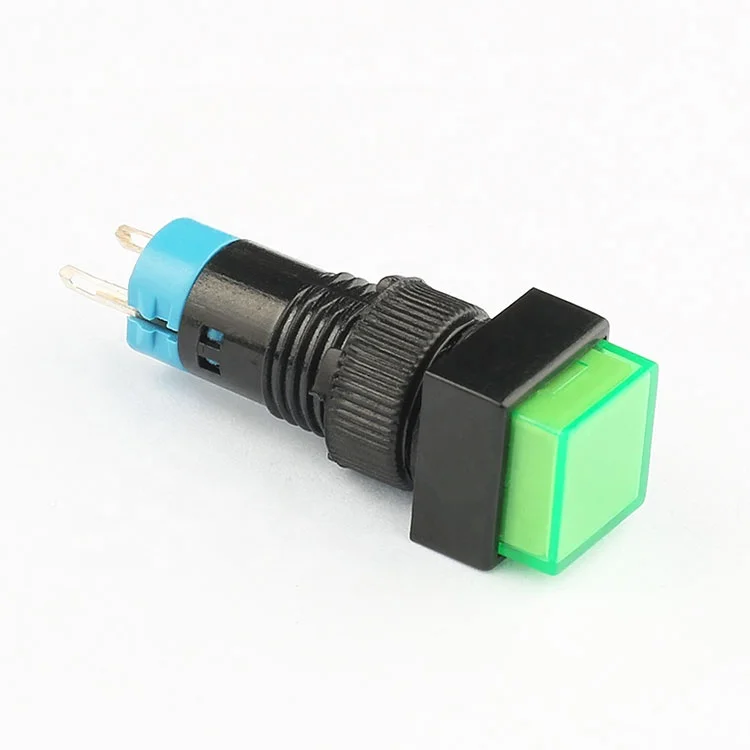

High-Quality 10mm Momentary LED Push Button Switch – Factory Direct Wholesale
Looking for a reliable supplier of momentary LED push button switches? Look no further! We are a factory specializing in the production of high-quality switches, offering wholesale prices and customization services to meet your specific needs.
Our 10mm momentary LED push button switch is designed with precision and durability in mind. With a maximum rating current of 3A and a voltage of 250V AC (resistive load), it is suitable for a wide range of applications. The switch features a low contact resistance of ≤50mΩ and a high insulation resistance of ≥1000 MΩ, ensuring reliable performance and safety.
What sets our switch apart from the competition is its long electrical life of 50,000 cycles and mechanical life of 200,000 cycles. This means it can withstand frequent use without wearing out, providing you with a cost-effective solution in the long run.
Our factory is equipped with advanced experimental equipment and a dedicated injection molding workshop. We have over 60 senior engineers and implement 5S management in all our workshops, ensuring strict quality control and efficient production.
In addition to our high-quality products, we also offer excellent after-sales service. If you have any questions or concerns, our dedicated customer support team is always here to help.
Don’t miss out on this opportunity to get a high-quality momentary LED push button switch at a wholesale price. Contact us today to place your order!
Product Specifications:
- Max. Rating Current: 3A
- Max. Voltage: 250V AC
- LED: Yes (Green)
- Switch Combination: 1NO1NC
- Operation Type: Momentary
- Mounting Hole Size: 10mm
- Mechanical Life: 200,000 cycles
- Electrical Life: 50,000 cycles
- Operating Temperature: -5°C ~ +75°C
- IP Code: IP40
- Certification: CQC, CE
| Max.Rating Current & Voltage(Resistive Load) | 3A/250V AC |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1000 MΩ |
| Dielectric Strength | 1500V |
| Electronic Life(cycles) | 50000 |
| Mechanical Life(cycles) | 200000 |
| Operating temperature | -5°c~+75°c |
| IP code | IP40 |
Why Choose Our 10mm Momentary LED Push Button Switch?
Our 10mm momentary LED push button switch stands out for its high quality, durability, and long electrical and mechanical life. With a maximum rating current of 3A and a voltage of 250V AC, it is suitable for a wide range of industrial and electronic applications. The green LED indicator provides clear visual feedback, making it easy to use in various environments.
Factory Direct Wholesale Prices
As a factory supplier, we offer wholesale prices directly to our customers. This means you can get high-quality switches at a competitive price, without the markup of middlemen. We also offer customization services to meet your specific requirements, ensuring you get the perfect switch for your application.
Reliable After-Sales Service
We understand that after-sales service is just as important as the product itself. That's why we offer a dedicated customer support team to answer any questions or concerns you may have. Whether it's technical support or warranty claims, we are here to help you every step of the way.
