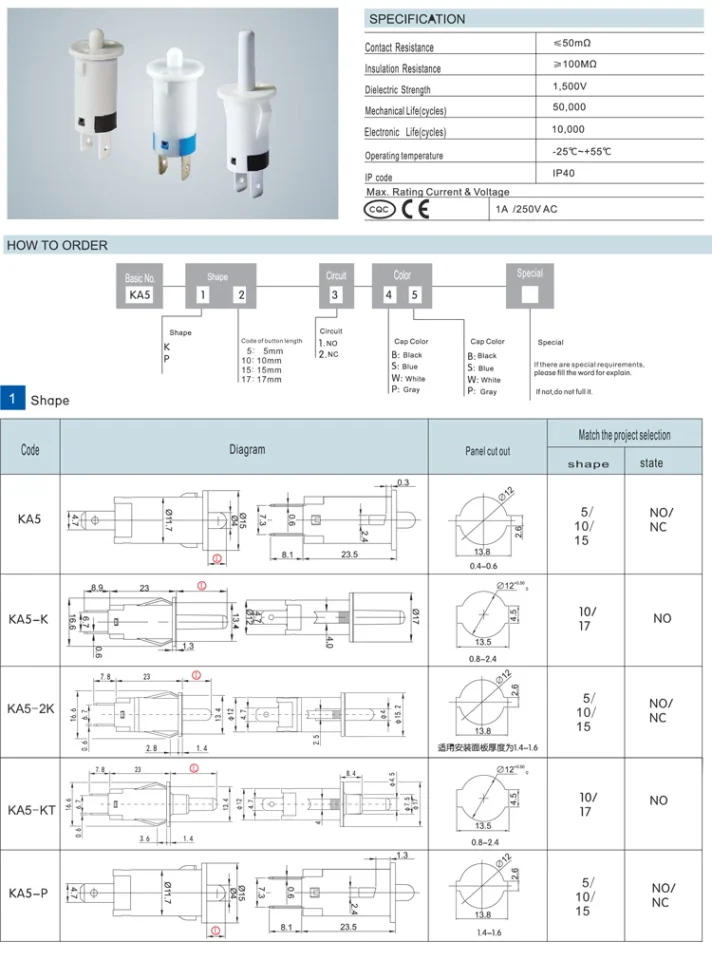

Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(Shangkai)
|
|
Model Number
|
KA5-5-NC-SS
|
|
Protection Level
|
IP40
|
|
Max. Current
|
1A
|
|
Max. Voltage
|
250V AC
|
|
Contact Resistance
|
50mΩ Max.
|
|
Insulation Resistance
|
100MΩ Min.
|
|
Dielectric Strength
|
1500V
|
|
Mechanical Life
|
50000 Times
|
|
Electrical Life
|
100000 Times
|
|
Operating temperature
|
-25℃~+55℃
|
|
Protection Class
|
IP40
|
|
Mounting Hole Size
|
12mm
|
|
Function
|
NC,NO
|
|
Panel Thickness
|
0.4-0.6, 0.8-2.4, 1.4-1.6
|

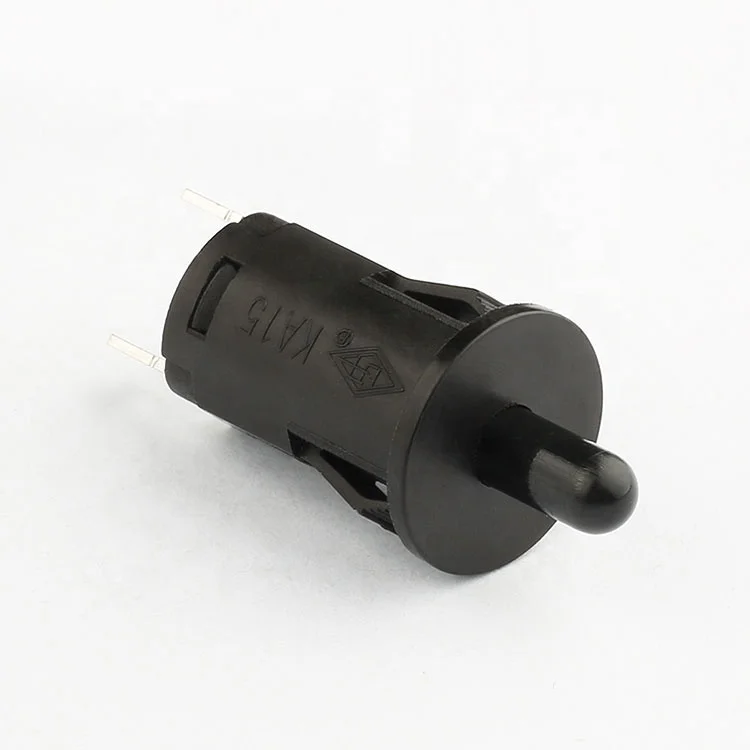

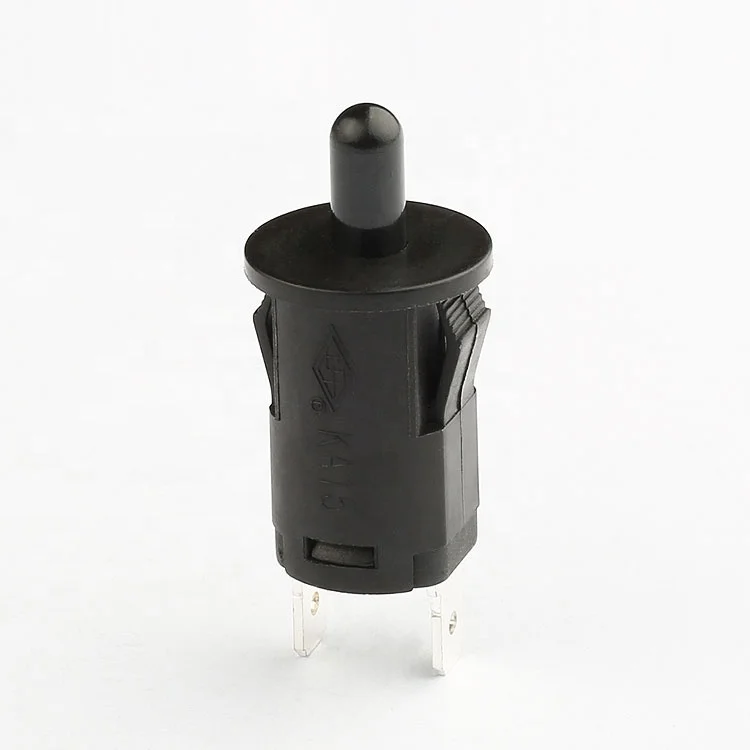

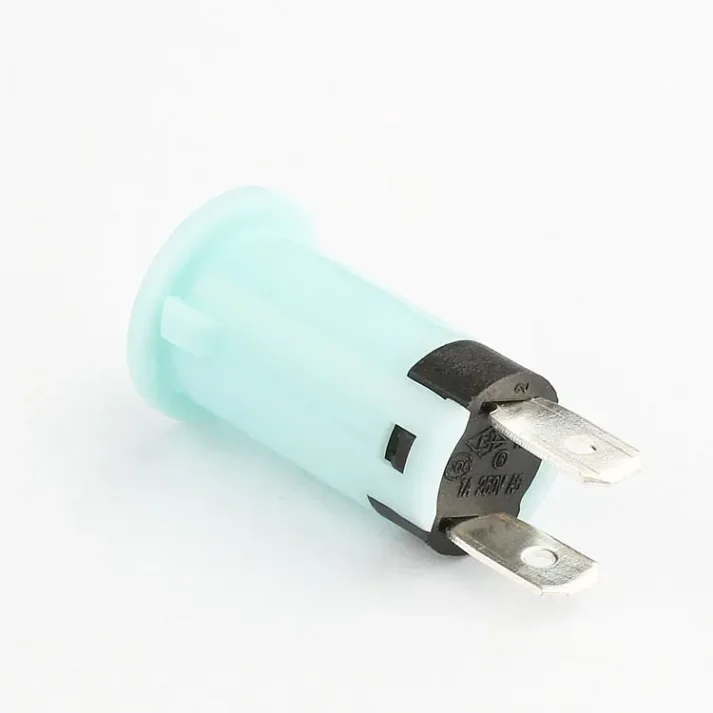

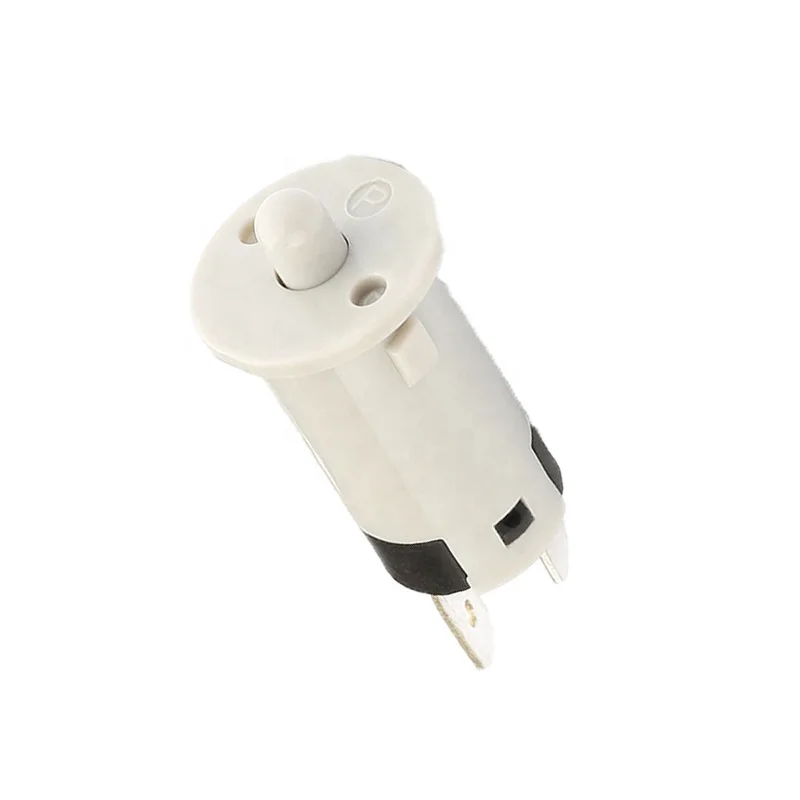

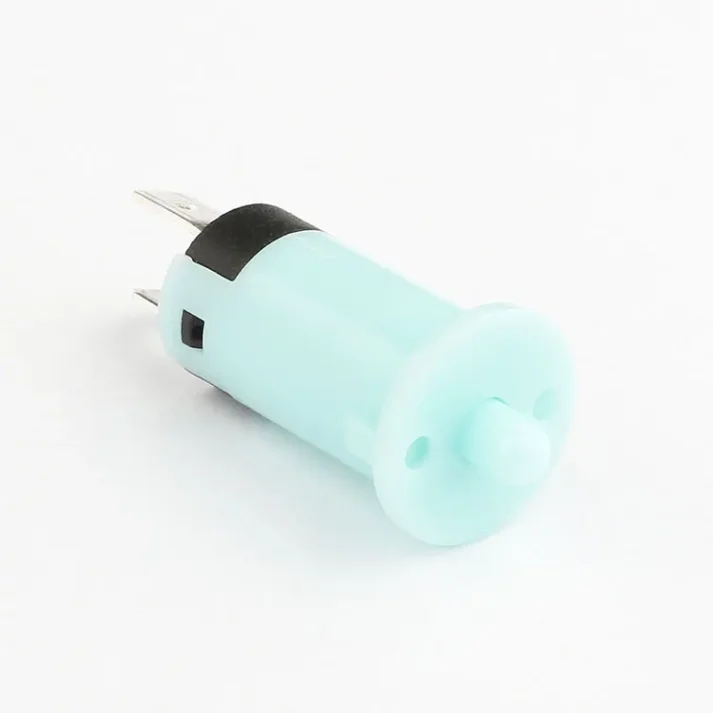

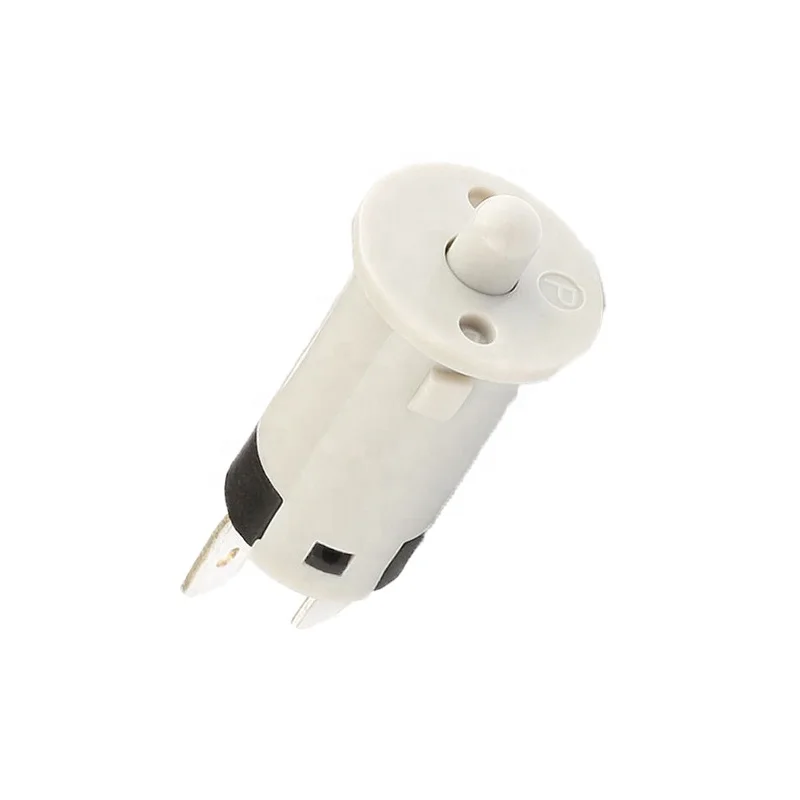

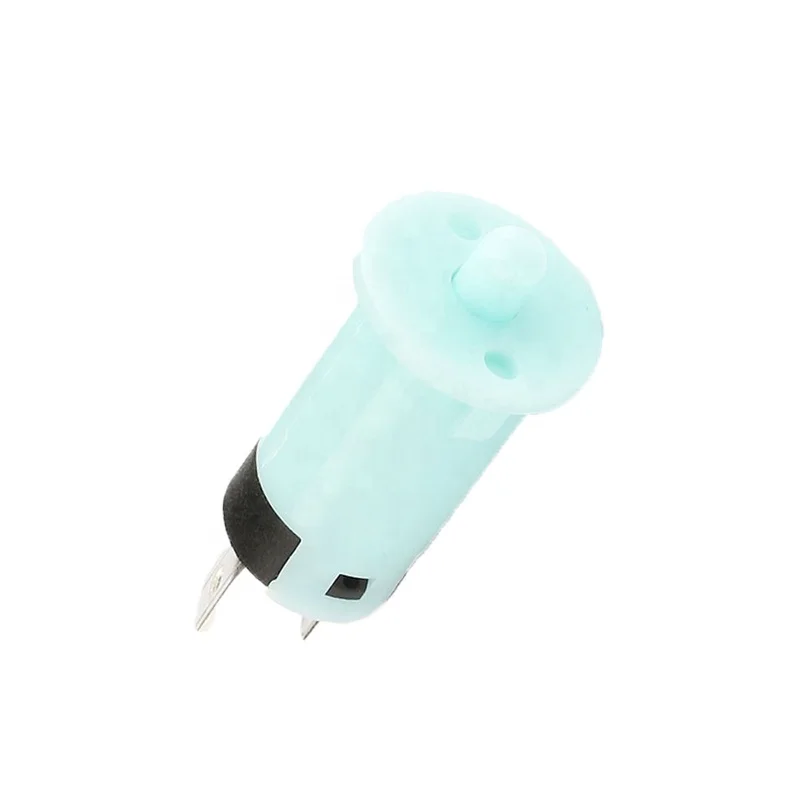

Why Choose Our 12mm Push Button Switch?
Our 12mm push button switch is designed for durability and reliability, making it ideal for refrigerator doors and various industrial applications. With a normally open (NO) and normally closed (NC) function, it offers flexibility in your electrical circuits. The IP40 protection level ensures it can withstand dust and water, making it suitable for harsh environments.
What Are the Key Features?
Key features include a 2-pin design, 1A max current, and 250V AC max voltage. It has a long mechanical life of 50,000 times and an electrical life of 100,000 times, ensuring long-lasting performance. The low contact resistance (50mΩ Max.) and high insulation resistance (100MΩ Min.) contribute to its reliability.
Why Buy from Us?
As a direct factory supplier, we offer competitive wholesale prices and excellent customer service. Our switches are built to the highest standards, ensuring you get a quality product every time. Choose us for your push button switch needs and experience the difference.
