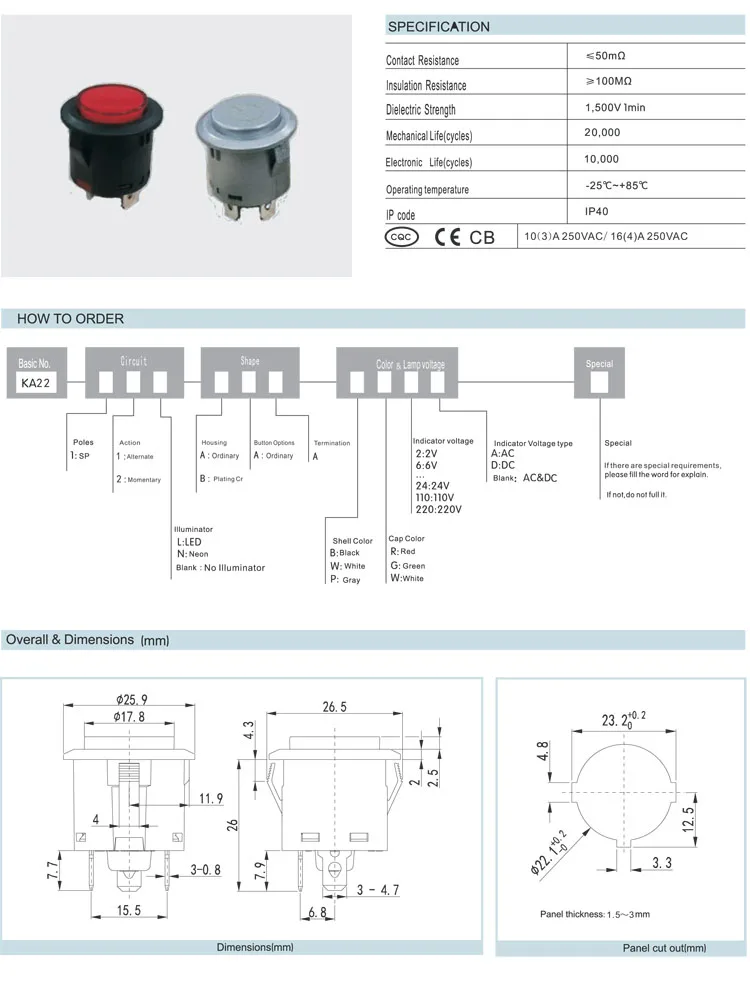

Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(Shangkai) yongxing
|
|
Model Number
|
KA22-11L-AAA-BG24-G
|
|
Protection Level
|
IP40
|
|
Max. Current
|
10(3)A / 16(4)A
|
|
Max. Voltage
|
250VAC
|
|
Contact Resistance
|
50m Max
|
|
Insulation Resistance
|
100M Min
|
|
Dielectric Strength
|
1500V 1min
|
|
Mechanical Life
|
20000
|
|
Electrical Life
|
10000
|
|
Operating temperature
|
-25℃~+85℃
|
|
Certificate
|
CQC CE CB
|
|
Mounting Hole Size
|
22mm Diameter
|
|
Panel thickness
|
1.5~3mm
|

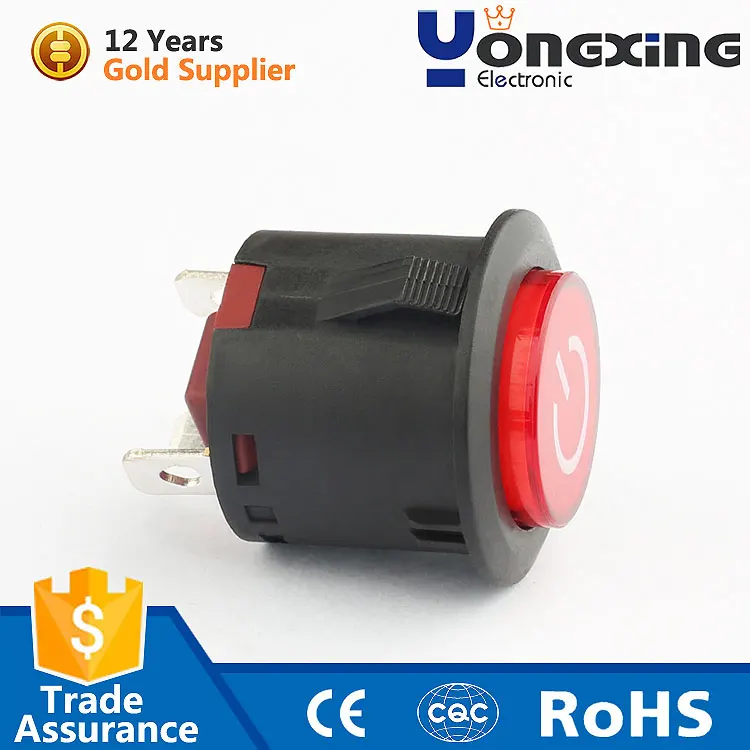

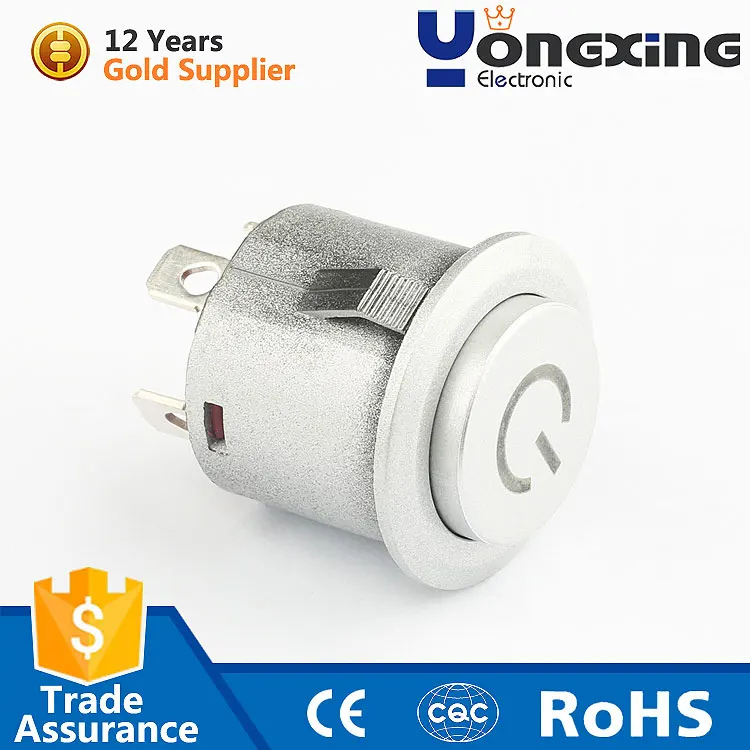

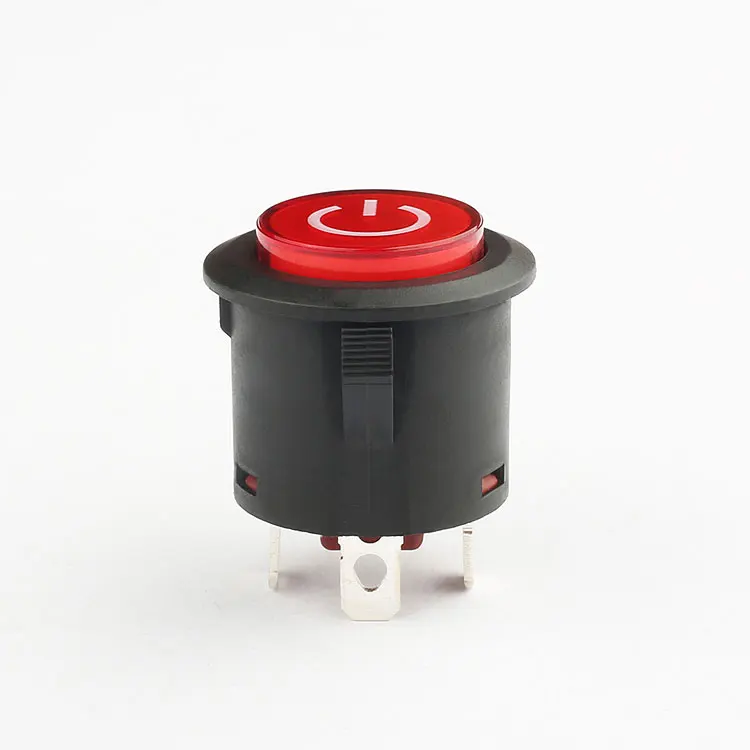

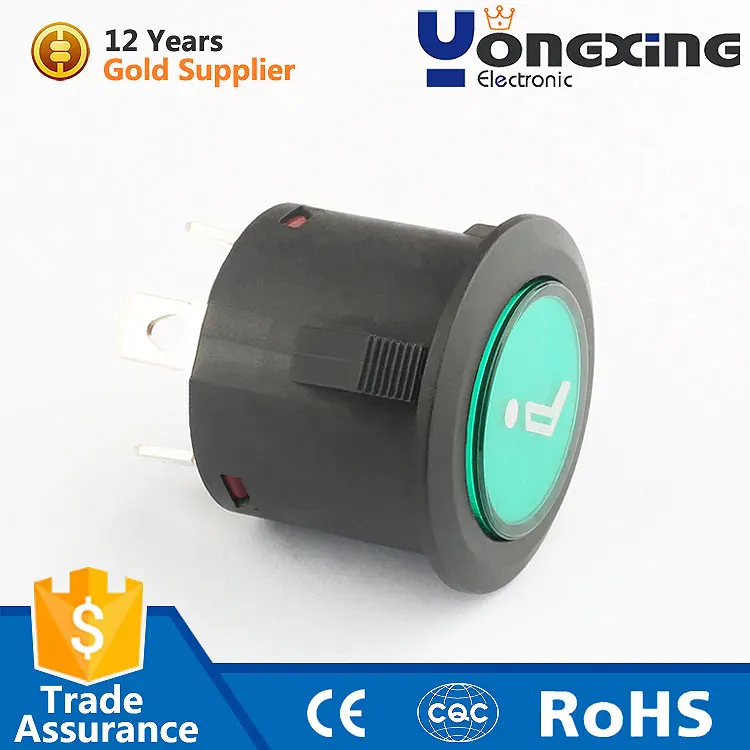

Why Choose Our 12V LED Push Button Switch?
Our 12V LED push button switch is designed for industrial control applications, offering durability, reliability, and clear visual feedback. The LED indicator, available in multiple voltages and colors, ensures easy status monitoring in any environment. With a mechanical life of 20,000 cycles and an electrical life of 10,000 cycles, our switch is built to last, reducing maintenance costs and downtime.
Key Features of Our LED Push Button Switch

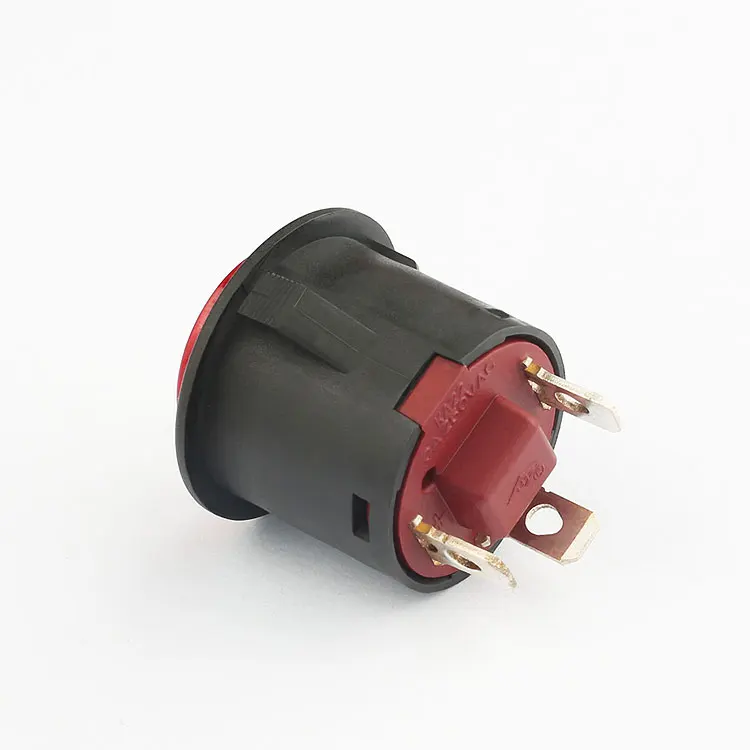

Our switch features a round head and pin terminal, making it easy to install and integrate into your existing systems. The IP40 protection level guards against dust and small particles, ensuring reliable operation in harsh conditions. The switch supports a maximum current of 16A and a maximum voltage of 250VAC, making it suitable for a wide range of applications.
Factory Wholesale Advantages
As a factory-direct supplier, we offer competitive pricing, fast delivery, and excellent customer service. We can customize the LED color to match your specific requirements, ensuring a perfect fit for your project. Choose us for your next industrial control switch needs and experience the quality and reliability that only a factory supplier can provide.
