Description

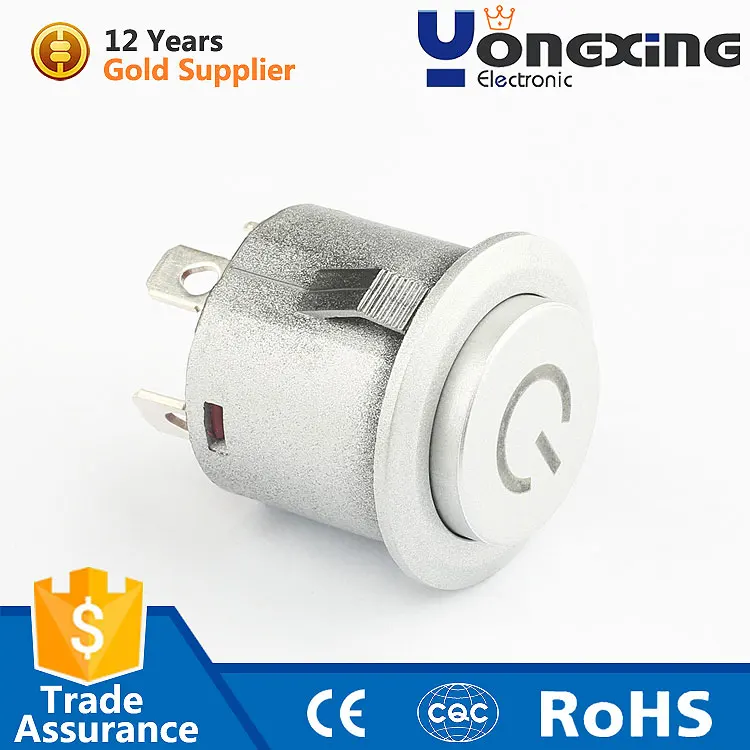

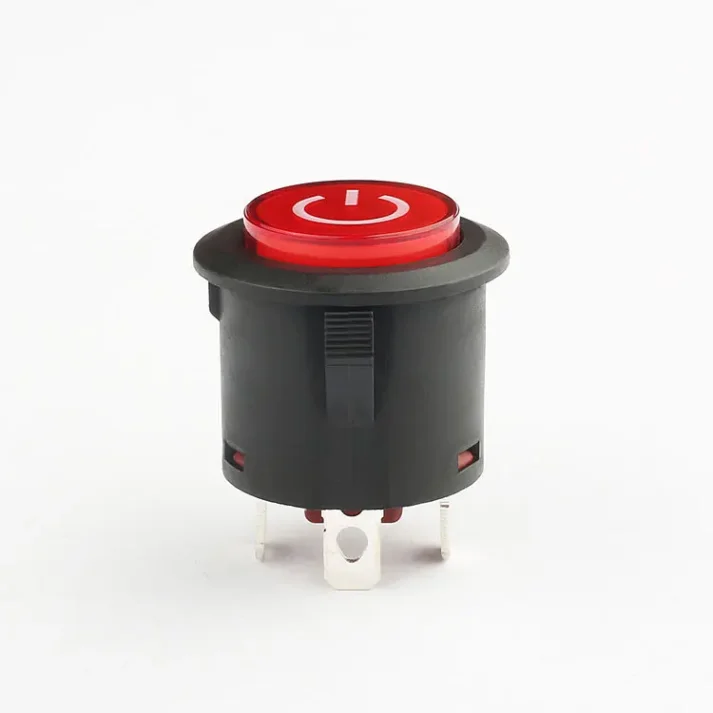

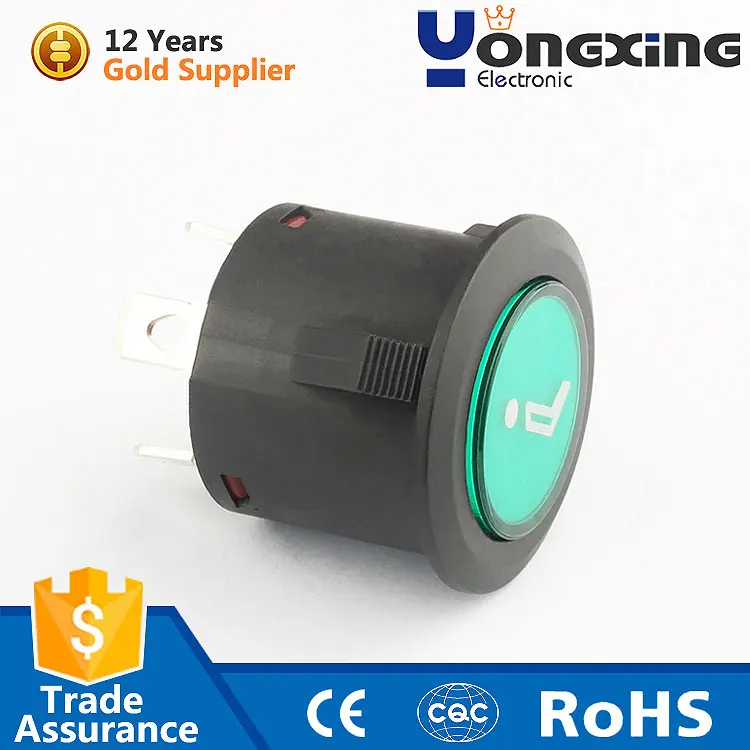

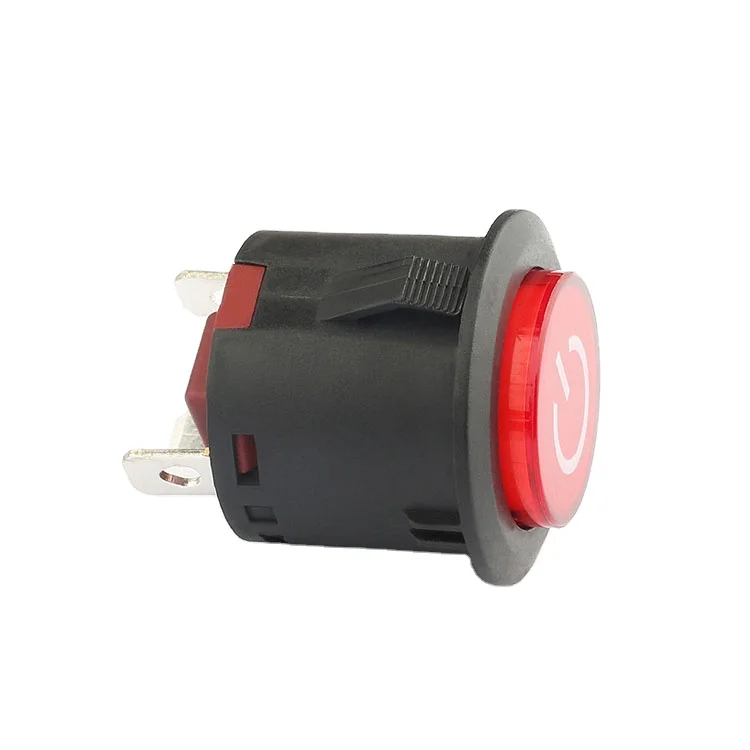

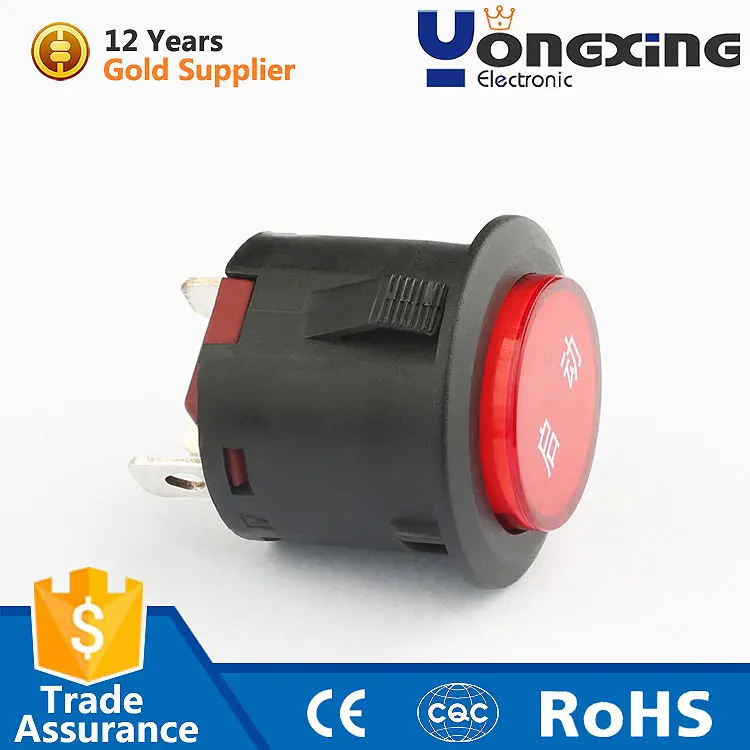

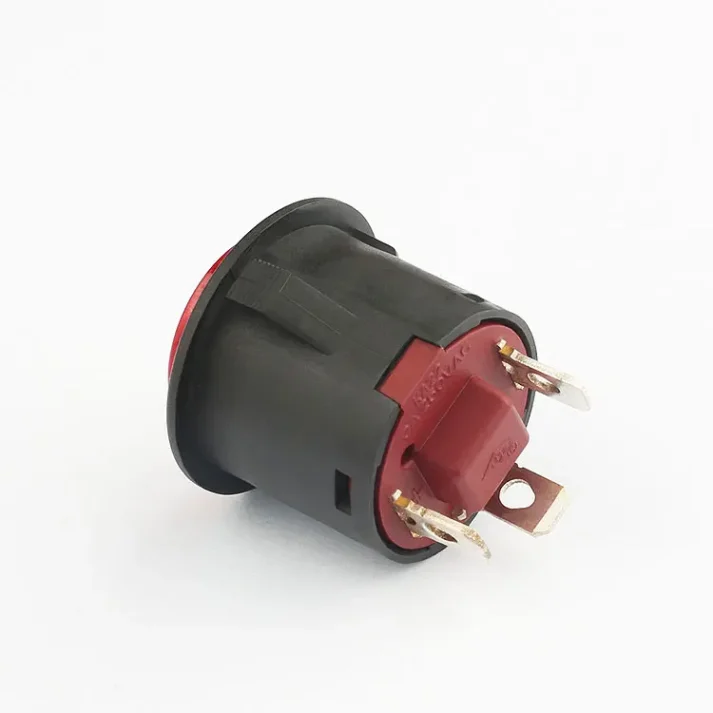

Our switch is crafted from premium plastic, ensuring longevity and resistance to wear and tear. It features a full illuminated design, available in Black, Green, Red, and White colors, making it ideal for industrial control panels where visibility and aesthetics matter. With a round head and pin terminal, it’s easy to install and use.
This switch boasts an IP41 protection level, safeguarding it against dust and moisture, and operates efficiently within a temperature range of -25℃ to +85℃. It supports a maximum current of 16A and a maximum voltage of 250VAC, making it suitable for a wide range of electrical equipment.
Our switch stands out with its mechanical life of 20,000 cycles and electrical life of 10,000 cycles, ensuring long-term performance. It also comes with CQC, CE, and CB certificates, guaranteeing compliance with international safety standards.
As a factory-direct supplier, we offer competitive pricing and bulk order discounts. Our dedicated after-sales service team is always ready to assist with any inquiries or issues, ensuring a smooth purchasing experience. Choose our 12V 22mm Waterproof LED Push Button Switch for your industrial control needs and experience the difference in quality and service.
|

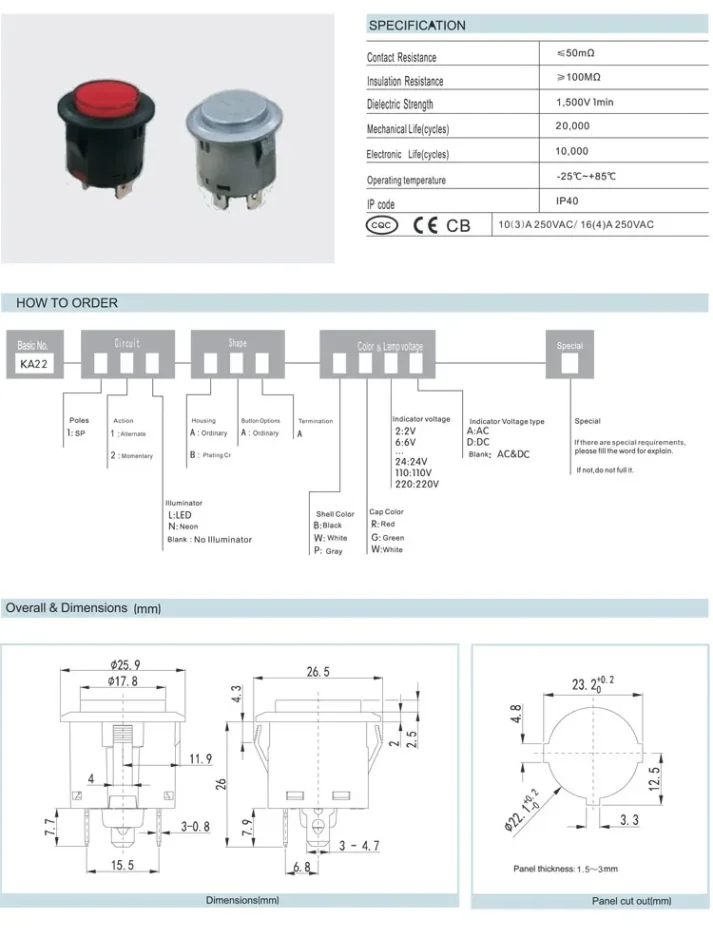

item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(Shangkai) yongxing
|
|
Model Number
|
KA22-11L-AAA-BG24-G
|
|
Protection Level
|
IP40
|
|
Max. Current
|
10(3)A / 16(4)A
|
|
Max. Voltage
|
250VAC
|
|
Contact Resistance
|
50m Max
|
|
Insulation Resistance
|
100M Min
|
|
Dielectric Strength
|
1500V 1min
|
|
Mechanical Life
|
20000
|
|
Electrical Life
|
10000
|
|
Operating temperature
|
-25℃~+85℃
|
|
Certificate
|
CQC CE CB
|
|

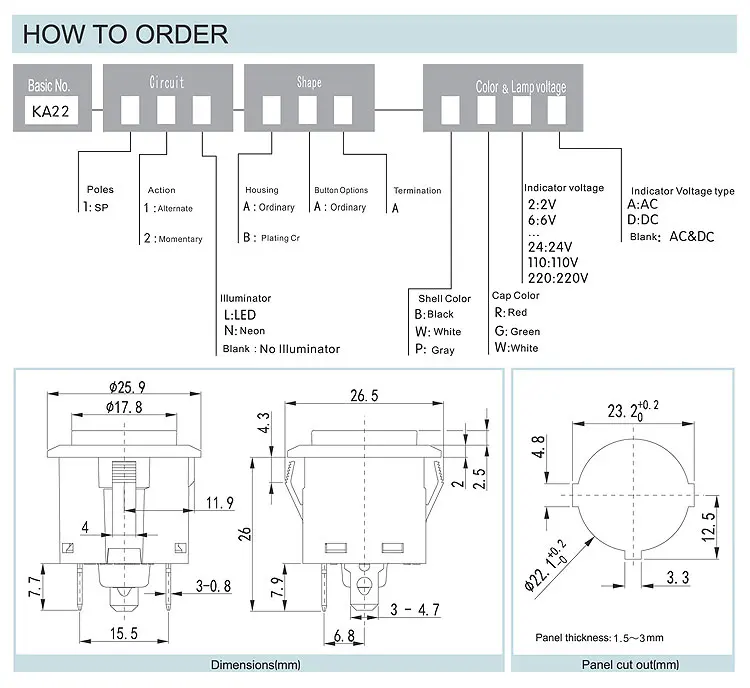

Mounting Hole Size
|
22mm Diameter
|
|
Panel thickness
|
1.5~3mm
|
Why Choose Our 12V 22mm Waterproof LED Push Button Switch?
Our switch is designed for durability and reliability, making it ideal for industrial control applications. Its waterproof and dustproof features ensure long-lasting performance in harsh environments.
What Are the Key Advantages of Our Switch?
With a high mechanical and electrical life cycle, our switch offers exceptional value for money. It also comes with international safety certificates, ensuring peace of mind for users.
How Can We Benefit from Buying Wholesale?
As a factory-direct supplier, we offer competitive pricing and bulk order discounts. Our dedicated after-sales service ensures a smooth purchasing experience, from order placement to delivery and beyond.
