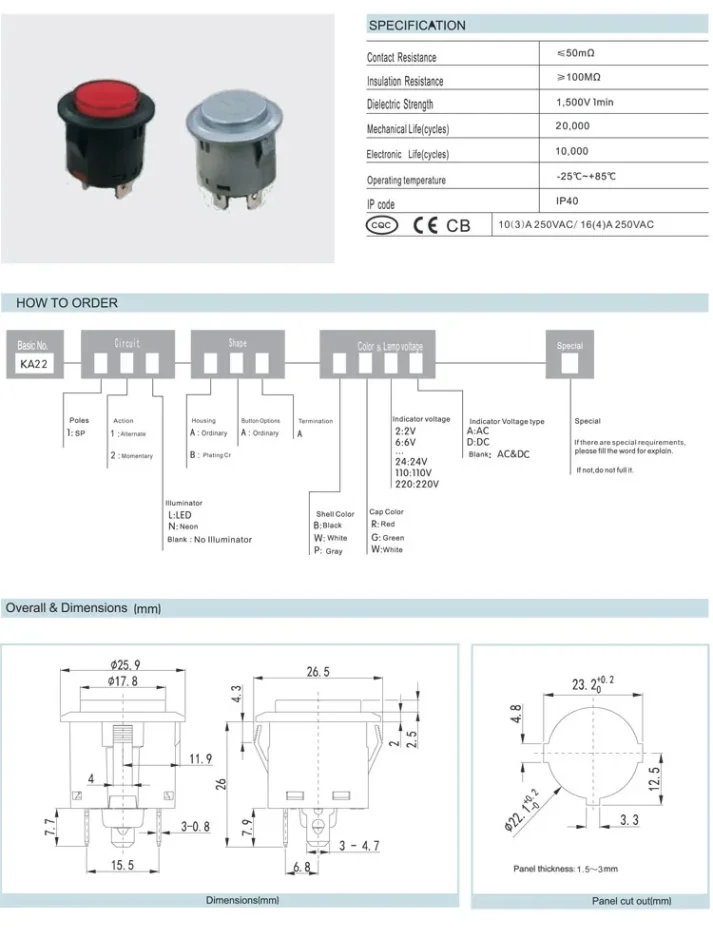

Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(Shangkai) yongxing
|
|
Model Number
|
KA22-11L-AAA-BG24-G
|
|
Protection Level
|
IP40
|
|
Max. Current
|
10(3)A / 16(4)A
|
|
Max. Voltage
|
250VAC
|
|
Contact Resistance
|
50m Max
|
|
Insulation Resistance
|
100M Min
|
|
Dielectric Strength
|
1500V 1min
|
|
Mechanical Life
|
20000
|
|
Electrical Life
|
10000
|
|
Operating temperature
|
-25℃~+85℃
|
|
Certificate
|
CQC CE CB
|
|
Mounting Hole Size
|
22mm Diameter
|
|
Panel thickness
|
1.5~3mm
|
Key Features and Benefits

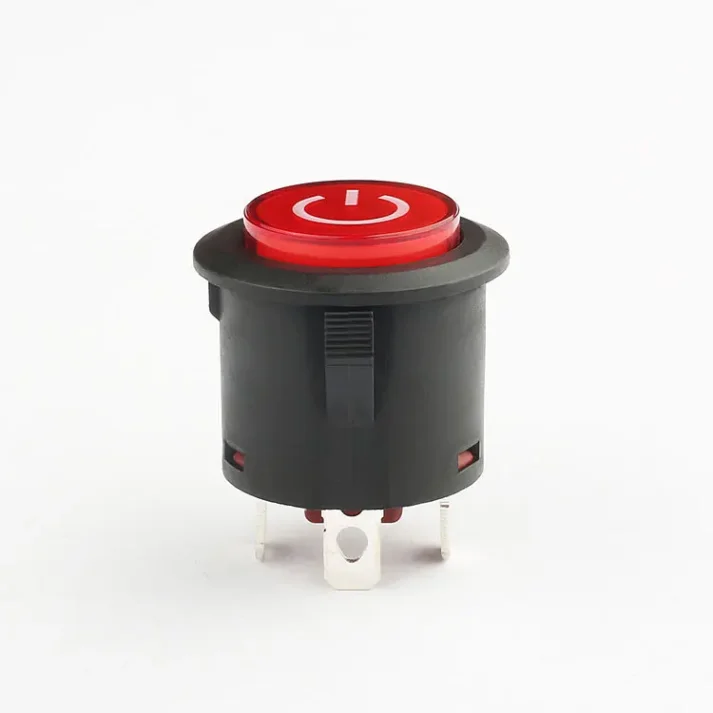

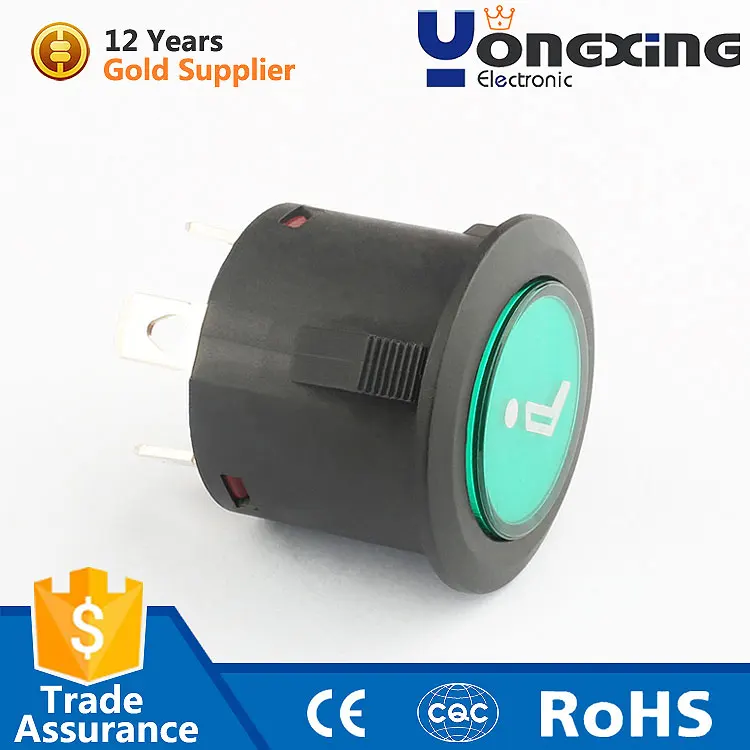

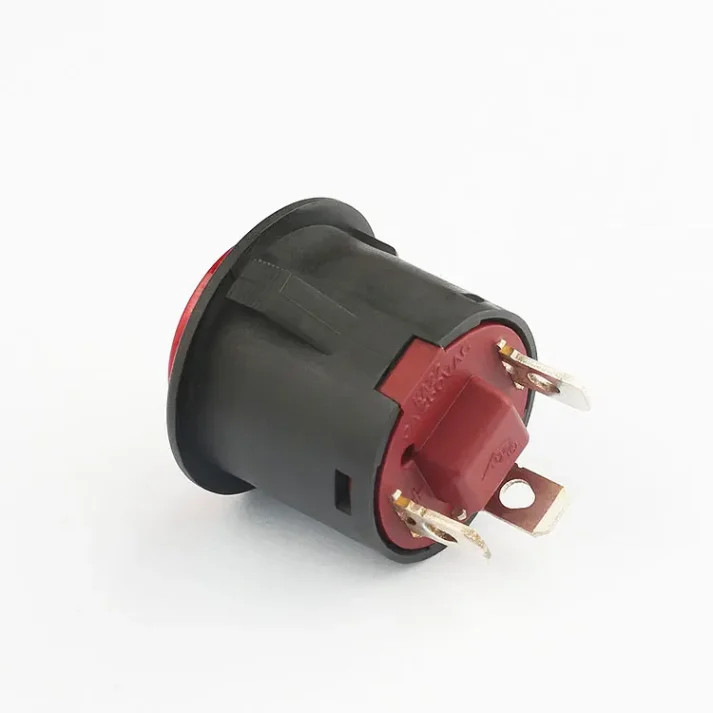

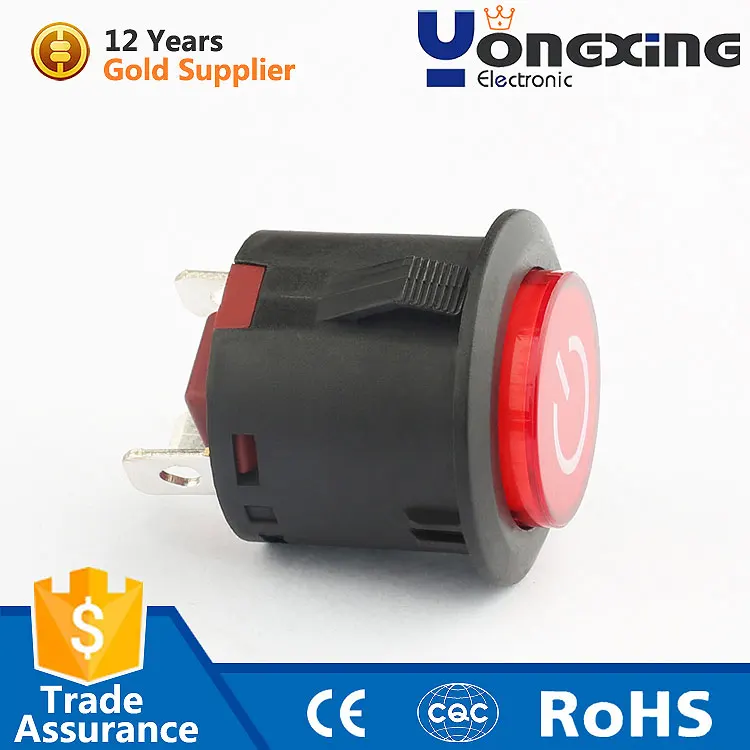

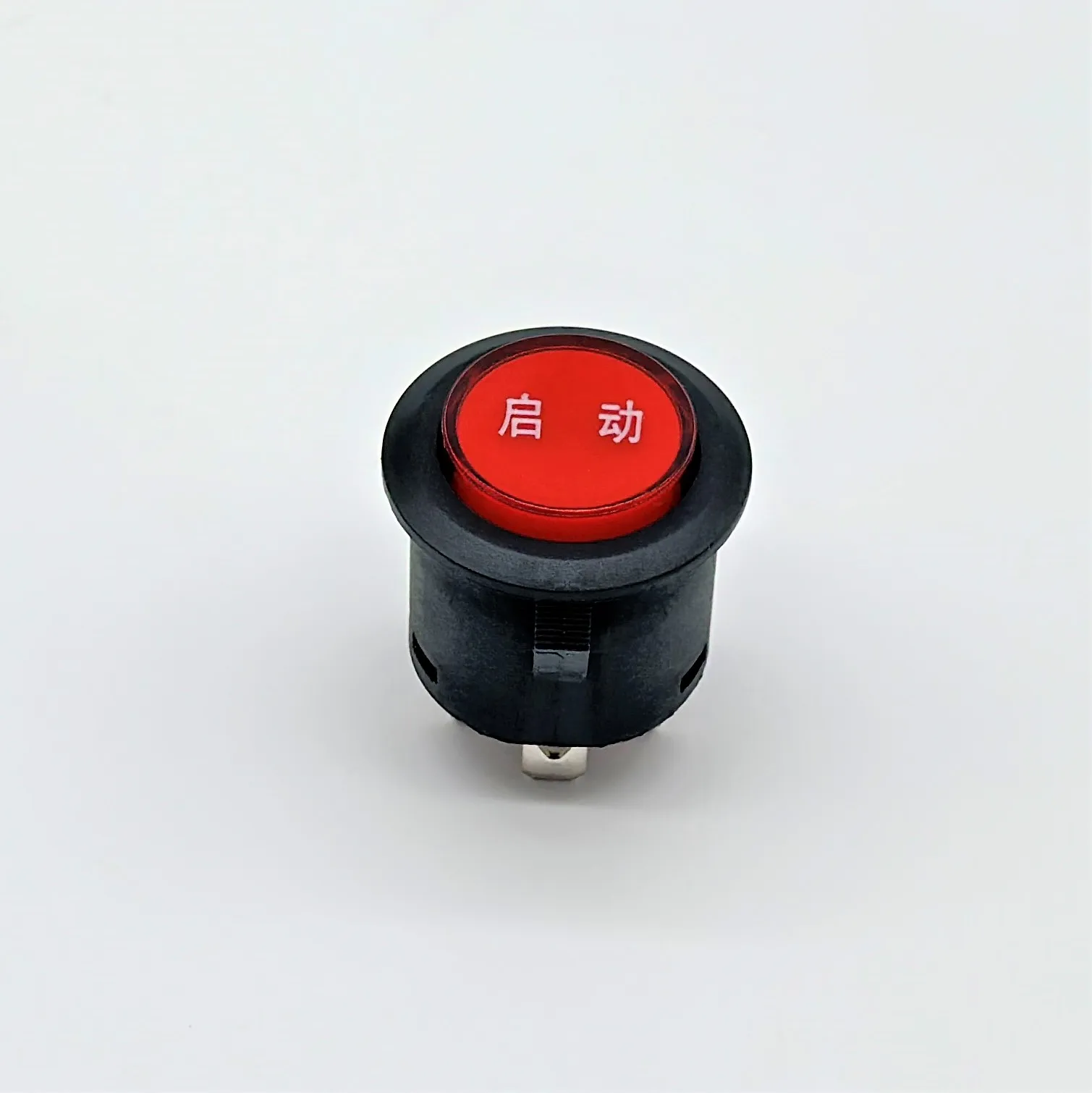

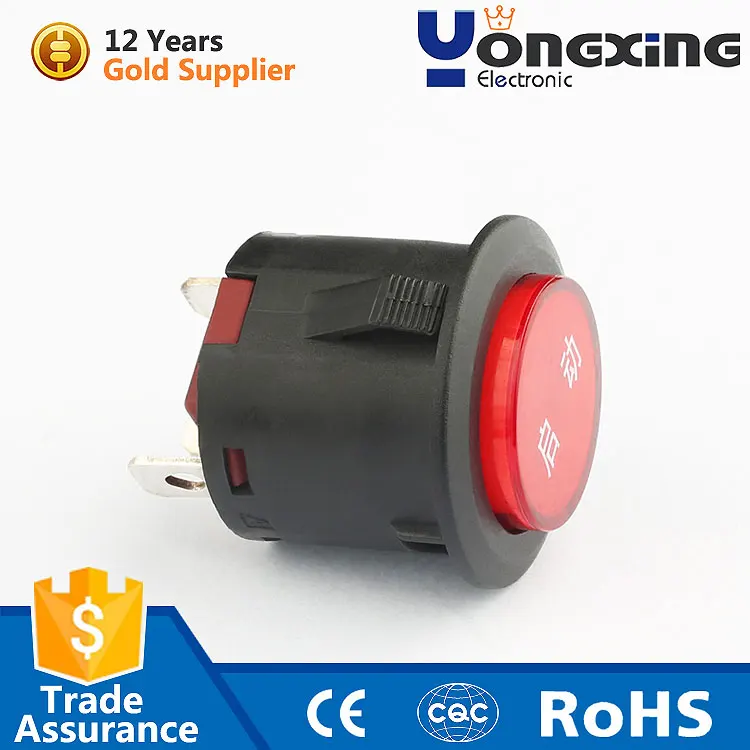

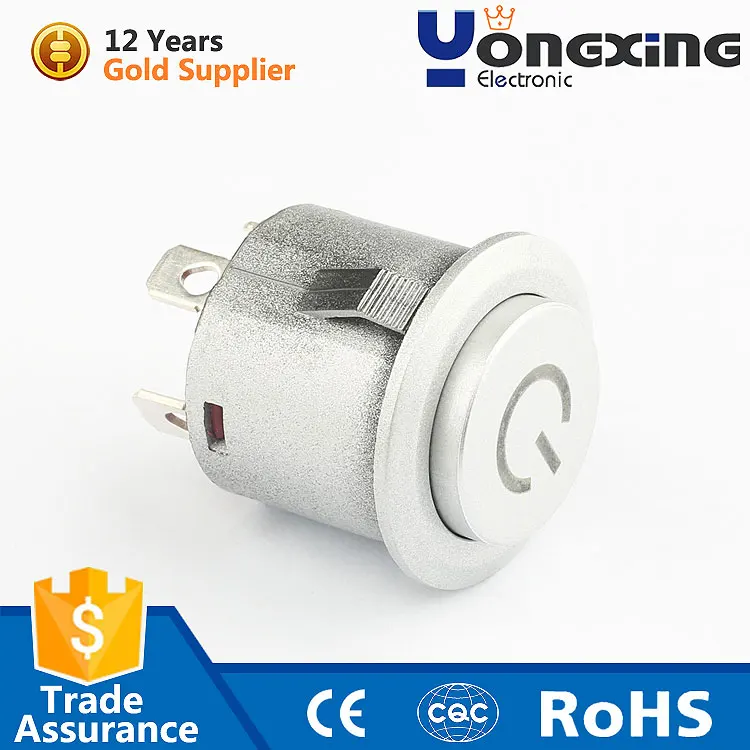

Our 12V LED illuminated 22mm push button switch is designed for industrial control applications, offering durability, easy installation, and versatile LED illumination. With a maximum current of 16A and a maximum voltage of 250VAC, it ensures reliable performance in diverse environments.
Why Choose Our Switch?
As a factory direct supplier, we offer competitive prices and bulk order discounts. Our switch stands out with its long-lasting durability, easy installation, and multiple LED voltage options. It is certified by CQC, CE, and CB, ensuring high quality and safety.
Applications and Customization
This switch is perfect for panel mounting in industrial settings. It comes in black, green, red, and white colors, and the LED lamp voltage can be customized to 6V, 24V, or 220V to meet your specific needs. Contact us today for more information and to place your wholesale order!
