Description

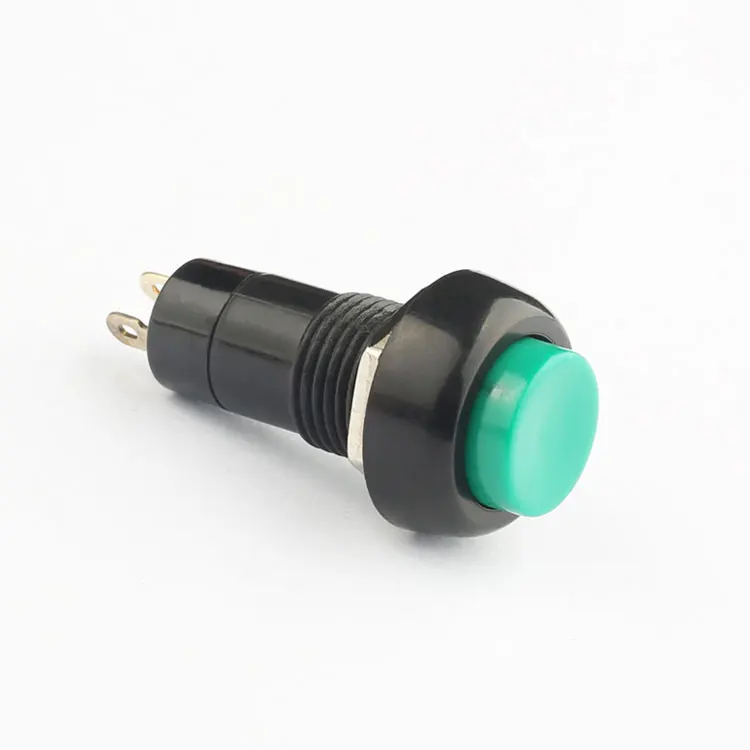

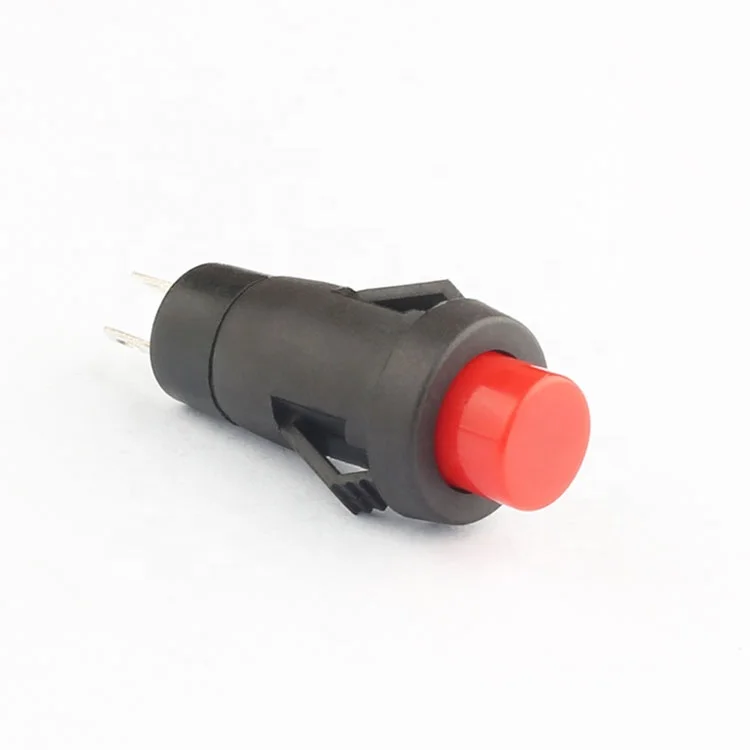

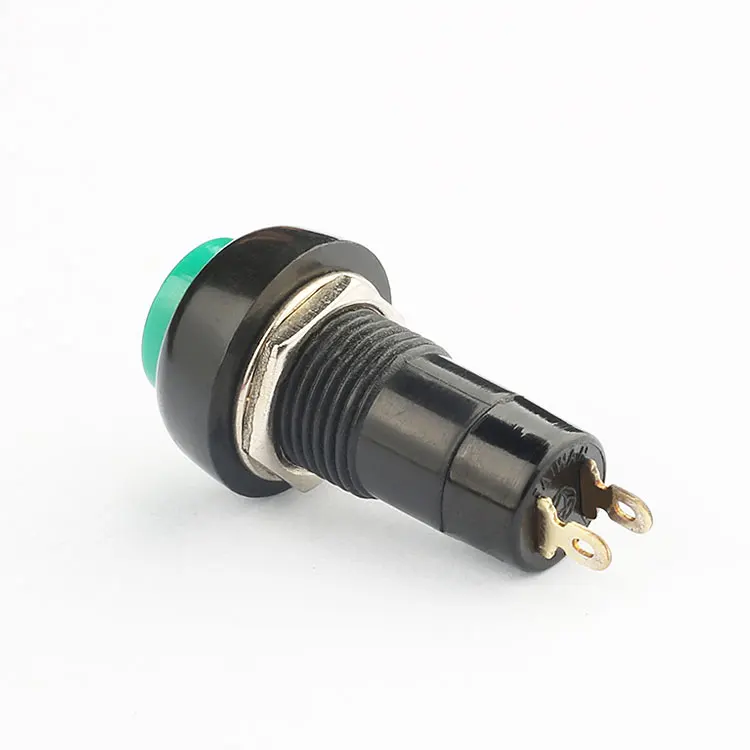

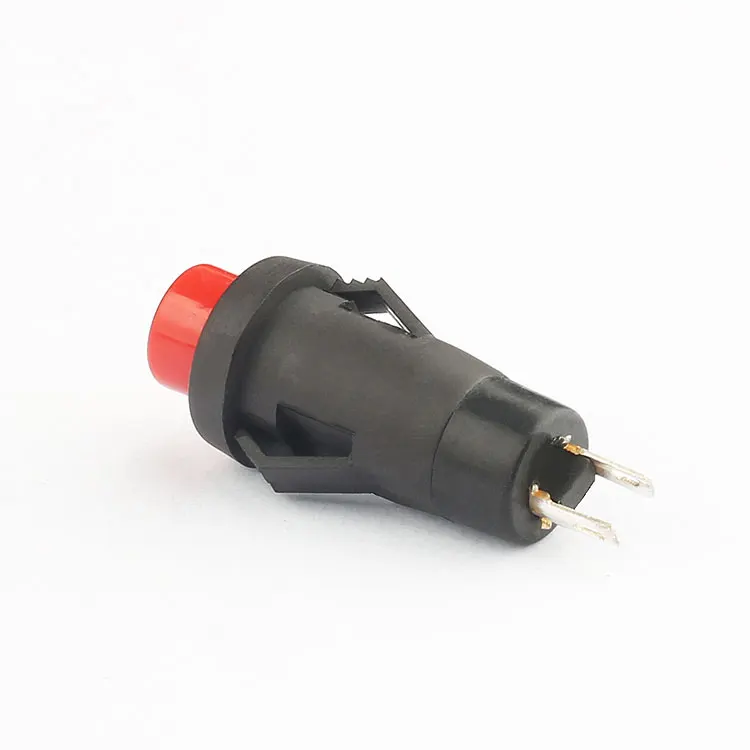

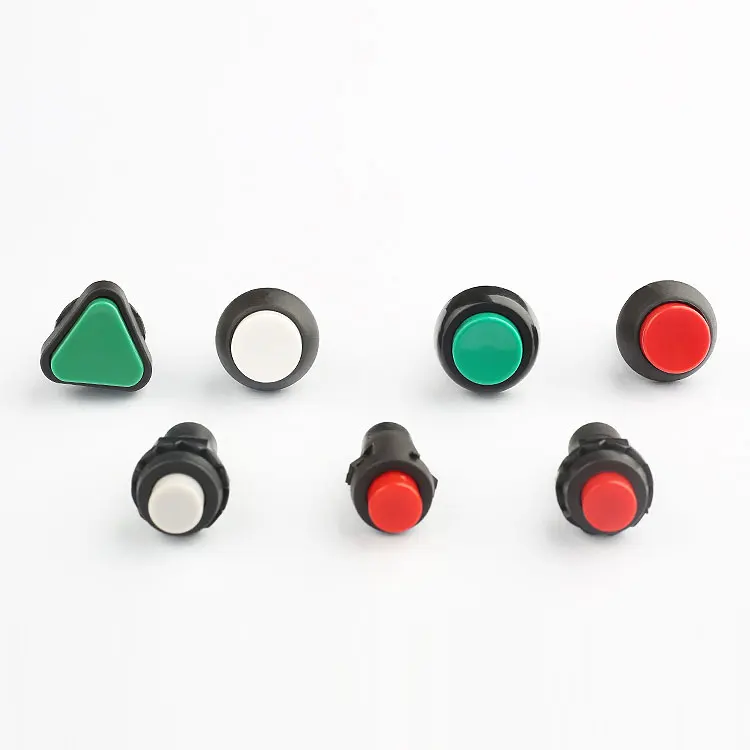

Our 12V On-Off Push Button Switch, manufactured by SK(Shangkai) in Shanghai, China, is a top-tier industrial switch designed for reliability and durability. With a maximum rating of 1A at 250V AC, this switch is perfect for a variety of applications. It features a contact resistance of ≤50mΩ and an insulation resistance of ≥100MΩ, ensuring safe and efficient operation. The switch has a dielectric strength of 1500V and offers both electronic and mechanical life cycles of 10,000 and 50,000 respectively for momentary operation. Available in a range of cap colors including Red, Yellow, Green, Black, White, Blue, Gray, and Orange, it can be customized to suit your needs. Certified by CQC and CE, it operates within a temperature range of -5℃ to +55℃ and boasts an IP40 protection level. As a factory direct supplier, we offer wholesale pricing and excellent after-sales service, making us the ideal choice for your industrial switch needs.
| Max. Rating Current & Voltage |
1A 250V AC |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ hand held push button switch |
| Dielectric Resistance | 1,500V tactile push button switch |
| Electronic life(cycles) | Momentary:10,000 Alternate:5,000 |
| Mechanical life(cycles) | Momentary:50,000 Alternate:10,000 |
| Certification |
CQC , CE |
| Operating temperature | -25℃~+55℃ |
| IP code | IP40 push button switch |
Why Choose Our 12V On-Off Push Button Switch?
Our 12V On-Off Push Button Switch stands out for its reliability and durability, making it ideal for industrial applications. With a high dielectric strength and a range of cap colors to choose from, it offers both safety and customization.
What Are the Key Features of Our Switch?
Key features include a maximum rating of 1A at 250V AC, low contact resistance, high insulation resistance, and both electronic and mechanical life cycles that ensure longevity. It's also certified by CQC and CE, guaranteeing quality and safety.
How Can We Benefit from Buying Wholesale?
As a factory direct supplier, we offer wholesale pricing, making it cost-effective to purchase in bulk. Additionally, our excellent after-sales service ensures that you're supported throughout your purchase journey.
