Description
Product Specifications:
- Place of Origin: Shanghai, China
- Brand Name: SK (Shangkai)
- Model Number: KA6-12-BAA-R/4N
- Protection Level: IP40
- Max. Current: 3A
- Max. Voltage: 250V AC
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 100MΩ Min.
- Dielectric Strength: 1500V
- Electrical Life: 10,000 Times
- Operating Temperature: -25°C to +85°C
- Mounting Hole Size: 14mm
- Color: Black
Product Advantages:
- Durable and reliable construction for long-lasting use.
- Waterproof design suitable for various environments.
- High electrical life ensures consistent performance.
- Easy to install and operate.
Applications: Ideal for small instruments, water dispensers, drinking fountains, and more.
After-Sales Service: We offer comprehensive after-sales support, including technical assistance and warranty services, ensuring your satisfaction with our products.
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(Shangkai)
|
|
Model Number
|
KA6-12-BAA-R/4N
|
|
Protection Level
|
IP40
|
|
Max. Current
|
3A
|
|
Max. Voltage
|
250V AC
|
|
Contact Resistance
|
50mΩ Max.
|
|
Insulation Resistance
|
100MΩ Min.
|
|
Dielectric Strength
|
1500V
|
|
Electrical Life
|
10000 Times
|
|
Operating temperature
|
-25℃~+85℃
|
|
Mounting Hole Size
|
14mm
|

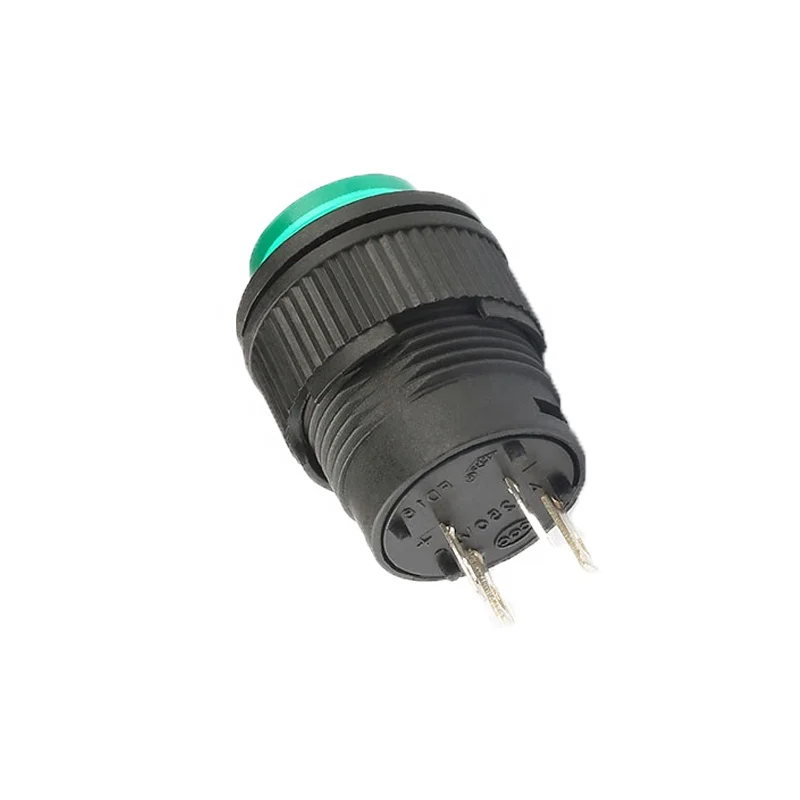

Why Choose Our 14mm Push Button Switch?
Our 14mm Push Button Switch stands out with its durable plastic construction, waterproof design, and reliable performance. As a factory supplier, we offer competitive wholesale prices, ensuring you get the best value for your investment.
Key Features:
With a max current of 3A and max voltage of 250V AC, this switch is suitable for a wide range of applications. Its IP40 protection level ensures durability in various environments, while the 10,000 times electrical life guarantees long-lasting use.
Ideal For:
Whether you're looking for a switch for small instruments, water dispensers, or drinking fountains, our 14mm Push Button Switch is the perfect choice. Its easy installation and operation make it a favorite among users.
