Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(Shangkai)
|
|
Model Number
|
KA6-12-BAA-R/4N
|
|
Protection Level
|
IP40
|
|
Max. Current
|
3A
|
|
Max. Voltage
|
250V AC
|
|
Contact Resistance
|
50mΩ Max.
|
|
Insulation Resistance
|
100MΩ Min.
|
|
Dielectric Strength
|
1500V
|
|
Electrical Life
|
10000 Times
|
|
Operating temperature
|
-25℃~+85℃
|
|
Mounting Hole Size
|
14mm
|

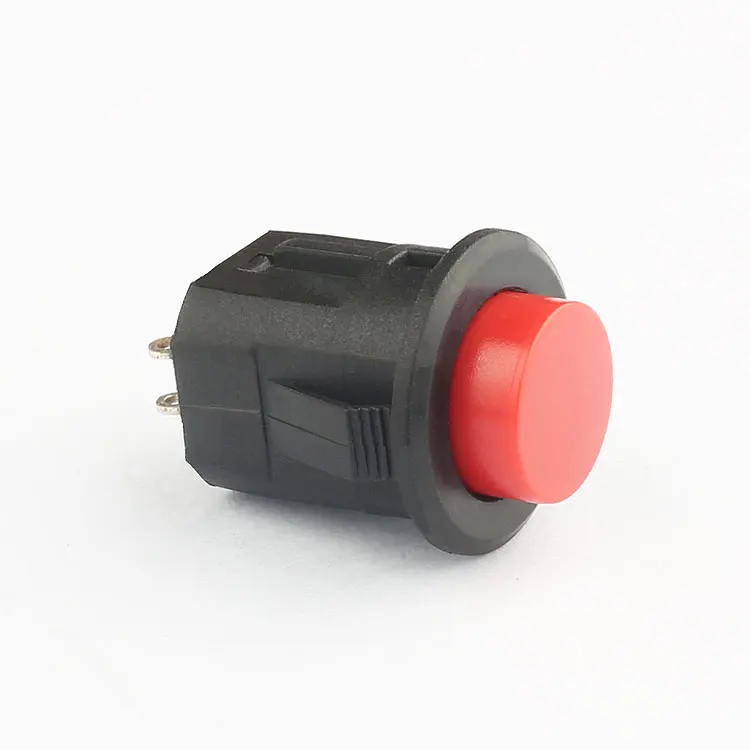

Why Choose Our Momentary Push Button Switch?
Our 14mm plastic momentary push button switch stands out for its high-quality construction and reliable performance. With a maximum current of 3A and a maximum voltage of 250V AC, it's suitable for a wide range of applications. The IP40 protection level ensures dust resistance, while the low contact and high insulation resistances guarantee safety and efficiency. Its long electrical life and wide operating temperature range make it a durable choice for various environments.
What Are the Key Features of Our Switch?

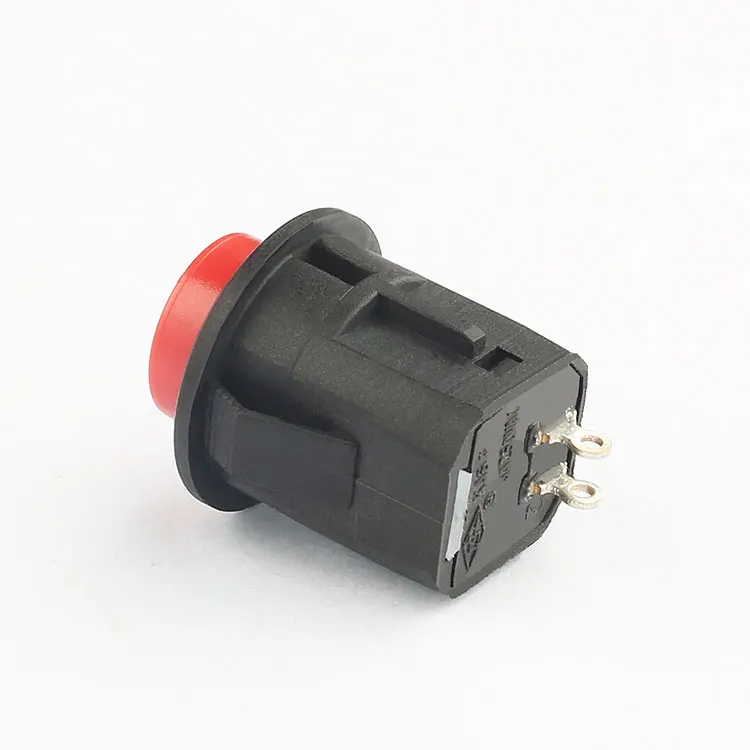

Our switch features a round head and pin terminals for easy installation. It has a dielectric strength of 1500V and an electrical life of 10,000 times, ensuring long-lasting use. The 14mm mounting hole size and black color make it a versatile and stylish addition to any device. As a factory direct supplier, we offer competitive wholesale prices and excellent customer service.
Where Can Our Switch Be Used?
Our momentary push button switch is widely used in small instruments, water dispensers, drinking fountains, and more. Its reliable performance and durable construction make it an ideal choice for these applications. Choose our switch for a high-quality, cost-effective solution to your switching needs.
