Factory Wholesale 15-Pin Green Terminal Block – Supplier Direct

Categories: , Tags: , , ,
20,000 - 199,999  pieces
$1.58

200,000 - 499,999  pieces
$1.45

>= 500,000  pieces
$1.26
0 reviews

Wholesale 15-Pin Green Terminal Block from Factory Supplier – High Quality, Durable, and Reliable.

Clean All

Description

Our 15-Pin Green Terminal Block, available for wholesale directly from our factory, is a high-quality electrical component designed for industrial and automotive applications. With a pitch of 5.08mm, it supports 2 to 24 poles, offering flexibility in wire connecting. Rated at 16A 300V AC, it ensures reliable performance even in demanding environments. Made from PA66, UL94V-0 material with tin-plated copper contacts, this terminal block guarantees excellent insulation resistance (>5000MΩ DC500V) and contact resistance (20MΩ). It operates efficiently within a temperature range of -40℃ to +150℃, making it suitable for various harsh conditions. Certified by CQC and UL, it meets international safety standards. As a trusted supplier, we offer competitive prices and excellent after-sales service. Choose our terminal block for its durability, reliability, and cost-effectiveness.
pitch
5.08mm
operation temperature
-40° to +150°
poles
2~24 poles
max.rating current & voltage
16A 300V AC
certificate
CQC UL
contact resistance
20MΩ

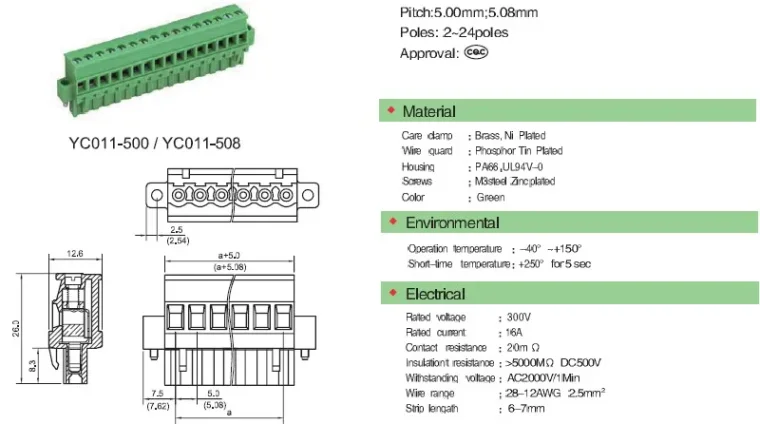

Electronic component product image for cross-border e-commerce


Why Choose Our 15-Pin Green Terminal Block?

Our 15-Pin Green Terminal Block is designed for durability and reliability in industrial and automotive applications. With a pitch of 5.08mm and support for 2 to 24 poles, it offers flexibility in wire connecting, making it suitable for a wide range of projects. Rated at 16A 300V AC, it ensures stable performance even under heavy loads.

What Makes Our Terminal Block Stand Out?

Made from high-quality PA66, UL94V-0 material with tin-plated copper contacts, our terminal block guarantees excellent insulation and contact resistance. It operates efficiently within a wide temperature range (-40℃ to +150℃), making it ideal for harsh environments. Certified by CQC and UL, it meets international safety standards, giving you peace of mind.

Why Buy from Us as a Supplier?

As a factory supplier, we offer competitive wholesale prices and excellent after-sales service. Our terminal blocks are directly sourced from our factory, ensuring quality and cost-effectiveness. Choose us for your electrical component needs and experience the difference in quality and service.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Place of Origin

Shanghai, China
Application

Industrial, Automotive, wire connecting, spring terminal block
Number of Pole

Other, 2, 4, 6, 1, 3, 5
Contact Material

tin-plated copper
Connection Method

push-in connection
Max continuous amp

16A
Brand Name

Yong Xing
Model Number

YC011-508-15P
Number of Contacts

11 – 20
Conductor Size

21 – 30 AWG
Type

Plug-in
Color

Green pa66 terminal connector
Material

PA66,UL94V-0
Current

16A
insulation resistance

>5000MΩ DC500V
Voltage

250V~450V
MaCare clamp

Brass,Tin Plated
Operation temperature

-40℃~+150℃
