Description
|
Name |
switch with circuit breaker |
|
Rated voltage |
AC125V 220V DC50V |
|
Rated current |
5A~15A |
|
Insulation Resistance |
≥100MΩ DC500V |
|
Dielectric Strength |
AC 1,500V 1min |
|
Amibent temperature |
-10℃~60℃ |
|
Mechanical Life |
>6000 cycles |
|
Material |
PA66 |
|
Certificate |
CQC,CE |

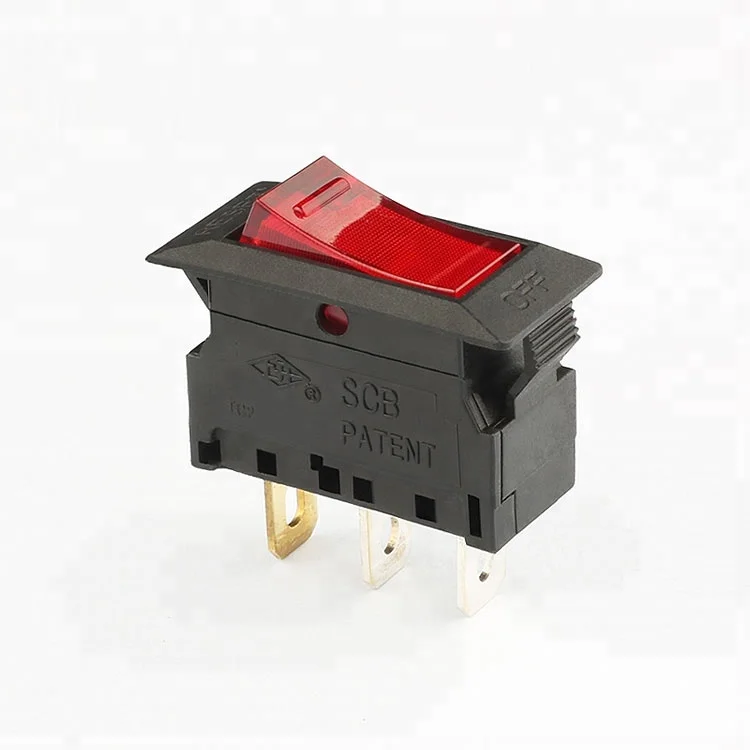

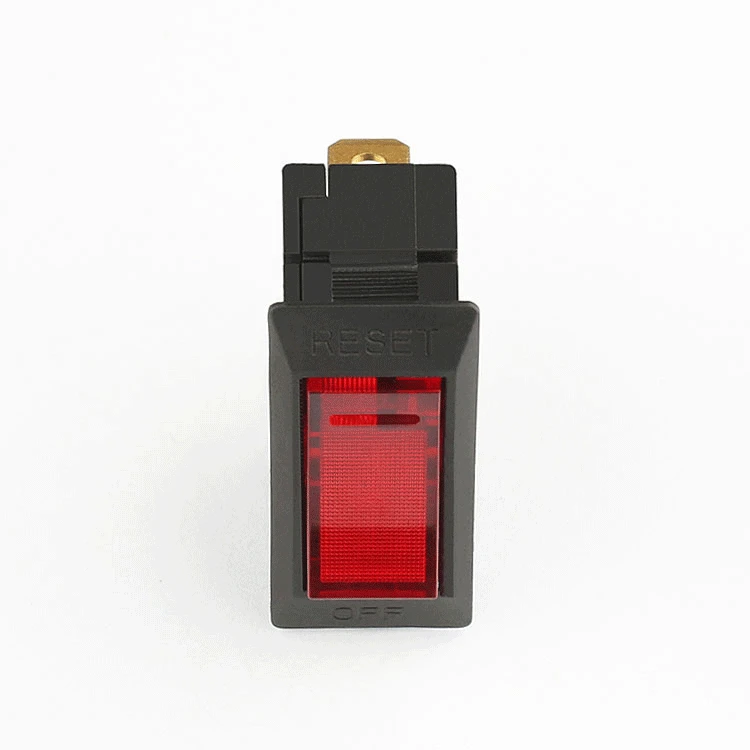

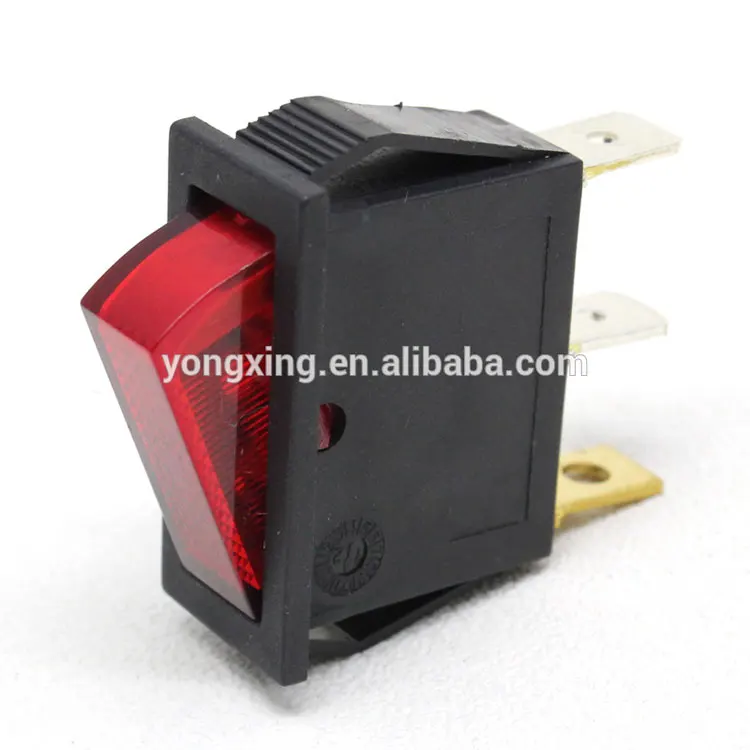

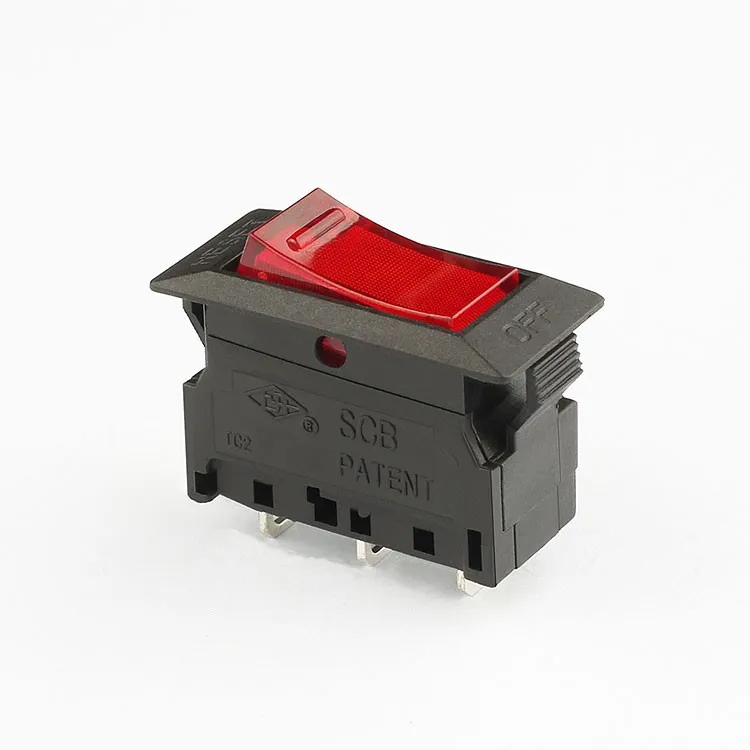

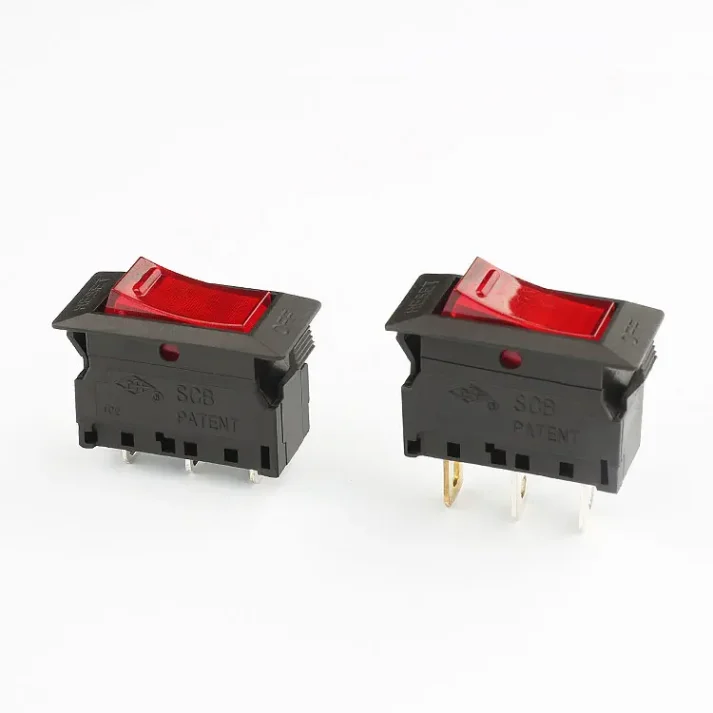

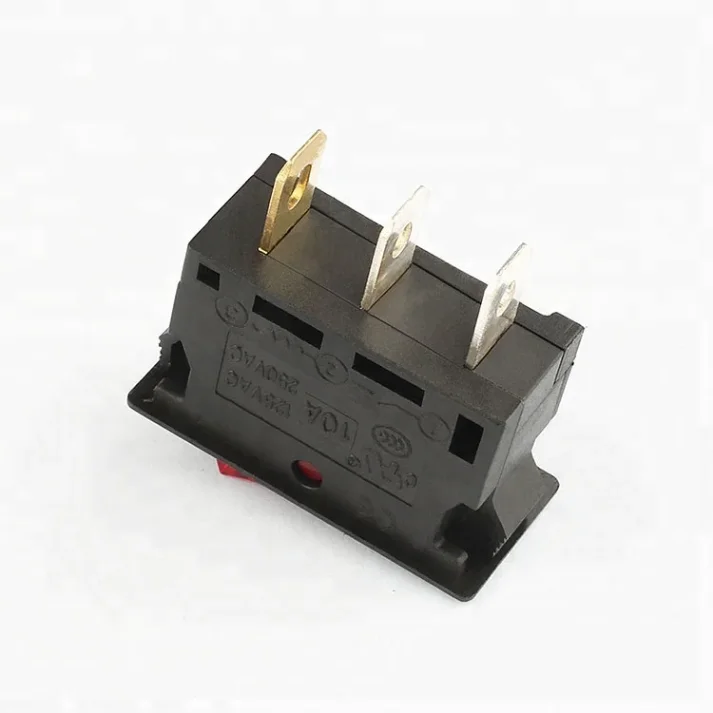

Why Choose Our Rocker Switch with Circuit Breaker?
Our Rocker Switch with Circuit Breaker stands out for its durability, versatility, and safety features. Crafted from high-quality PA66 material, it ensures long-lasting performance. The switch supports a wide range of voltages and currents, making it suitable for various electrical applications. The red light indicator adds convenience, allowing you to quickly check its status. As a factory supplier, we offer competitive pricing and customization options, ensuring you get the exact product you need.

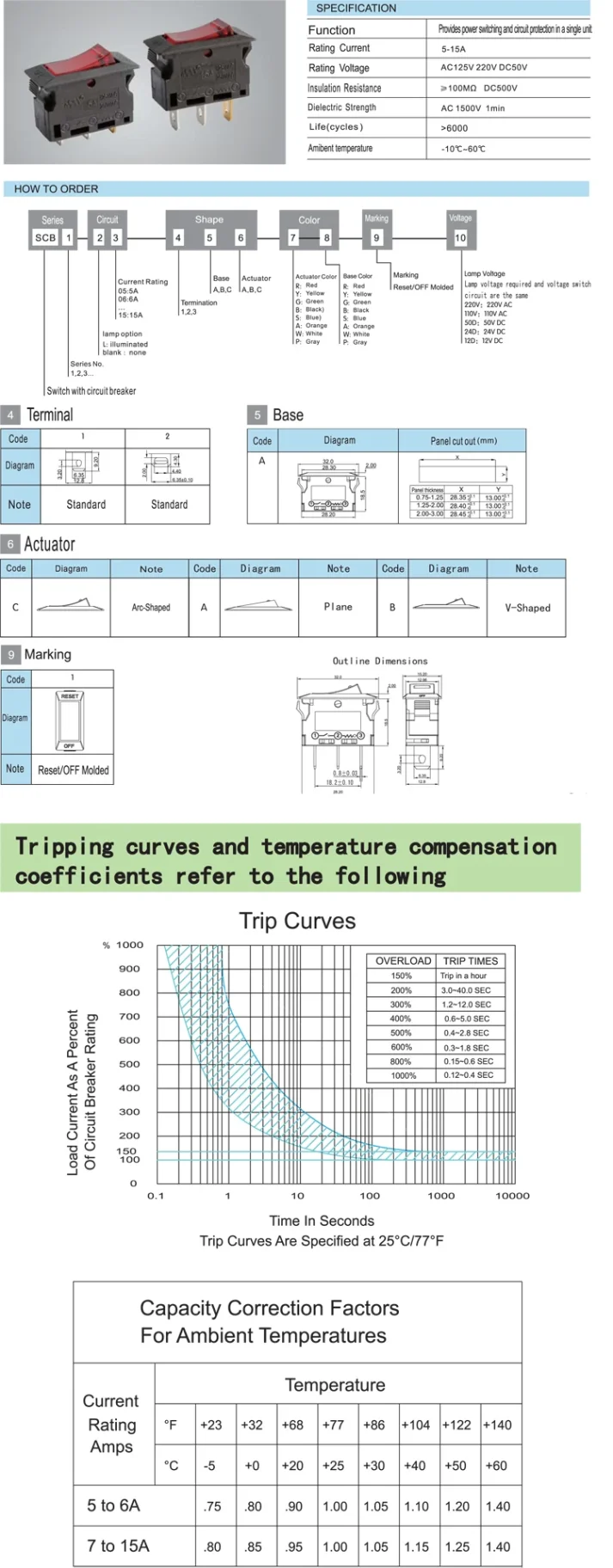

What Are the Key Specifications?
Our switch has a rated voltage of AC125V/220V and DC50V, with a rated current range of 5A to 15A. It features an insulation resistance of ≥100MΩ DC500V and a dielectric strength of AC 1,500V for 1 minute. The mechanical life exceeds 6000 cycles, and it operates efficiently in temperatures ranging from -10℃ to 60℃. These specifications make it a reliable choice for both industrial and home use.
How Does Our Factory Ensure Quality?
At our factory, we implement strict 5S management practices to ensure the highest quality standards. Our senior engineers oversee every stage of production, from injection molding to final testing. With advanced experimental equipment, we rigorously test each switch to ensure it meets or exceeds industry standards. As a factory supplier, we are committed to providing you with products that offer exceptional value and performance.
