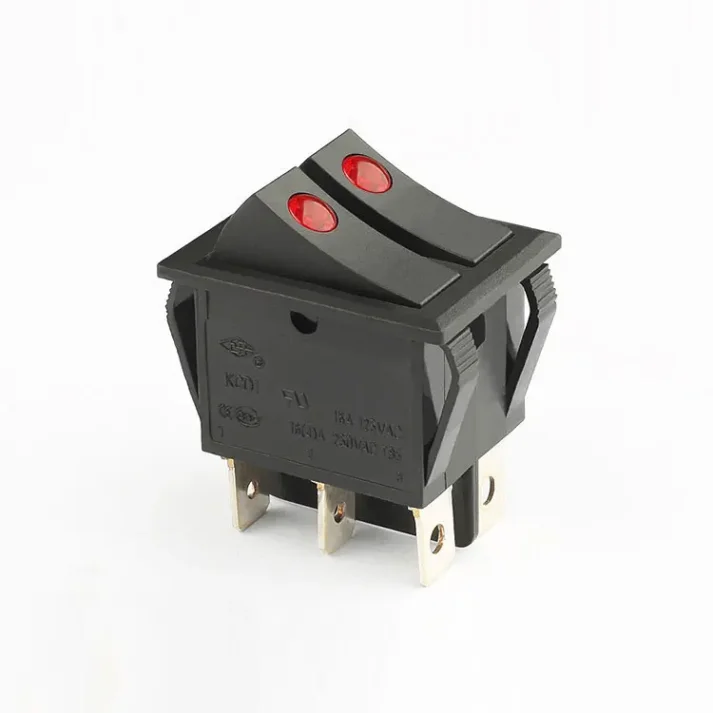

Factory Wholesale 16A 250V Double Rocker Switch with Light
As a leading supplier and factory direct seller, we are proud to present our high-quality 16A 250V double rocker switch with light. This switch is designed to meet the needs of various applications, offering reliable performance and durability.
Product Specifications:
- Max. Current: 16A
- Max. Voltage: 250V AC
- Place of Origin: Shanghai, China
- Brand Name: SK(Shangkai)
- Model Number: KCD1
- Pins: 6 pin
- Color: Black
- Contact Resistance: ≤50m Ω
- Insulation Resistance: ≥1,000MΩ
- Mechanical Life: 10,000 Cycles
- Crust Material: Plastic (waterproof)
Product Advantages:
Our double rocker switch stands out from the competition with its superior quality and reliability. The waterproof plastic crust ensures durability even in harsh environments. The switch also features a low contact resistance and high insulation resistance, guaranteeing safe and efficient operation. Additionally, it has a long mechanical life, reducing the need for frequent replacements.
Product Usage:
This switch is suitable for a wide range of applications, including household appliances, industrial equipment, and more. Its double rocker design allows for easy on/off control, while the built-in light provides visual indication of the switch’s status.
After-sales Service:
We offer comprehensive after-sales service, including technical support and warranty coverage. Our team is dedicated to ensuring your satisfaction and providing prompt assistance whenever needed.
Choose our factory wholesale 16A 250V double rocker switch with light for reliable performance, durability, and excellent value for money.

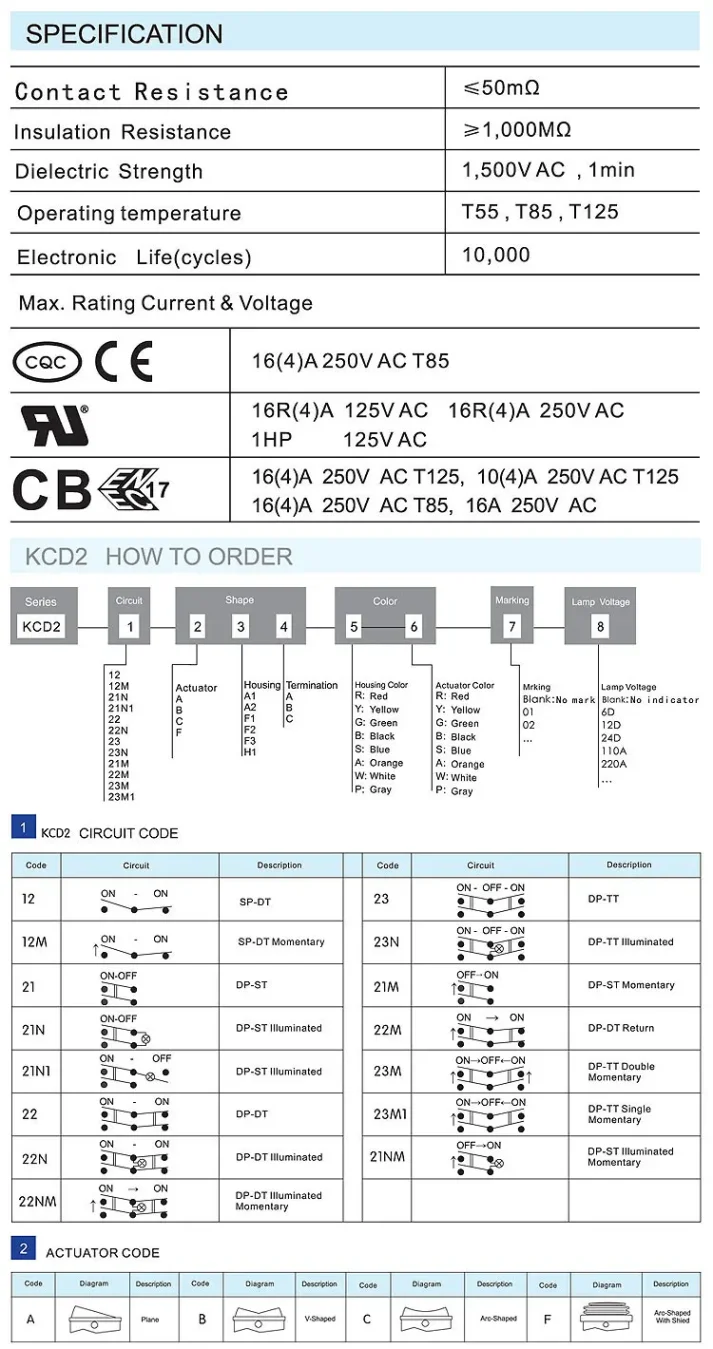

| Contact Resistance | ≤50m Ω |
| Insulation Resistance | ≥1,000MΩ |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles momentary rocker switch on off on |
| Certification |
CQC , CE , ENEC , CB |
| Max. Rating Current & Voltage (CQC , CE) |
16(4)A 250V AC T85 |
| Max. Rating Current & Voltage (UL) |
16R(4)A 250V AC , 16R(4)A 125V AC 1HP 125V AC |
| Max. Rating Current & Voltage (CB , ENEC) |
16(4)A 250V AC T125,10(4)A 250V AC T125 16(4)A 250V AC T85,16A 250V AC |
Why Choose Our 16A 250V Double Rocker Switch with Light?
Our double rocker switch with light is designed to provide reliable and efficient on/off control for various applications. The built-in light offers visual indication, making it easy to determine the switch's status at a glance.
What Makes Our Switch Stand Out?
Our switch features a waterproof plastic crust, ensuring durability even in challenging environments. With low contact resistance and high insulation resistance, it guarantees safe and efficient operation. Additionally, its long mechanical life reduces the need for frequent replacements, saving you time and money.
Where Can You Use Our Switch?
This switch is suitable for a wide range of applications, including household appliances, industrial equipment, and more. Its versatility and reliability make it an ideal choice for any switching needs.
