Description
Specifications:
– Max. Current: 16A (4A optional)
– Max. Voltage: 250V
– IP Level: IP65 (higher than the original IP40 mentioned, offering better protection)
– LED Light Color: Green (with options available)
– Size: 28*30mm
– Function: ON-OFF
– Insulation Resistance: ≥1000MΩ
– Contact Resistance: ≤50mΩ
– Operating Temperature: T55, T85, T125
– Mechanical Life: >10,000 cycles
Advantages:

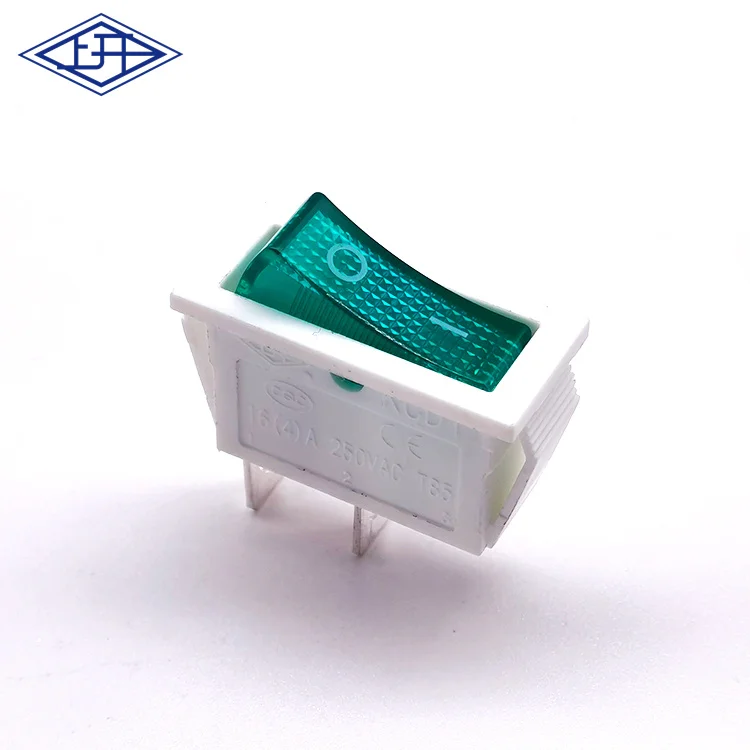

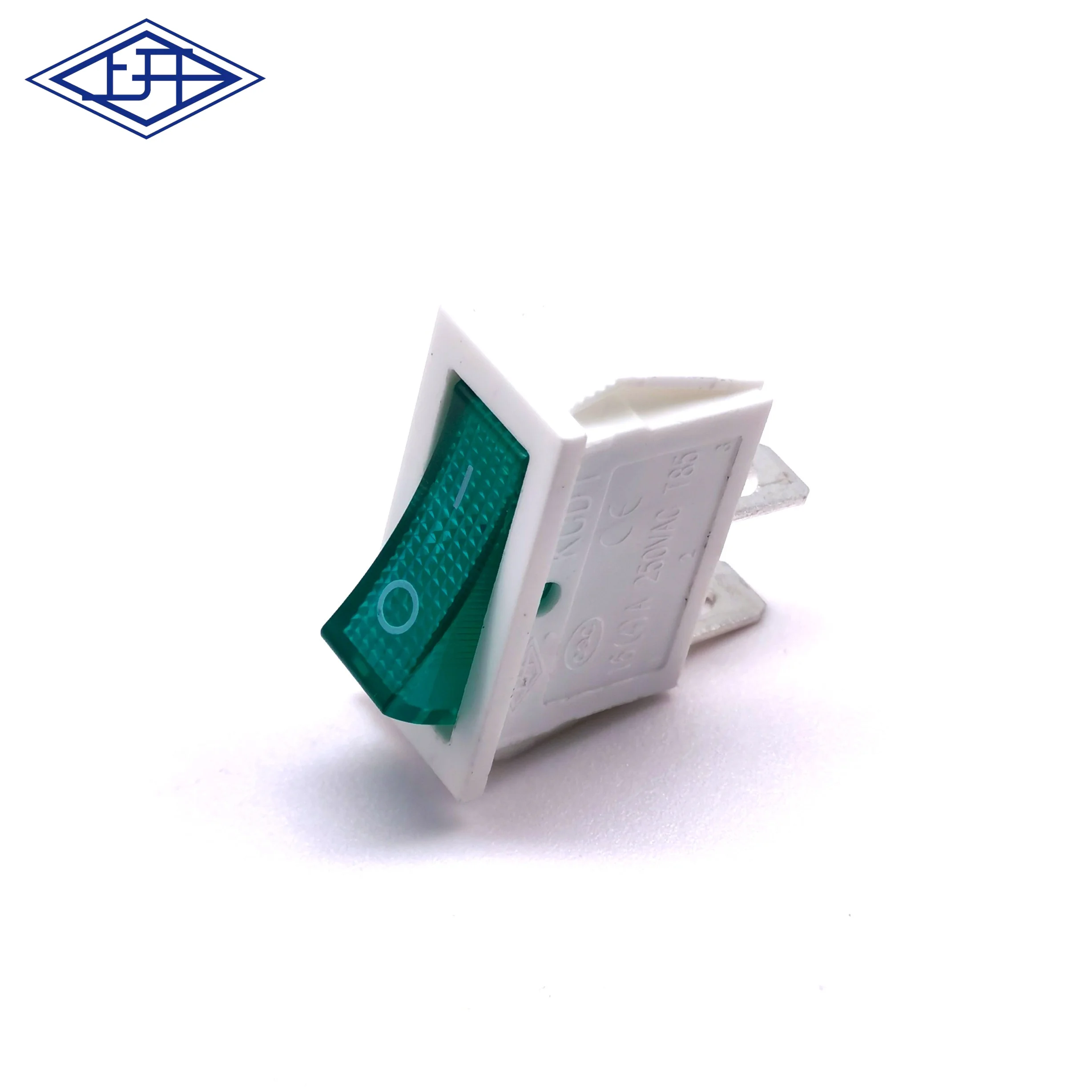

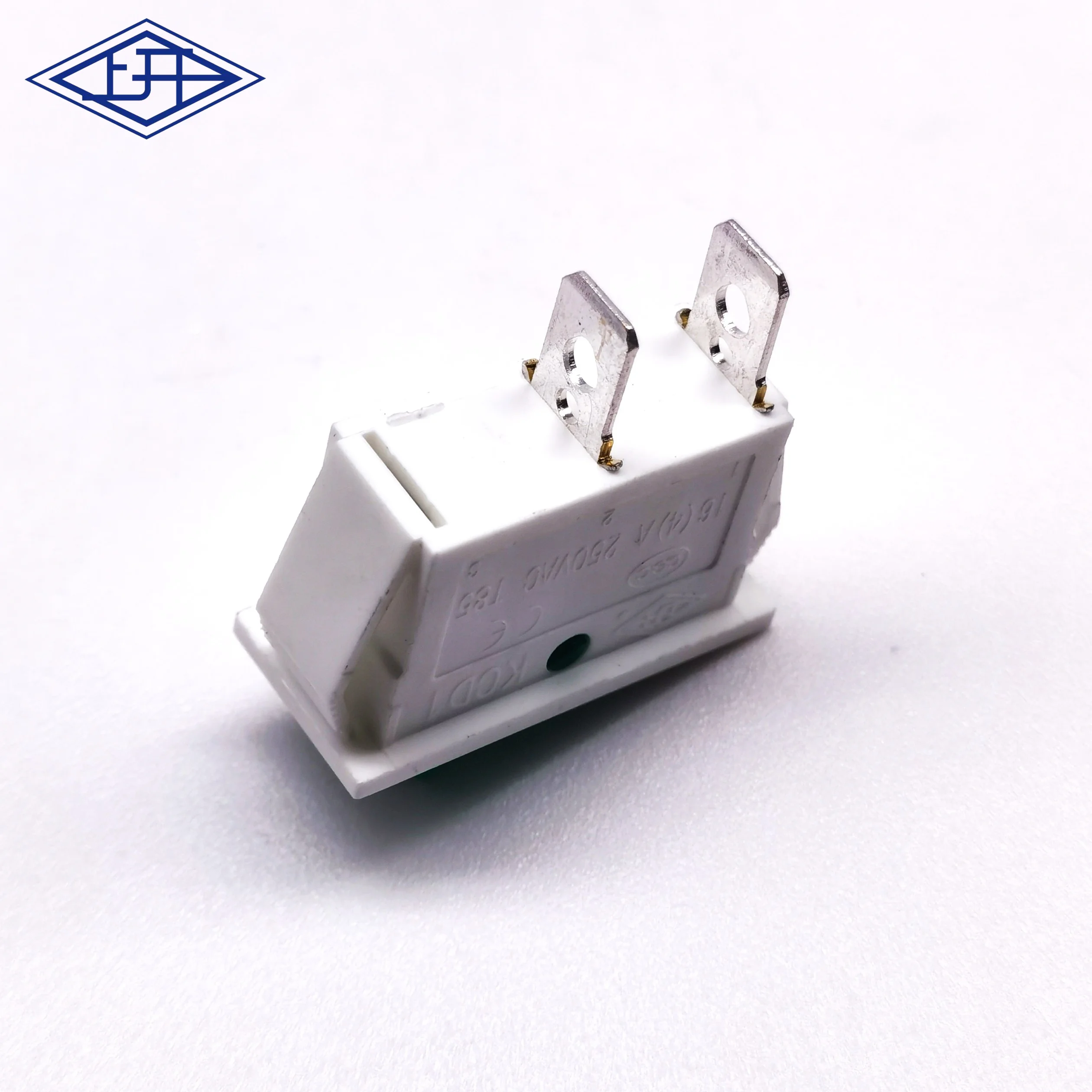

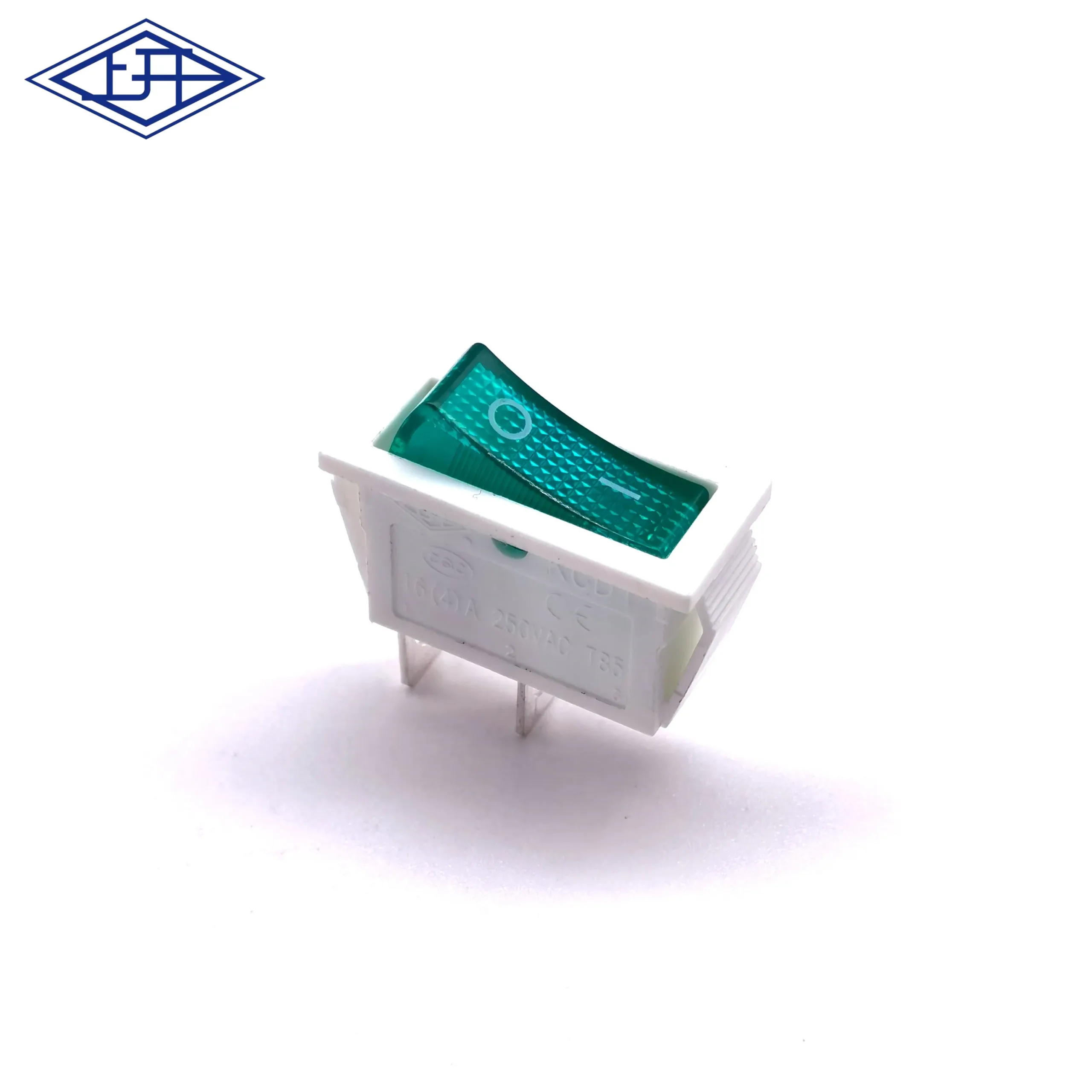

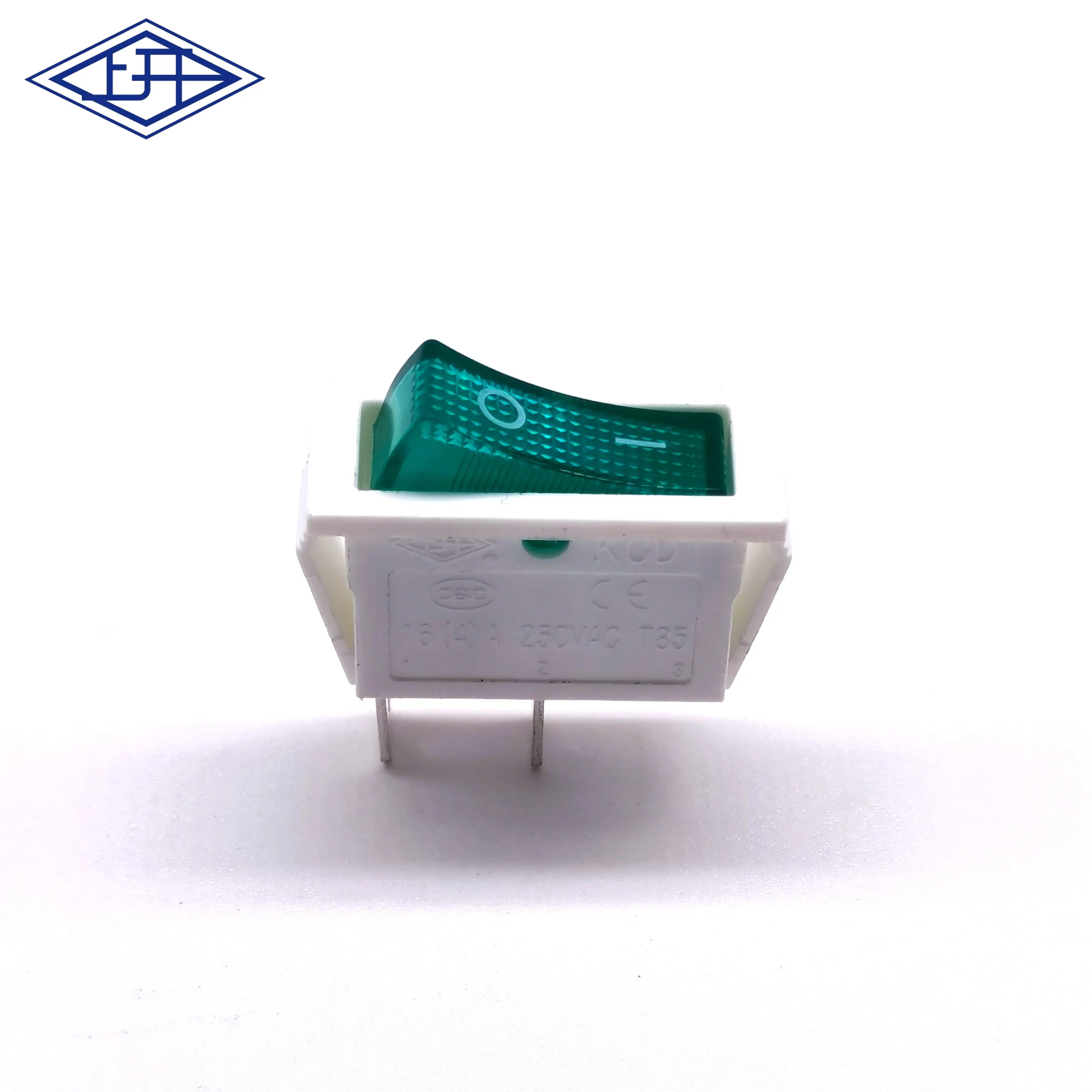

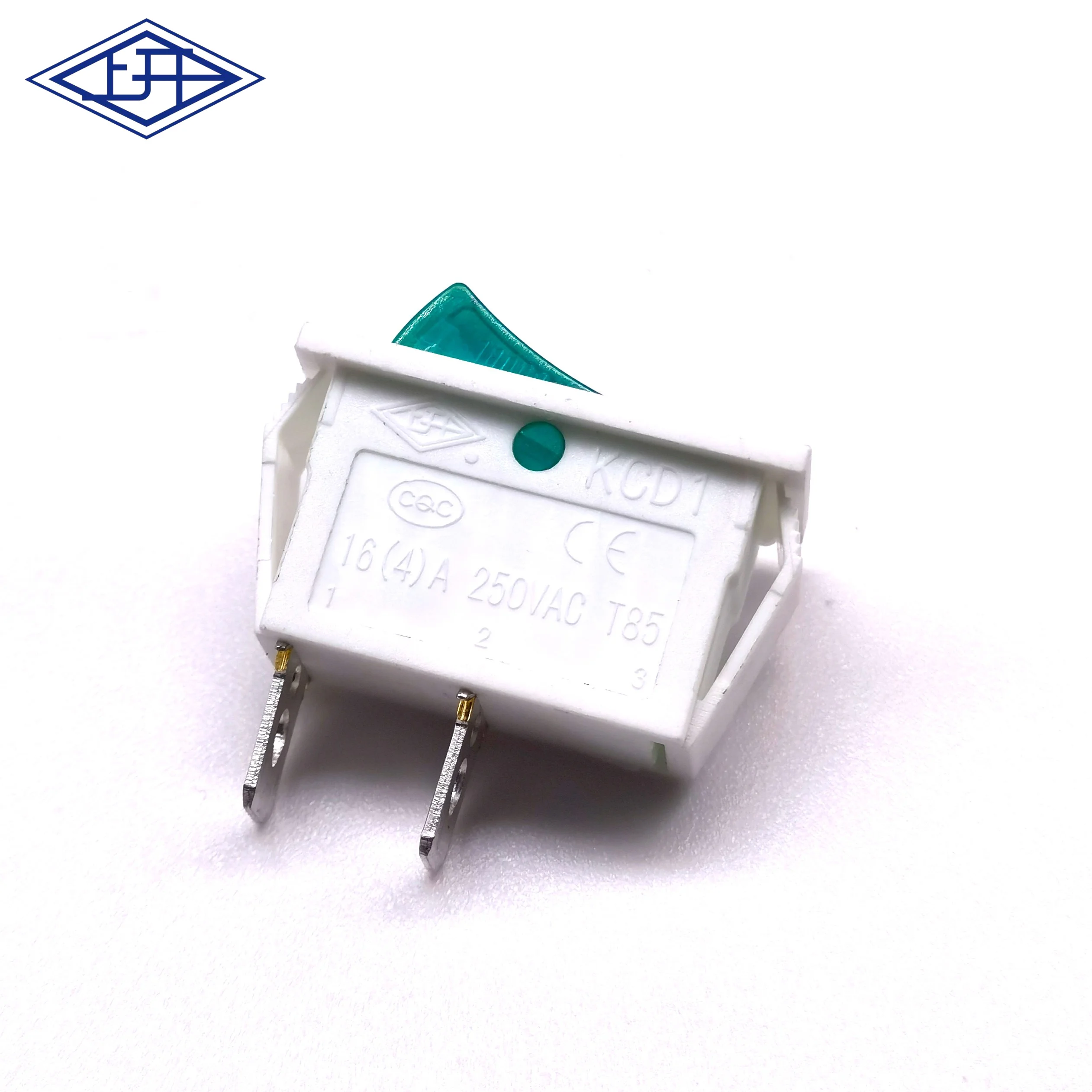

Our rocker switch stands out with its durable white housing, bright green LED indicator, and excellent electrical performance. The IP65 rating ensures protection against dust and water, making it suitable for a wide range of applications. Additionally, our factory-direct pricing and wholesale availability make it a cost-effective choice for businesses.
Applications:
Ideal for use in machines, control panels, and various electrical devices where a reliable ON-OFF switch with a visual indicator is required.
After-Sales Service:
We offer comprehensive after-sales support, including technical assistance and warranty services, to ensure your satisfaction.
|
contact resistance
|
≤50MΩ
|
operating temperature
|
T55 T85 T125
|
|
insulation resistance
|
≥1000MΩ
|
electronic life（cycles）
|
10000
|
|
dielectric strength
|
1500V AC 1min
|
IP code
|
IP 40
|
Why Choose Our Rocker Switch?
Our rocker switch is designed with durability and functionality in mind. The white housing not only looks sleek but also provides excellent protection against wear and tear. The green LED indicator ensures clear visibility of the switch status, even in low-light conditions. With an IP65 rating, it offers superior protection against dust and water, making it suitable for a variety of environments.
Key Features and Benefits
The 16A 250V rating ensures reliable performance in demanding applications. The compact size (28*30mm) makes it easy to integrate into various devices. Additionally, our factory-direct pricing and wholesale availability mean you can save on costs without compromising on quality.
Applications and Compatibility
Our rocker switch is ideal for use in machines, control panels, and other electrical devices where a reliable ON-OFF switch is required. Its compatibility with a wide range of voltages and currents makes it a versatile choice for businesses and individuals alike.
