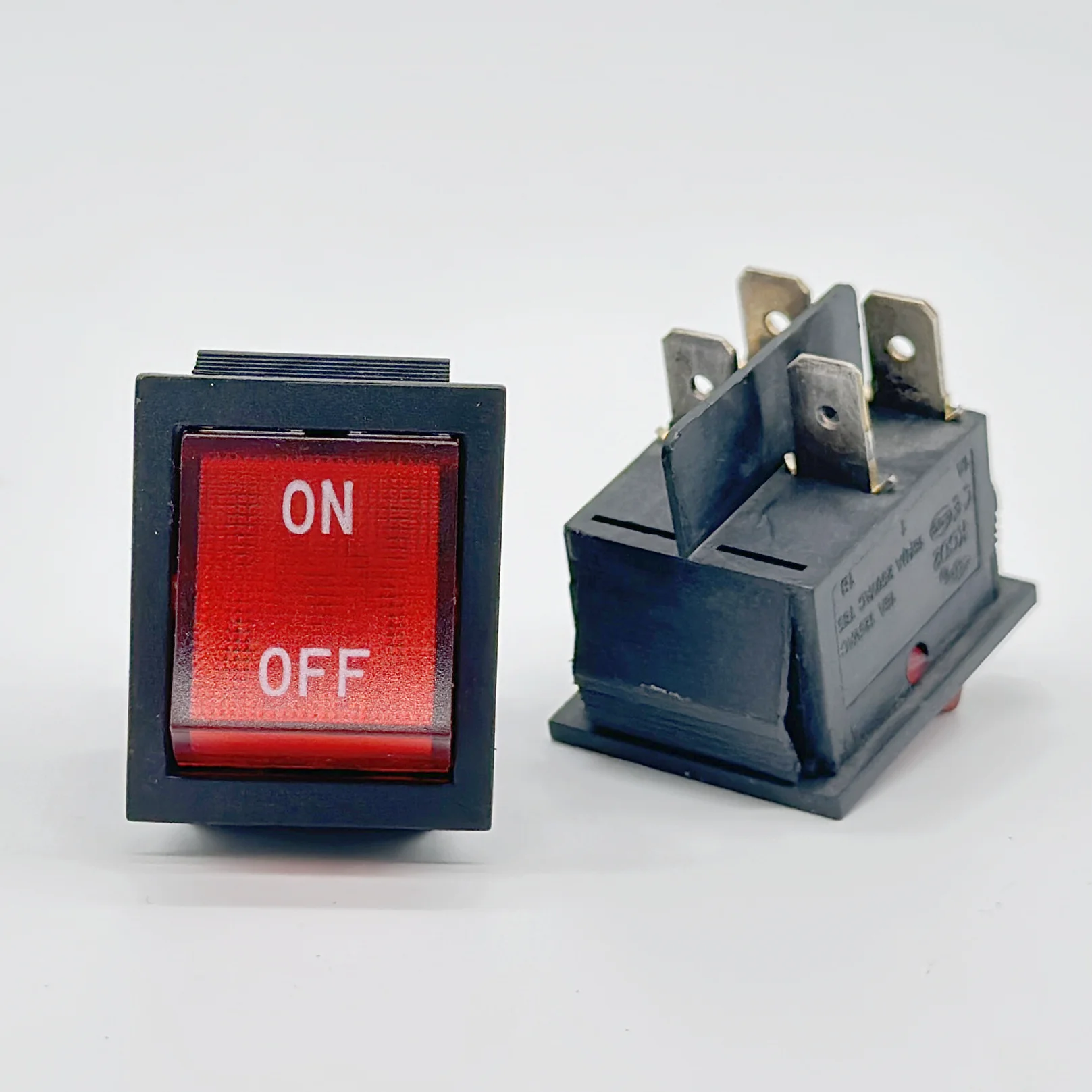

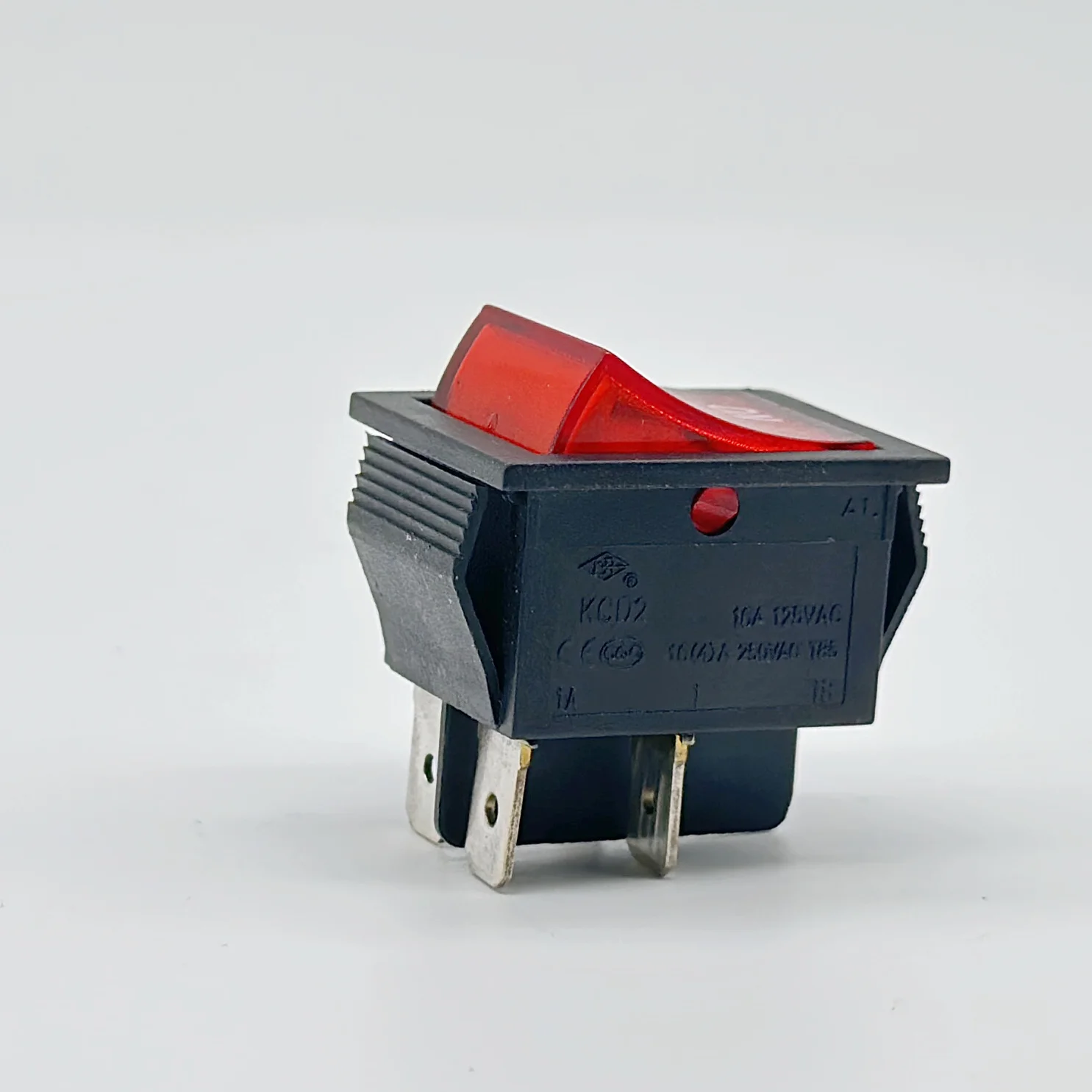

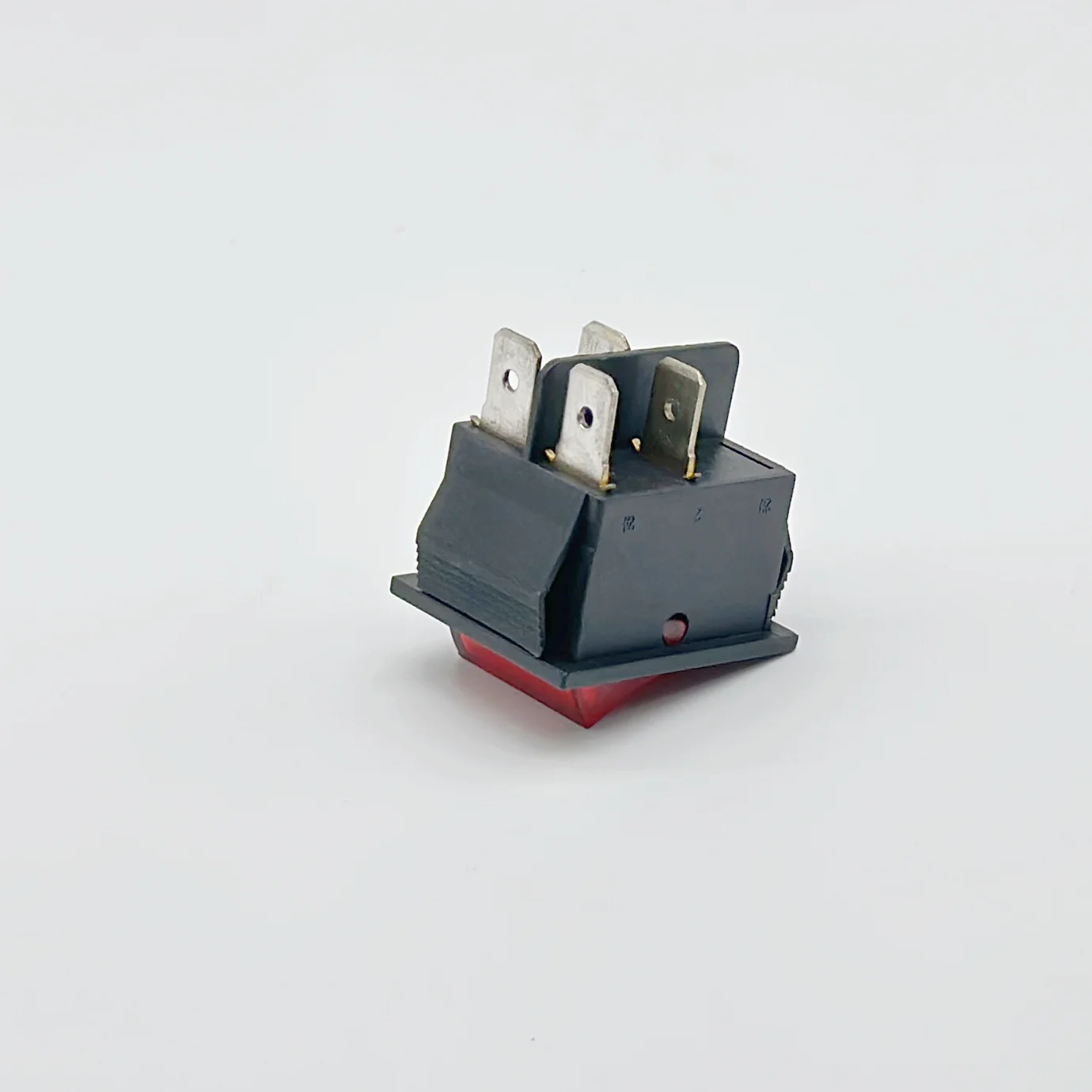

Factory Wholesale 16A 250V KCD2 Rocker Switch with Light

Category: Tags: , ,
>= 10  pieces
$0.36
0 reviews

Factory Wholesale KCD2 Rocker Switch, 16A 250V, Durable & Reliable

Description

Introducing our Factory Direct Wholesale KCD2 Series Rocker Switch with Light! This high-quality switch, manufactured by Yong Xing in Shanghai, China, is designed for a wide range of applications including cars, industrial machinery, marine vessels, buses, electric equipment, and off-road vehicles. With a maximum current rating of 16A and a voltage rating of 250V AC, this switch is built to handle demanding environments. The switch features a durable plastic housing, 4 pins, and a solder termination type, ensuring easy installation and reliable performance. It boasts a mechanical life of 100,000 cycles, an insulation resistance of ≥1,000MΩ, and a dielectric strength of 1500V AC for 1 minute, providing superior safety and reliability. The switch’s contact resistance is ≤50mΩ, and it operates at temperatures ranging from T55 to T125, making it suitable for various climates. As a factory supplier, we offer competitive wholesale prices and ensure fast delivery. Choose our KCD2 Rocker Switch for its exceptional quality, durability, and value for money.
contact resistance
≤50MΩ
operating temperature
T55 T85 T125
insulation resistance
≥1000MΩ
electronic life(cycles)
10000
dielectric strength
1500V AC 1min
max.rating current & voltage
16(4)A 250V AC

Electronic component scaled image for e-commerce SEO


Why Choose Our KCD2 Rocker Switch?

Our KCD2 Rocker Switch is a top choice for its exceptional quality and durability. With a maximum current rating of 16A and a voltage rating of 250V AC, it's built to handle demanding applications. The switch's plastic housing and solder termination type ensure easy installation and reliable performance. Plus, with a mechanical life of 100,000 cycles, you can count on long-lasting use.

What Makes Our Switch Stand Out?

Our switch stands out from the competition with its high insulation resistance (≥1,000MΩ) and dielectric strength (1500V AC for 1 minute). These features provide superior safety and reliability, making it suitable for a wide range of environments. Additionally, the switch's light indicator adds convenience, allowing you to easily see its status.

Why Buy from Us?

As a factory supplier, we offer competitive wholesale prices and ensure fast delivery. Our KCD2 Rocker Switch is manufactured to the highest standards, ensuring exceptional quality and value for money. Choose us for your switch needs and experience the difference in quality and service.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

16A
Max. Voltage

250V AC
Place of Origin

Shanghai, China
Brand Name

Yong Xing
Model Number

KCD2-21N-CA1A-B-R-03-AC220
Application

Cars, Industrial, MARINE, BUSES, electric equipment, off-road vehicles
Material

plastic
Pins

4P
Whether the smart

NO
Mechanical Life

100,000 cycles
IP level

IP40
Switch Action

ON-OFF
Termination Type

solder
Contact Resistance

≤50m Ω
Insulation Resistance

≥1,000MΩ
Electronic Life(cycles)

10000cycles
operating temperature

T55 T85 T125
dielectric strength

1500V AC 1min
