Description

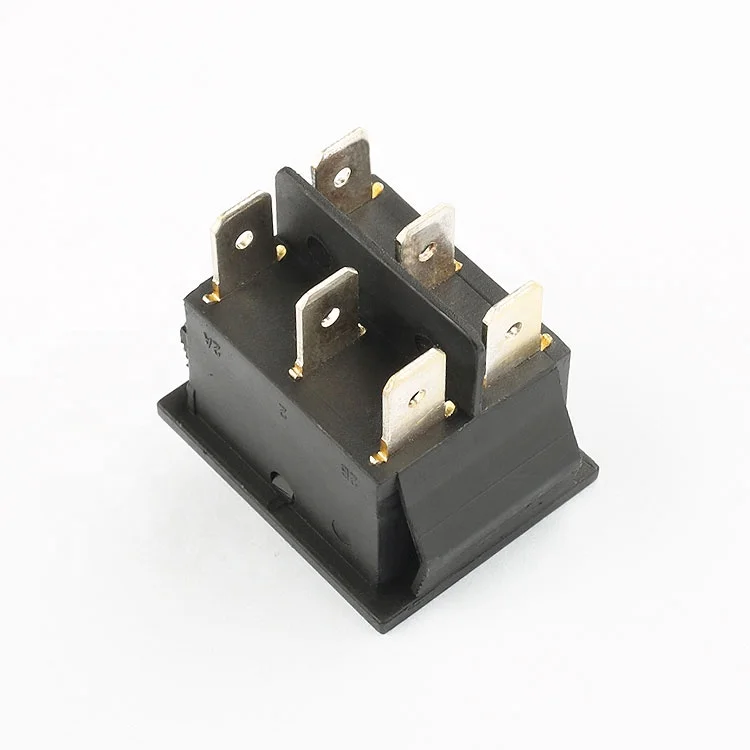

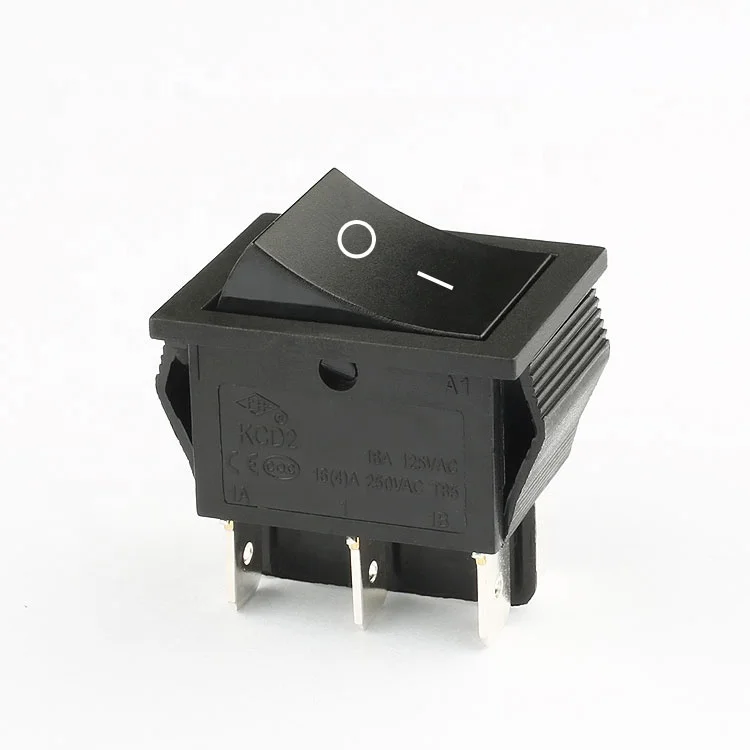

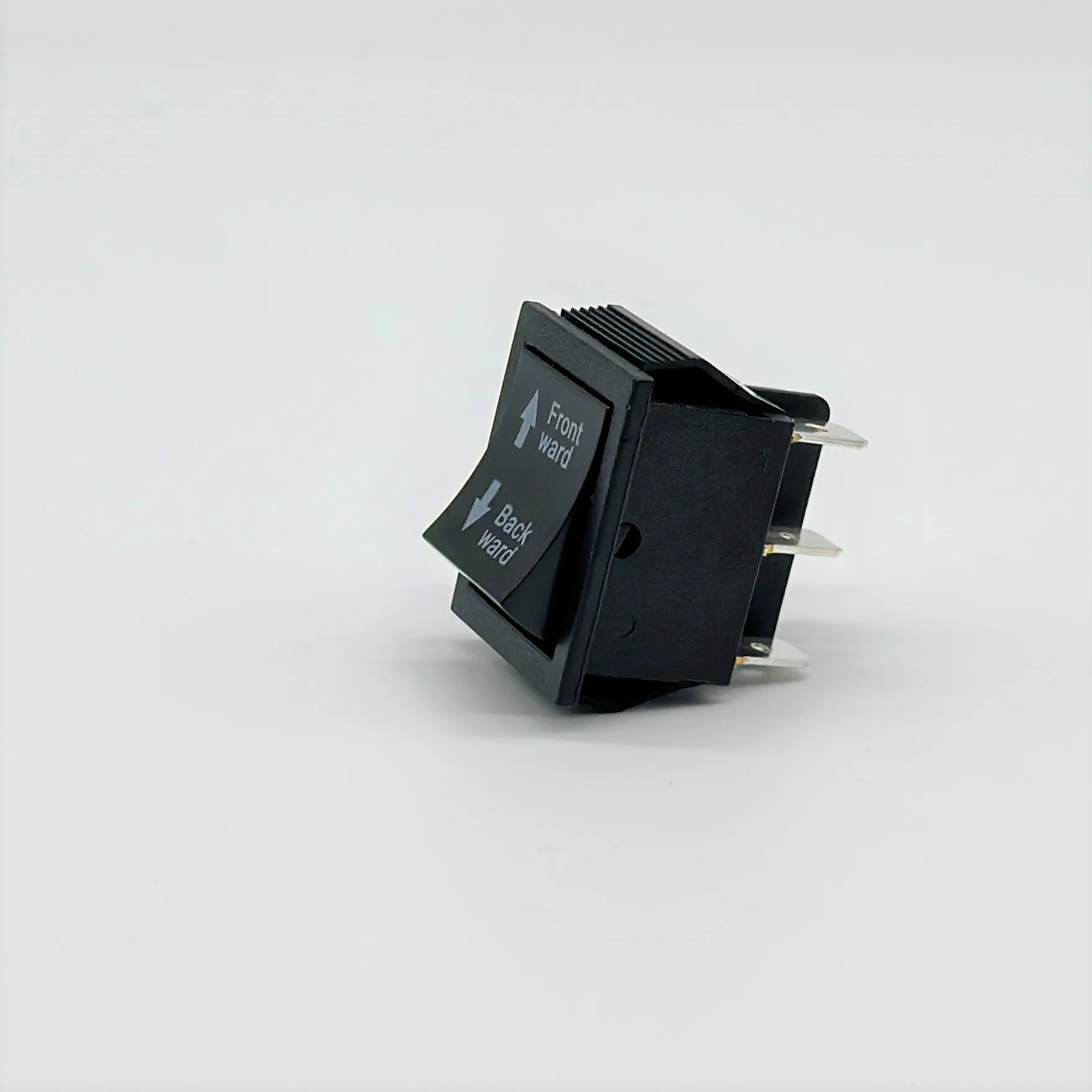

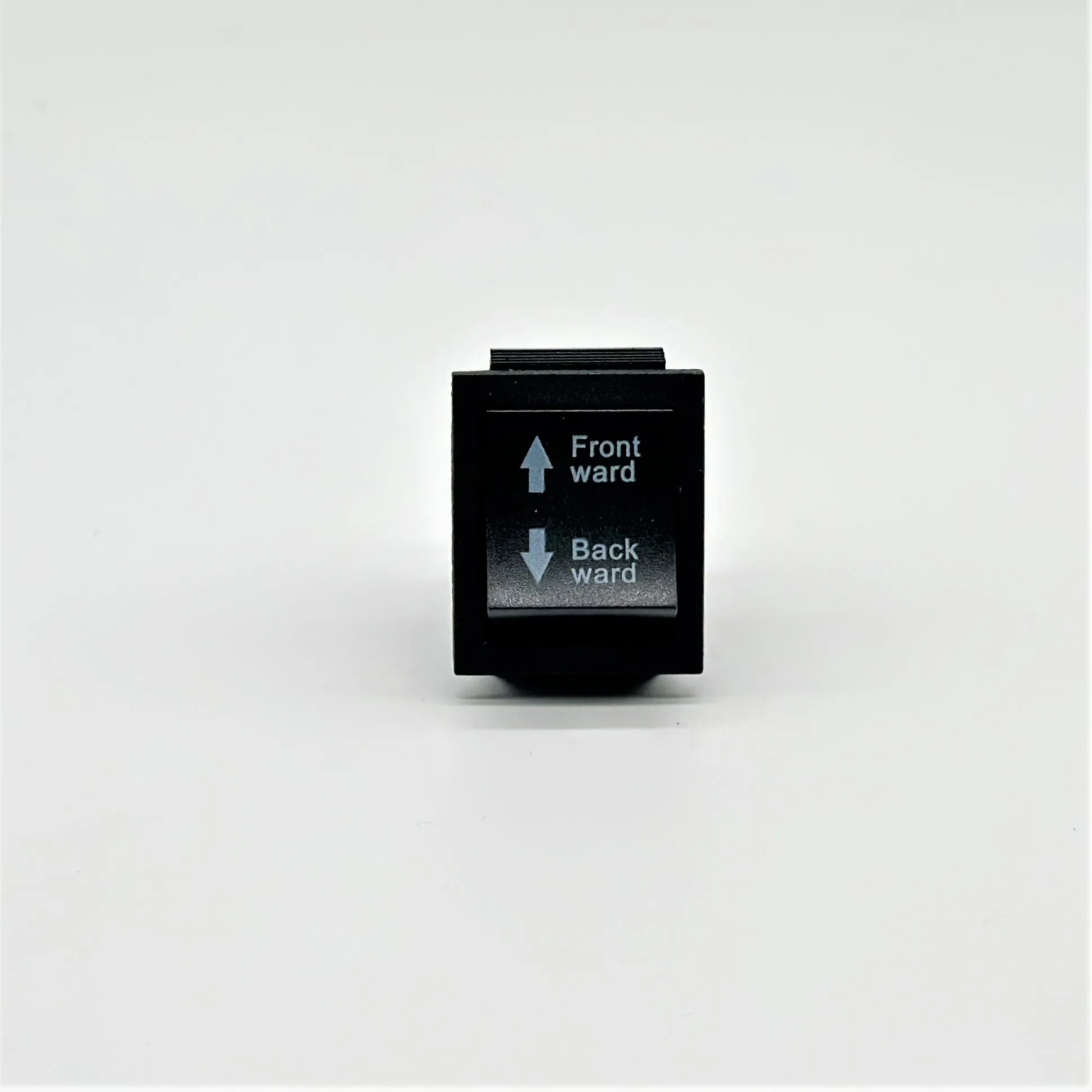

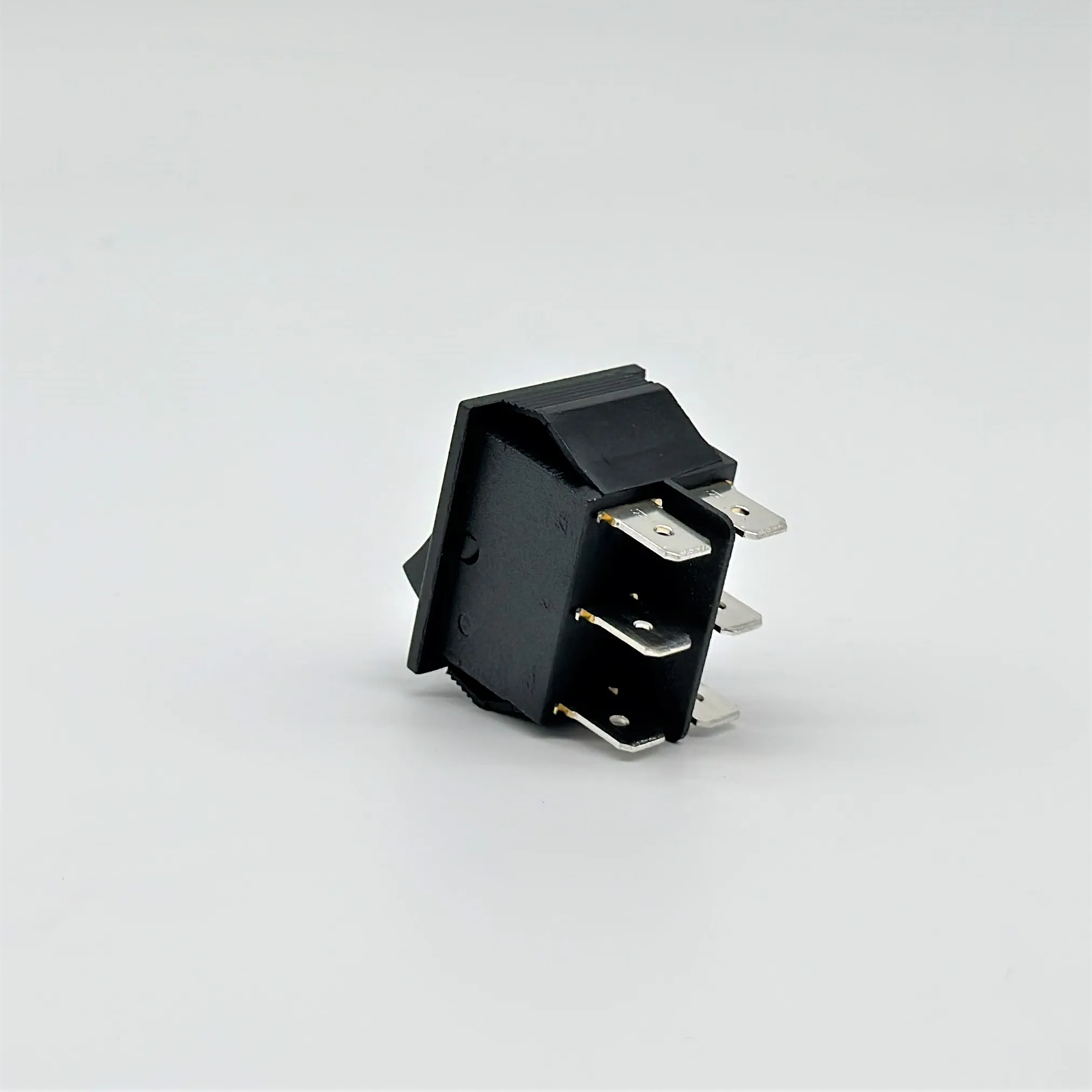

Our Factory Wholesale 16A 250V KCD4 6-Pin ON-ON Momentary Rocker Switch is a high-quality electrical component designed for various applications. As a reliable supplier, we offer this switch with exceptional specifications. It has a maximum current rating of 16A and a maximum voltage rating of 250V, ensuring it can handle demanding electrical loads. The switch features 6 pins and an ON-ON function, providing precise control. With a mechanical life of 100,000 cycles and an electrical life of 10,000 cycles, it guarantees long-lasting performance. Our switch stands out with its low contact resistance of ≤50mΩ and high insulation resistance of ≥1000MΩ, ensuring safe and efficient operation. It also boasts a dielectric strength of 1500VAC for 1 minute, adding an extra layer of safety. Certified with CQC, CE, UL, ENEC, and CB, it meets international quality standards. The switch is available in a sleek black color and has an IP40 rating for dust protection. As a factory direct supplier, we offer competitive wholesale prices and excellent customer service. Whether you need a single unit or bulk orders, we are here to meet your needs.
|
contact resistance
|
≤50MΩ
|
operating temperature
|
T55 T85 T125
|
|
insulation resistance
|
≥1000MΩ
|
electronic life（cycles）
|
10000
|
|
dielectric strength
|
1500V AC 1min
|
max.rating current & voltage
|
16(4)A 250V AC
|
Key Features
Our 16A 250V KCD4 6-Pin ON-ON Momentary Rocker Switch offers a high current and voltage rating, making it suitable for a wide range of electrical applications. Its long mechanical and electrical life ensures durability and reliability.
Differentiators
With low contact resistance, high insulation resistance, and strong dielectric strength, our switch outperforms many competitors in terms of safety and efficiency. The IP40 rating adds an extra layer of protection against dust.
Why Choose Us
As a factory direct supplier, we offer competitive pricing and excellent customer service. Our switch is certified with multiple international standards, ensuring quality and reliability. Whether you need a single unit or bulk orders, we can meet your needs efficiently.
