Factory Wholesale 16A 300V 5mm Pitch Green Pluggable Terminal Blocks

500 - 1,999  pieces
$0.16

2,000 - 4,999  pieces
$0.14

>= 5,000  pieces
$0.12

0 reviews

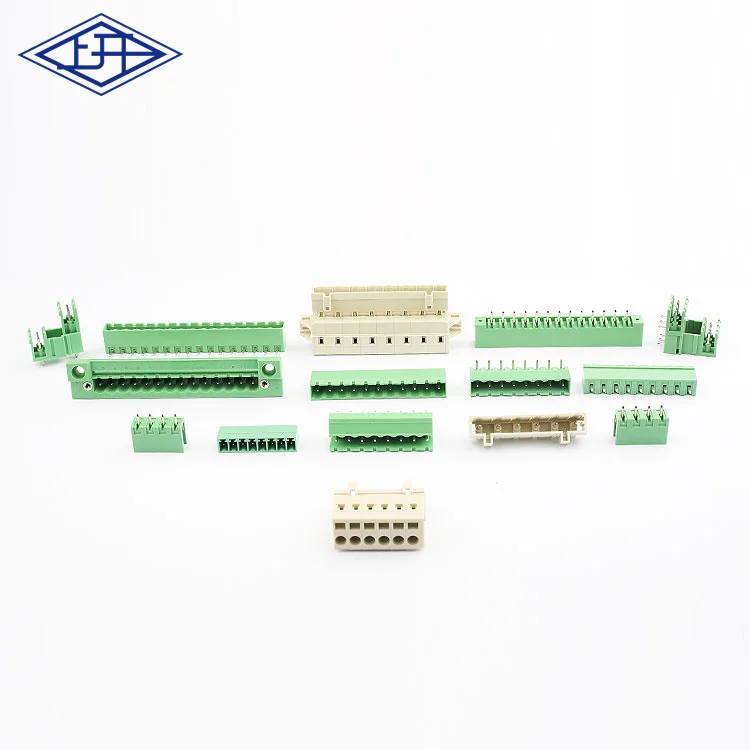

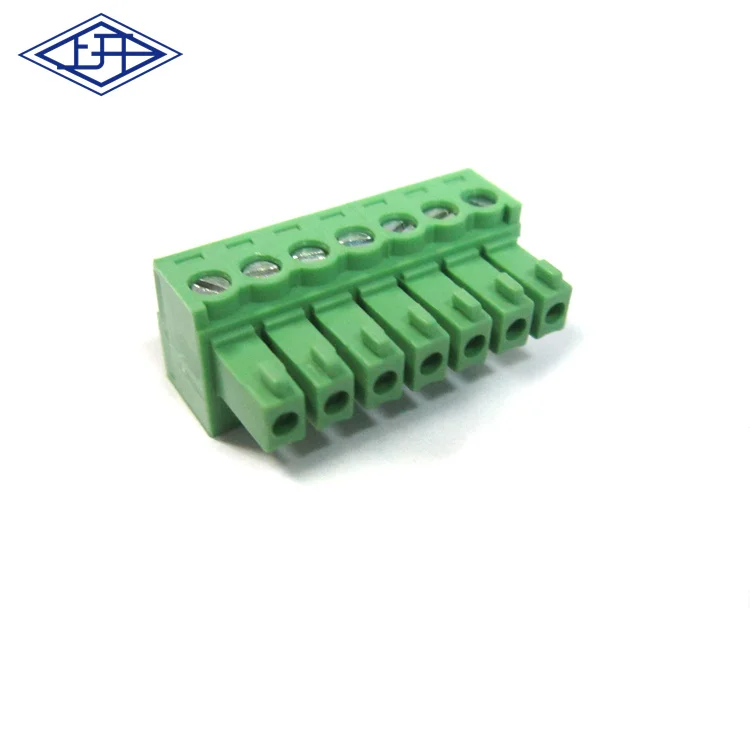

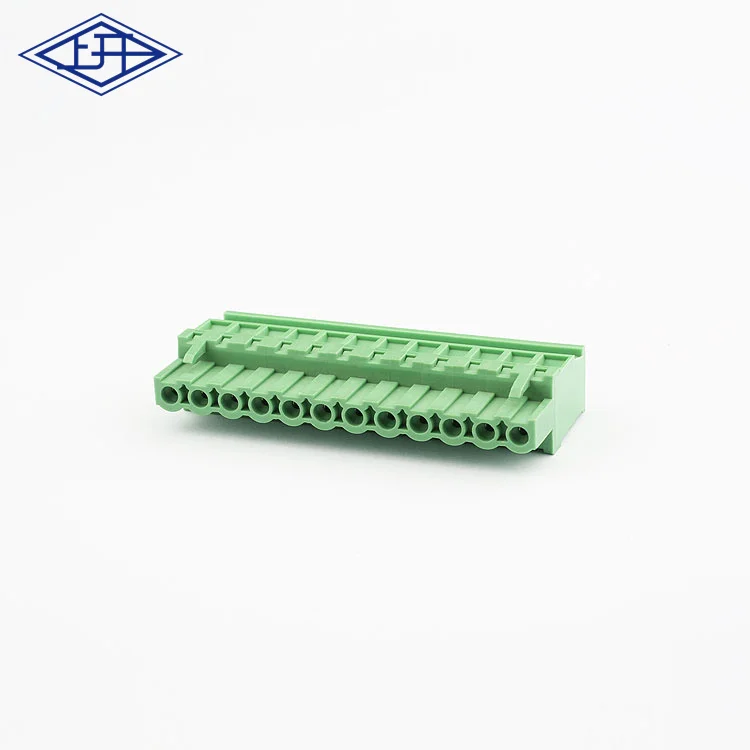

Factory Wholesale Green Pluggable Terminal Blocks – 16A 300V 5mm Pitch

Description

Discover our high-quality Green Pluggable Terminal Blocks, available for wholesale directly from our factory. These terminal blocks are designed with a 5.00mm pitch, rated at 16A and 300V, making them ideal for a wide range of electrical applications. Manufactured in Shanghai, China, by Yong Xing, these blocks feature a durable PA66 UL94V-0 housing, brass nickel-plated care clamps, and phosphor tin-plated wire guards, ensuring long-lasting performance and reliability. Our terminal blocks stand out with their superior contact resistance of 20MΩ and a short-time temperature tolerance of 250°C for 5 seconds, providing enhanced safety and durability. With a conductor size range of 21-30 AWG and an operating temperature range of -40°C to 150°C, they are suitable for various industrial and commercial environments. As a direct supplier, we offer competitive pricing and excellent customer service, including after-sales support. Choose our terminal blocks for their quality, reliability, and affordability.
pitch
5.00mm
rated voltage
300V
operating temperature
40T150
rated current
16A
short-time temperature
250° for 5 sec
contact resistance
20MΩ

Electronic component device for cross-border e-commerce


Why Choose Our Pluggable Terminal Blocks?

Our pluggable terminal blocks are designed for durability and reliability, with a 5.00mm pitch and rated at 16A and 300V. They feature a PA66 UL94V-0 housing, brass nickel-plated clamps, and phosphor tin-plated guards, ensuring long-lasting performance even in harsh environments.

What Makes Our Terminal Blocks Stand Out?

Our terminal blocks offer superior contact resistance of 20MΩ and can withstand short-time temperatures of up to 250°C for 5 seconds. With a wide operating temperature range of -40°C to 150°C and a conductor size range of 21-30 AWG, they are suitable for a variety of applications.

Why Buy from Us?

As a direct factory supplier, we offer competitive pricing and excellent customer service. Our terminal blocks are manufactured to the highest standards, ensuring quality and reliability. Choose us for your electrical connection needs and experience the difference.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Place of Origin

Shanghai, China

Brand Name

Yong Xing

Model Number

YC100-500

Conductor Size

21 – 30 AWG

Type

Plug-in

care clamp

Brass Ni Plated

wire guard

Phosphor Tin plated

housing

PA66 UL94V-0

screws

M3 Steel Zinc plated

color

green

operating temperature

40T150

short-time temperature

250° for 5 sec

rated voltage

300V

rated current

16A

contact resistance

20MΩ
