Factory Wholesale 16A 300V Green Plug-in Terminal Block Connector

Name: Factory Wholesale 16A 300V Green Plug-in Terminal Block Connector
SKU: 55536
Availability: InStock

Categories: Terminal Block, YE plug in Terminal Block Tags: Automotive Grade, Factory Wholesale, Industrial Use, Plug-in Connector, Terminal Block

100 - 9,999 pieces
$0.25

>= 10,000 pieces
$0.19

Rated 0 out of 5

0 reviews

Factory Wholesale 16A 300V Green Terminal Block, Durable & Safe. Supplier Direct Pricing.

Description
Specification

Description

Introducing our high-quality Green Plug-in Terminal Block Connector, a factory-direct wholesale product designed for industrial and automotive applications. With a robust construction featuring a PA66 housing (UL94V-0 certified) and tin-plated copper contacts, this terminal block ensures reliable performance and longevity. It supports a wide range of poles from 2 to 24, accommodating conductors from 28 to 12 AWG, and operates efficiently within a temperature range of -40℃ to +150℃. Certified by CQC, UL, and RoHS, our product guarantees safety and compliance with international standards. As a leading supplier, we offer competitive pricing and flexible bulk purchasing options, making it ideal for wire connecting projects. Our push-in connection method simplifies installation, saving time and effort. Choose our factory-direct terminal block for unmatched quality, durability, and value.

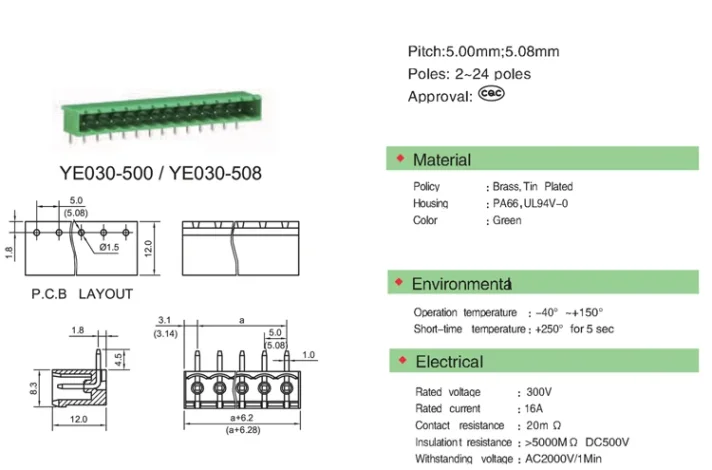

pitch	5.00mm; 5.08mm	policy	brass, tin plated
poles	2~24 poles	housing	PA66, UL94V-0
certificate	CQC; UL	operation temperature	-40℃ to +150℃

Why Choose Our Terminal Block?

Our terminal block stands out with its factory-direct pricing, ensuring you get the best value for your money. The durable PA66 housing and tin-plated copper contacts guarantee long-lasting performance, even in harsh environments. With a wide operating temperature range and multiple pole options, it's perfect for a variety of industrial and automotive applications.

Key Features and Benefits

The push-in connection method simplifies installation, reducing labor costs. Our product is certified by CQC, UL, and RoHS, ensuring safety and compliance. Plus, with flexible bulk purchasing options, you can stock up and save even more.

How Does It Compare to Competitors?

Unlike many competitors, our terminal block is factory-direct, cutting out the middleman and passing the savings on to you. The high insulation resistance and wide temperature range make it more reliable and versatile. Choose us for quality, value, and unmatched customer service.

Additional information

Place of Origin	Shanghai, China
Application	Industrial, Automotive, wire connecting, spring terminal block
Number of Pole	2, 4, 6, 1, 3, 5
Contact Material	tin-plated copper
Connection Method	push-in connection
Max continuous amp	16A
Brand Name	Yongxing
Model Number	YE030-500/508-8P
Number of Contacts	2-24
Conductor Size	28 – 12 AWG
Type	Plug-in
Color	Green
Certification	CQC, UL, RoHS
Current	16A
Voltage	300V
Pitch	5.0mm 5.08mm
housing	PA66
Operation temperature	-40℃~+150℃
insulation resistance	>5000MΩ DC500V
