Description
|
item
|
value
|
|
Place of Origin
|
Shanghai(China)
|
|
Brand Name
|
SK(Shangkai)
|
|
Model Number
|
KA11-11-BG
|
|
Protection Level
|
IP40
|
|
Max. Current
|
16A
|
|
Max. Voltage
|
250V AC
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥100MΩ
|
|
Dielectric Strength
|
1500V 1min
|
|
Electrical Life
|
10000times
|
|
Operating temperature
|
-25℃~+85℃
|
|
Certificate
|
CQC CB ROHS ISO9001
|
|
Color
|
black housing,green button
|
|

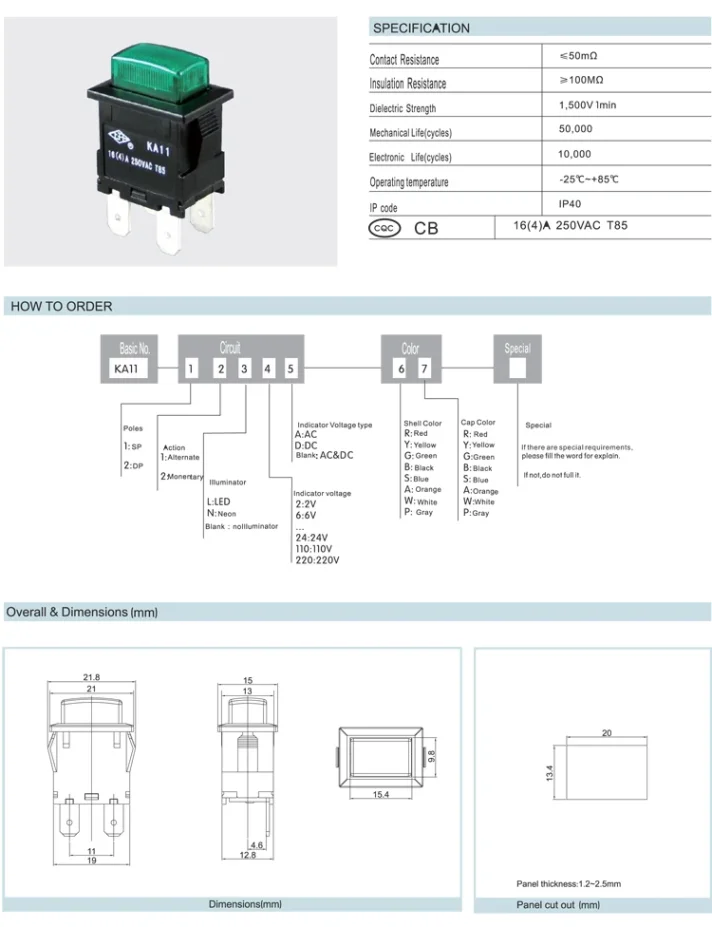

Mounting Hole Size
|
20*13.4 mm
|
|
Panel Thickness
|
1.2-2.5mm
|
Why Choose Our 16A Momentary Push Button Switch?
Our 16A momentary push button switch stands out for its high current and voltage ratings, ensuring reliable performance in demanding applications. The illuminated button provides clear visual indication, while the latching function ensures the switch remains in the desired position. With an IP40 protection level, it offers adequate protection against dust and small particles, making it suitable for various environments.
What Are the Key Features of Our Switch?
Our switch features a durable plastic casing with a green button, a long electrical life of 10,000 times, and low contact and insulation resistances. It is suitable for panels with a thickness of 1.2-2.5mm and has a convenient mounting hole size. Additionally, it is CQC, CB, ROHS, and ISO9001 certified, guaranteeing its quality and compliance with international standards.
How Can Our Switch Benefit Your Business?
As a factory supplier, we offer competitive wholesale prices and excellent after-sales service. Our switch is perfect for electrical control, industrial machinery, home appliances, and automation systems. By choosing our switch, you can ensure reliable performance, longevity, and safety in your applications, ultimately enhancing your business's efficiency and reputation.
