Description
Specifications:
- Max. Current: 16A
- Max. Voltage: 250V
- Place of Origin: Shanghai, China
- Brand Name: Yong Xing
- Model Number: KCD2-21N
- Mechanical Life: 100,000 times
- IP Level: IP40
- Color Options: Red, Yellow, Green, Blue, White
- Material: High-quality plastic
- LED Voltage: 12V, 24V, 220V, 2V, 6V, 110V
- Contact Resistance: ≤50mΩ
- Dielectric Strength: 1500V AC, 1min
- Operating Temperature: T55, T85, T125
- Panel Cutout: 30*22mm
- Certifications: CQC, CE, UL, ENEC
Advantages:
- Durable Construction: Made from high-quality plastic, ensuring long-lasting use.
- Wide Voltage Range: Supports multiple LED voltages, making it versatile for various applications.
- High Mechanical Life: With 100,000 times mechanical life, it offers exceptional durability.
- Factory Direct Pricing: As a factory supplier, we offer competitive wholesale prices.
After-Sales Service: We provide comprehensive after-sales service, including technical support and warranty coverage, ensuring your satisfaction.
Choose our 16A Rocker Switch for a reliable, durable, and cost-effective power switch solution for your electric appliances.
|

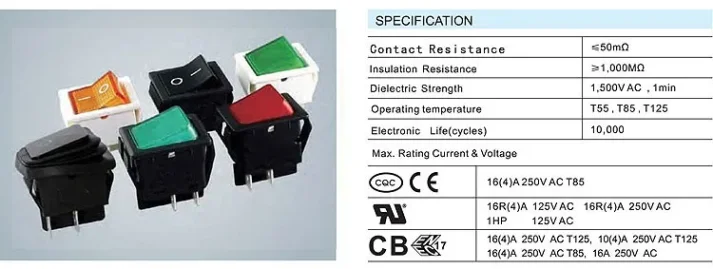

contact resistance
|
≤50MΩ
|
operating temperature
|
T55 T85 T125
|
|
insulation resistance
|
≥1000MΩ
|
electronic life（cycles）
|
10000
|
|
dielectric strength
|
1500V AC 1min
|
IP code
|
IP40
|
Why Choose Our 16A Rocker Switch?
Our 16A Rocker Switch is designed to meet the highest standards of quality and performance. Made from high-quality plastic, it offers exceptional durability and reliability. With a wide voltage range and high mechanical life, it is suitable for a variety of applications, including electric appliances, home appliances, industrial equipment, and control panels.
What Makes Our Switch Stand Out?
Unlike other switches on the market, our 16A Rocker Switch is factory-direct, ensuring competitive pricing without compromising on quality. It also features multiple LED voltage options, making it versatile for different lighting needs. Additionally, its IP40 rating provides protection against dust and small particles, ensuring long-lasting use in various environments.
How Can We Help You?
As a factory supplier, we offer wholesale pricing and comprehensive after-sales service. Whether you need technical support or warranty coverage, we are here to help. Choose our 16A Rocker Switch for a reliable, durable, and cost-effective power switch solution for your business.
