Description
| Panel Thickness | 1-10mm |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1000 MΩ 4 pin push button switch |
| Torque | 5-14Nm |
| Operating Pressure | About 4N |
| Operating Stroke | About 1.8mm |
| Mounting Hole Size | 22mm |
| Dielectric Strength | 2000VAC |
| Electronic Life | >1,000,000 times |
| Mechanical Life | >200,000 times |
| Operating temperature | -20°c~+55°c |
| IP code | IP67 IK09 |
| Switch Rating | 2A /36VAC emergency push button switch |
| Contact Configuration | 1NO |
| Operating Type | Momentary elevator push button switch |
| The Front Shape | High Round |
| The Crust Material | Stainless Stell,Nickel-plated Brass or Gold-Plated Brass |
|
Material |
Contact : Sliver Alloy (Can be made to order) |

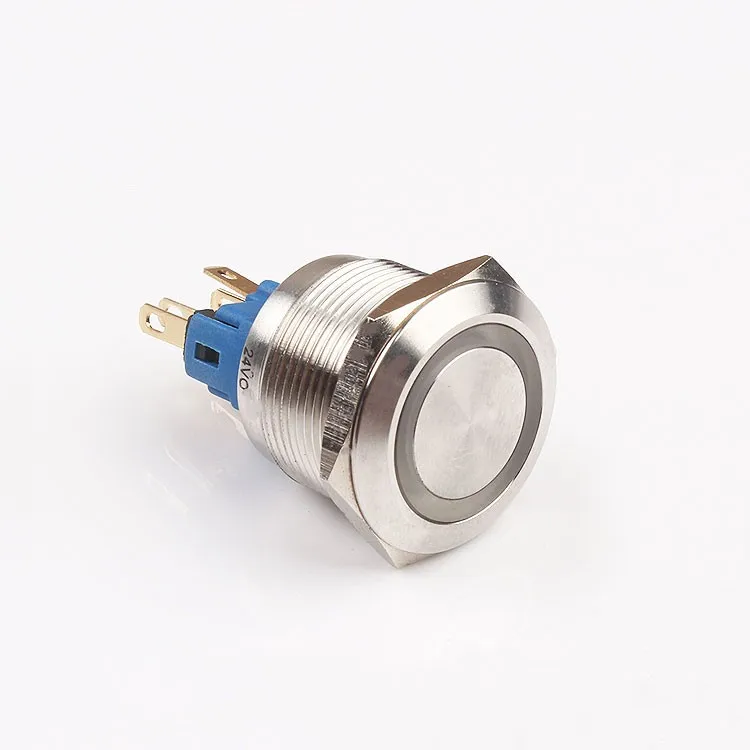

Why Choose Our 16mm Waterproof LED Push Button Switch?
Our 16mm waterproof LED push button switch stands out for its durability, versatility, and high-quality construction. As a factory supplier, we offer competitive wholesale pricing and bulk order discounts, making it an affordable choice for your projects. The switch's IP67 rating ensures it's waterproof and dustproof, perfect for outdoor or harsh environments. With a mechanical life of over 1,000,000 times and an electrical life of over 200,000 times, it's built to last and provide reliable performance.
What Are the Key Features of This Switch?
This switch features a stainless steel, nickel-plated brass, or gold-plated brass crust for longevity and resistance to corrosion. The silver alloy contact ensures excellent conductivity. It supports 12V/24V LED lighting, has a rated voltage of 110V/240V, and can handle up to 5A current. The high round front shape gives it a sleek look, and the 22mm mounting hole size makes it easy to install. Additionally, we offer customization options to meet your specific needs.
What Are the Common Applications of This Switch?
Our 16mm waterproof LED push button switch is ideal for a wide range of applications, including outdoor machinery, control panels, emergency stops, and more. Its waterproof and dustproof design makes it suitable for harsh environments, while its high conductivity and reliable performance ensure it meets the demands of industrial applications. Choose our switch for your next project and experience the difference in quality and performance.
