Factory Wholesale 16mm Illuminated Push Button Switch Supplier

$0.39
0 reviews

Factory Wholesale 16mm Push Button Switch Supplier

Description

Introducing our high-quality 16mm illuminated push button switch, available at factory wholesale prices from a trusted supplier. This switch, model FD16, is perfect for a wide range of applications and stands out with its customizable switching voltage (available upon request). Manufactured in Shanghai, China, by Shangkai (SK), this switch is designed to meet and exceed industry standards.

Key Features:

  • Specifications: Max. Current: 1A, Max. Voltage: 250V AC, IP40 protection level, operating temperature range of -25℃ to +55℃.
  • Quality Assurance: CQC and CE certified, ensuring safety and reliability.
  • Durability: Contact resistance ≤50mΩ, insulation resistance ≥100MΩ, dielectric strength of 1500V.
  • Longevity: Electronic life of 10,000 cycles (momentary) and 5,000 cycles (alternate), mechanical life of 50,000 cycles (momentary) and 100,000 cycles (alternate).
  • Versatility: Available in black and blue, with a 1NO1NC switch combination.

Our push button switch offers a unique advantage with its illuminated design, making it easy to locate and operate in low-light conditions. As a factory direct supplier, we offer competitive pricing and the ability to purchase in bulk, making it ideal for large-scale projects or resellers.

After-Sales Service: We are committed to providing excellent customer service and support. If you have any questions or need assistance, please don’t hesitate to contact us.

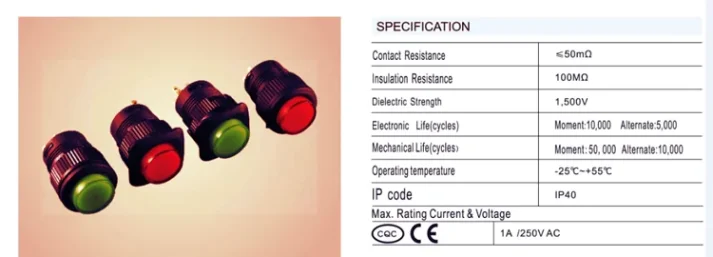

Contact resistance

≤50mΩ

Insulation resistance

≥100MΩ

Dielectric strength

1500v

Electronic life (cycles)

Moment:10000 Alternate:5000

Mechanical life (cycles)

Moment:50000 Alternate:100000

Operating temperature

25T55

IP code

IP40

Max.Rating Current&Voltage

1A/250V AC

Certification

CQC, CE

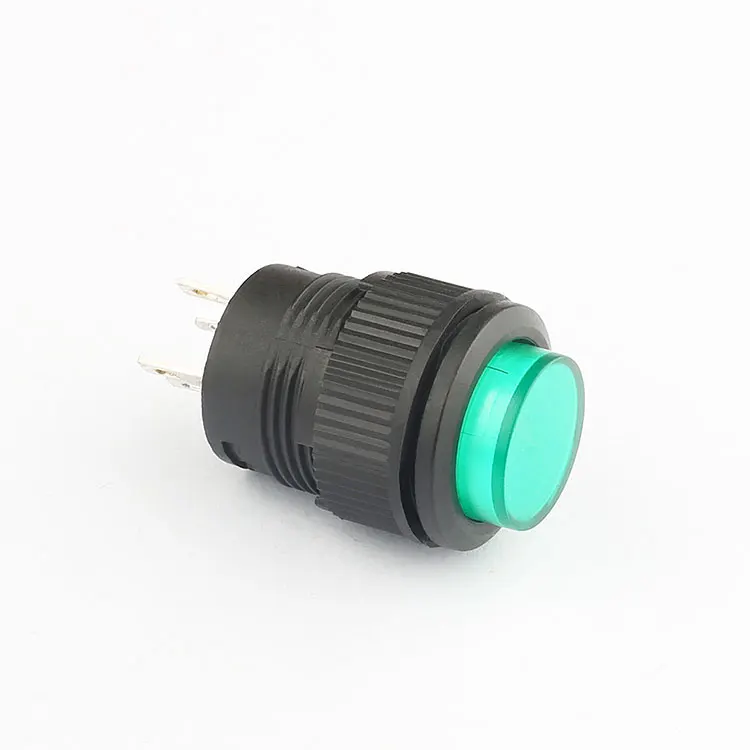

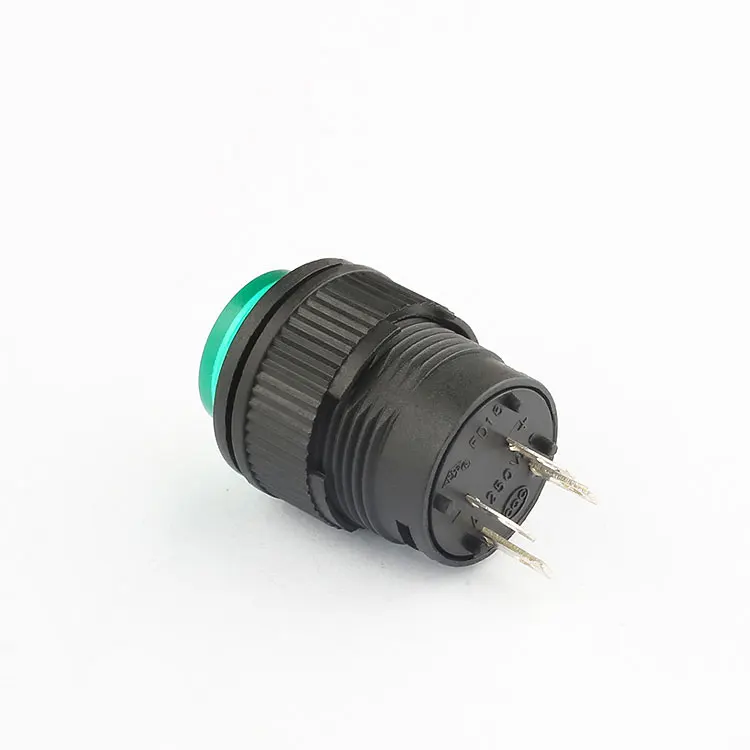

Electronic component product image for cross-border e-commerceElectronic device product image for cross-border e-commerceElectronic gadget product image for cross-border e-commerce


Why Choose Our 16mm Illuminated Push Button Switch?

Our 16mm illuminated push button switch is designed for durability, versatility, and ease of use. The illuminated feature makes it ideal for applications where visibility is crucial, even in low-light conditions. With a long electronic and mechanical life cycle, this switch ensures reliable performance over time.

Key Advantages Over Competitors

Unlike many competitors, our switch offers customizable switching voltage, allowing you to tailor it to your specific needs. Additionally, as a factory direct supplier, we can offer competitive pricing and the ability to purchase in bulk, making it a cost-effective choice for large-scale projects.

Applications and Compatibility

This switch is suitable for a wide range of applications, including industrial control, automotive, home appliances, and machinery. Its IP40 protection level ensures it can withstand harsh environments, while the 1NO1NC switch combination provides flexibility in circuit design.

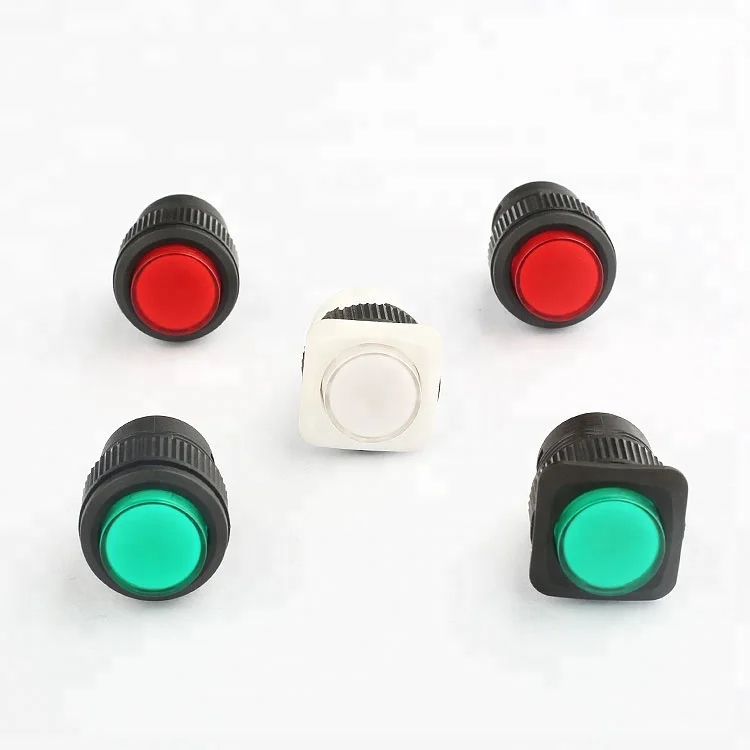

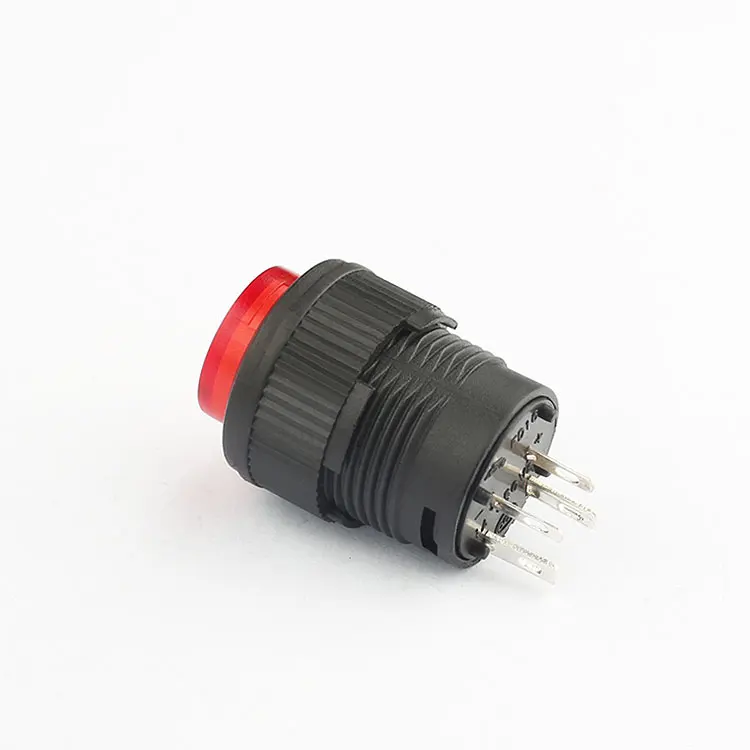

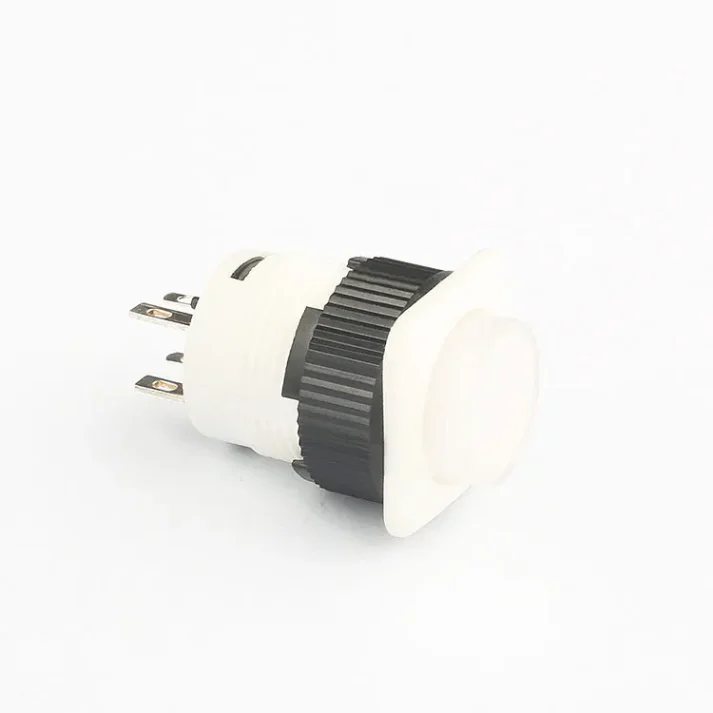

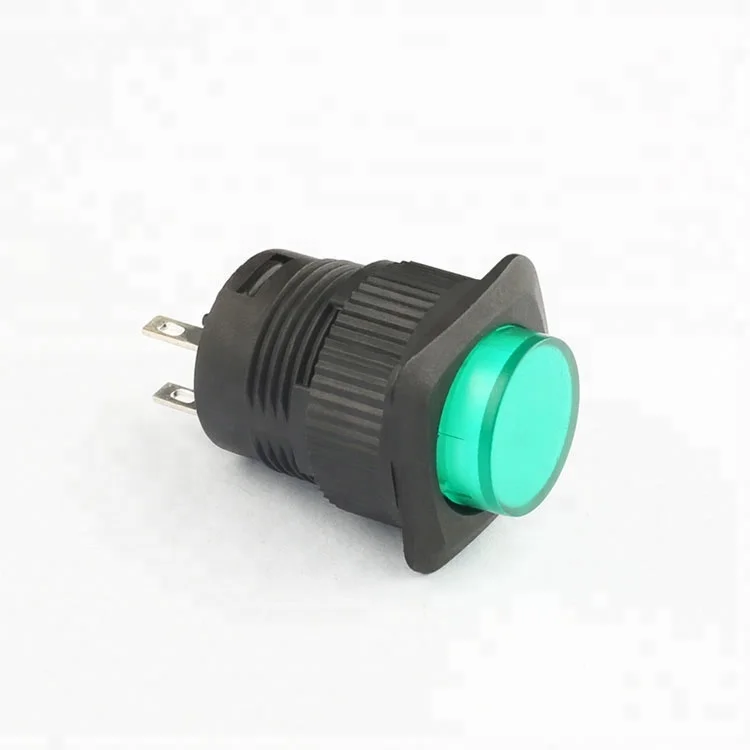

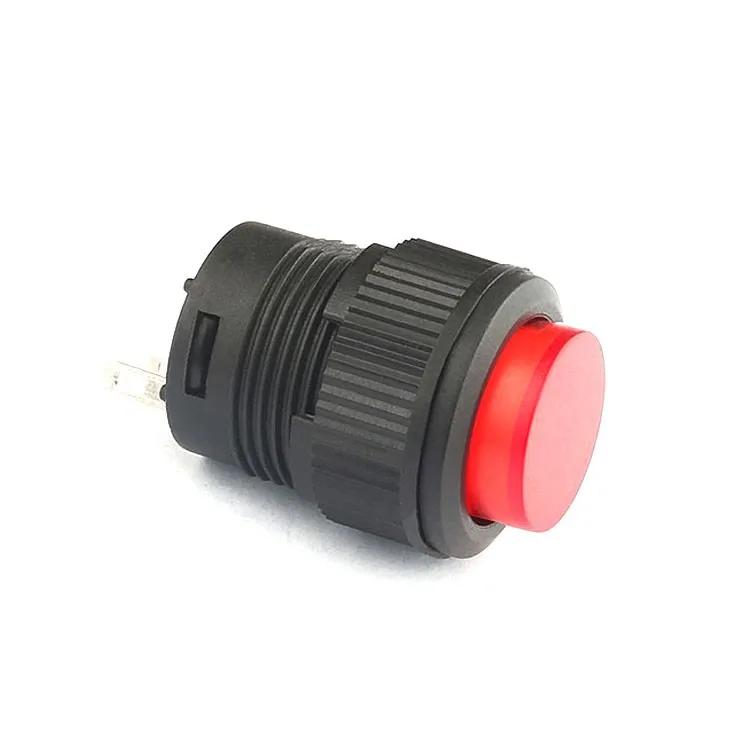

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

1A

Max. Voltage

250V AC

Place of Origin

Shanghai, China

Brand Name

Shangkai(SK)

Model Number

FD16

LED

Other

Whether the smart

NO

IP level

IP40

Switch Combination

1NO1NC

Operating temperature

-25 ℃~+55℃

Electronic life(cycles)

Moment:10,000 Alternate:5,000

Mechanical life(cycles)

Moment:50,000 Alternate:10,000

Insulation resistance

100MΩ 120v push button switch

Contact Resistance

≤50mΩ

Dielectric Stength

1,500V

Color

Black

Certification

CQC CE

Protection Level

IP40
