Description
|
item
|
value
|
|
Certification
|
CE RoHS
|
|
Whether the smart
|
Yes
|
|
Place of Origin
|
China
|
|
Brand Name
|
Shanghai Yongxing
|
|
Model Number
|
YXDGQ16F-10Z/J/S
|
|
Protection Level
|
IP65
|
|
Max. Current
|
3A
|
|
Max. Voltage
|
250V
|
|
LED
|
Other
|
|
Electronic Life
|
10000 cycles
|
|
Mechanical Life
|
50000 cycles
|
|
Working Environment Temperature
|
-25℃~+65℃
|
|
Switch circuit
|
1NO
|
|
Electrical Resistance
|
AC250V, 1min, no flicker and breakdown
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥100MΩ
|

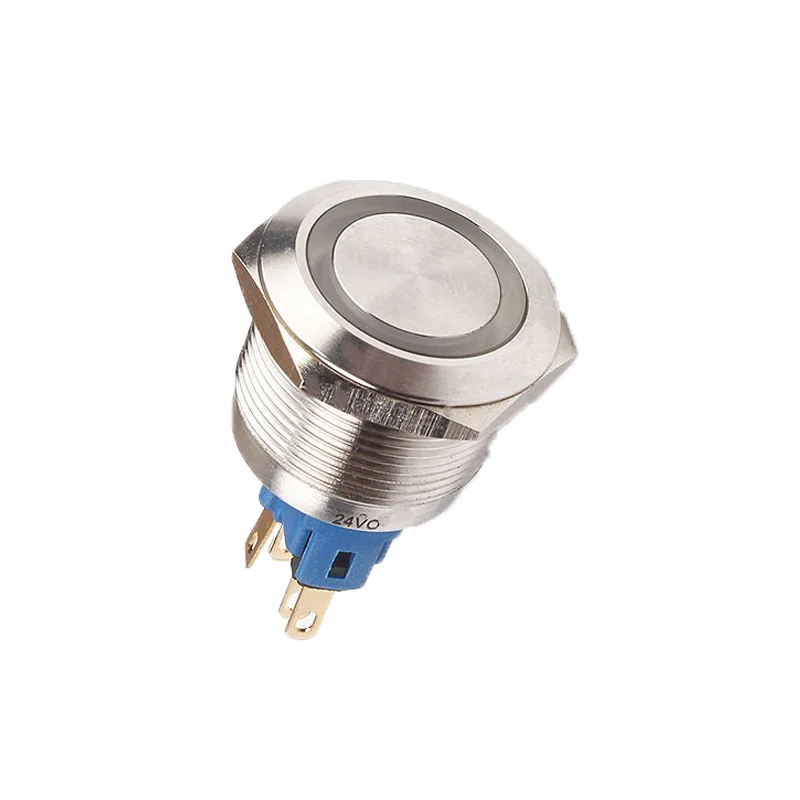

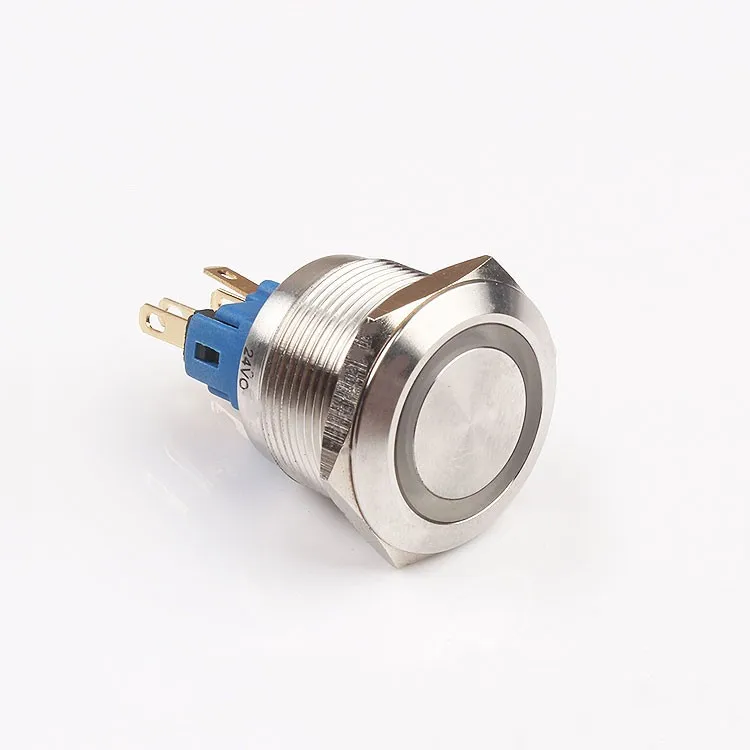

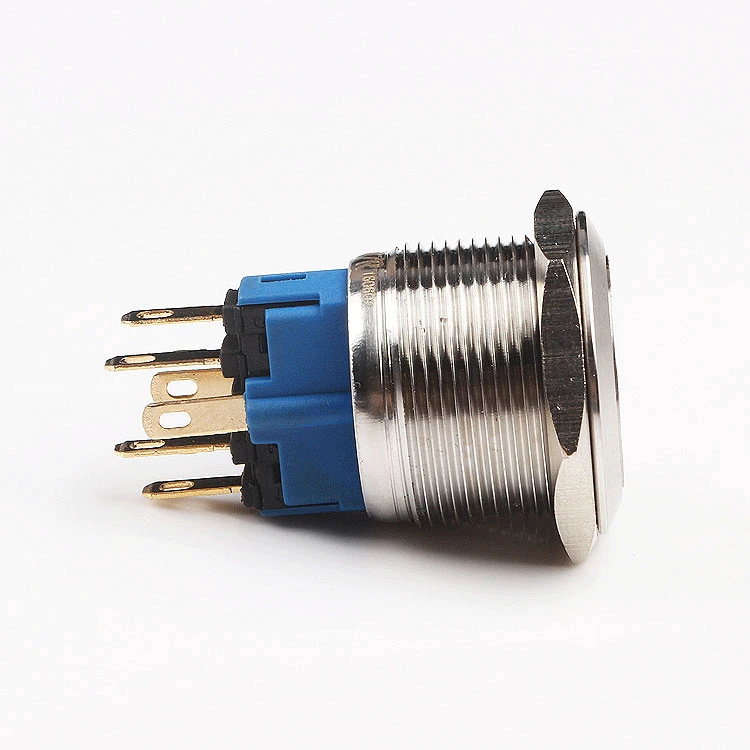

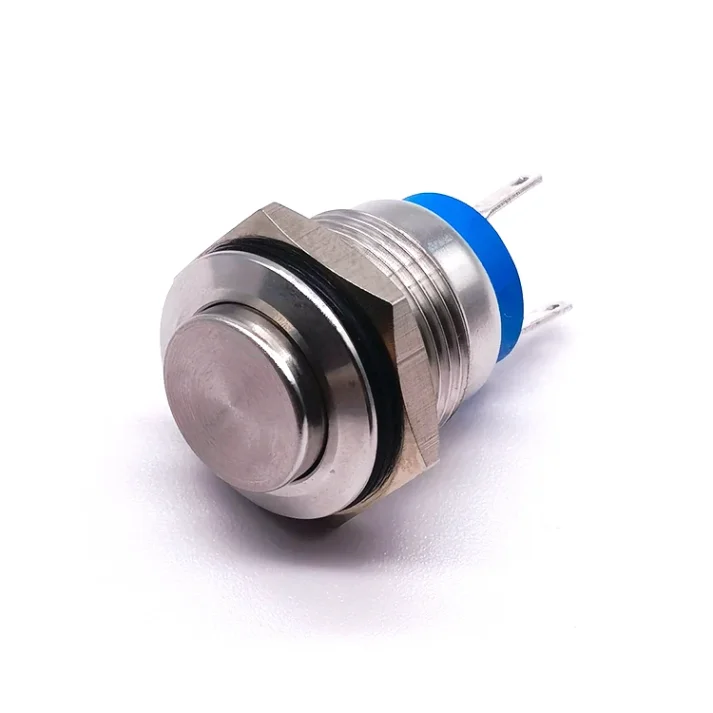

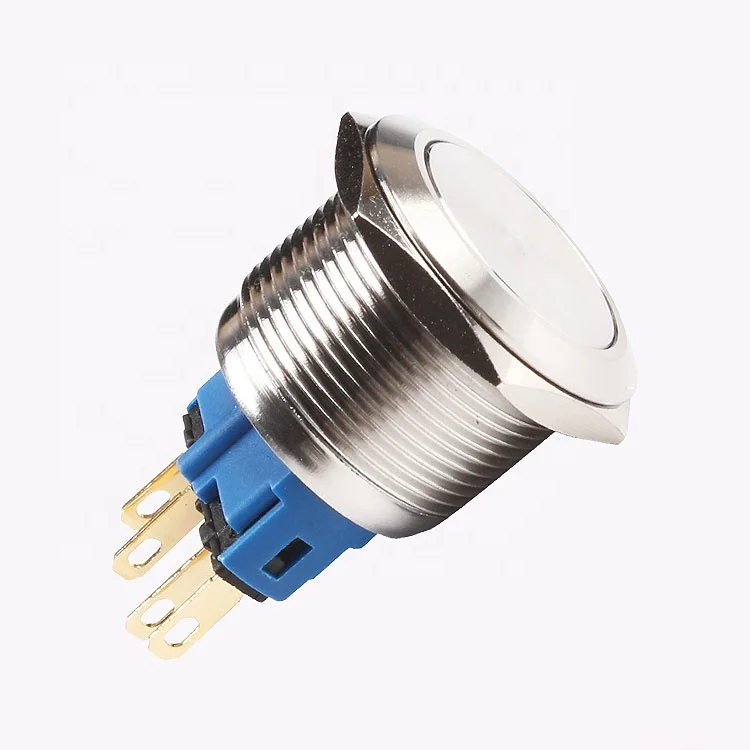

Why Choose Our Waterproof Metal Push Button Switch?
Our waterproof metal push button switch stands out due to its robust stainless steel construction, ensuring durability and resistance to harsh environments. With an IP65 rating, it offers excellent protection against dust and water, making it ideal for outdoor and industrial applications. The 1NO latching mechanism provides reliable operation, while the long electronic and mechanical life cycles ensure minimal maintenance and downtime.
What Are the Key Features of Our Switch?
Key features include a maximum current of 3A and a maximum voltage of 250V, allowing it to handle a wide range of electrical loads. The switch operates efficiently within a temperature range of -25℃ to +65℃, ensuring reliability in various climates. Additionally, it is CE and RoHS certified, guaranteeing its safety and compliance with international standards.
How Can We Benefit From Buying in Bulk?
As a factory supplier, we offer competitive wholesale pricing for bulk orders. This means you can save money while ensuring a steady supply of high-quality switches for your projects. We also provide fast delivery and excellent customer service, making the purchasing process smooth and hassle-free. Choose our waterproof metal push button switch for your next project and experience the benefits of buying from a trusted factory supplier.
