Factory Wholesale 16mm LED Push Button Switch | Supplier | Direct Prices

Description

Our factory specializes in manufacturing and supplying high-quality 16mm LED push button switches. As a direct supplier, we offer competitive wholesale prices for bulk orders. This switch features a momentary or self-locking function, with options for 1NO1NC or 2NO2NC switch combinations, making it versatile for various applications. The switch includes an LED indicator, operates at a maximum current of 3A and voltage of 250V, and is certified with CQC, CE, and ROHS standards. It boasts a contact resistance of less than 50mΩ, insulation resistance greater than 100MΩ, and dielectric strength of 1,500V, ensuring reliability and safety. With a mechanical life of 50,000 cycles and an electrical life of 10,000 cycles, this switch is built to last. Additionally, our factory is equipped with independent plants, injection workshops, and advanced experimental equipment, staffed by over 60 senior engineers. All workshops adhere to 5S and 5M management standards, guaranteeing top-notch quality and customization capabilities to meet your specific requirements. Choose us for your push button switch needs and experience the difference in quality and service.
max.rating cnrrent&voltage
3a 250vac
contact resistance
<50mΩ
insulation resistance
>100mΩ
dielectrice resistance
1500V
mechanical ife
momentary 200000; alternate 50000
electronic life
momentary 50000; alternate 25000
operating temperature
-5℃ to +75℃
CQC,CE

Electronic component board with multiple circuits and connectorsCloseup view of a circuit board with intricate designInternal parts of an electronic device showing circuit boardsAssembly of electronic components on a circuit board


Key Features

Our 16mm LED push button switch offers a momentary or self-locking function, with options for 1NO1NC or 2NO2NC switch combinations, making it highly adaptable for various industrial and electrical applications. The built-in LED indicator provides clear visual feedback, enhancing usability.

Quality Assurance

With a contact resistance of less than 50mΩ, insulation resistance greater than 100MΩ, and dielectric strength of 1,500V, this switch ensures reliable and safe operation. It has undergone rigorous testing to meet CQC, CE, and ROHS standards, guaranteeing top-notch quality.

Why Choose Us?

As a direct factory supplier, we offer competitive wholesale prices for bulk orders. Our factory is equipped with advanced equipment and staffed by experienced engineers, ensuring customization capabilities to meet your specific needs. Choose us for quality, reliability, and value.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

3A

Max. Voltage

250V

Place of Origin

Shanghai, China

Brand Name

SK

Model Number

AD16

LED

Yes

Whether the smart

NO

Switch Combination

1NO1NC, 2NO2NC

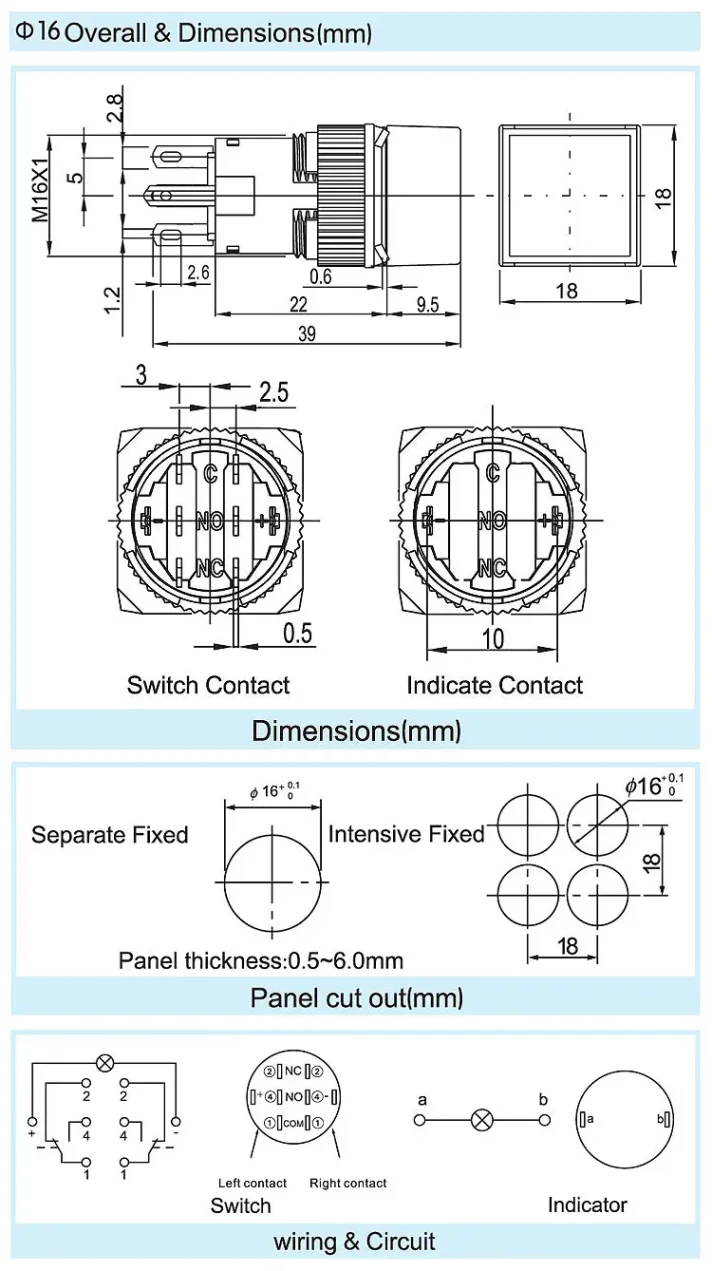

Mounting Hole Size

16 mm

Function

Momentary or selflocking

Contact Resistance

50m Max

Insulation Resistance

100M Min

Dielectric strength

1,500V

Mechanical Life

50,000 cycles

Electrical Life

10,000 cycles

Certification

CQC CE ROHS

Protection Level

IP40
