Description

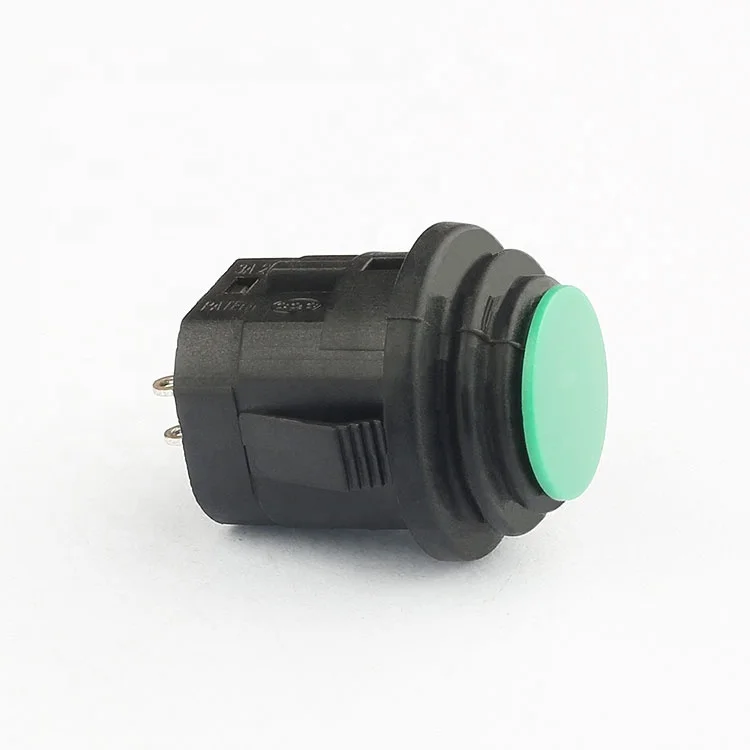

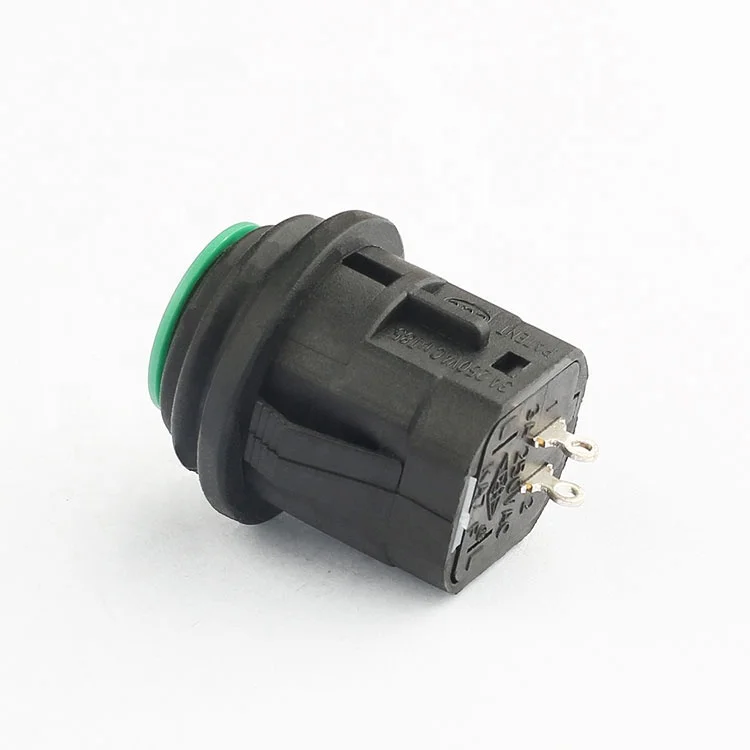

Factory Wholesale 16mm Momentary 2-Pin Waterproof Push Button Switch
As a direct factory supplier, we offer this high-quality 16mm momentary 2-pin waterproof push button switch at wholesale prices. Our switch is designed to meet a variety of industrial and commercial needs, with excellent performance and durability.
Product Specifications
- Max. Current: 3A
- Max. Voltage: 250V
- Rated Voltage: 240V
- Place of Origin: Shanghai, China
- Brand Name: Shangkai (SK)
- Model Number: KA7-12-FAA-GB
- Color: Green
- Operation Type: Momentary
- Mounting Hole Size: 16mm
- Terminal: 2-pin
- Certification: CQC, CE
- Protection Level: IP65
- Size: 16MM
Product Advantages
Our switch stands out from competitors with its low contact resistance (≤50mΩ), high insulation resistance (≥1000 MΩ), and strong dielectric strength (1500V). It has a long electronic life of 10,000 cycles and an even longer mechanical life of 50,000 cycles. The operating temperature range is -25°C to +85°C, making it suitable for various environments.
Customization and Support
We have our own independent plant, injection molding workshop, and advanced experimental equipment. With over 60 senior engineers and 5S management implemented in all workshops, we can customize switches to meet your specific requirements if you have a sufficient quantity. Contact us for more details.
After-Sales Service
We are committed to providing excellent after-sales service. If you encounter any problems with our products, please don’t hesitate to contact us. We will do our best to solve them for you.
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1000 MΩ |
| Dielectric Strength | 1500V |
| Electronic Life(cycles) | 10000 |
| Mechanical Life(cycles) | 50000 |
| Operating temperature | -25°c~+85°c |
| IP code | IP65 |
Why Choose Our 16mm Waterproof Push Button Switch?
Our 16mm waterproof push button switch is a high-quality product designed to meet various industrial and commercial needs. With its momentary operation type, it is perfect for applications where a temporary connection is required. The waterproof design ensures reliable performance even in wet or humid environments.
What Are the Key Specifications?
The switch has a max. current of 3A and a max. voltage of 250V, with a rated voltage of 240V. It features a 16mm mounting hole size and 2-pin terminals. The protection level is IP65, providing excellent dust and water resistance.
How Does It Stand Out from Competitors?
Our switch has a low contact resistance, high insulation resistance, and strong dielectric strength, ensuring stable and reliable performance. It also has a long electronic and mechanical life, reducing the need for frequent replacements. Additionally, we offer customization services to meet your specific requirements.
