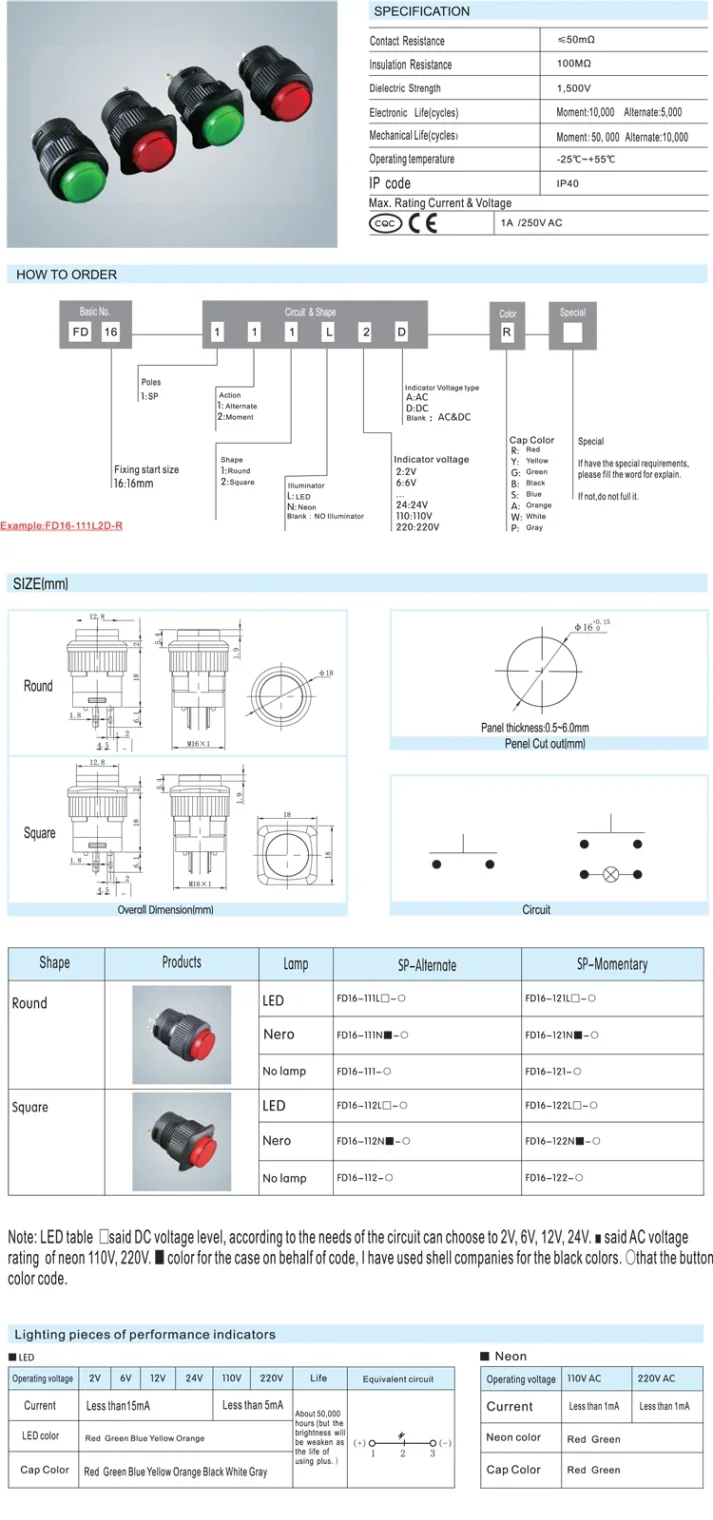

Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
Sk(Shangkai)
|
|
Model Number
|
FD16-121L12D-G
|
|
Protection Level
|
IP40
|
|
Max. Current
|
1A
|
|
Max. Voltage
|
250V AC
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistence
|
≥100MΩ
|
|
Dielectric Strength
|
1500V
|
|
Operating Temperature
|
25T55
|
|
Electrical Life
|
5000
|
|
Mechanical Life
|
10000
|
|
Panel cut-out size
|
16mm
|
|
Panel thickness
|
0.5-6.0mm
|
|
LED Voltage
|
12V DC
|
|
Cap color
|
Green
|

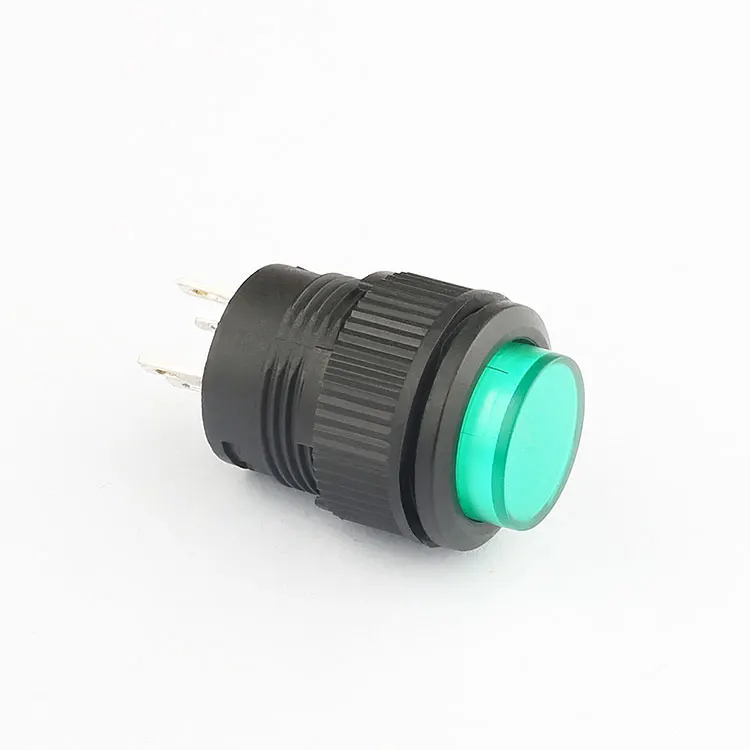

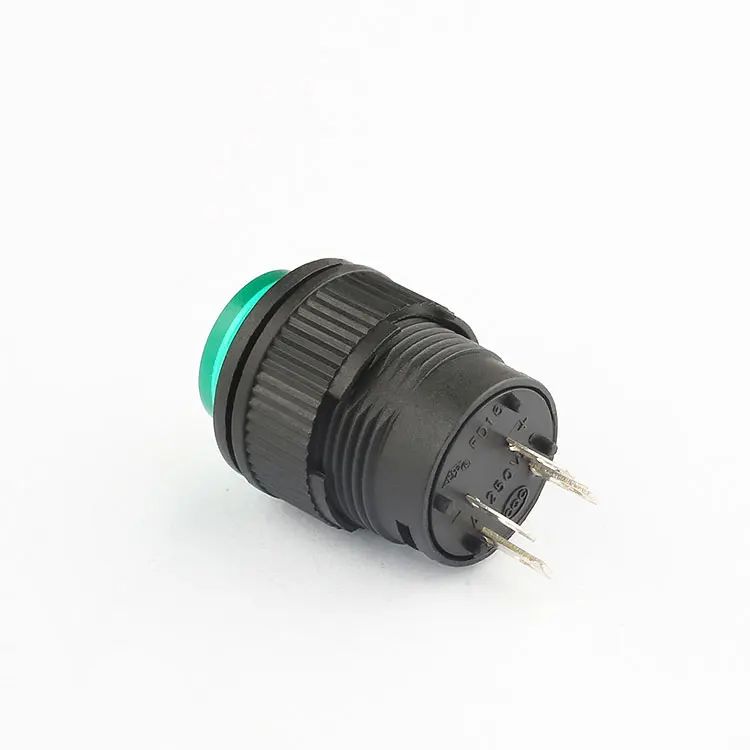

Why Choose Our 16mm Momentary Push Button Switch?
Our 16mm Momentary Push Button Switch stands out for its durability, reliability, and versatility. Designed specifically for industrial control applications, it offers a robust solution that can withstand harsh environments and frequent use. The full illuminated green cap makes it easy to locate and operate, even in low-light conditions, enhancing safety and efficiency.
What Are the Key Features of This Switch?
This switch features a single pole configuration, rated for 1A at 250V AC, with low contact resistance and high insulation resistance. It has a high dielectric strength and a long electrical life, ensuring reliable performance over time. The mechanical life is also impressive, making it a cost-effective choice for your business.
How Does Our Switch Compare to Others on the Market?
Our switch is made from high-quality plastic and features a mechanical structure and round head design, setting it apart from competitors. We offer wholesale pricing and bulk order discounts, making it an even more attractive option. Plus, as a factory supplier, we can ensure consistent quality and timely delivery, giving you peace of mind.
