Description

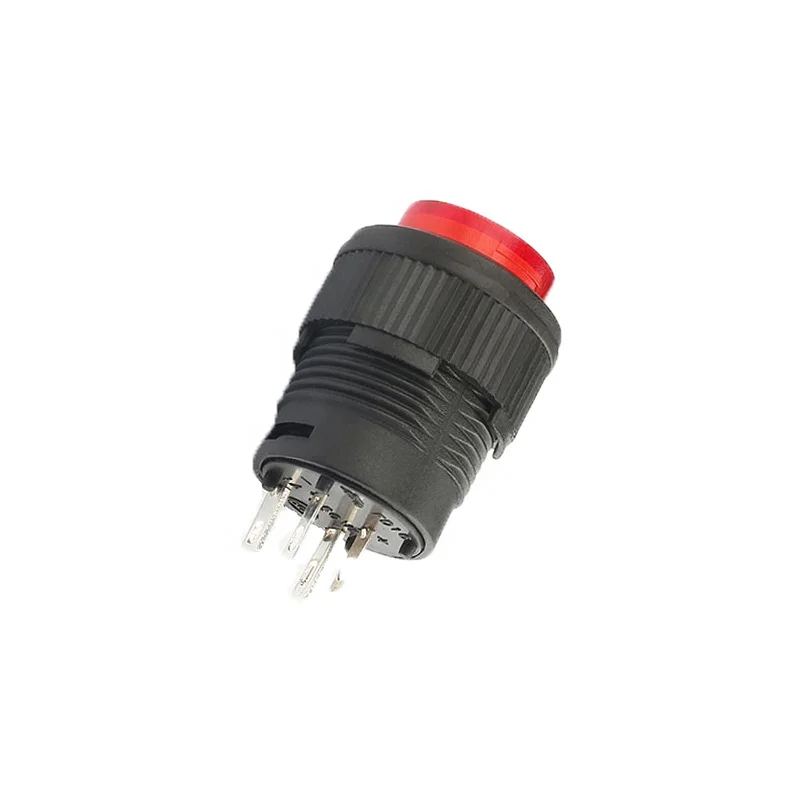

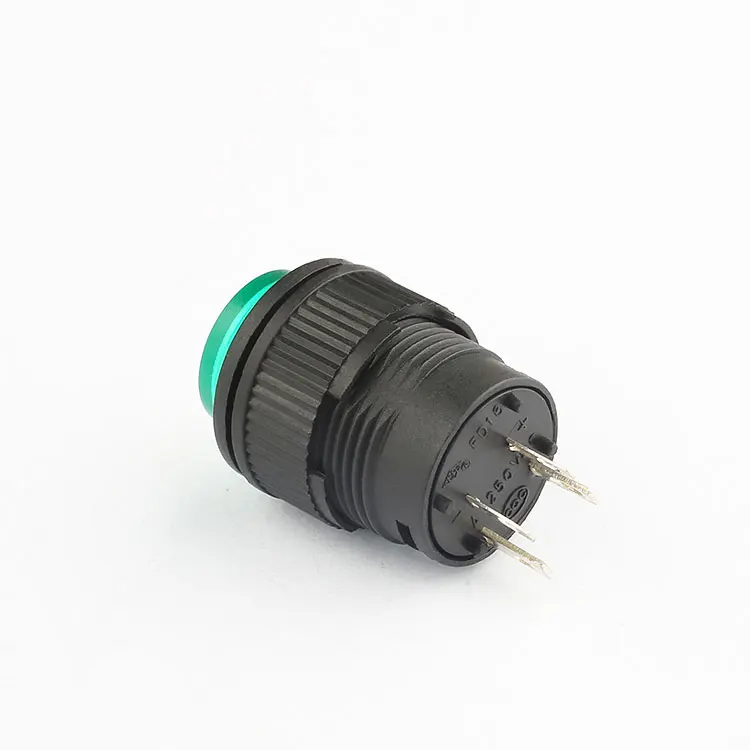

High-Quality 16mm Push Button Switch from China Factory
Welcome to our factory, a leading supplier of push button switches. We offer wholesale pricing on our CQC-certified 16mm push button switches, designed to meet the highest standards of quality and performance.
Product Specifications:
- Size: 16mm
- Max. Current: 1A
- Max. Voltage: 250VAC
- Operating Temperature: -25°C to +55°C
- Electronic Life: Moment: 10,000 cycles, Alternate: 5,000 cycles
- Mechanical Life: Moment: 50,000 cycles, Alternate: 100,000 cycles
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥100MΩ
- Dielectric Strength: 1,500V
- IP Level: IP41
- Material: Plastic
- Structure: Mechanical
- Head Type: Flat Head
- Terminal Type: Pin terminal
- LED: Yes
- Application: Industrial Control
- Certification: CQC, CE
Product Advantages:
Our push button switches stand out from the competition with their durable construction, long mechanical and electronic life, and precise contact resistance. As a factory supplier, we can offer customization options for large orders, ensuring that our switches meet your specific needs.
After-Sales Service:
We are committed to providing excellent after-sales service. If you encounter any issues with our products, our dedicated support team is here to assist you.
| Contact resistance | ≤50mΩ |
| Insulation resistance | ≥100MΩ |
| Dielectric strength | 1500v |
| Electronic life (cycles) | Moment:10000 Alternate:5000 |
| Mechanical life (cycles) | Moment:50000 Alternate:100000 |
| Operating temperature | 25T55 |
| IP code | IP40 |
| Max.Rating Current&Voltage | 1A/250V AC |
| Certification | CQC, CE |
Why Choose Our 16mm Push Button Switch?
Our 16mm push button switch is designed to withstand the rigors of industrial use, offering a long mechanical and electronic life. With precise contact resistance and high insulation resistance, it ensures reliable performance in various applications.
Factory Direct Wholesale Pricing
As a factory supplier, we offer competitive wholesale pricing on our push button switches. This allows you to save money while still getting a high-quality product.
Customization Options for Large Orders
For large orders, we can customize our push button switches to meet your specific needs. Whether it's a different color, size, or function, our team of engineers can make it happen.
