Description

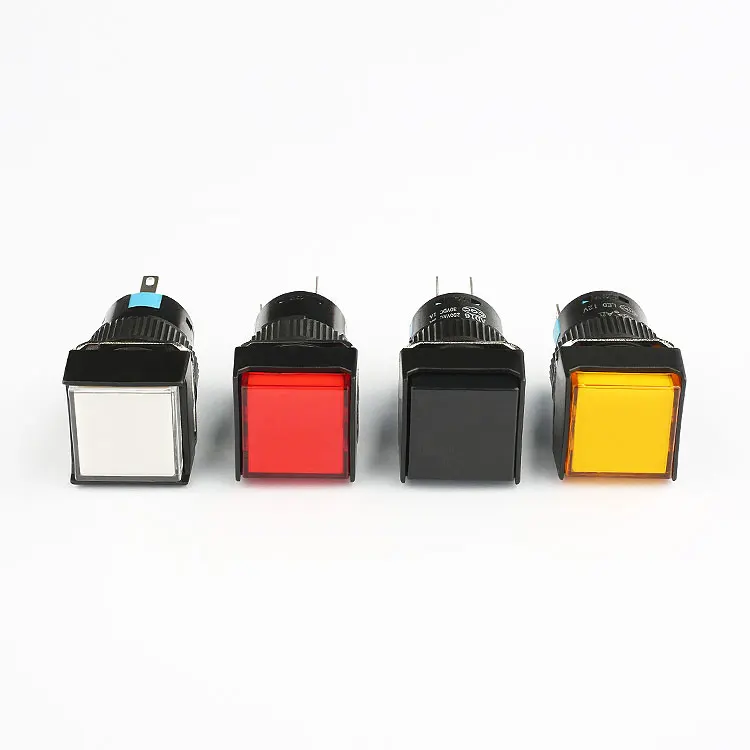

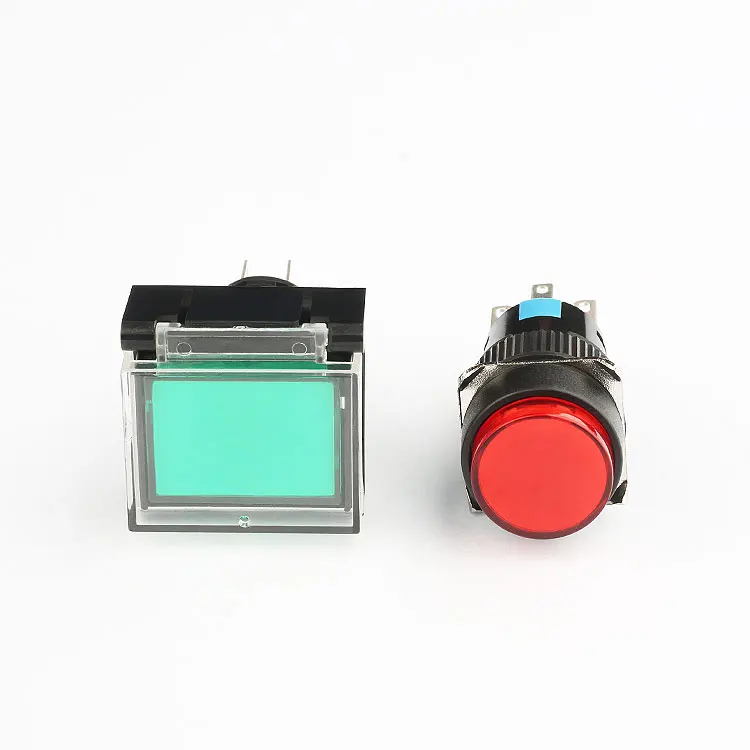

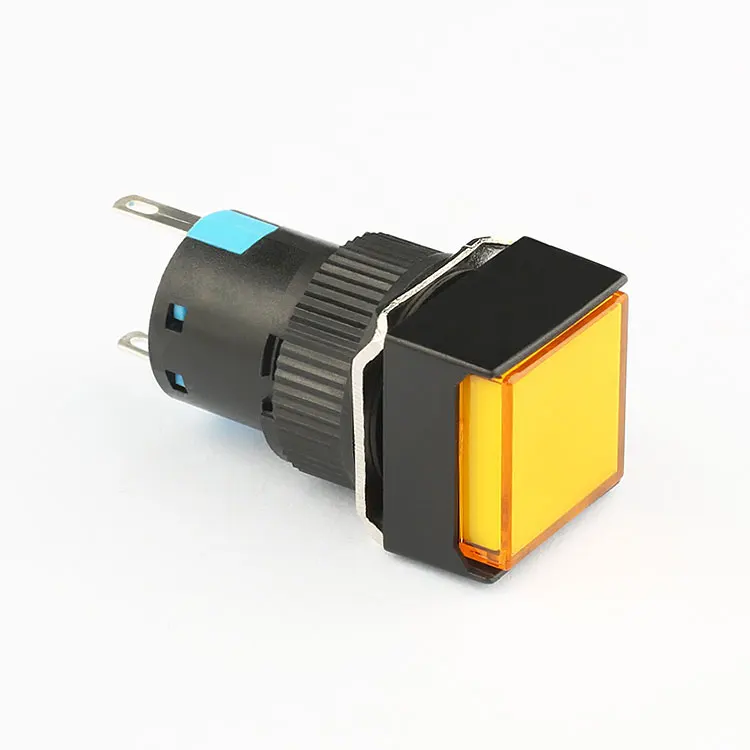

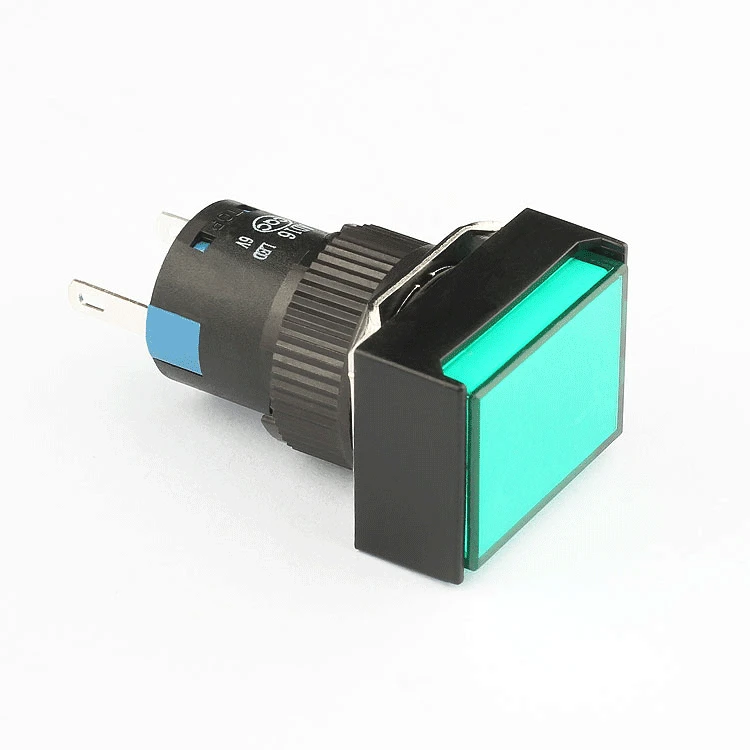

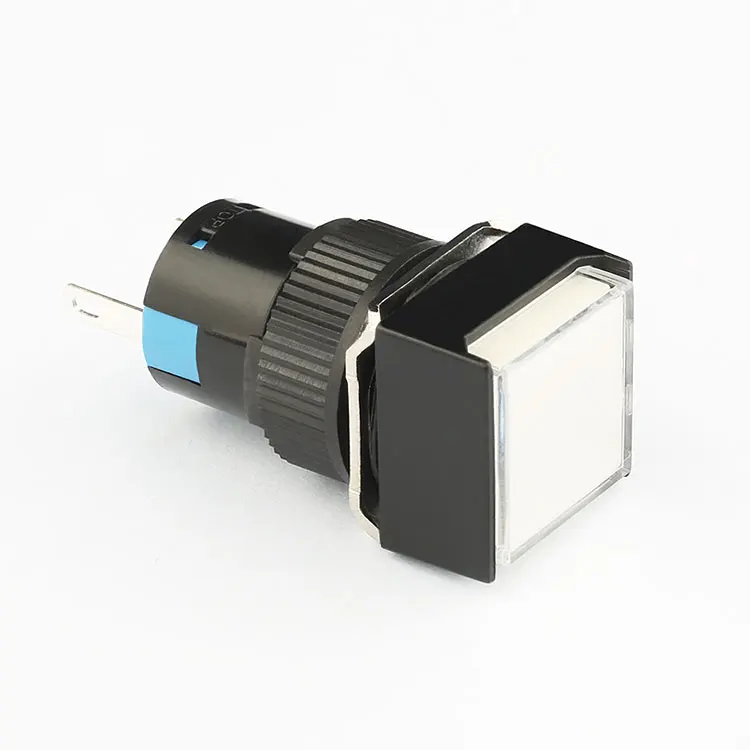

Welcome to Shining Key(SK), your trusted factory supplier for high-quality push button switches. Our AD16-112 model is a 16mm push button switch, available in single pole and double pole configurations, with options for 5 pin or 6 pin setups, and featuring normally open (NO) and normally closed (NC) contacts.
Product Specifications:
- Max. Current & Voltage: 3A at 250V AC, with indicator light options.
- Contact Resistance: ≤50mΩ, ensuring reliable performance.
- Insulation Resistance: ≥100MΩ, with 220 volt LED indicator lights available.
- Dielectric Strength: 1,500V, providing robust electrical insulation.
- Electrical & Mechanical Life: Up to 50,000 electrical cycles (momentary) and 200,000 mechanical cycles (momentary), ensuring longevity.
- Certifications: CQC, CE, and ROHS compliant, guaranteeing safety and quality.
- Operating Temperature: -5℃ to +75℃, suitable for a wide range of environments.
- Protection Level: IP40, offering basic protection against solid objects.
Product Advantages:
- Factory direct pricing, ensuring cost-effectiveness.

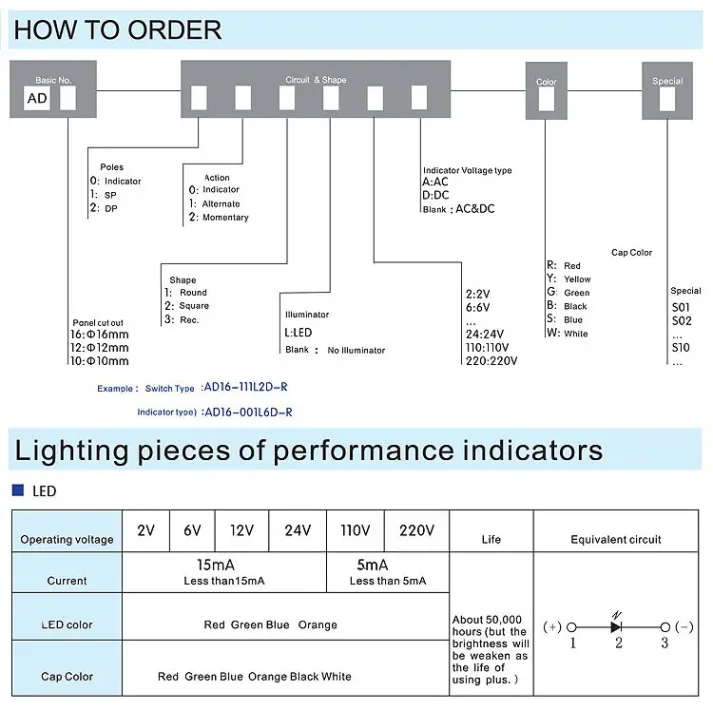

- Customizable LED voltage options (2V, 6V, 12V, 24V, 110V, 220V) to suit various applications.
- Self-locking and momentary action options, providing flexibility in use.
- Compact 16mm panel cutout, saving space in installations.
After-Sales Service: We offer comprehensive after-sales support, including technical assistance and warranty coverage, ensuring your satisfaction.
| Max. Rating Current & Voltage (Resistive Load) |
3A 250V AC indicator light |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ 220 volt led indicator lights |
| Dielectric Resistance | 1,500V |
| Electronic life(cycles) | Momentary:50,000 Alternate:25,000 |
| Mechanical life(cycles) | Momentary:200,000 Alternate:50,000 |
| Certification |
CQC , CE |
| Operating temperature | -5℃~+75℃ |
| IP code | IP40 |
Why Choose Our 16mm Push Button Switch?
Our 16mm push button switch stands out for its compact design, high durability, and customizable features. With factory direct pricing, you get exceptional value for your money. The switch is available in single pole and double pole configurations, with options for 5 pin or 6 pin setups, and features normally open (NO) and normally closed (NC) contacts, making it suitable for a wide range of applications.
Key Features and Benefits
The switch offers a high electrical and mechanical life, ensuring long-term reliability. It is CQC, CE, and ROHS compliant, guaranteeing safety and quality. With customizable LED voltage options and self-locking or momentary action, it provides flexibility in use. The compact 16mm panel cutout saves space in installations, making it ideal for industrial control, automation, and electrical equipment.
After-Sales Support and Warranty
We are committed to providing excellent after-sales support, including technical assistance and warranty coverage. Our team is always ready to help you with any questions or concerns you may have, ensuring your complete satisfaction with your purchase.
