Description
Our switch stands out from competitors with its durable plastic construction, IP44 waterproof rating, and a long mechanical life of 50,000 cycles and electrical life of 25,000 cycles. The contact resistance is ≤50mΩ, and the insulation resistance is ≥100mΩ, providing excellent electrical performance. The operating temperature range is from -5°C to +75°C, making it suitable for various environments.
We pride ourselves on our advanced production facilities, including an independent plant, injection workshop, and state-of-the-art experimental equipment. With over 60 senior engineers and strict 5S and 5M management standards in all workshops, we ensure that every switch meets the highest quality standards.
For large orders, we offer customization services to meet your specific requirements. Choose us as your trusted supplier for reliable, high-quality emergency stop switches.
|
Max.Rating Current & Voltage(Resistive Load) |
3A/250V |
|
Contact Resistance |
≤50mΩ |
|
Insulation Resistance |
≥100MΩ |
|
Dielectric Strength |
1500V |
|
Electronic Life(cycles) |
25000 |
|
Mechanical Life(cycles) |
50000 |
|
Operating temperature |
-5°c~+75°c |
|
IP code |
IP44 |
Why Choose Our Emergency Stop Switch?

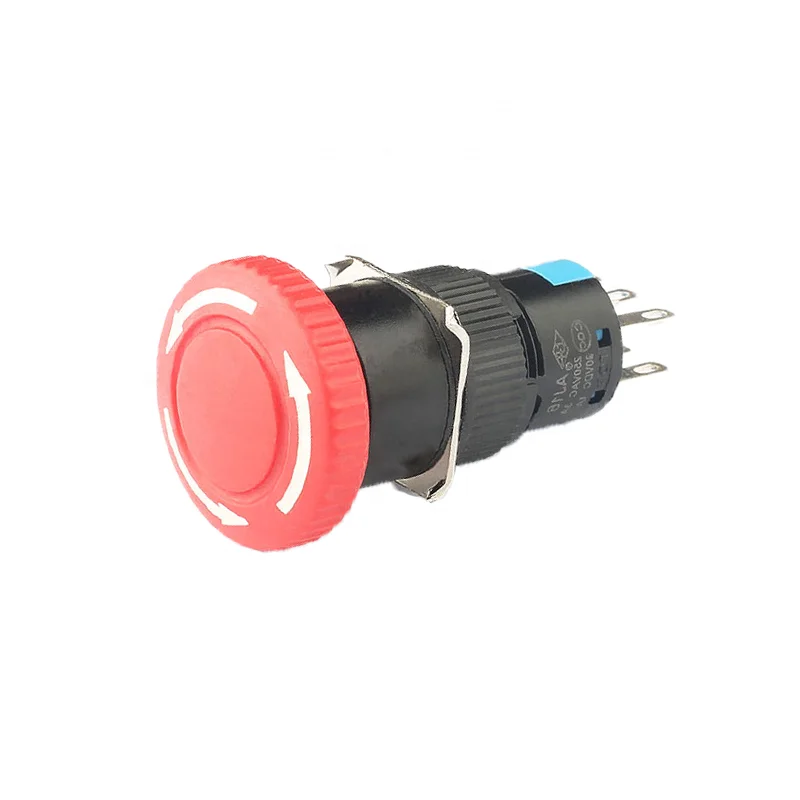

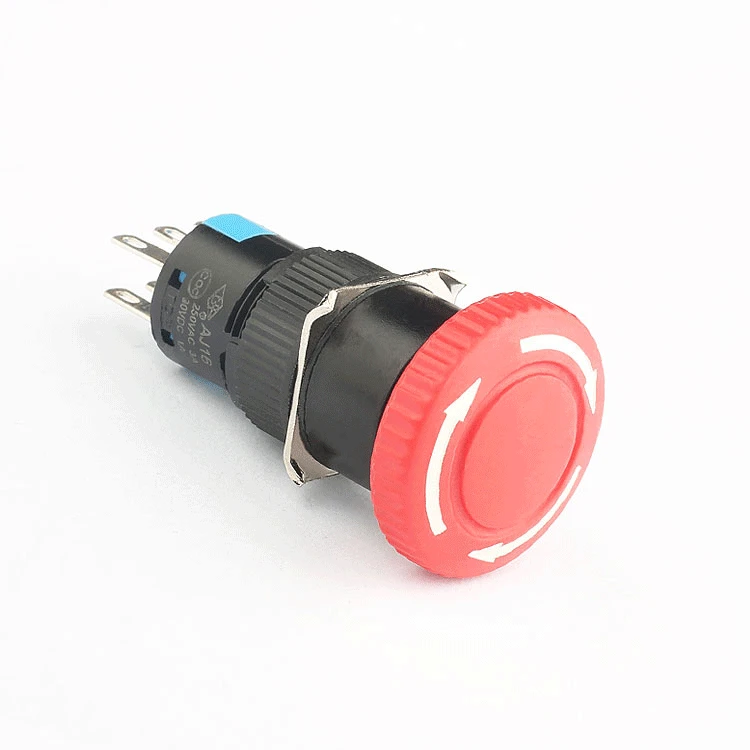

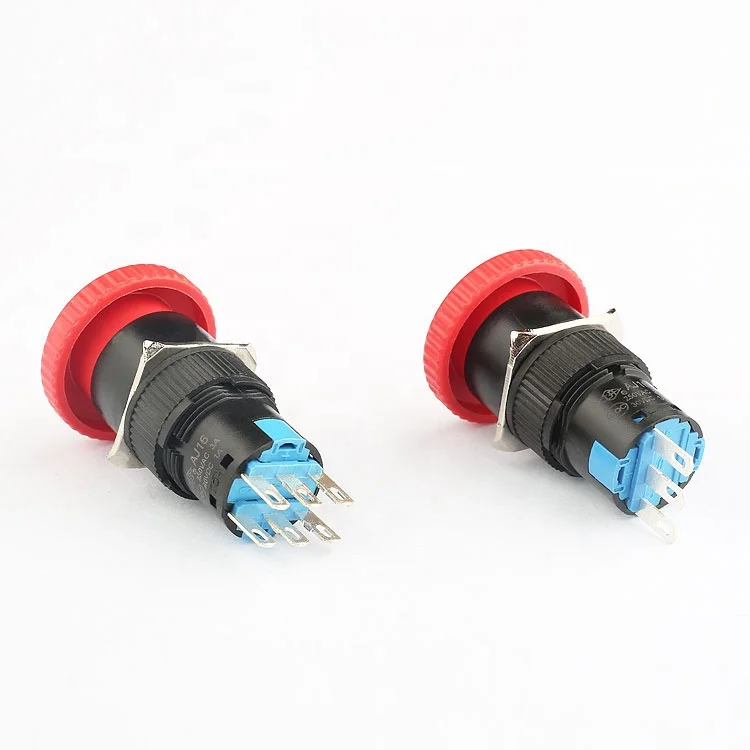

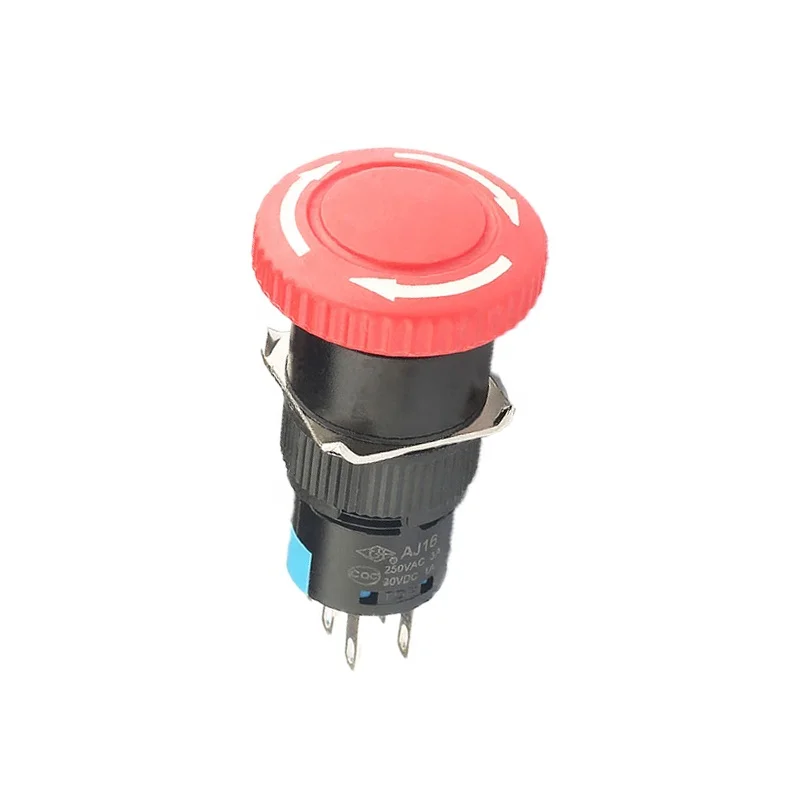

Our 16mm red emergency stop rotary switch is designed with safety and reliability in mind. Its self-locking feature ensures that once activated, it remains in the stopped position, providing an immediate halt to machinery in emergency situations. This switch is perfect for industrial applications where quick and effective shutdown is crucial.
What Makes Our Switch Stand Out?
Our switch stands out due to its durable plastic construction, IP44 waterproof rating, and long mechanical and electrical life. With a contact resistance of ≤50mΩ and insulation resistance of ≥100mΩ, it offers excellent electrical performance. Additionally, our factory's advanced production facilities and strict quality control ensure that every switch meets the highest standards.
Can We Customize the Switch?
Yes, for large orders, we offer customization services to meet your specific requirements. Whether it's a different color, size, or additional features, we can work with you to create the perfect emergency stop switch for your application.
