Description

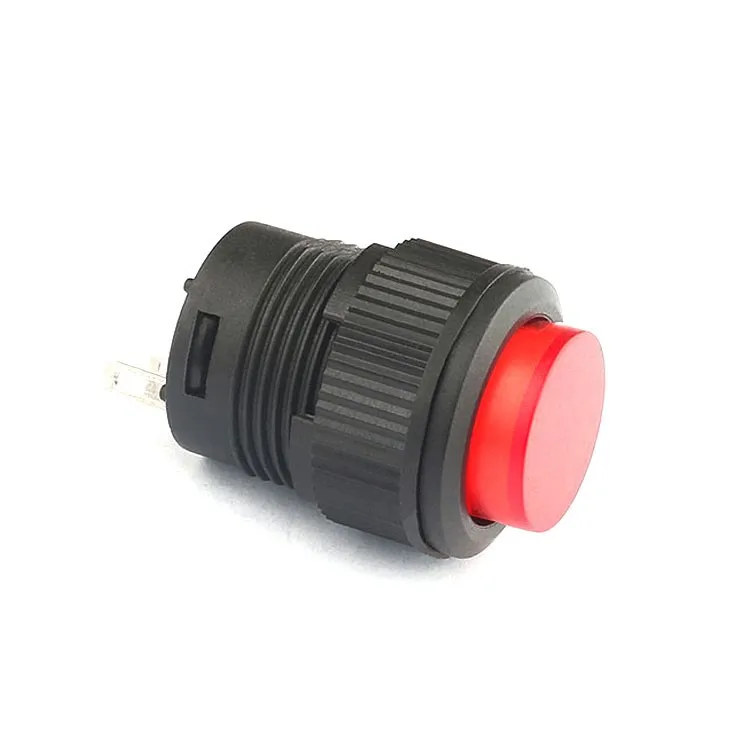

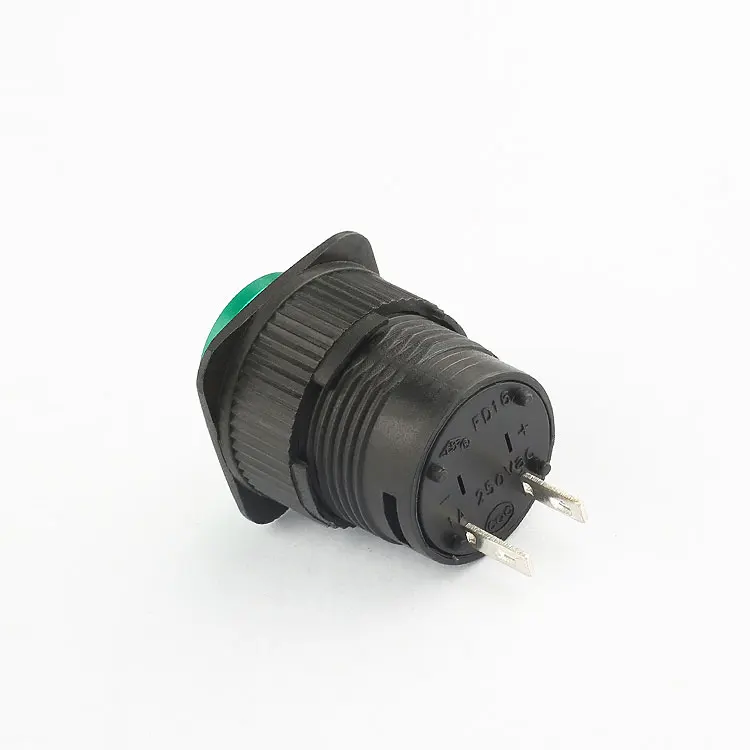

Factory Wholesale 16mm Red/Green LED Latching Push Button Switch
We are a professional factory and supplier offering wholesale prices on our high-quality 16mm red/green LED latching push button switches. These switches are designed to meet a wide range of industrial and commercial needs, providing reliable performance and durability.

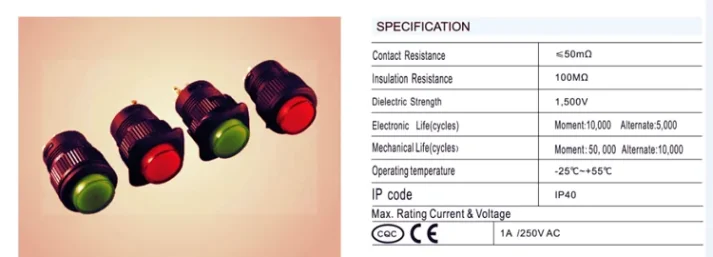

Product Specifications:
- Model Number: FD16
- Max. Current: 1A
- Max. Voltage: 250V AC
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥100MΩ
- Dielectric Strength: 1500V
- Electronic Life (Cycles): Moment: 10,000, Alternate: 5,000
- Mechanical Life (Cycles): Moment: 50,000, Alternate: 100,000
- Operating Temperature: -25℃ to +55℃
- IP Code: IP40
- LED Colors: Red, Green (other colors available upon request)
- Certification: CQC, CE
Product Advantages:
Our latching push button switches stand out from the competition with their high-quality construction, long mechanical and electronic life, and customizable voltage options. The bright red/green LED indicators provide clear visual feedback, making them ideal for use in control panels, machinery, and other applications where reliable switching is essential.
After-Sales Service:
We offer comprehensive after-sales service, including technical support and warranty coverage. As a factory and supplier, we are committed to providing our customers with the best possible products and service.
|
Contact resistance |
≤50mΩ |
|
Insulation resistance |
≥100MΩ |
|
Dielectric strength |
1500v |
|
Electronic life (cycles) |
Moment:10000 Alternate:5000 |
|
Mechanical life (cycles) |
Moment:50000 Alternate:100000 |
|
Operating temperature |
25T55 |
|
IP code |
IP40 |
|
Max.Rating Current&Voltage |
1A/250V AC |
|
Certification |
CQC, CE |
Why Choose Our 16mm Red/Green LED Latching Push Button Switch?
Our 16mm red/green LED latching push button switch is designed for reliability and durability, making it an ideal choice for a wide range of industrial and commercial applications. The bright LED indicators provide clear visual feedback, ensuring easy operation even in low-light conditions.
What Are the Key Features of Our Switch?
Key features include a long mechanical and electronic life, customizable voltage options, and compliance with CQC and CE certifications. The switch's latching function ensures stable operation, while the IP40 protection level provides adequate protection against dust and moisture.
How Does Our Switch Compare to Others on the Market?
Our switch stands out with its high-quality construction, long life, and customizable features. As a factory and supplier, we offer wholesale prices, ensuring that you get the best value for your money. Additionally, our comprehensive after-sales service provides peace of mind, knowing that we are here to support you every step of the way.
