Description
Key specifications include a max current of 1A, max voltage of 250V AC, IP40 protection level, and a long electrical life of 5000 cycles and mechanical life of 10000 cycles. The switch fits a 16mm panel cut-out size and accommodates panel thicknesses from 0.5mm to 6.0mm.
What sets our product apart is its durability, reliability, and the convenience of our factory-direct supply. We offer excellent after-sales service, ensuring your satisfaction. Choose our switch for a cost-effective, high-performance solution to your electrical control needs.
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
Sk(Shangkai)
|
|
Model Number
|
FD16-111L24D-R
|
|
Protection Level
|
IP40
|
|
Max. Current
|
1A
|
|
Max. Voltage
|
250V AC
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistence
|
≥100MΩ
|
|
Dielectric Strength
|
1500V
|
|
Operating Temperature
|
25T55
|
|
Electrical Life
|
5000
|
|
Mechanical Life
|
10000
|
|
Panel cut-out size
|
16mm
|
|
Panel thickness
|
0.5-6.0mm
|
|
LED Voltage
|
24V DC
|
|
Cap color
|
Red
|

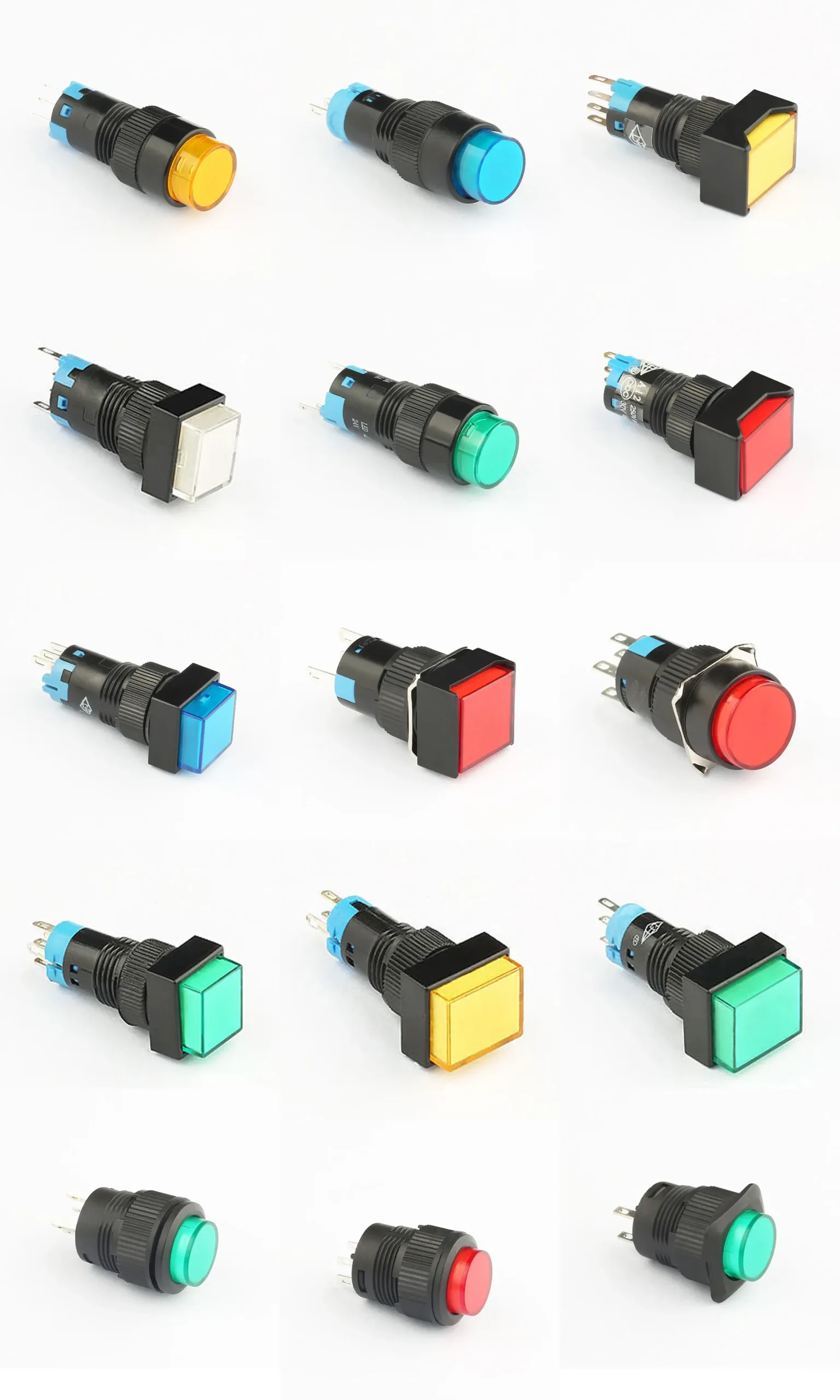

Why Choose Our 16mm Red LED Self-Locking Push Button Switch?
Our switch stands out with its durable construction, reliable self-locking mechanism, and clear red LED indication. Designed for a wide range of voltages, it's perfect for various applications, from industrial machinery to home appliances.
What Are the Key Advantages of Our Product?
As a factory-direct supplier, we offer competitive wholesale prices. The switch boasts a long electrical and mechanical life, ensuring durability and reliability. Its IP40 protection level makes it suitable for many environments.
How Does Our After-Sales Service Support You?
We pride ourselves on excellent after-sales service. If you encounter any issues or have questions, our dedicated team is here to assist you, ensuring your satisfaction and peace of mind.
