Description

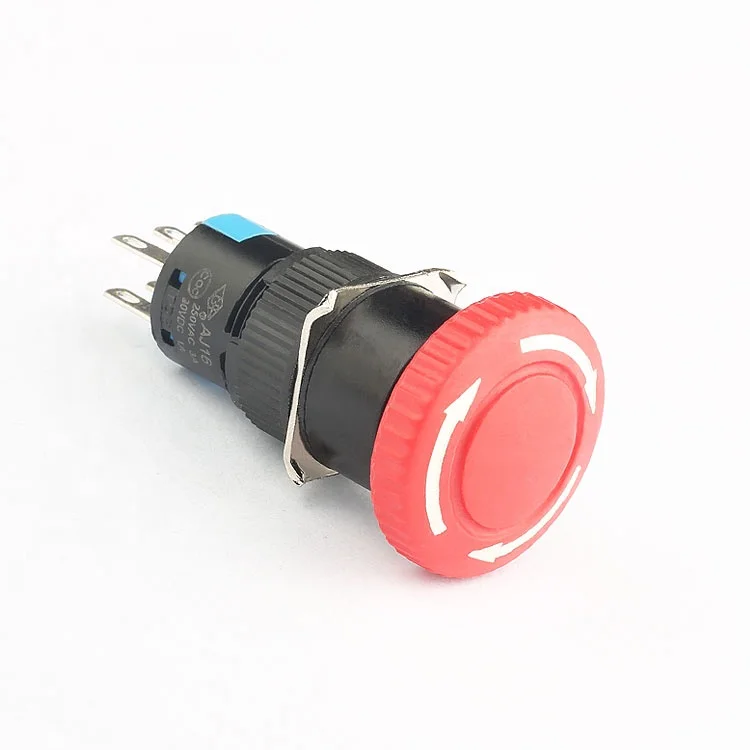

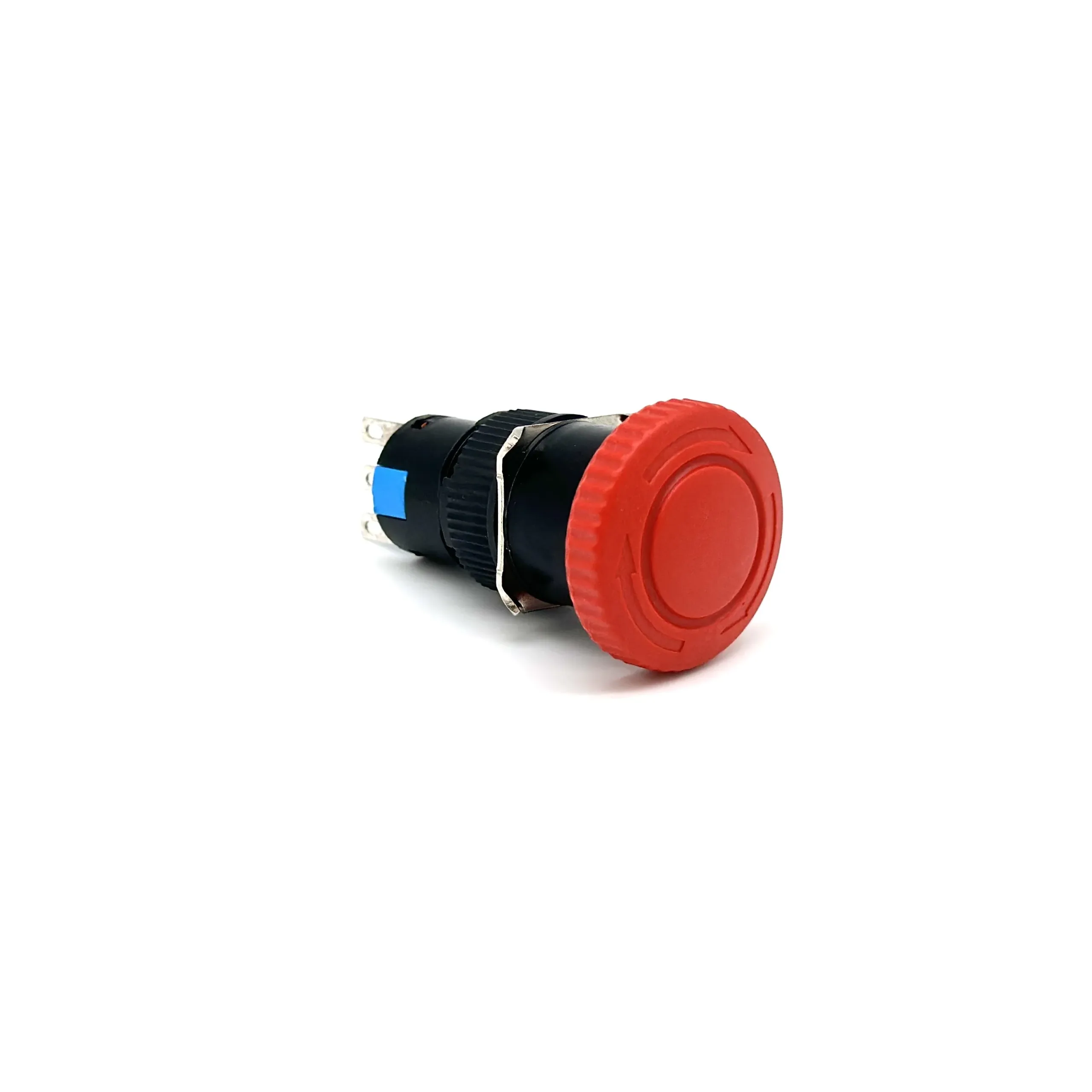

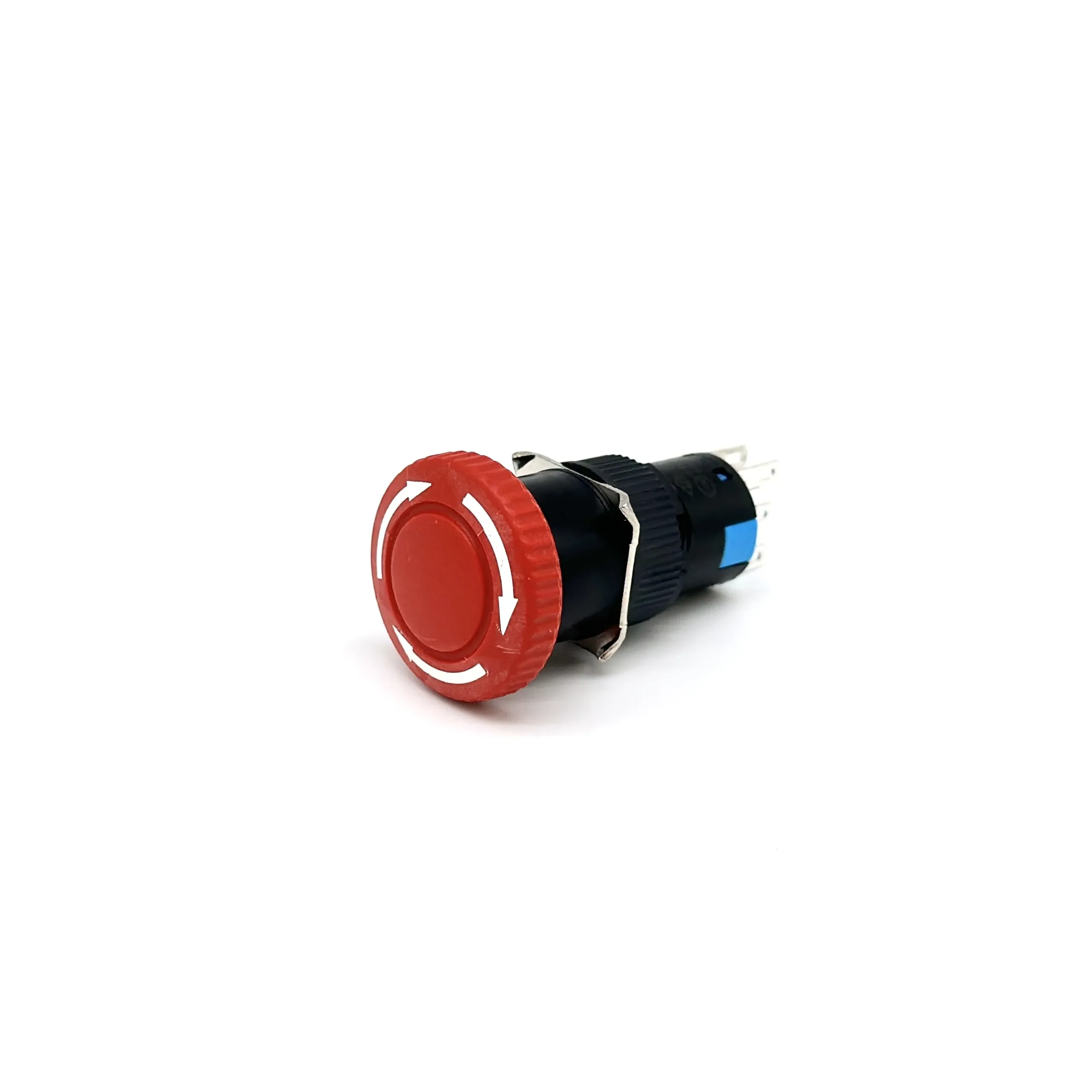

16mm Round Red Mushroom Emergency Stop Push Button Switch
As a leading factory and supplier, we’re excited to present our high-quality 16mm Round Red Mushroom Emergency Stop Push Button Switch. This switch is an essential safety device designed to quickly halt machinery operations in emergency situations, ensuring the safety of personnel and equipment.
Product Specifications
- Max. Current: 3A
- Max. Voltage: 250V
- Place of Origin: Shanghai, China
- Brand Name: Yongxing
- Model Number: AJ16
- LED: NO
- Application: Electric, Industrial Control
- Material: High-quality plastic
- Structure: Electronic
- Head Type: Round Head
- Terminal Type: Pin terminal
- IP Level: IP65 (waterproof and dustproof)
- Switch Combination: 1NO
- Color: Bright Red for high visibility
- Dielectric Strength: 1500V
- Size: 16mm
- Life: 25,000 cycles
- Certification: CQC CE
Product Advantages
Our emergency stop switch stands out from the competition with its robust construction, high IP rating for enhanced durability, and long lifecycle. The bright red color ensures it’s easily identifiable in emergency situations. As a factory supplier, we offer competitive wholesale prices and ensure consistent quality.
After-sales Service
We provide comprehensive after-sales service, including technical support and warranty coverage. Our goal is to ensure your satisfaction and the reliable operation of our products.
| Max.Rating Current & Voltage(Resistive Load) | 8A /125V AC 0.2A/250V DC 5A/250V AC 6A/24V DC emergency stop switch |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1000 MΩ |
| Dielectric Strength | 1500V button switch |
| Electronic Life(cycles) | 10000 |
| Mechanical Life(cycles) | 100000 push button switch |
| Operating temperature | -25°c~+55°c |
| IP code |
IP40 |
What is an Emergency Stop Switch?
An emergency stop switch, also known as an 'emergency button' or 'stop button', is a critical safety device designed to quickly halt machinery operations in emergency situations. By pressing this button, users can immediately implement protection measures, ensuring the safety of personnel and equipment.
Why Choose Our 16mm Red Mushroom Emergency Stop Switch?
Our switch stands out with its high-quality plastic construction, bright red color for high visibility, and IP65 rating for waterproof and dustproof performance. With a long lifecycle of 25,000 cycles and CQC CE certification, it offers reliable operation and peace of mind. As a factory supplier, we offer competitive wholesale prices and comprehensive after-sales service.
What Are the Applications of This Switch?
This switch is ideal for electric and industrial control applications, where machinery safety is paramount. Its robust design and high IP rating make it suitable for use in harsh environments, ensuring reliable operation even in challenging conditions.
