Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(Shangkai)
|
|
Model Number
|
AY16-111-2
|
|
Protection Level
|
IP40
|
|
Max. Current
|
3A
|
|
Max. Voltage
|
250V AC
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistence
|
≥100MΩ
|
|
Dielectric Strength
|
1500V
|
|
Operating Temperature
|
25T55
|
|
Electrical Life
|
25000
|
|
Mechanical Life
|
50000
|
|
Panel cut out
|
16mm
|
|
Panel thickness
|
0.5-6.0mm
|
|
Position
|
2 Positions,1NO+1NC
|

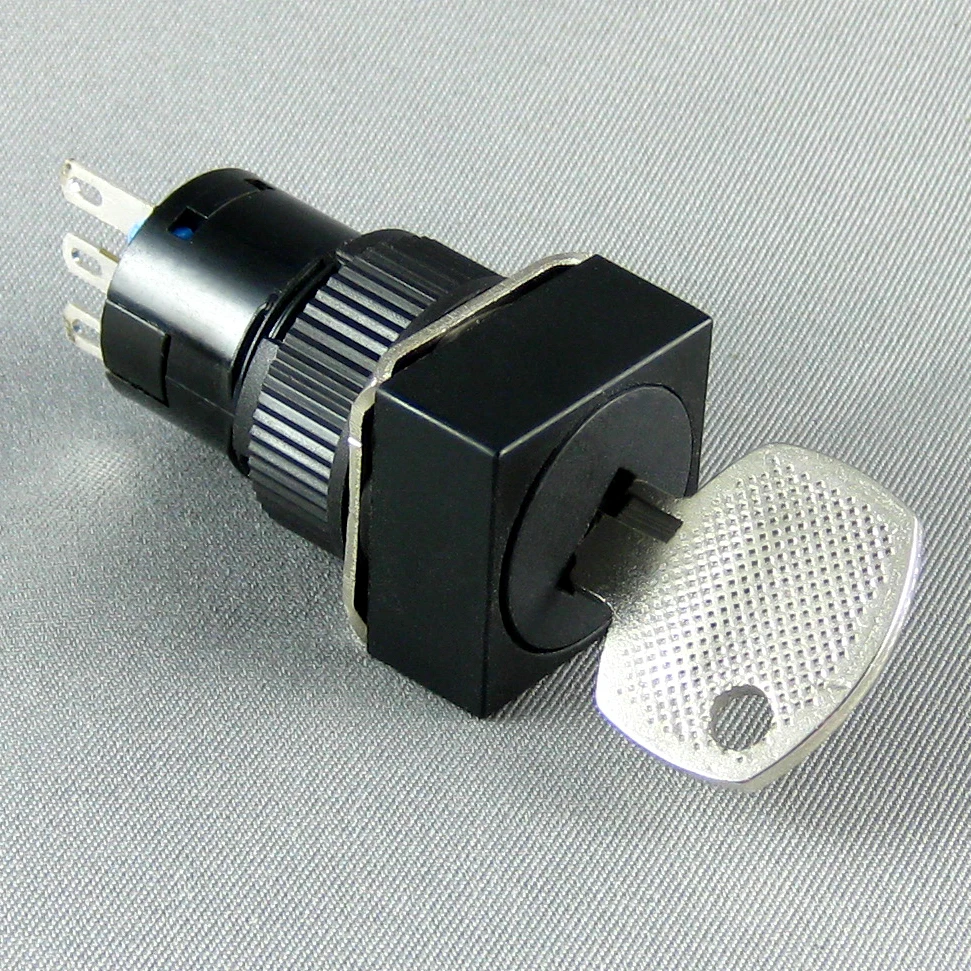

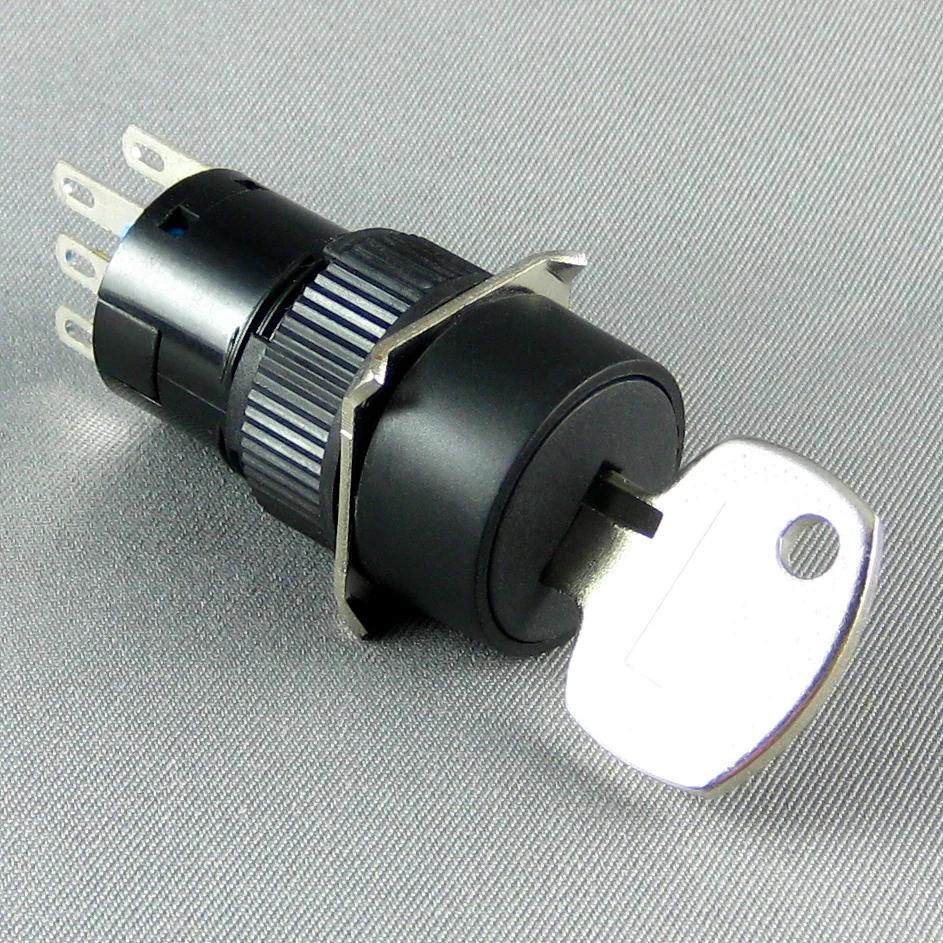

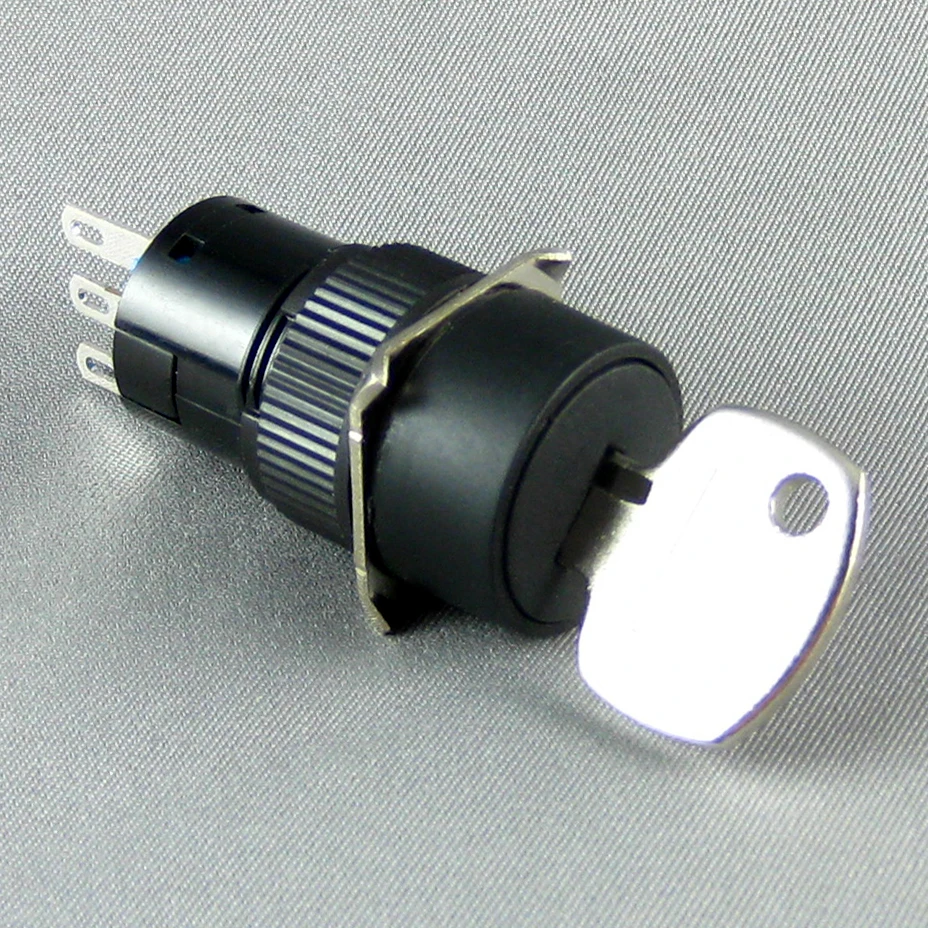

Why Choose Our 16mm Rotary Key Selector Switch?
Our 16mm Rotary Key Selector Switch stands out for its exceptional quality and durability. Designed specifically for industrial control applications, it offers reliable performance even in harsh environments. With a factory-direct supplier, you can enjoy wholesale pricing without compromising on quality.
What Are the Key Features of Our Switch?
Our switch features 3 pins, 2NO 2NC contacts, and a rectangle button for easy operation. It has a protection level of IP40, ensuring it can withstand dust and moisture. With a maximum current of 3A and a maximum voltage of 250V AC, it provides safe and efficient electrical connections. Additionally, its low contact resistance and high insulation resistance contribute to excellent electrical performance.
How Does Our Switch Compare to Others on the Market?
Our Rotary Key Selector Switch offers several advantages over competitors. Its 180° rotation range and the option for 2 or 3 positions provide greater flexibility in application. With a mechanical life of 50,000 cycles and an electrical life of 25,000 cycles, it outlasts many other switches on the market. Plus, as a factory supplier, we can offer competitive pricing and ensure timely delivery.
