Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
Sk(Shangkai)
|
|
Model Number
|
FD16-111L24D-R
|
|
Protection Level
|
IP40
|
|
Max. Current
|
1A
|
|
Max. Voltage
|
250V AC
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistence
|
≥100MΩ
|
|
Dielectric Strength
|
1500V
|
|
Operating Temperature
|
25T55
|
|
Electrical Life
|
5000
|
|
Mechanical Life
|
10000
|
|
Panel cut-out size
|
16mm
|
|
Panel thickness
|
0.5-6.0mm
|
|
LED Voltage
|
24V DC
|
|
Cap color
|
Red
|

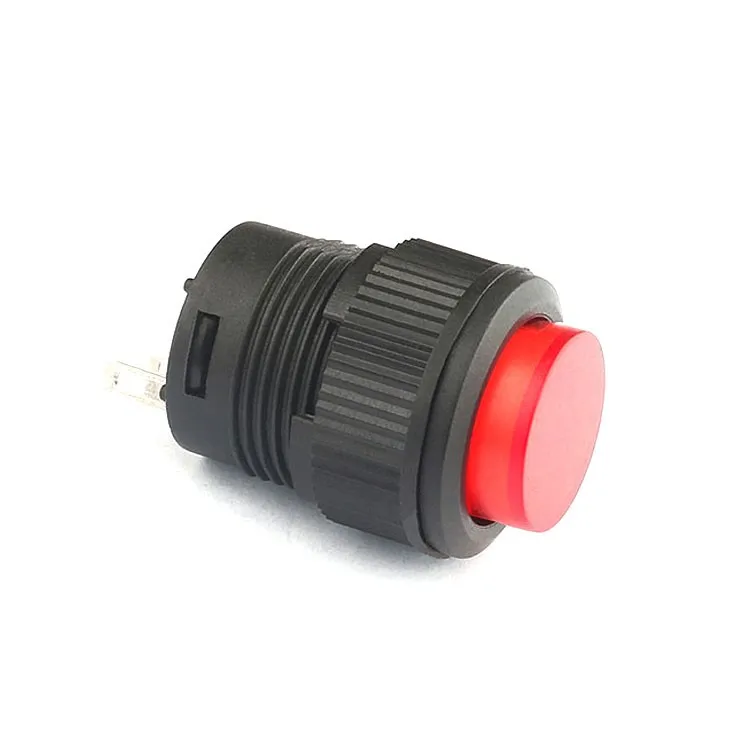

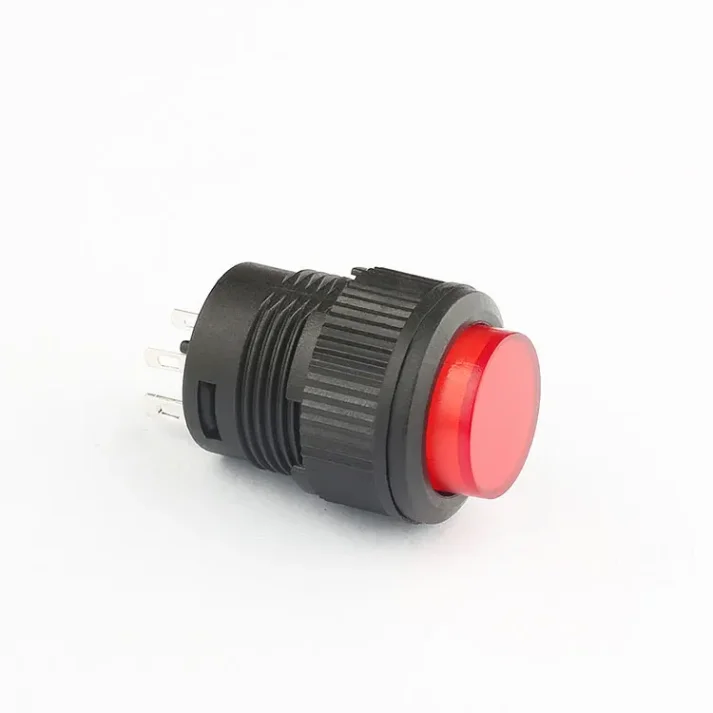

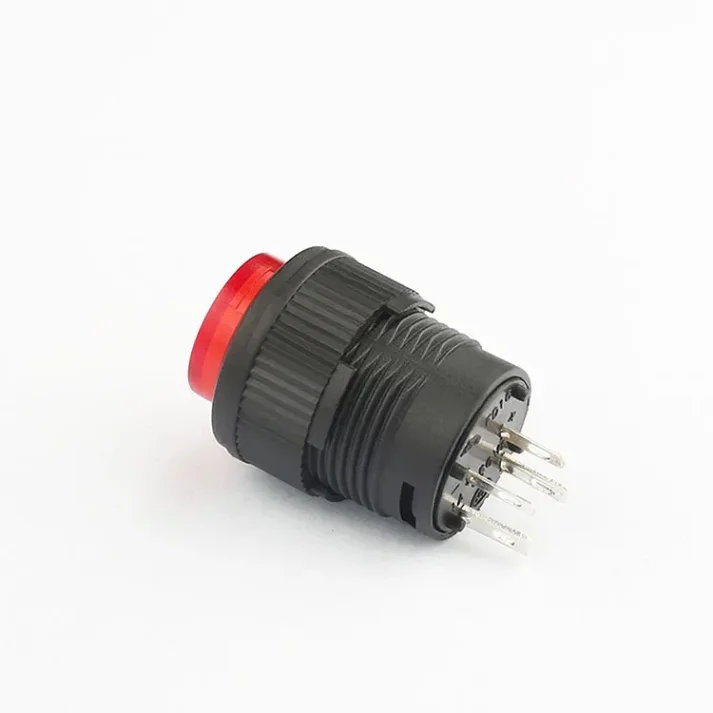

Why Choose Our 16mm Round LED Push Button Switch?
Our 16mm Round LED Push Button Switch is a high-quality, factory-direct product that offers durability, reliability, and affordability. With a full illuminated design and a red LED, it's easy to locate and use in low-light conditions. The self-locking feature ensures stable operation, making it ideal for a wide range of applications, including home appliances and electrical systems.
What Are the Key Features of Our Switch?
Our switch boasts a maximum current of 1A and a maximum voltage of 250V AC, making it suitable for various electrical setups. It has a mechanical life of 10,000 cycles and an electrical life of 5,000 cycles, ensuring long-lasting performance. The IP40 protection level provides dust resistance, and the adjustable LED voltage (2V, 6V, 12V, 24V, 110V, 220V) offers flexibility in different applications.
How Does Our Switch Stand Out from Competitors?
Our switch stands out with its excellent contact resistance (≤50mΩ) and insulation resistance (≥100MΩ), ensuring safety and efficiency. As a factory direct supplier and wholesaler, we offer unbeatable prices and excellent customer service. Choose our switch for your next project and experience the difference in quality and value.
